Keyless Entry Module
Keyless Entry Module

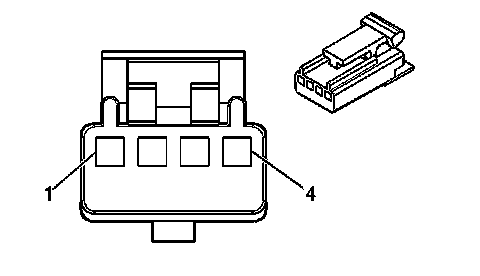

Remote Function Connector End Views

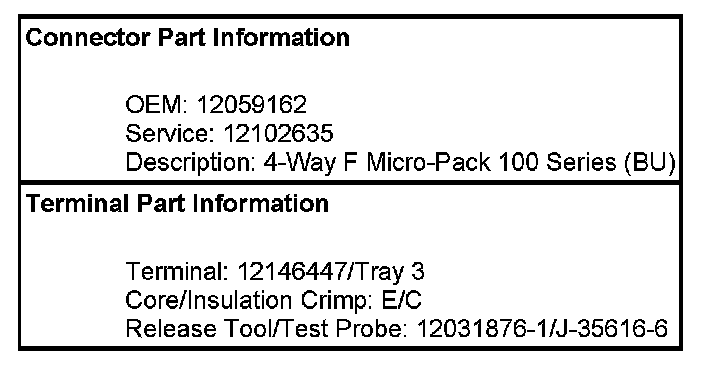

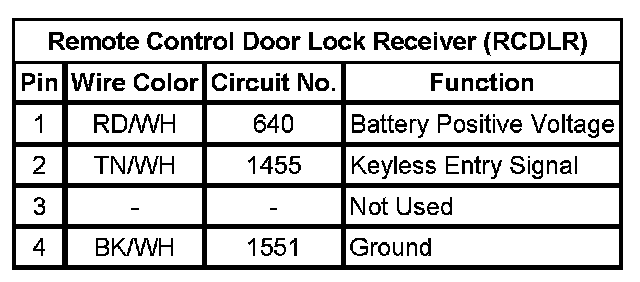

Remote Control Door Lock Receiver (RCDLR)
Tire Pressure Monitor (TPM) Module:
