Home >> Chevrolet >> 2007 >> Uplander V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module



Engine Control Module Connector End Views

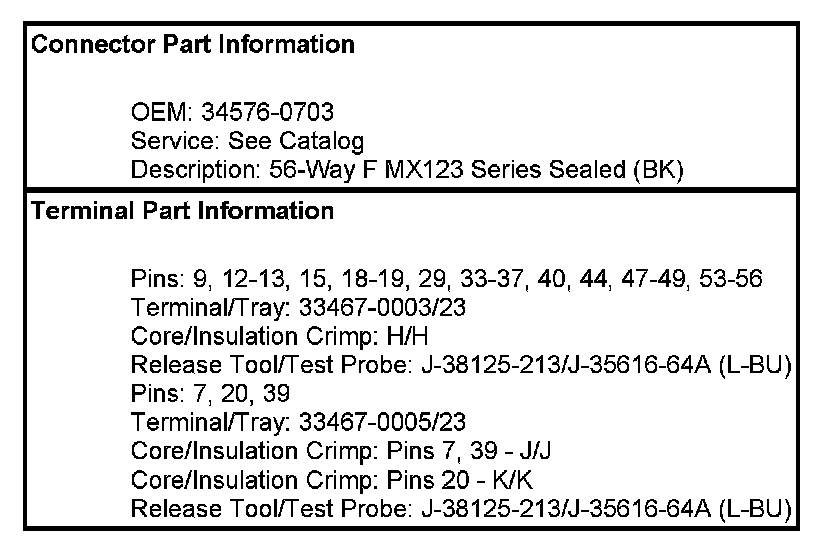

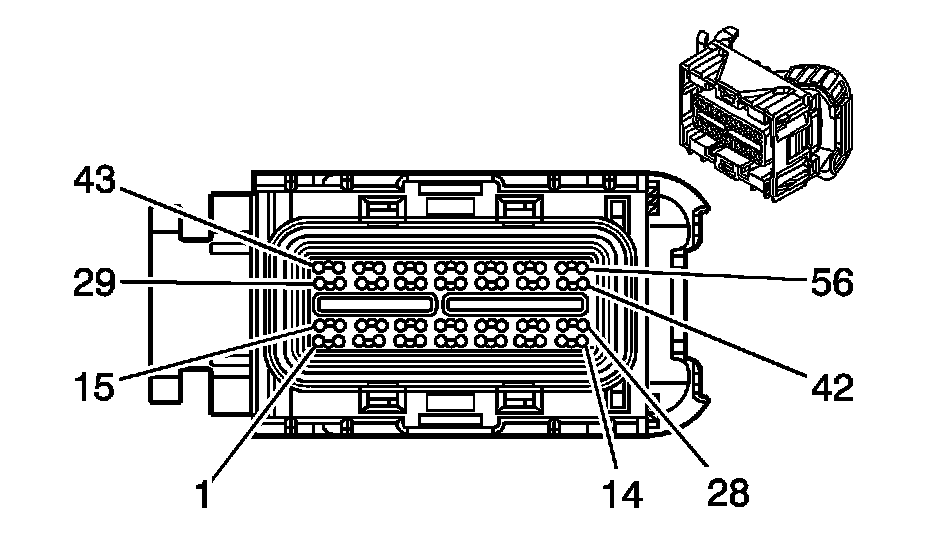

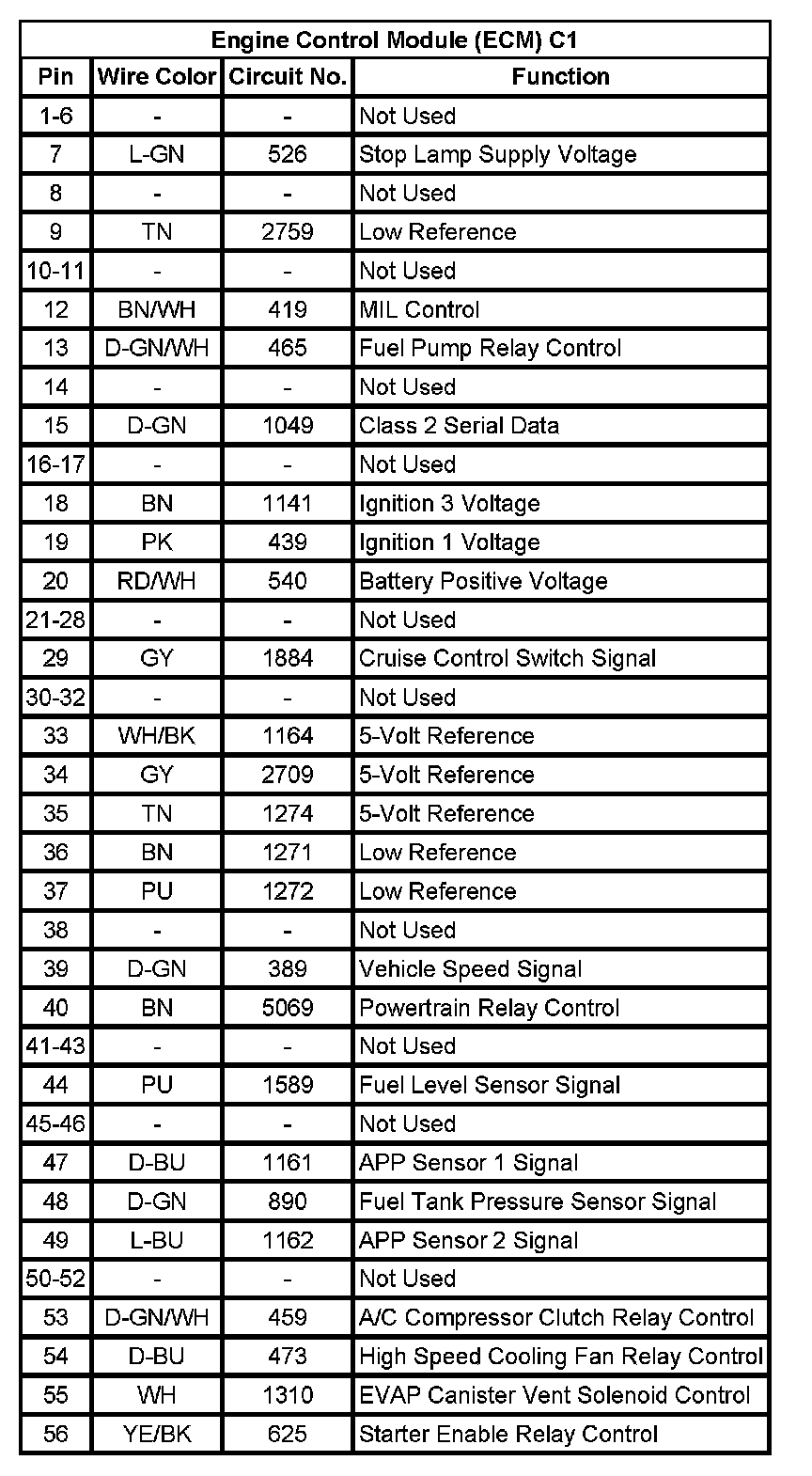

Engine Control Module (ECM) C1

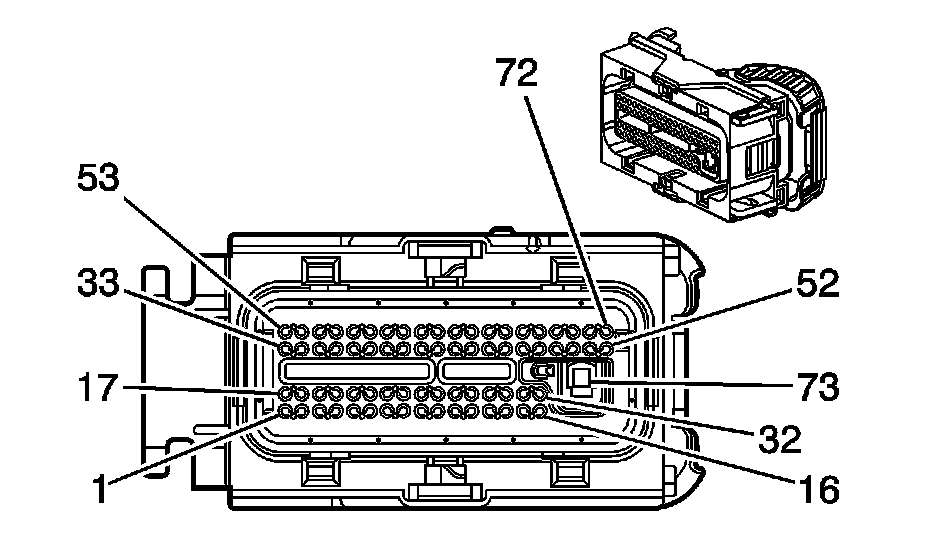

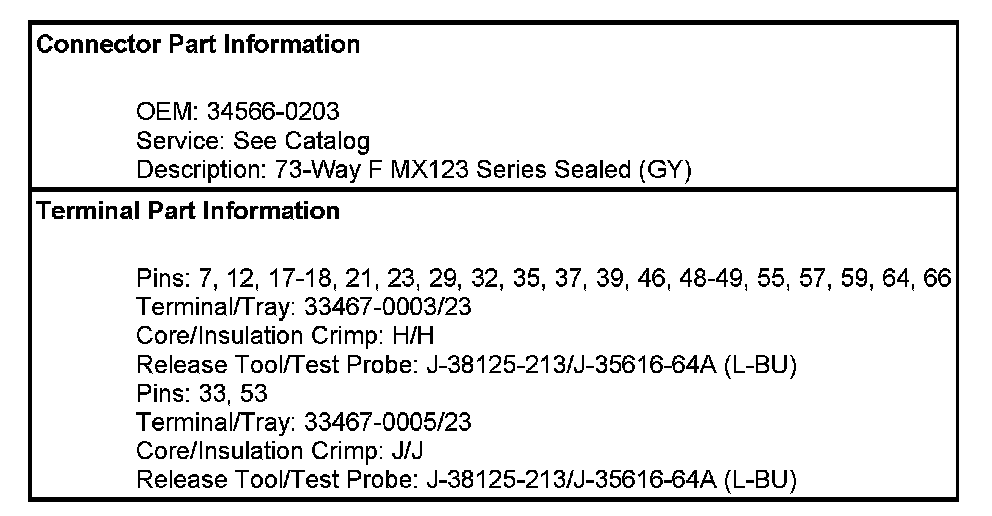

Engine Control Module (ECM) C2

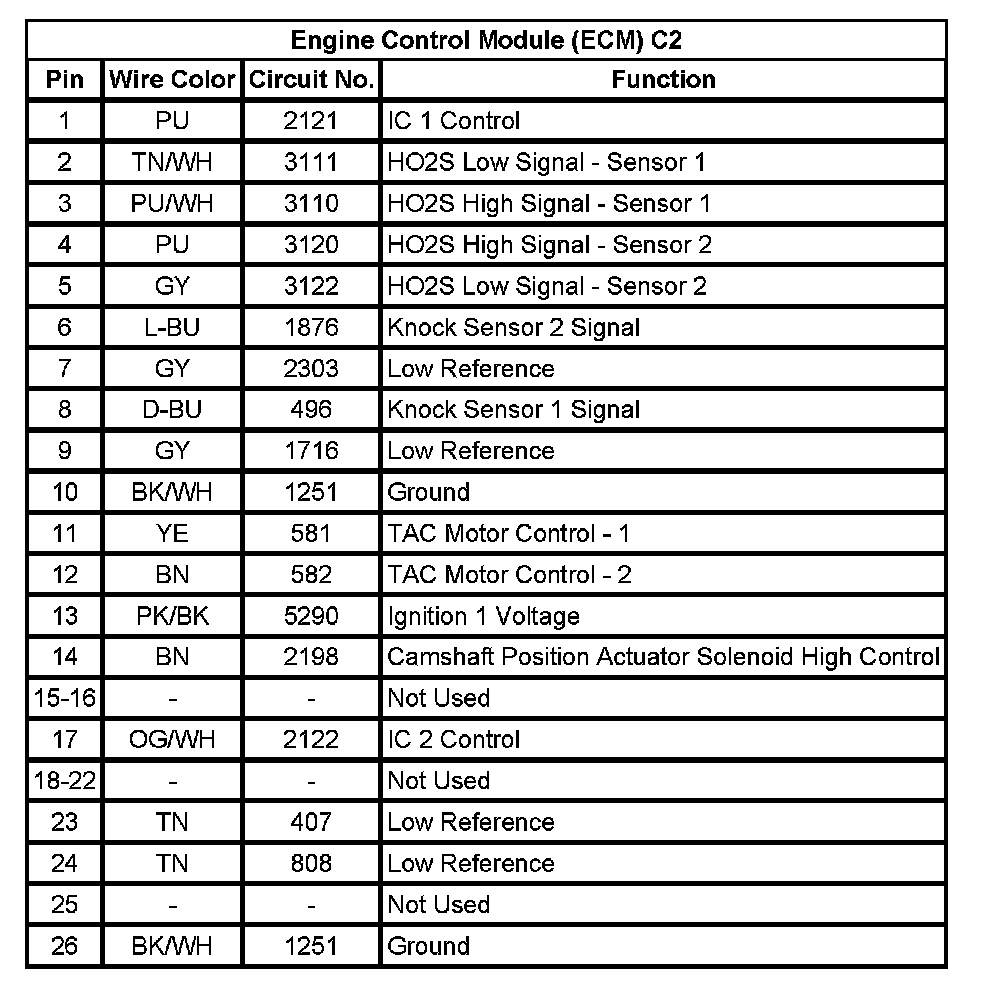

Engine Control Module (ECM) C2 (Pin 1 To 26):

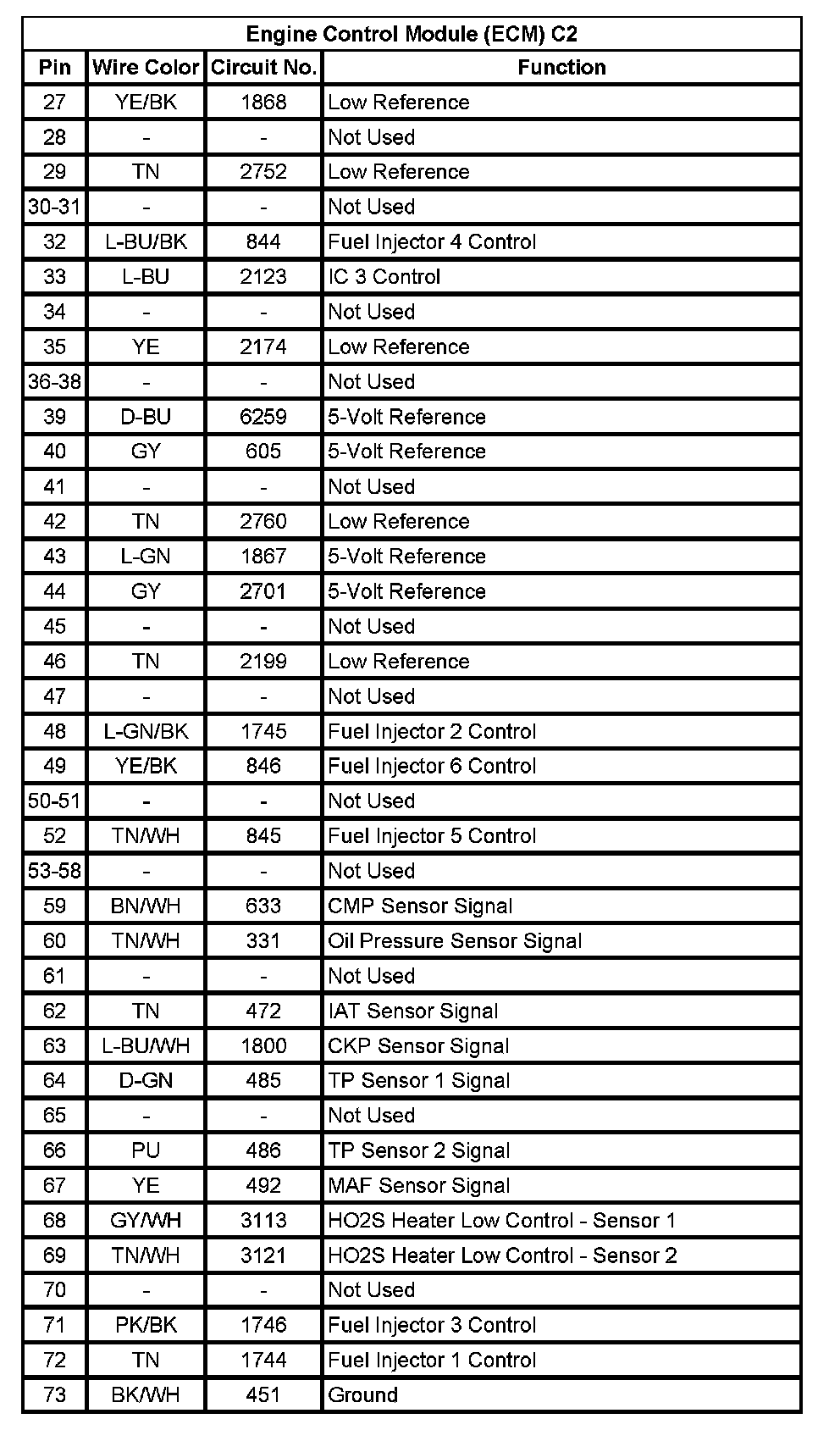

Engine Control Module (ECM) C2 (Pin 27 To 73):

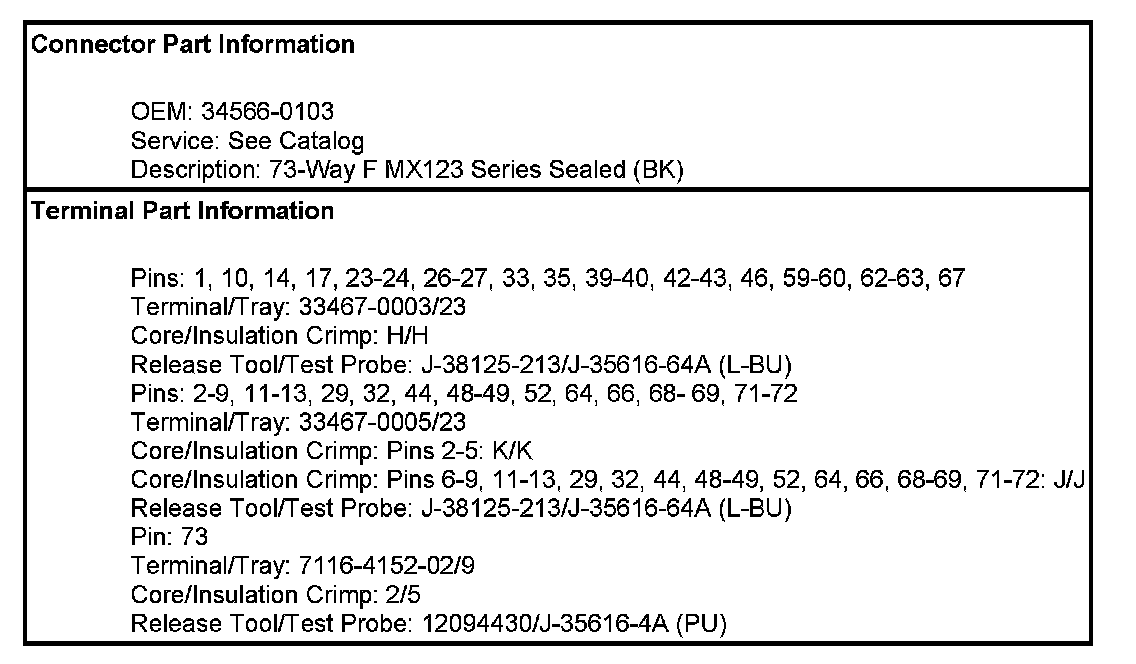

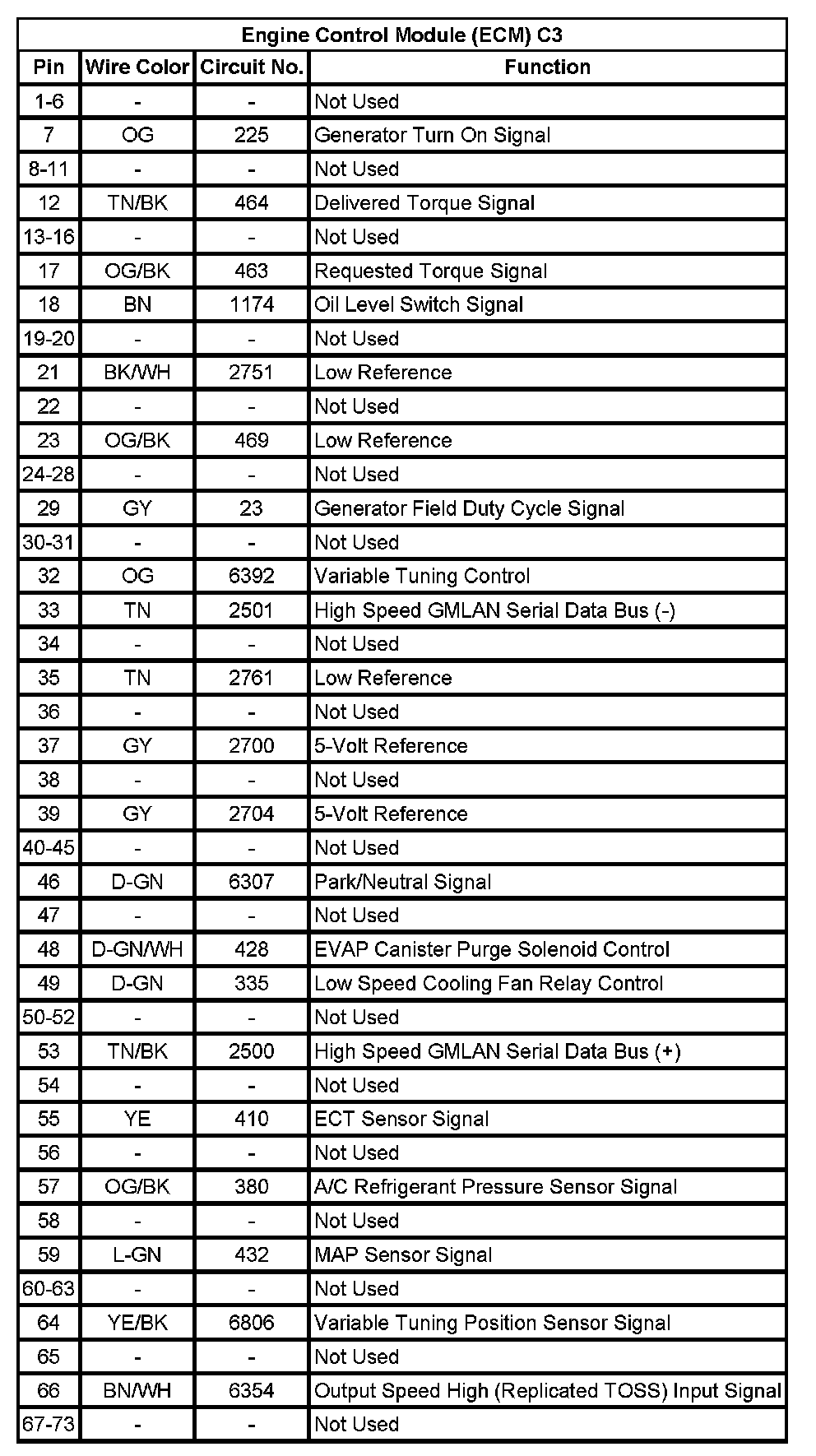

Engine Control Module (ECM) C3
