Home >> Chevrolet >> 2007 >> Uplander V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

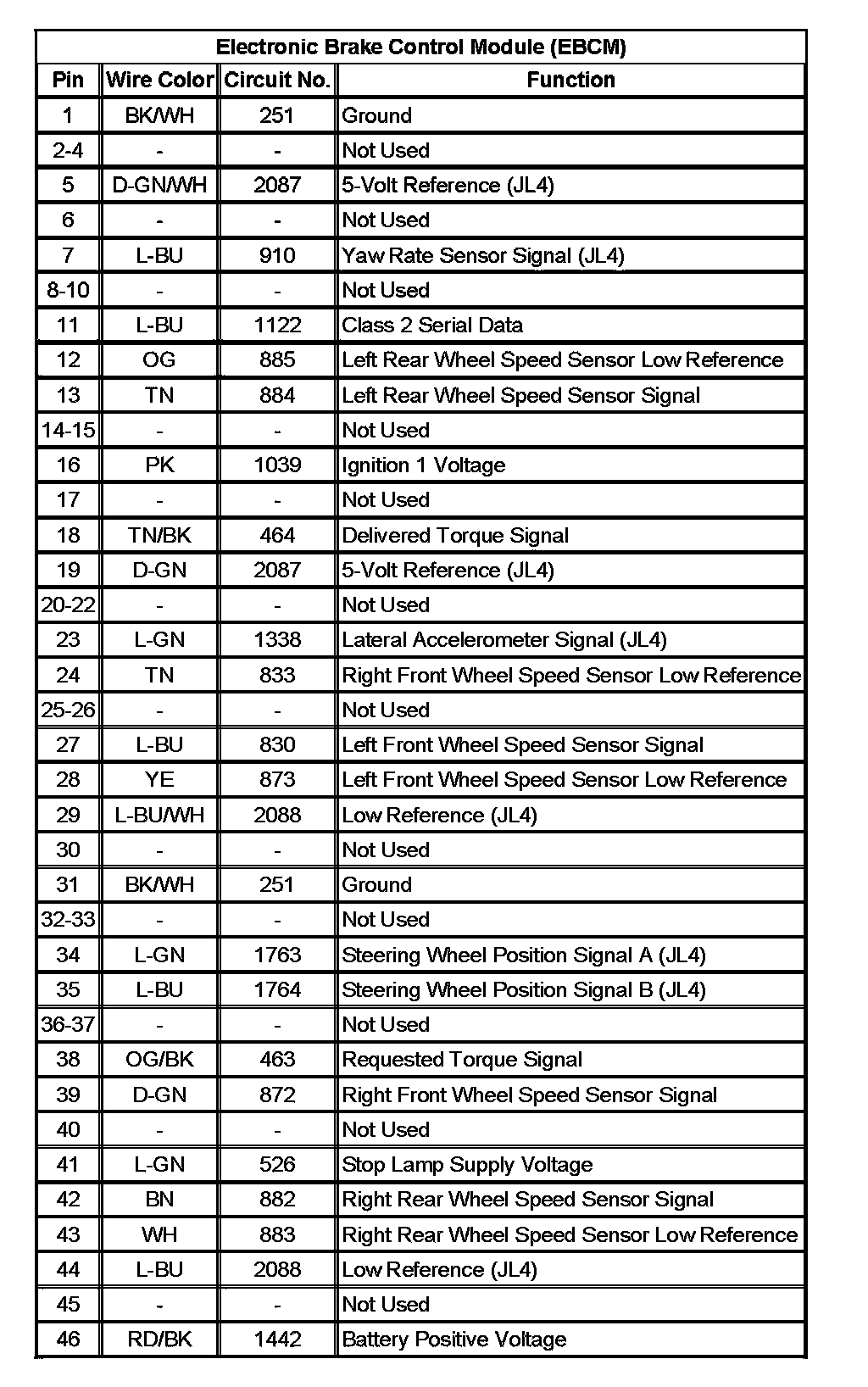

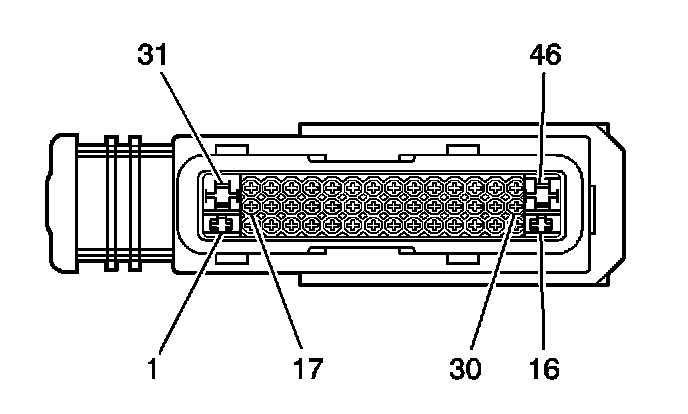

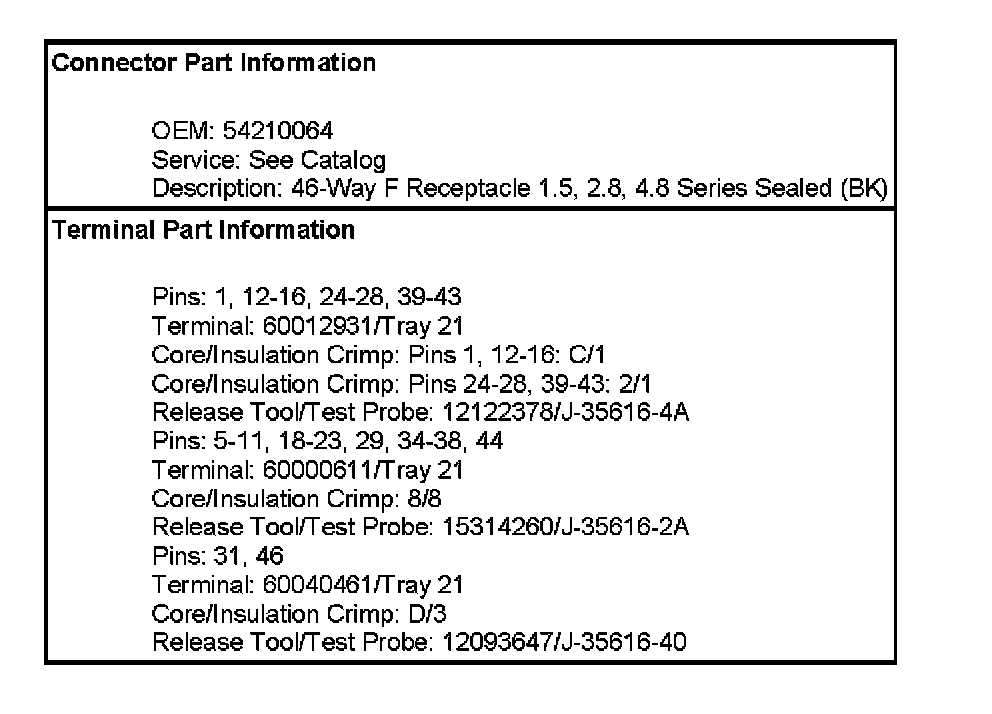

Electronic Brake Control Module (EBCM)






Electronic Brake Control Module (EBCM):
