Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

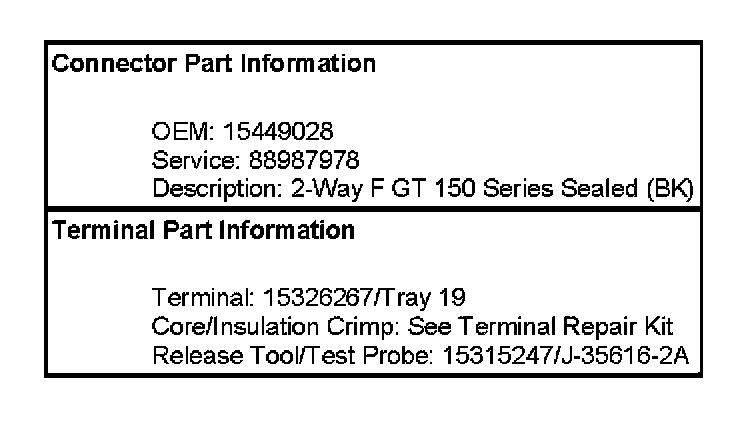

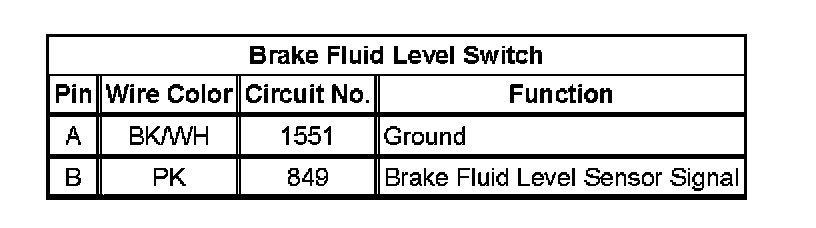

Brake Fluid Level Switch
Brake Fluid Level Switch:
