Control Module, A/T

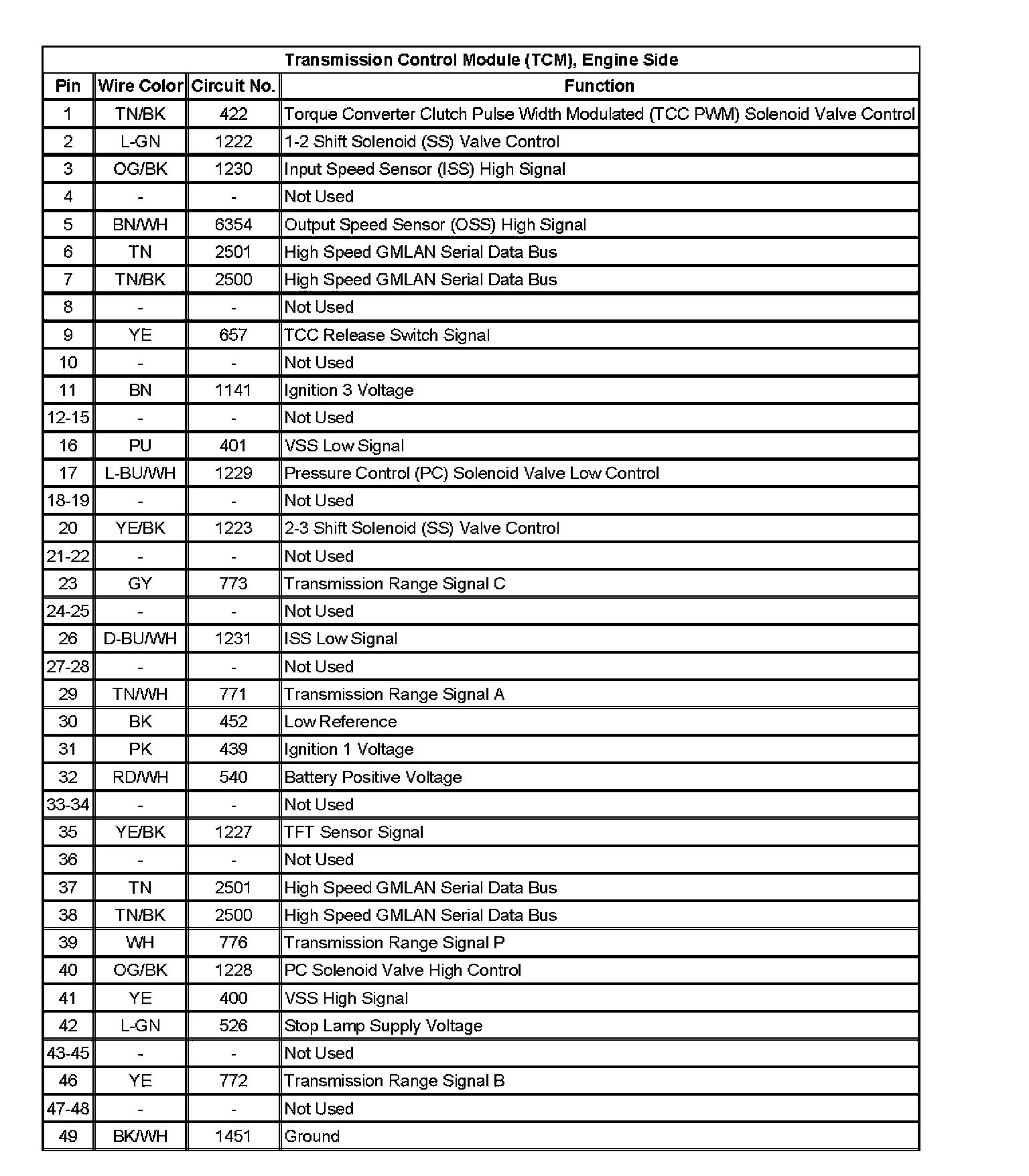

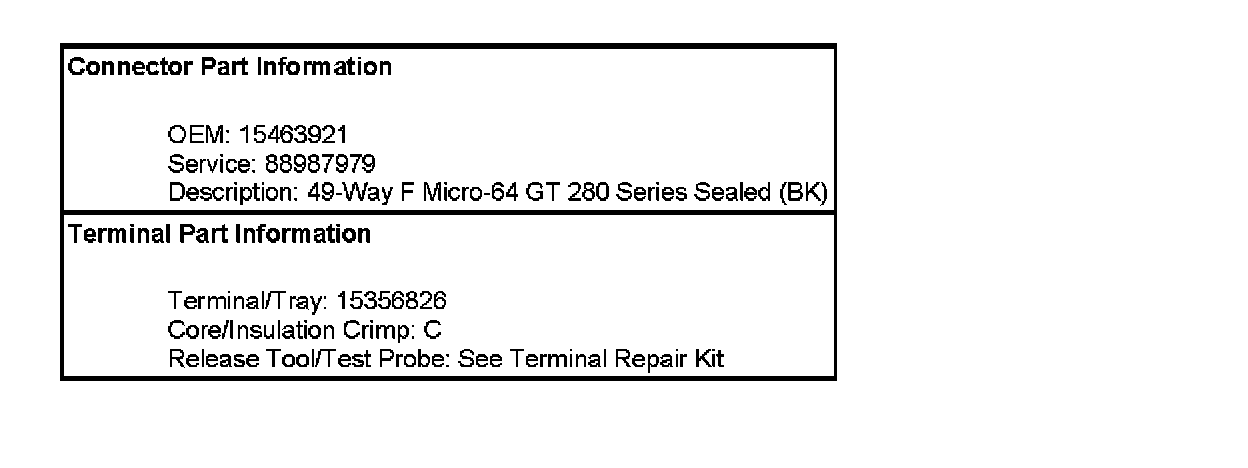

Transmission Control Module (TCM), Engine Side
Transmission Control Module (TCM), Engine Side:
