Air Flow Meter/Sensor



Engine Controls Connector End Views

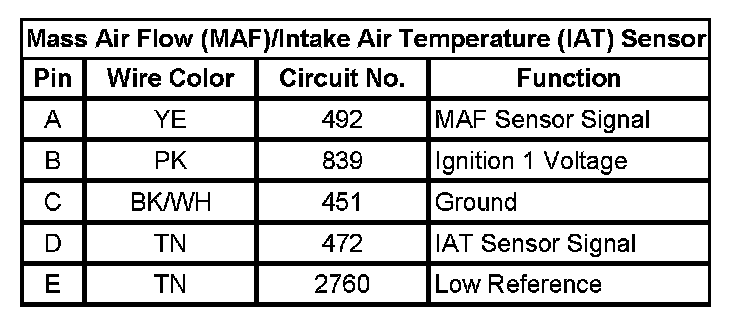

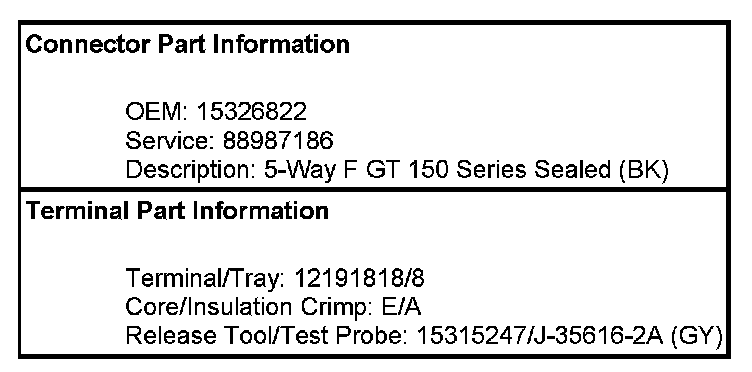

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
