Body Control Module (BCM) - C2

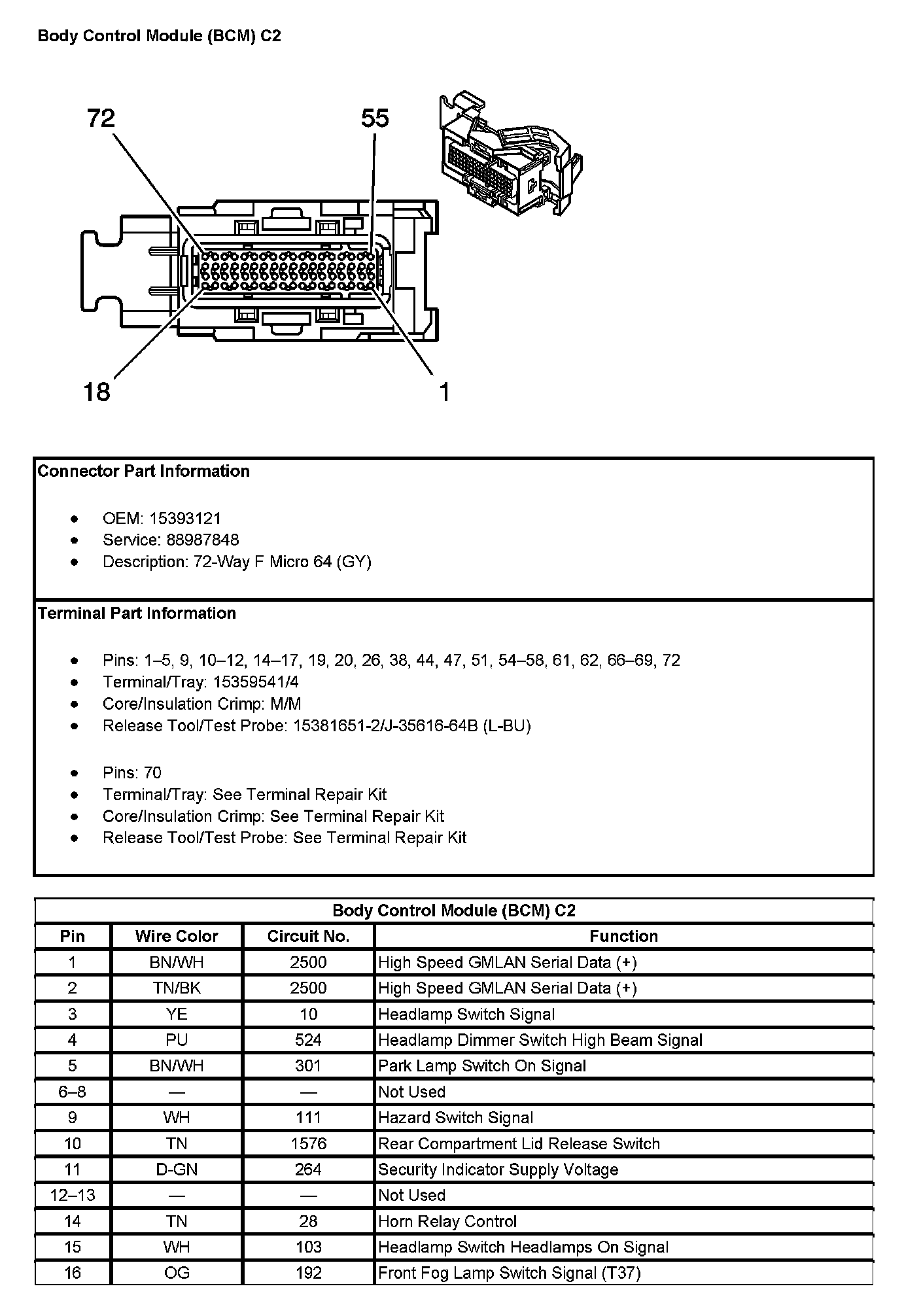

Body Control Module (BCM) C2 (Pin 1 To 16):

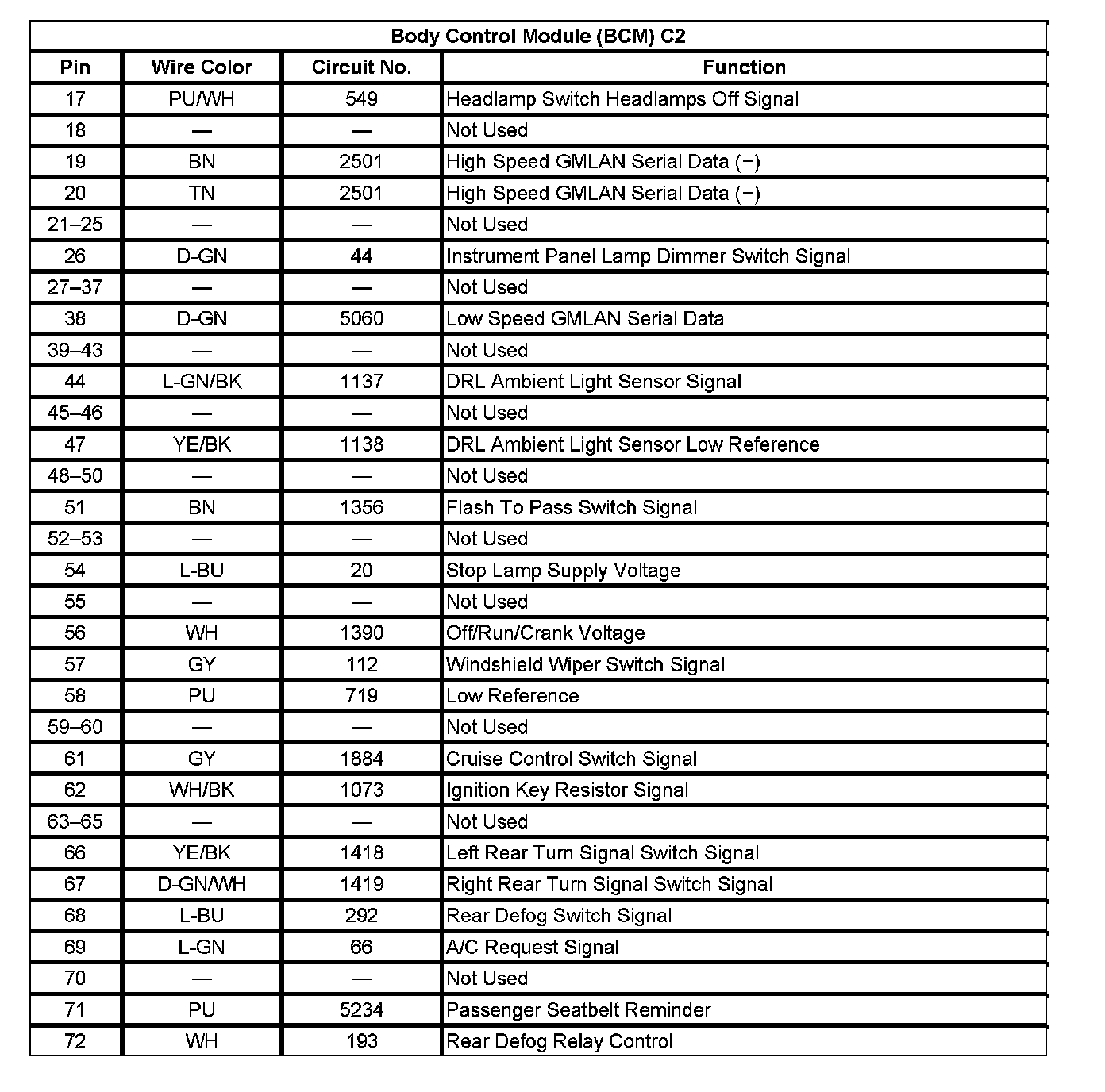

Body Control Module (BCM) C2 (Pin 17 To 72):
