Home >> Chevrolet >> 2007 >> Cobalt L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

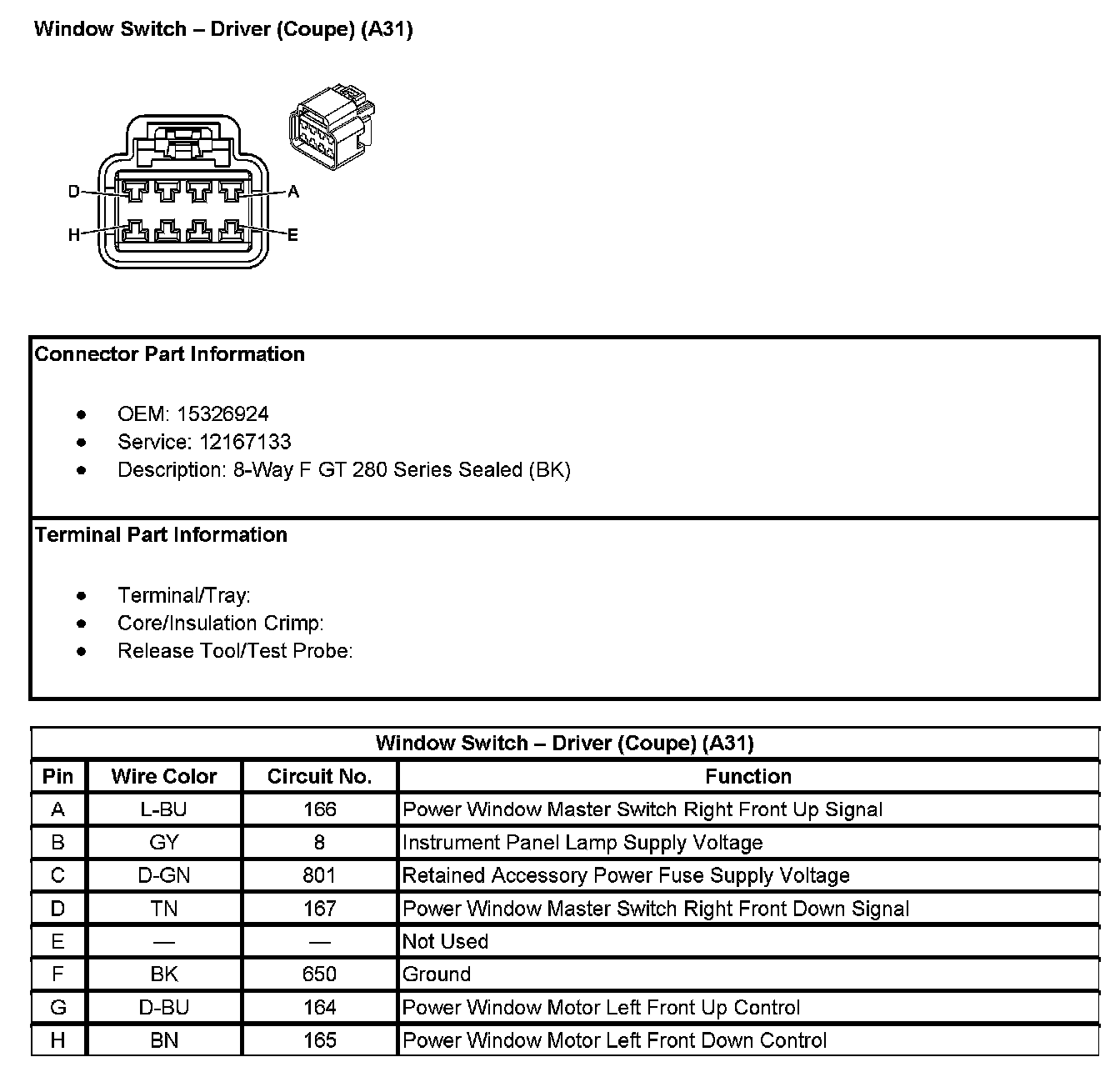

Window Switch - Driver (Coupe) (With RPO Code A31):

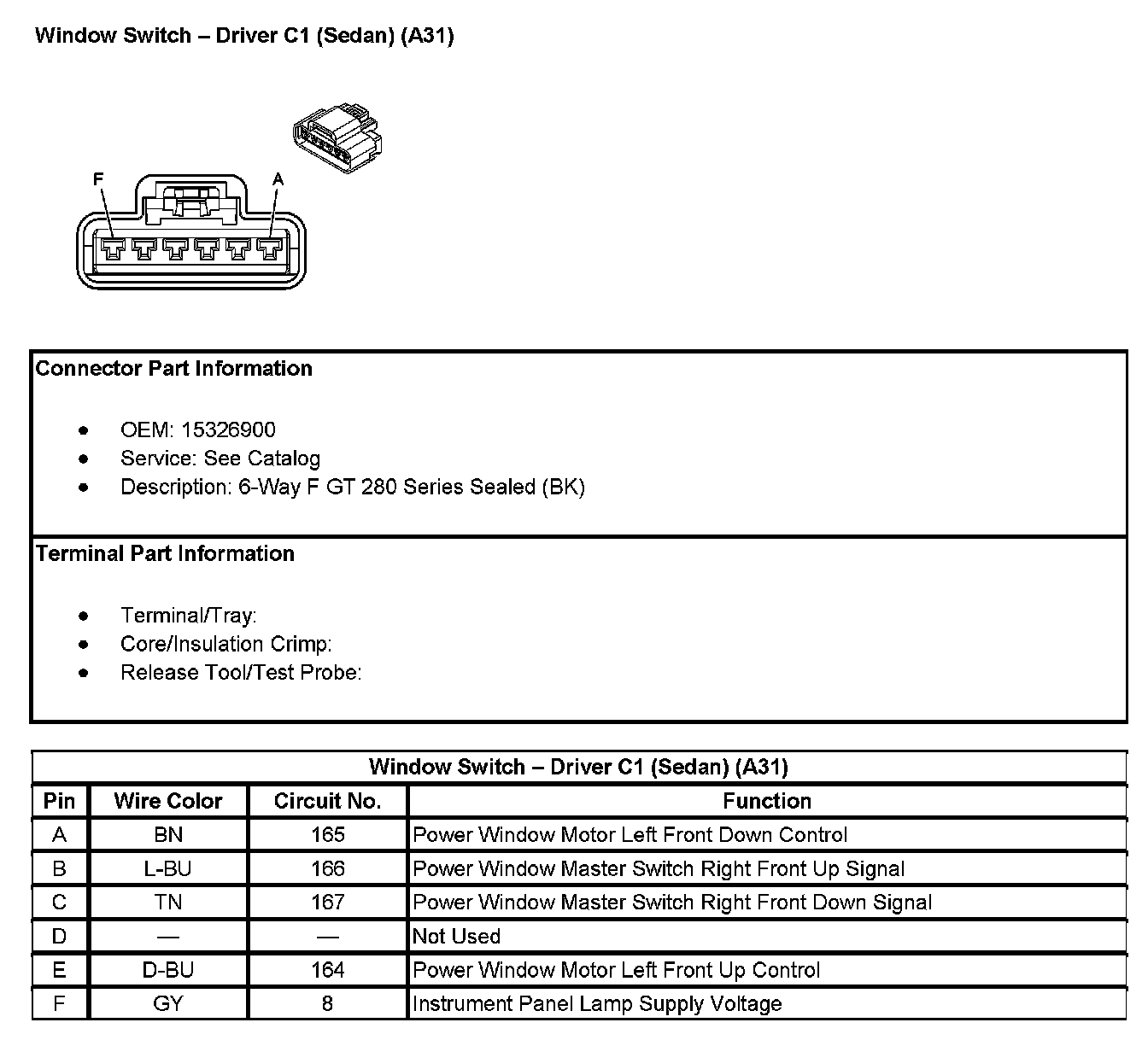

Window Switch - Driver C1 (Sedan) (With RPO Code A31):

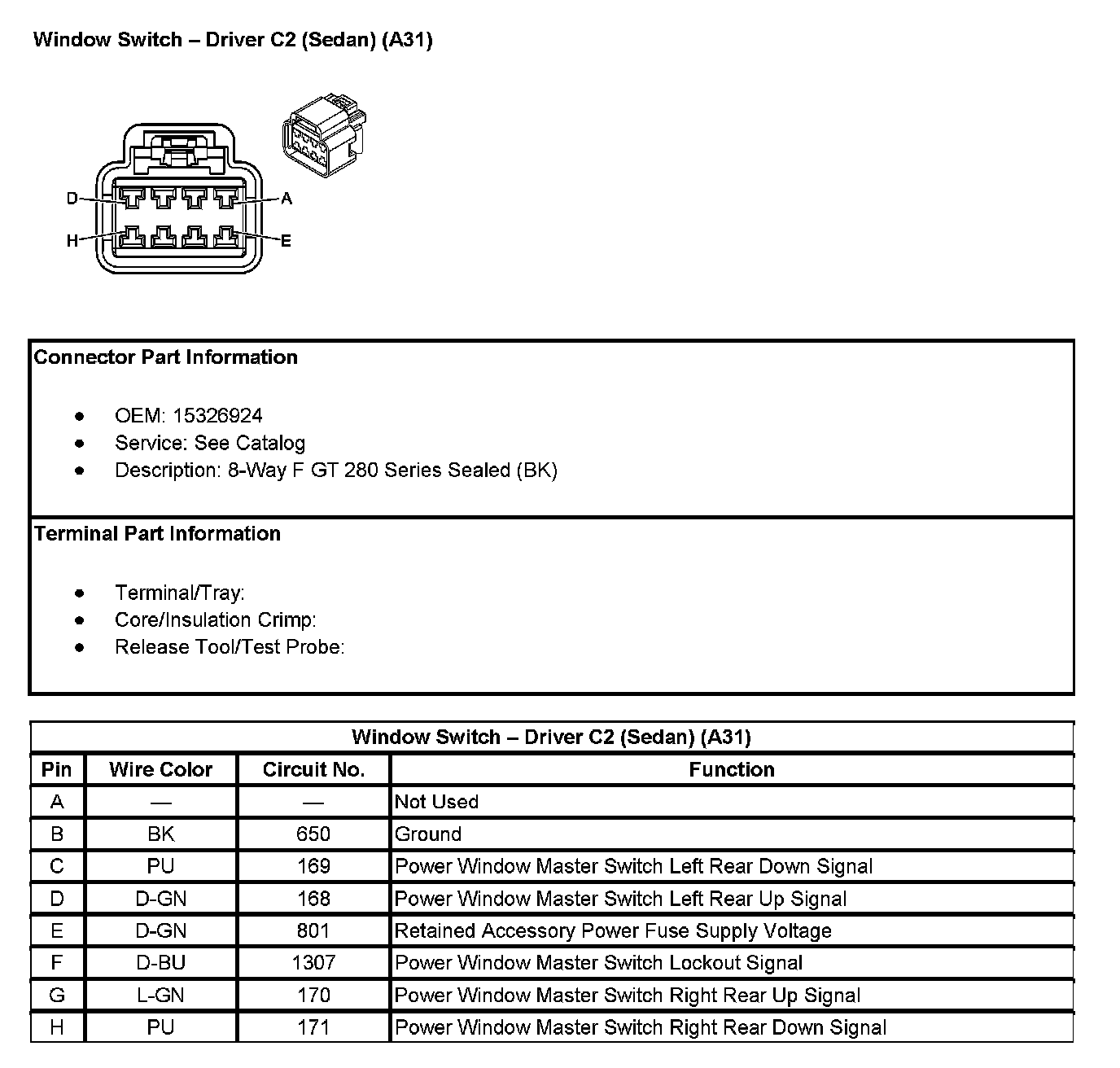

Window Switch - Driver C2 (Sedan) (With RPO Code A31):

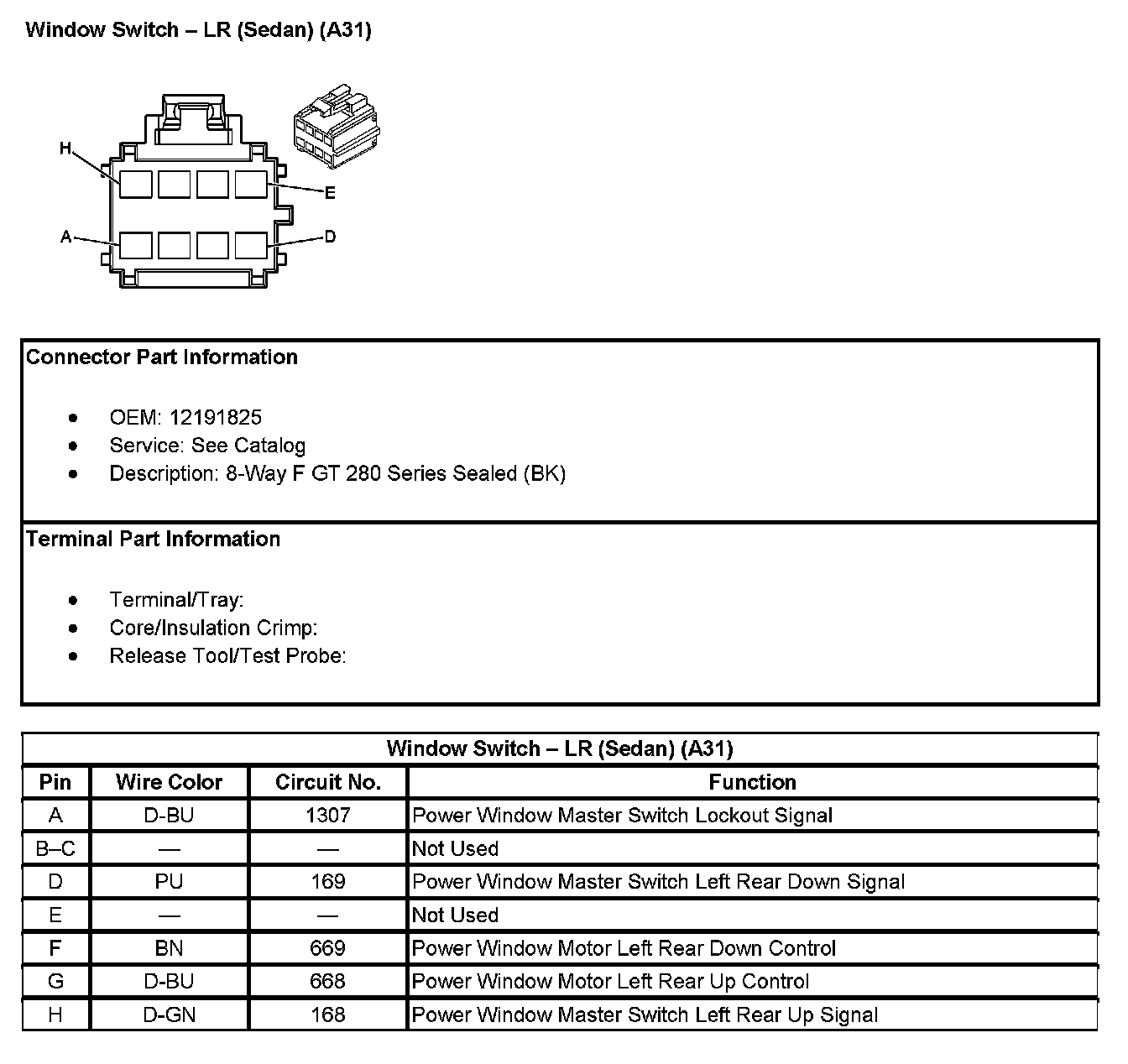

Window Switch - LR (Sedan) (With RPO Code A31):

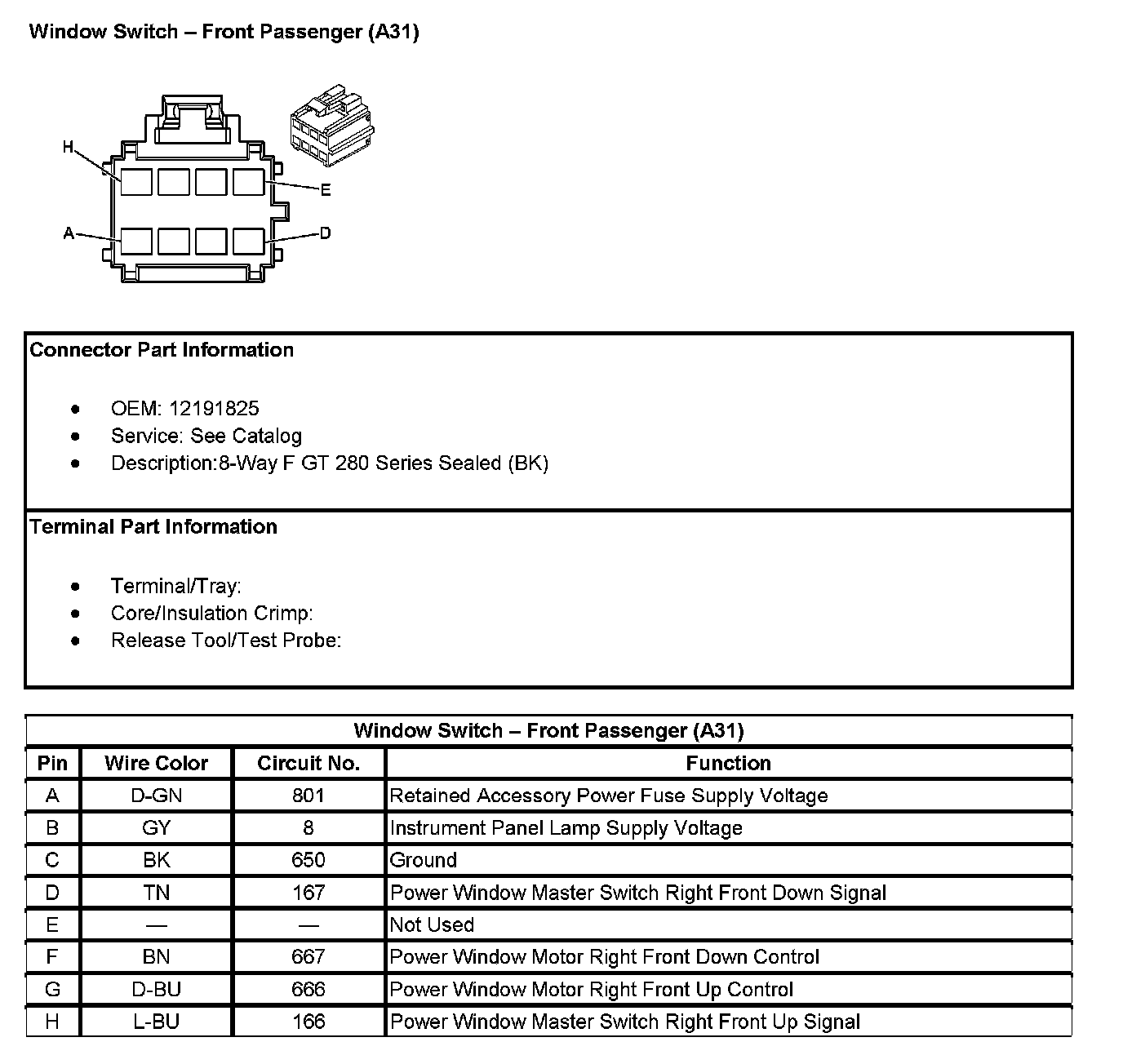

Window Switch - Front Passenger (With RPO Code A31):



Window Switch - RR (Sedan) (With RPO Code A31):
