Home >> Chevrolet >> 2007 >> Cobalt L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor

Power Window Motor

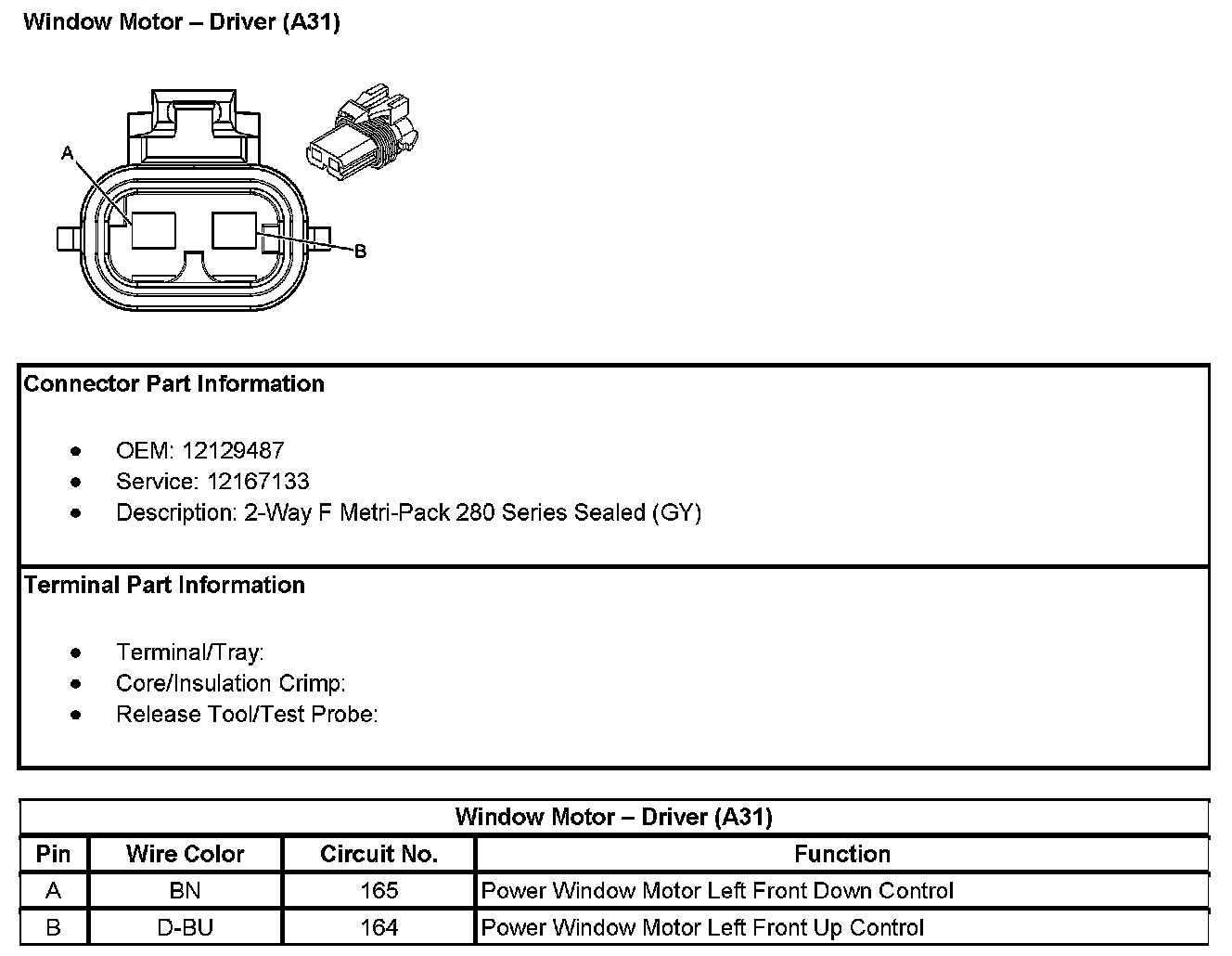

Window Motor - Driver (With RPO Code A31):

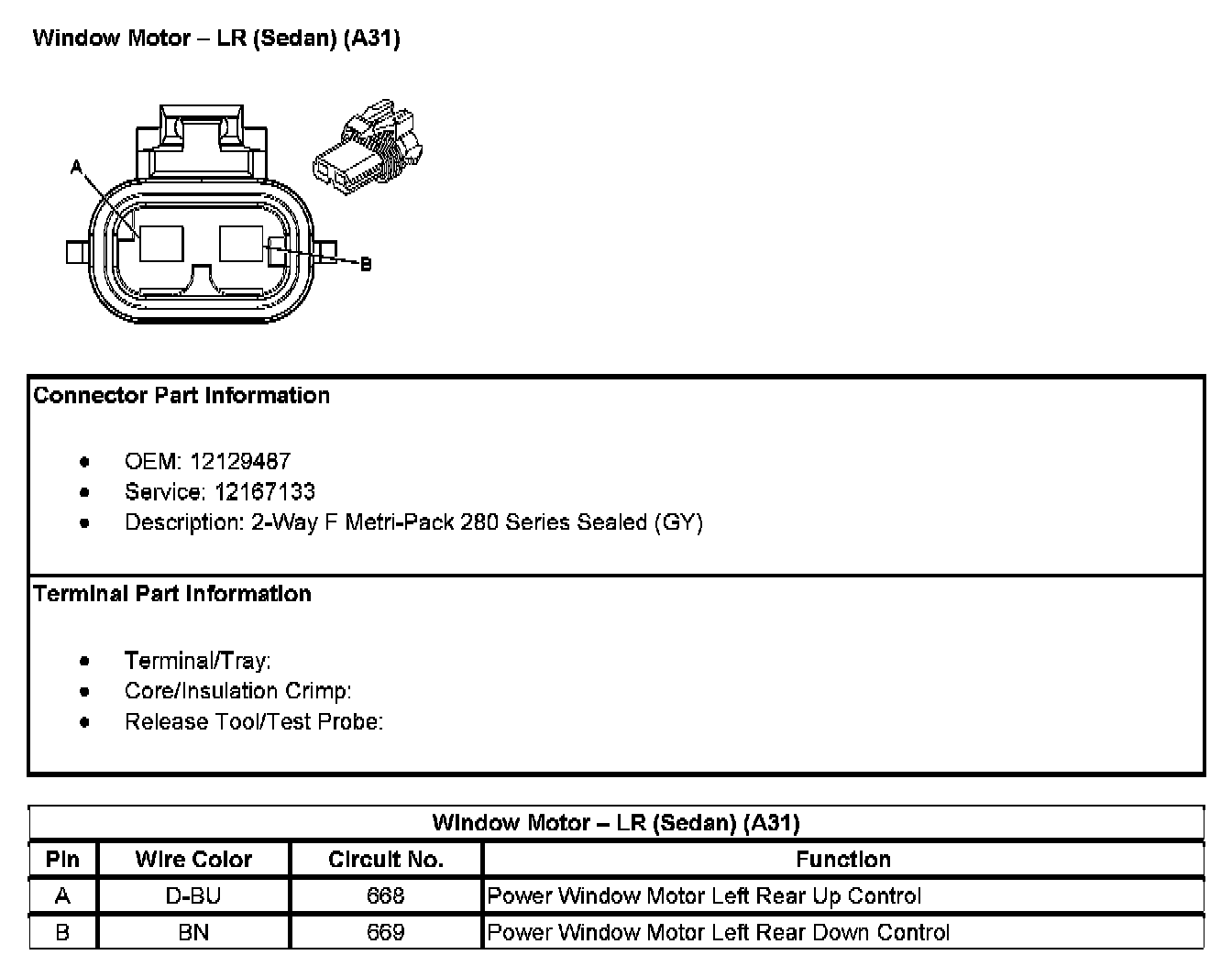

Window Motor - LR (Sedan) (With RPO Code A31):



Window Motor - Front Passenger (Coupe) (A31):

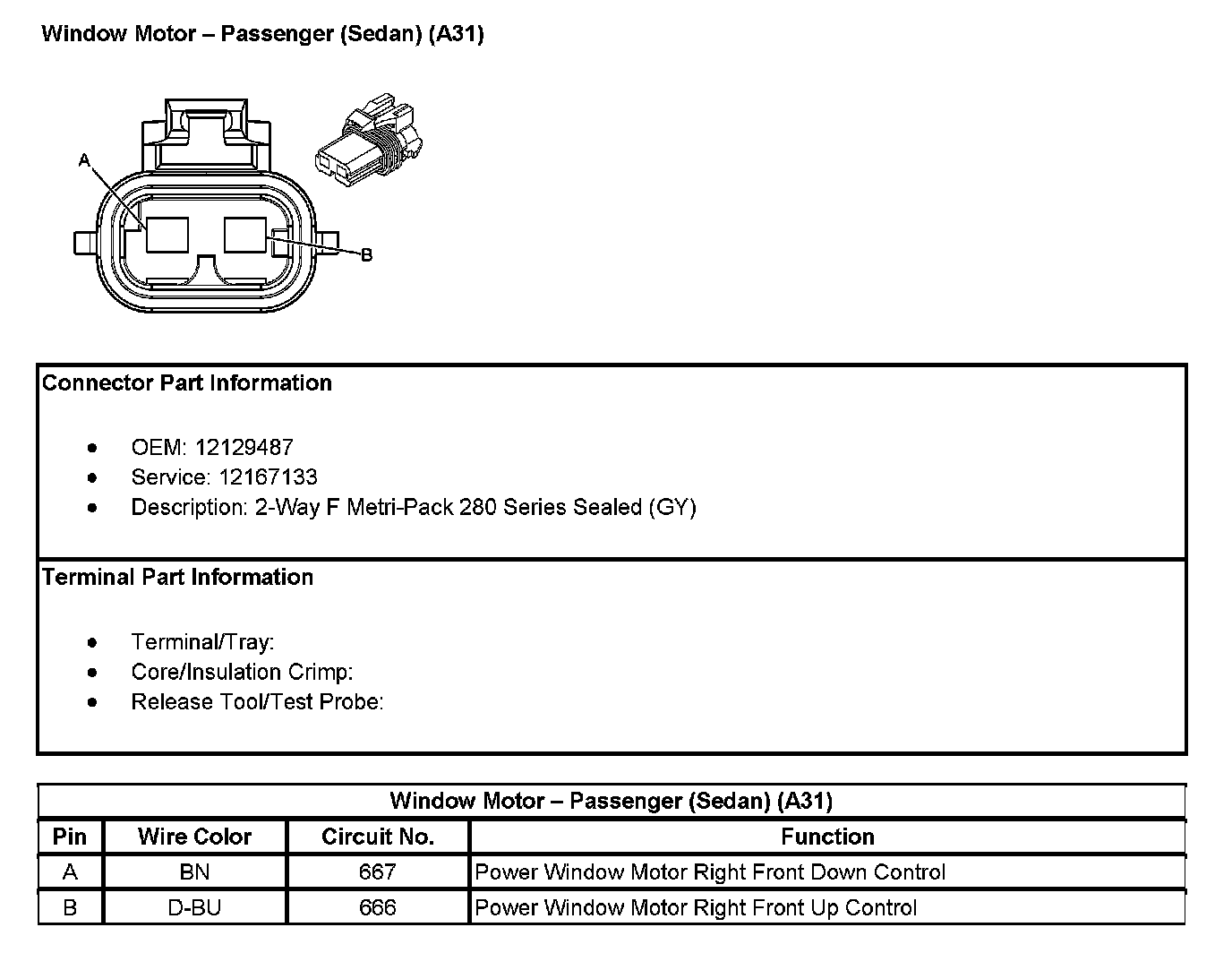

Window Motor - Passenger (Sedan) (With RPO Code A31):

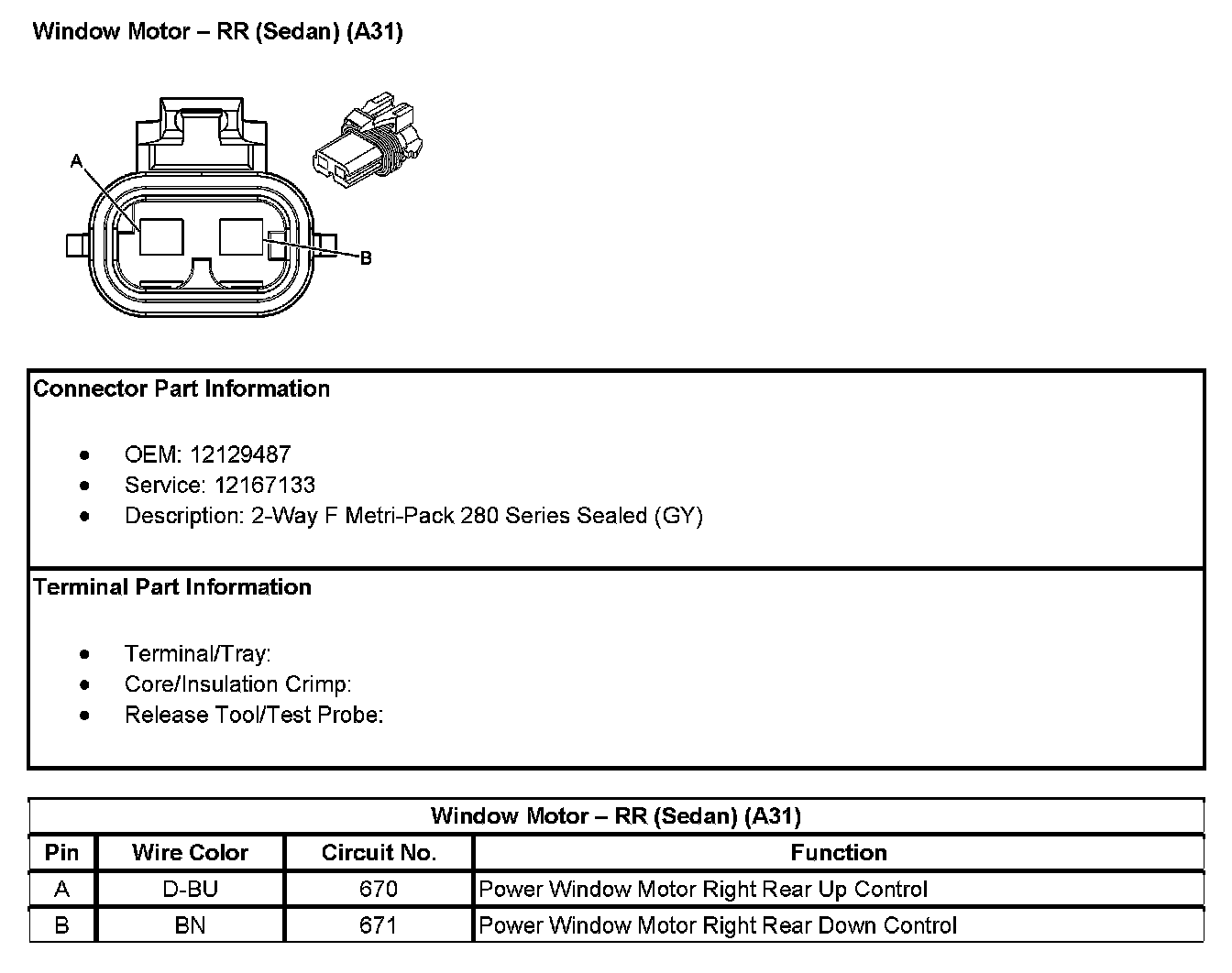

Window Motor - RR (Sedan) (With RPO Code A31):
