Fuel Injector

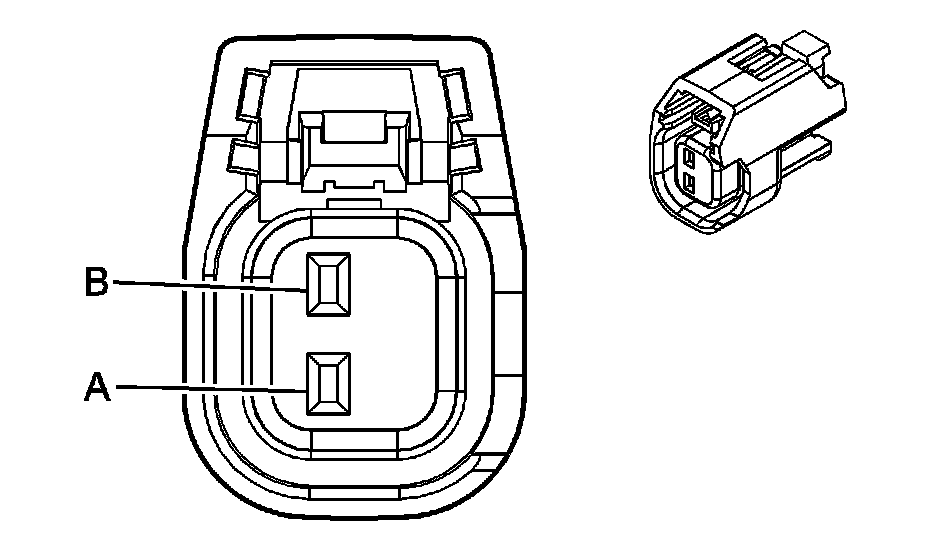

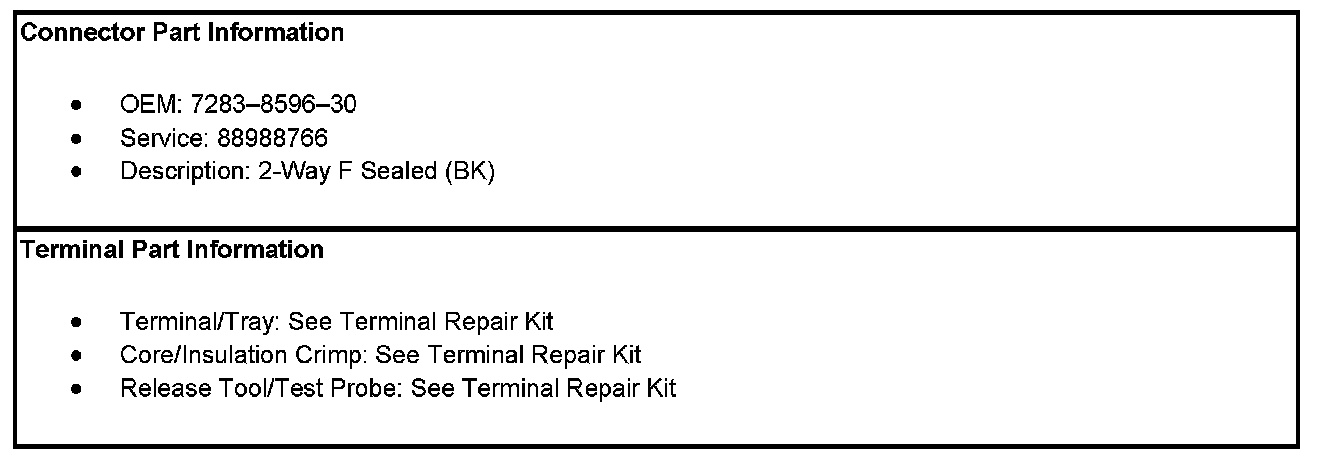

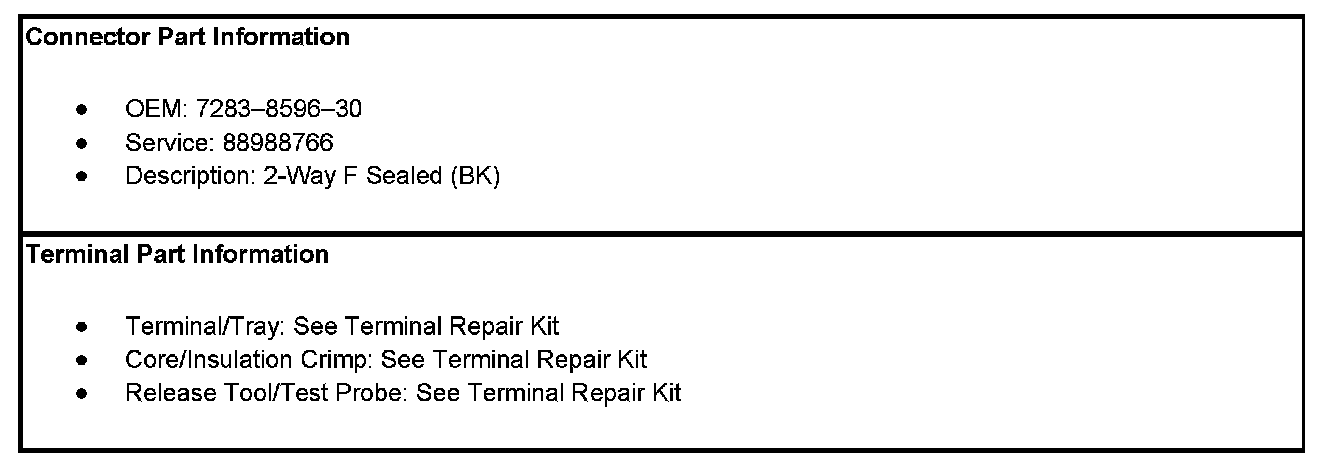

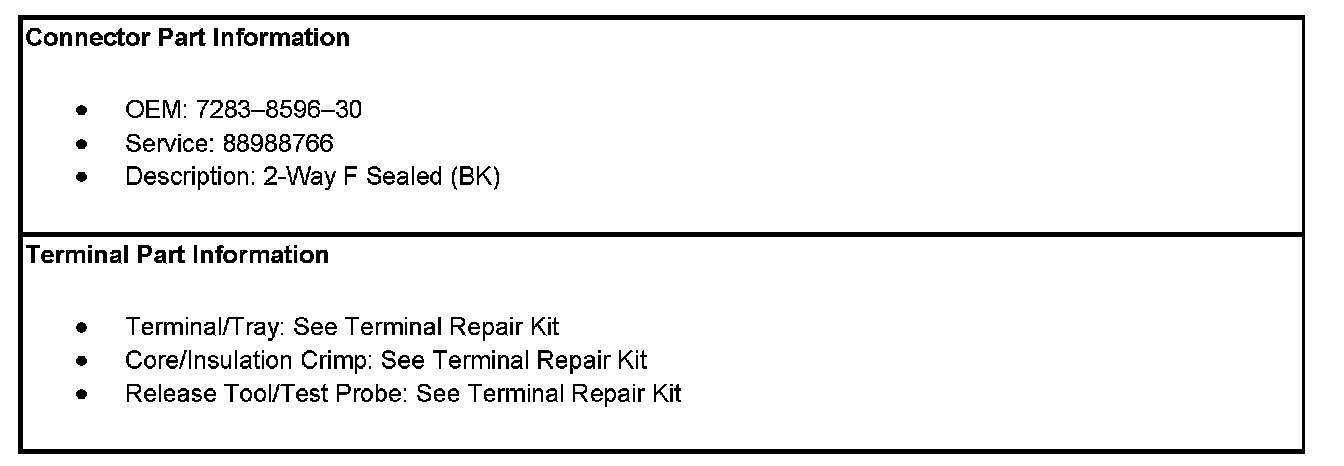

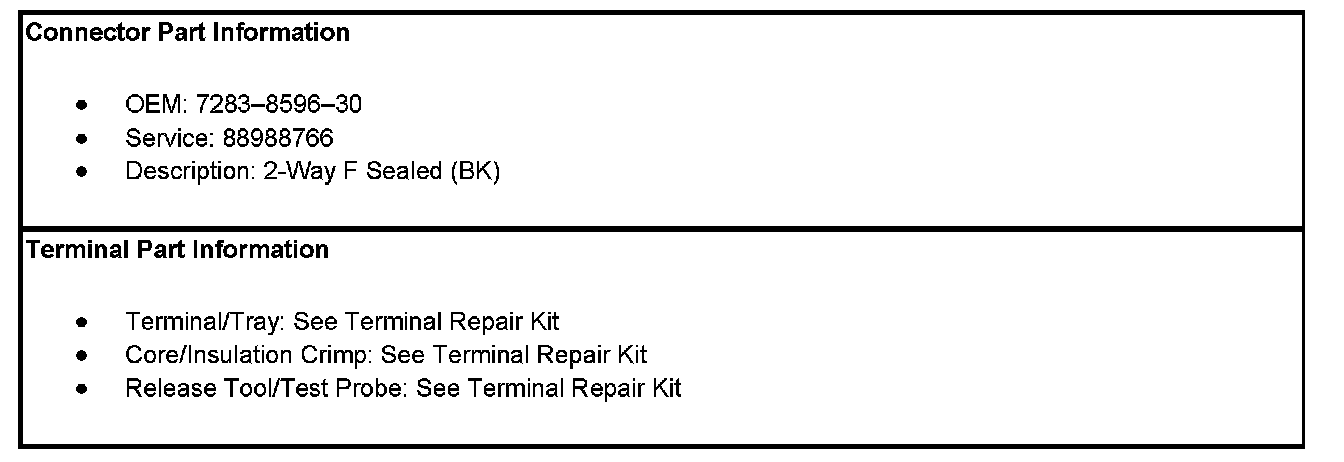

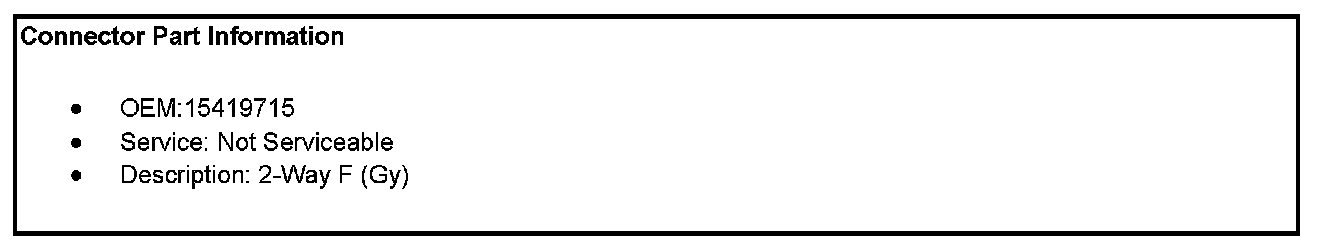

Engine Controls Connector End Views

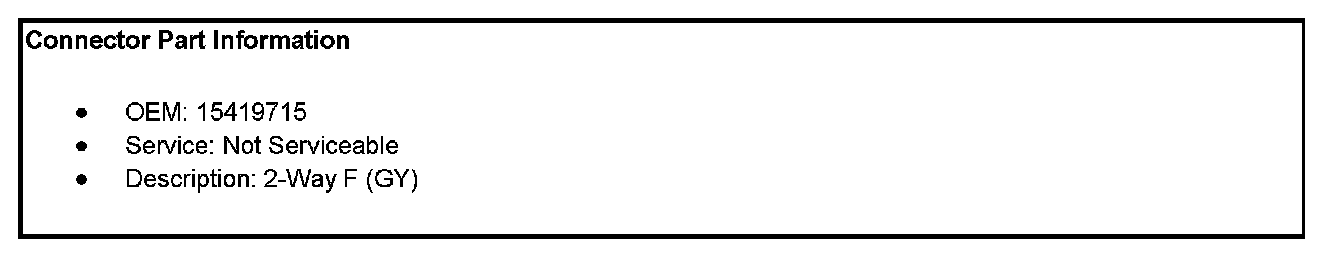

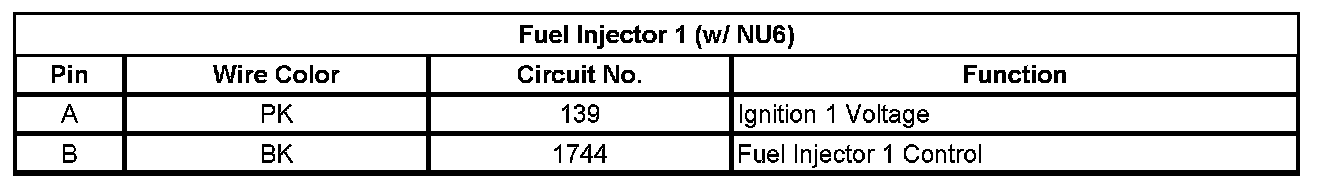

Fuel Injector 1 (w/ NU6)

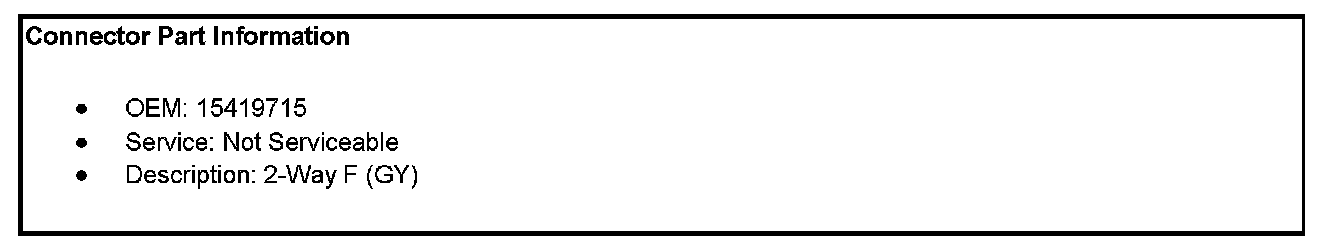

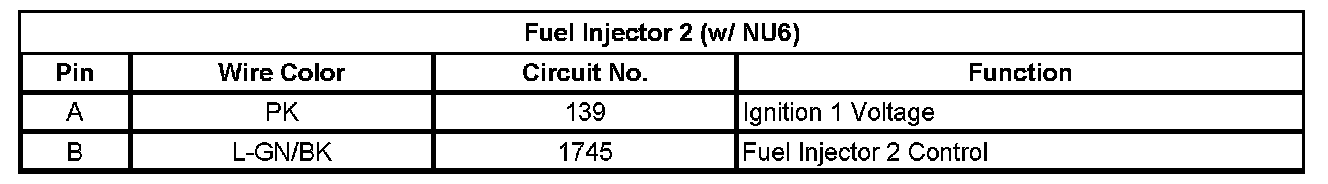

Fuel Injector 2 (w/ NU6)

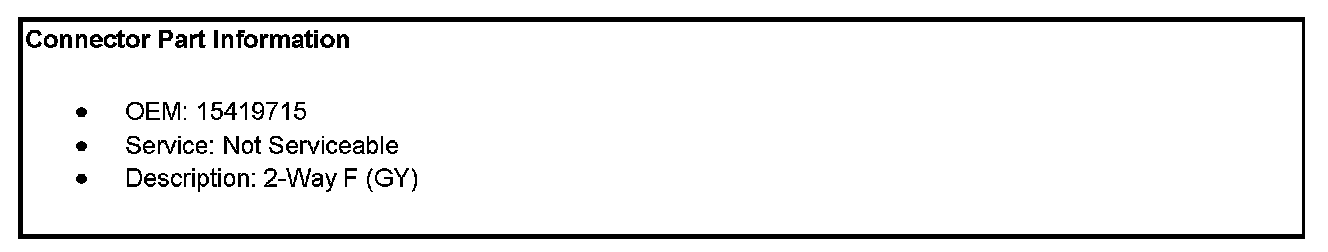

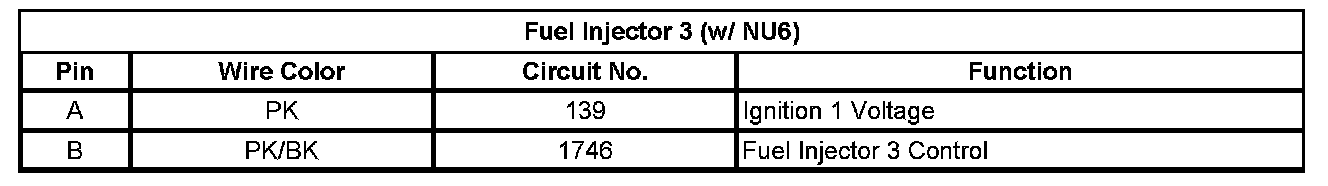

Fuel Injector 3 (w/ NU6)

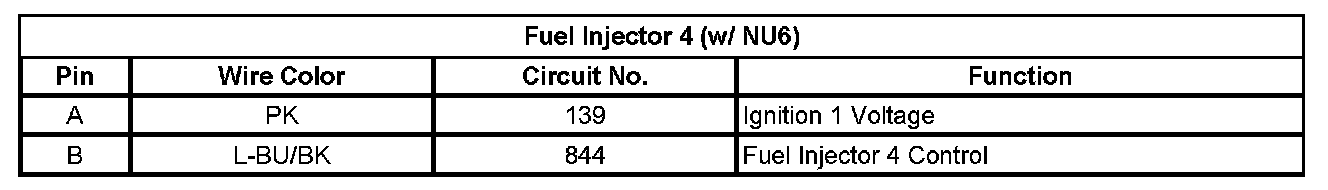

Fuel Injector 4 (w/ NU6)

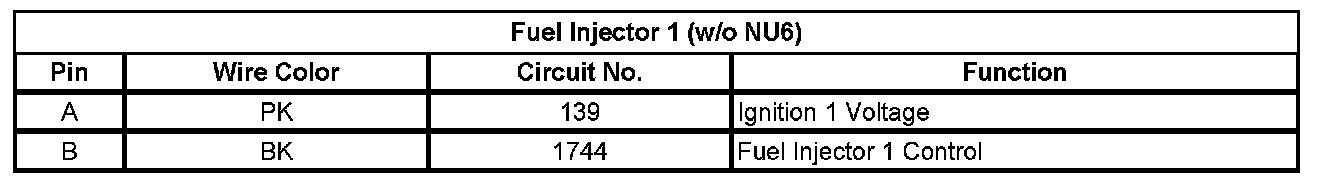

Fuel Injector 1 (w/o NU6)

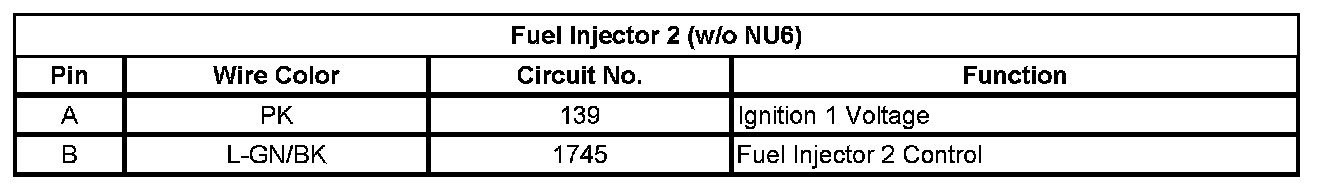

Fuel Injector 2 (w/o NU6)














Fuel Injector 3 (w/o NU6)

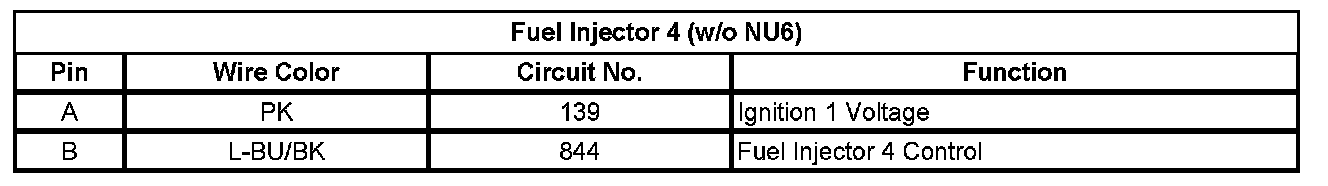

Fuel Injector 4 (w/o NU6)
