Body Control Module (BCM) - C3

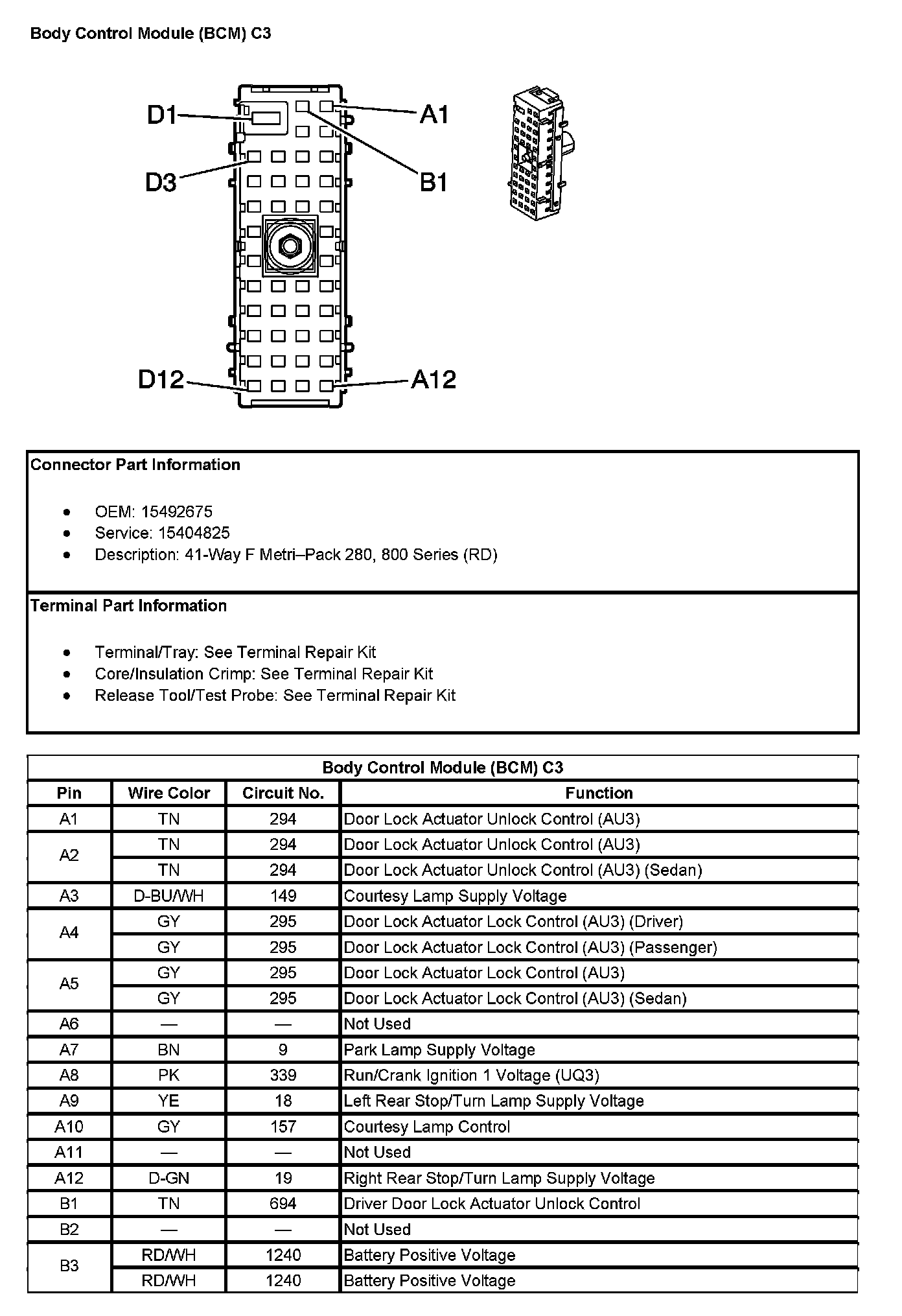

Body Control Module (BCM) C3 (Pin A1 To B3):

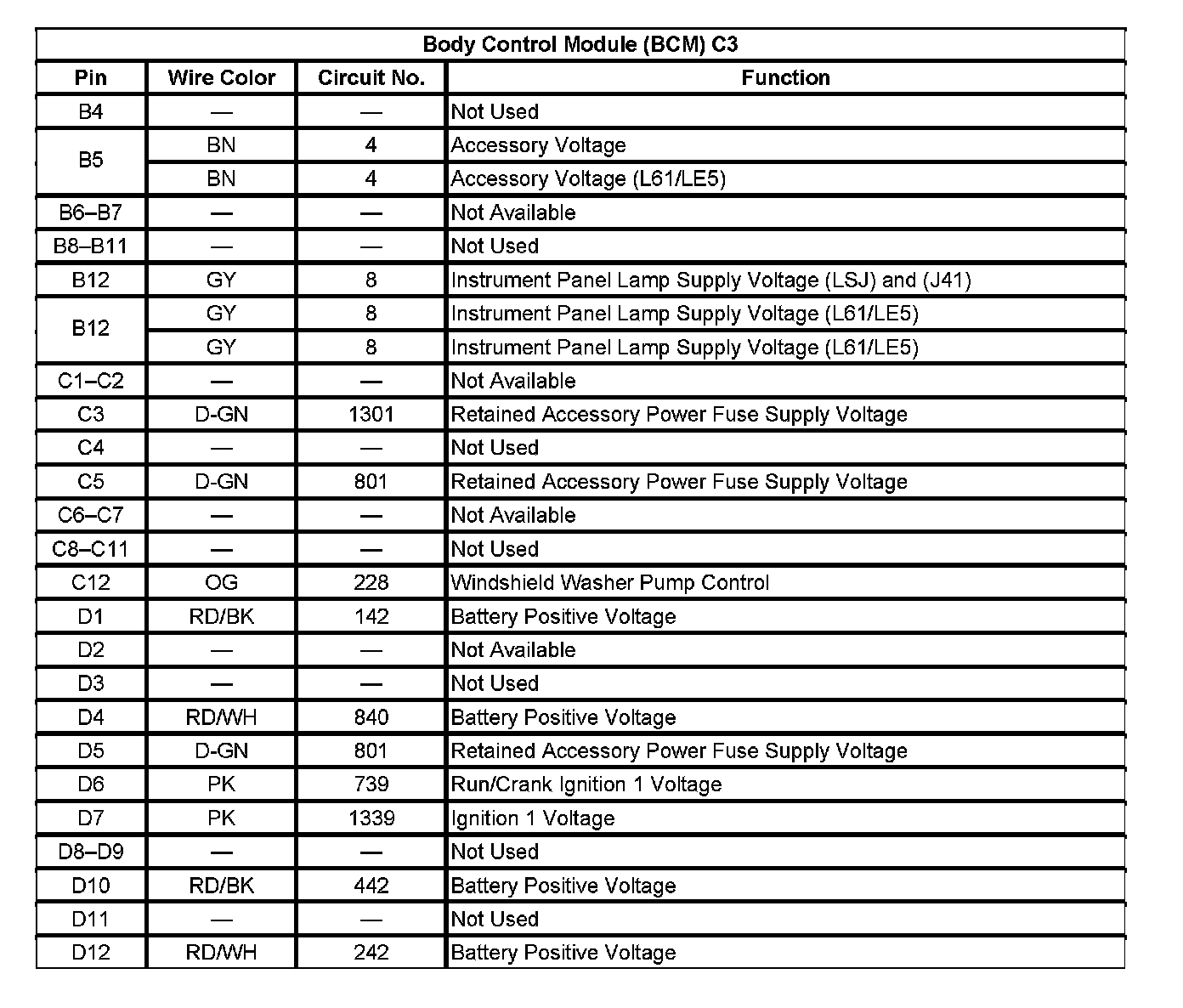

Body Control Module (BCM) C3 (Pin B4 To D12):
