Home >> Chevrolet >> 2007 >> Cobalt L4-2.2L >> Repair and Diagnosis >> Diagrams >> Components

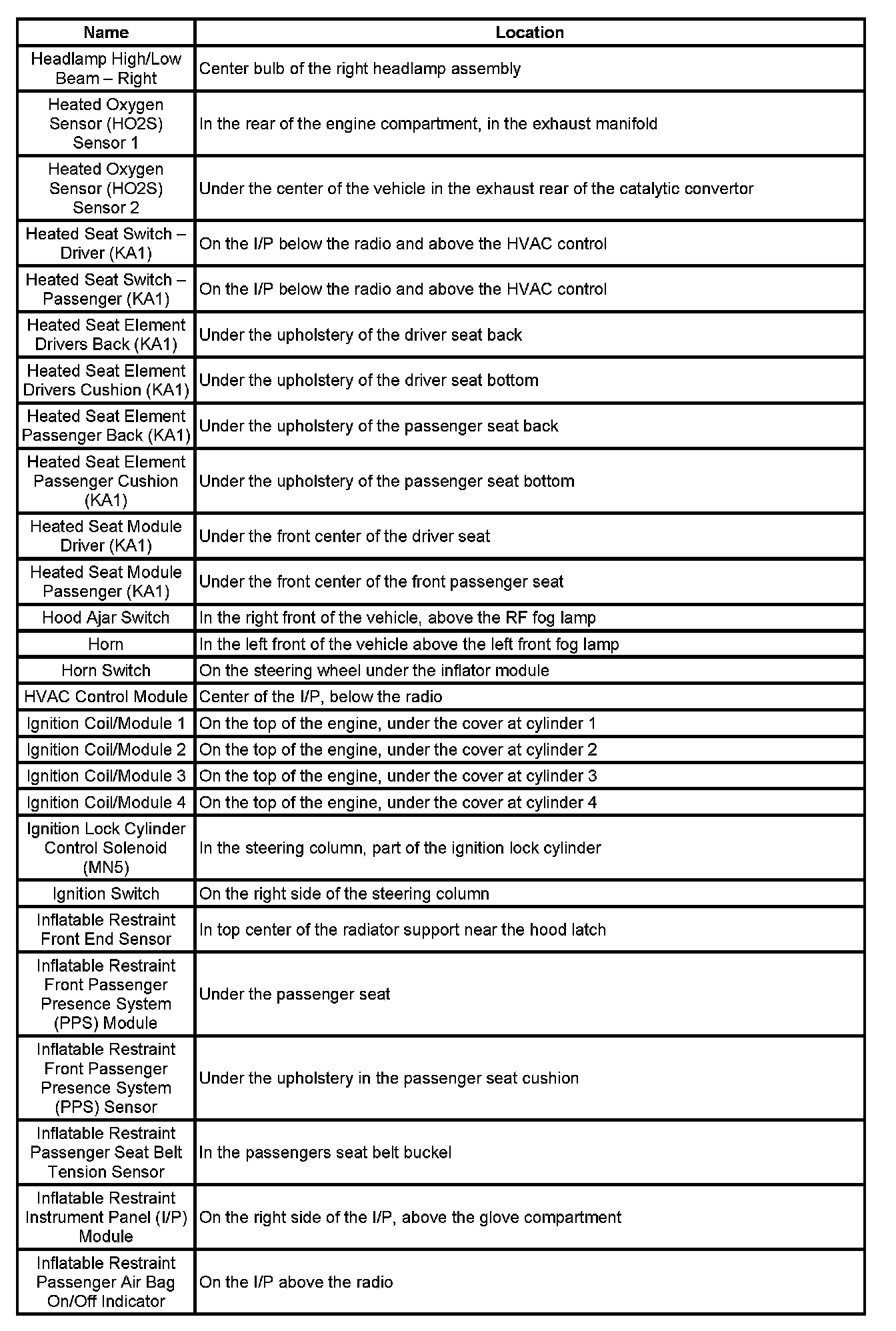

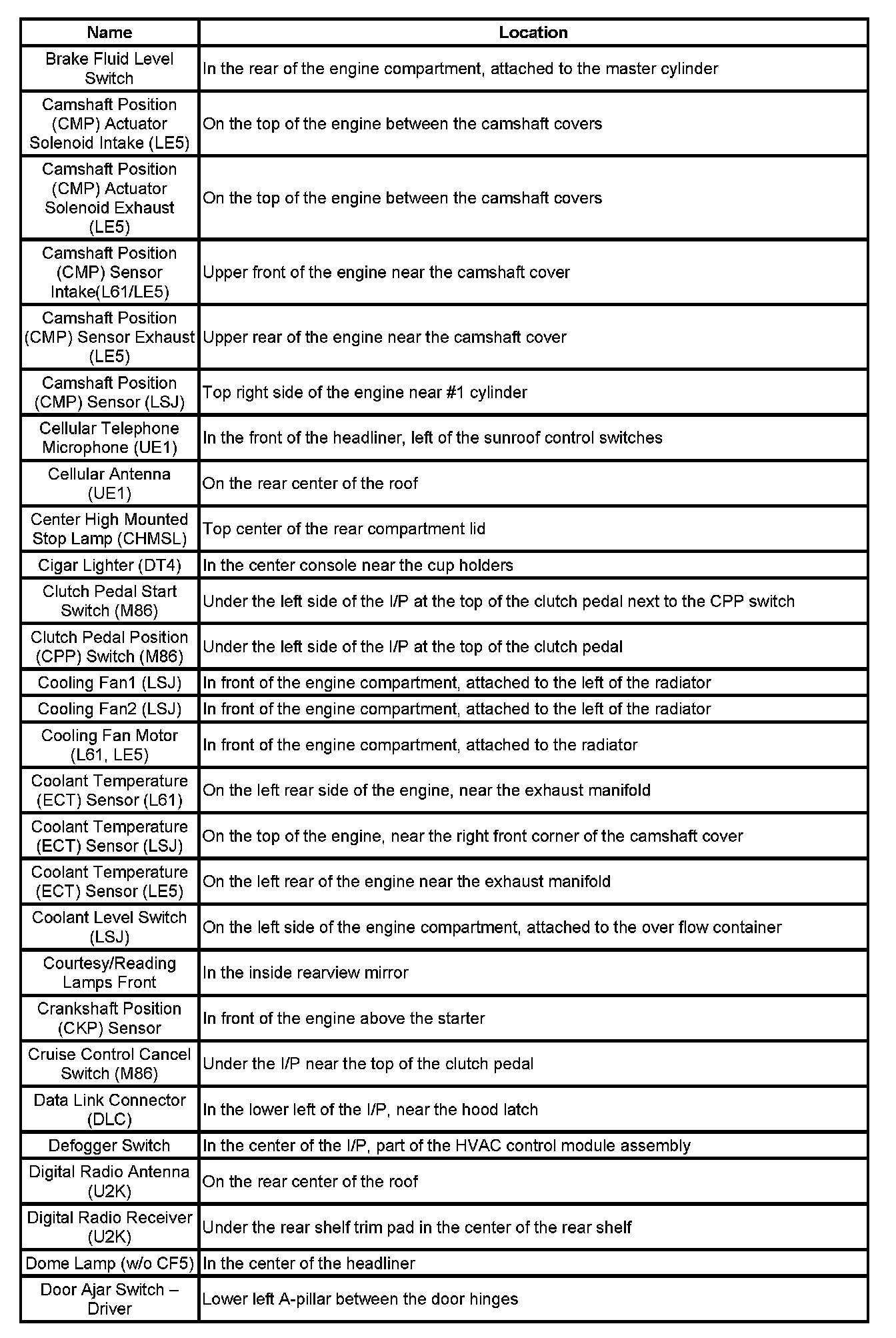

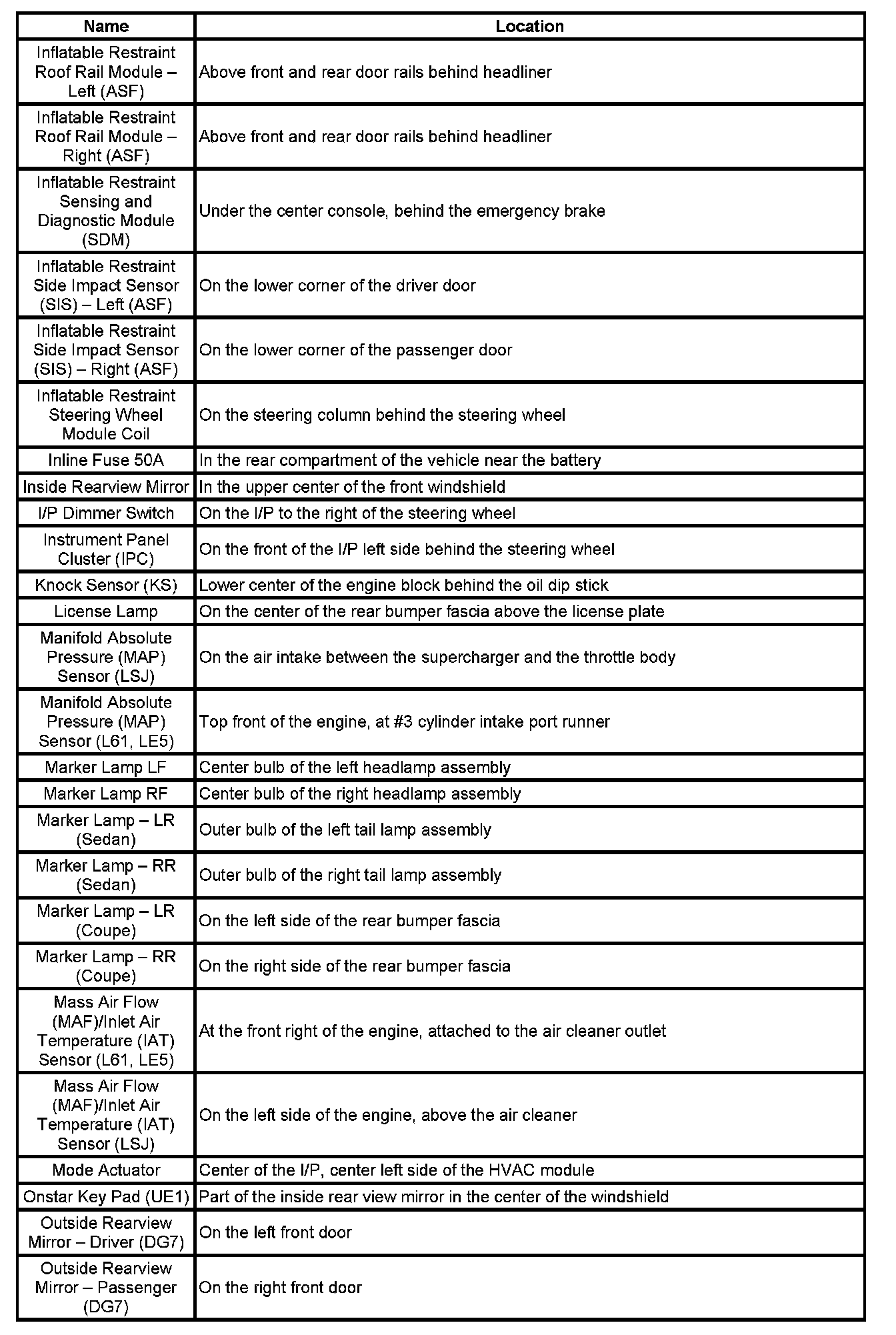

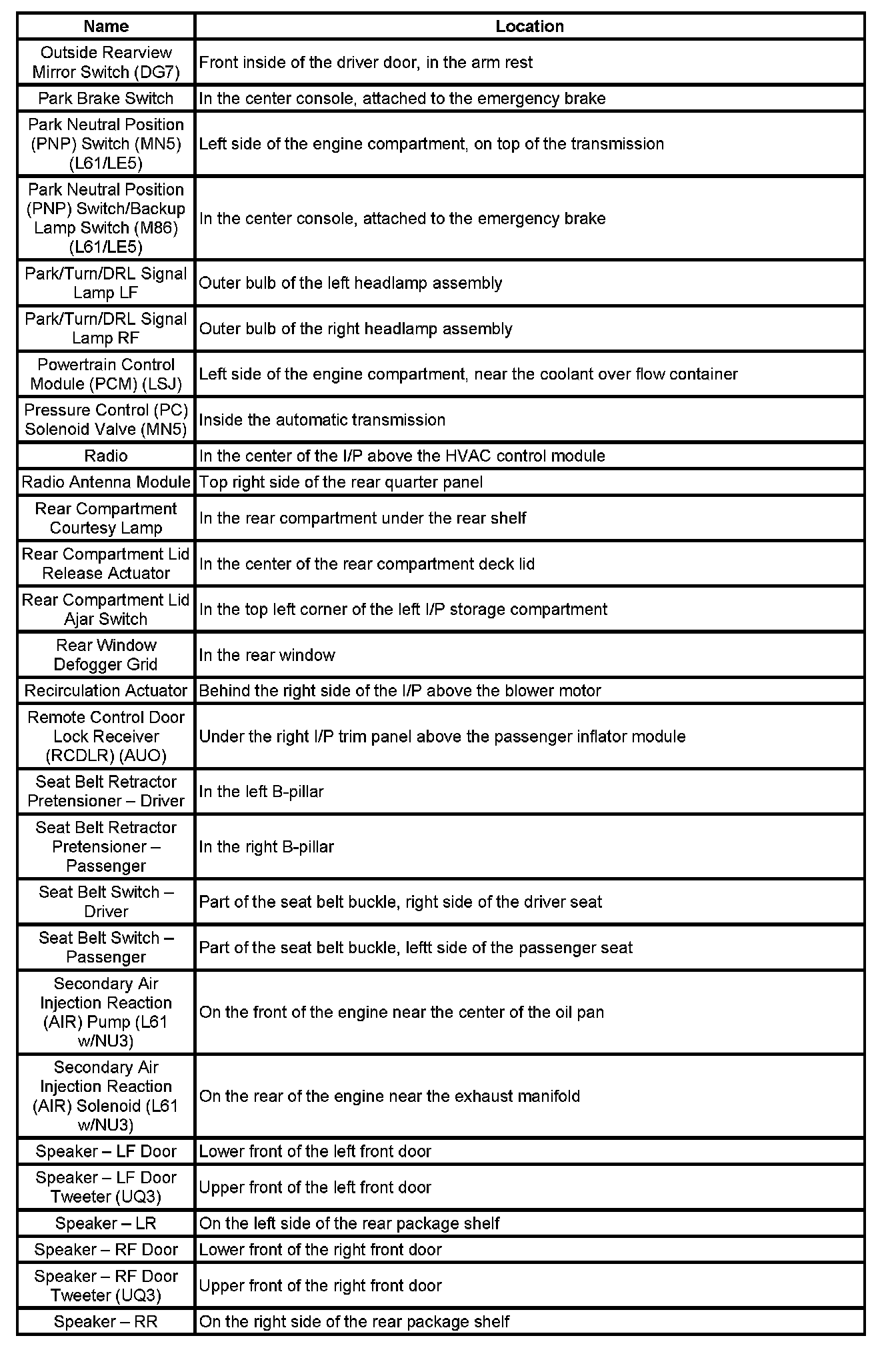

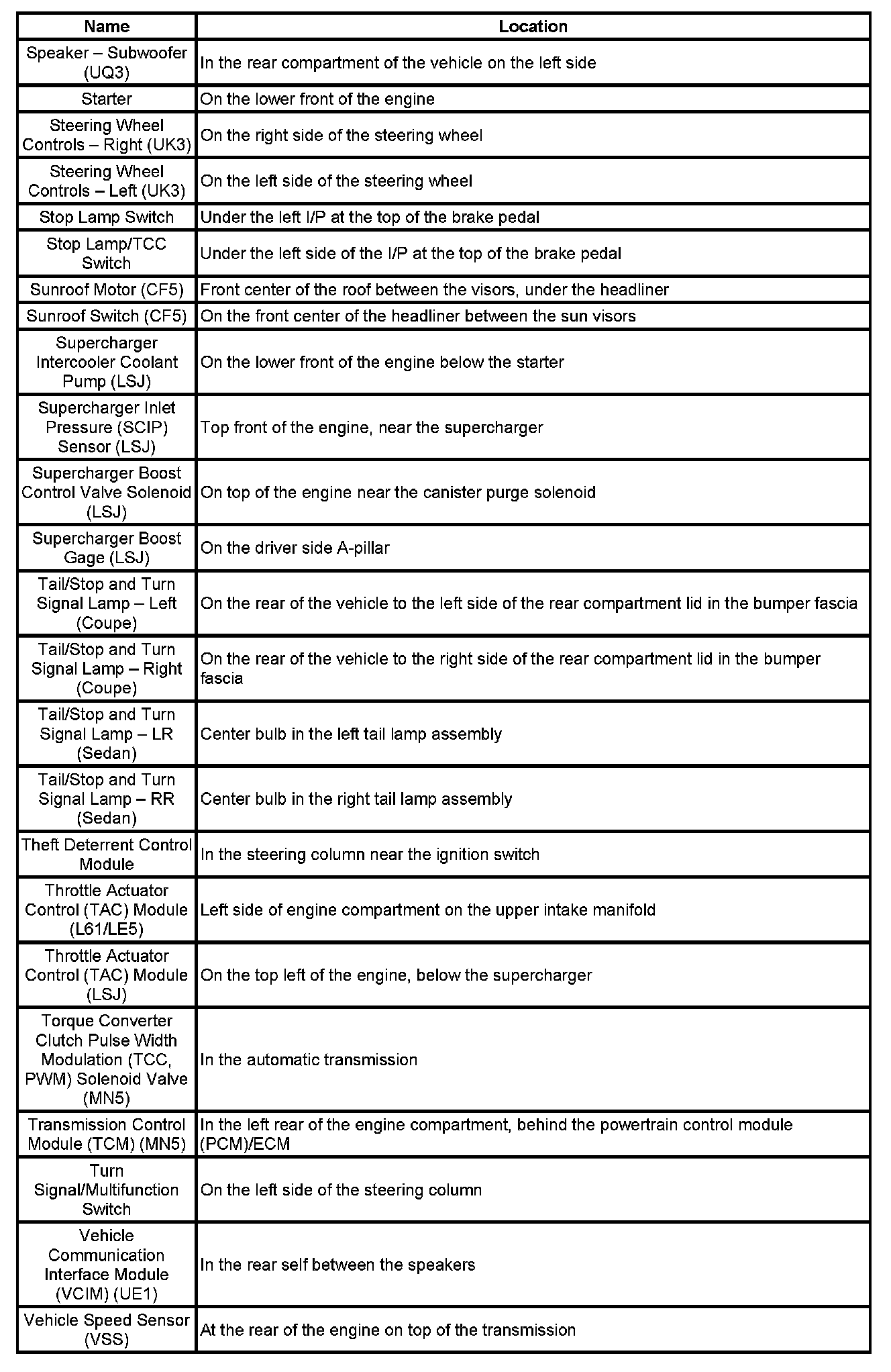

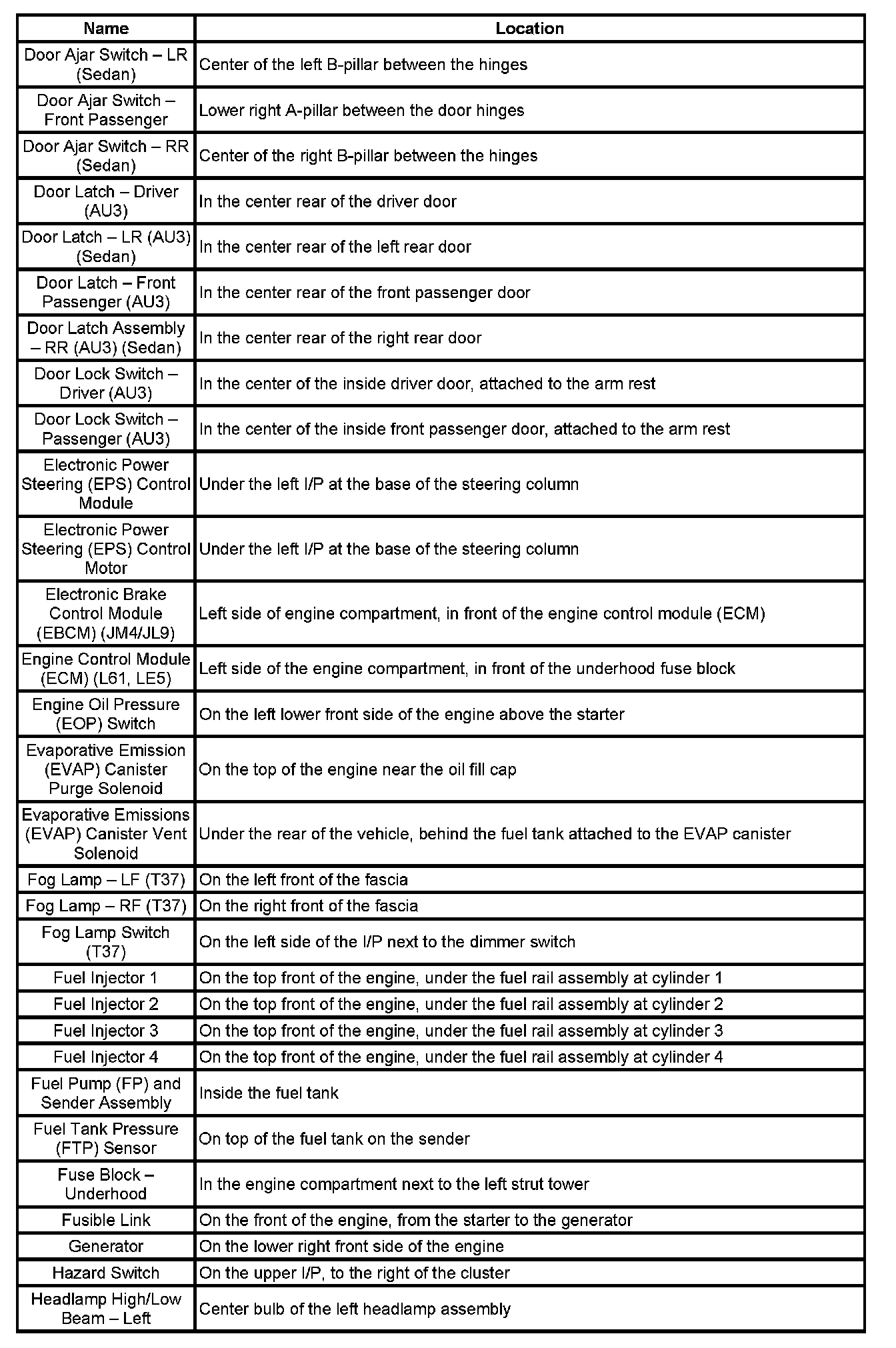

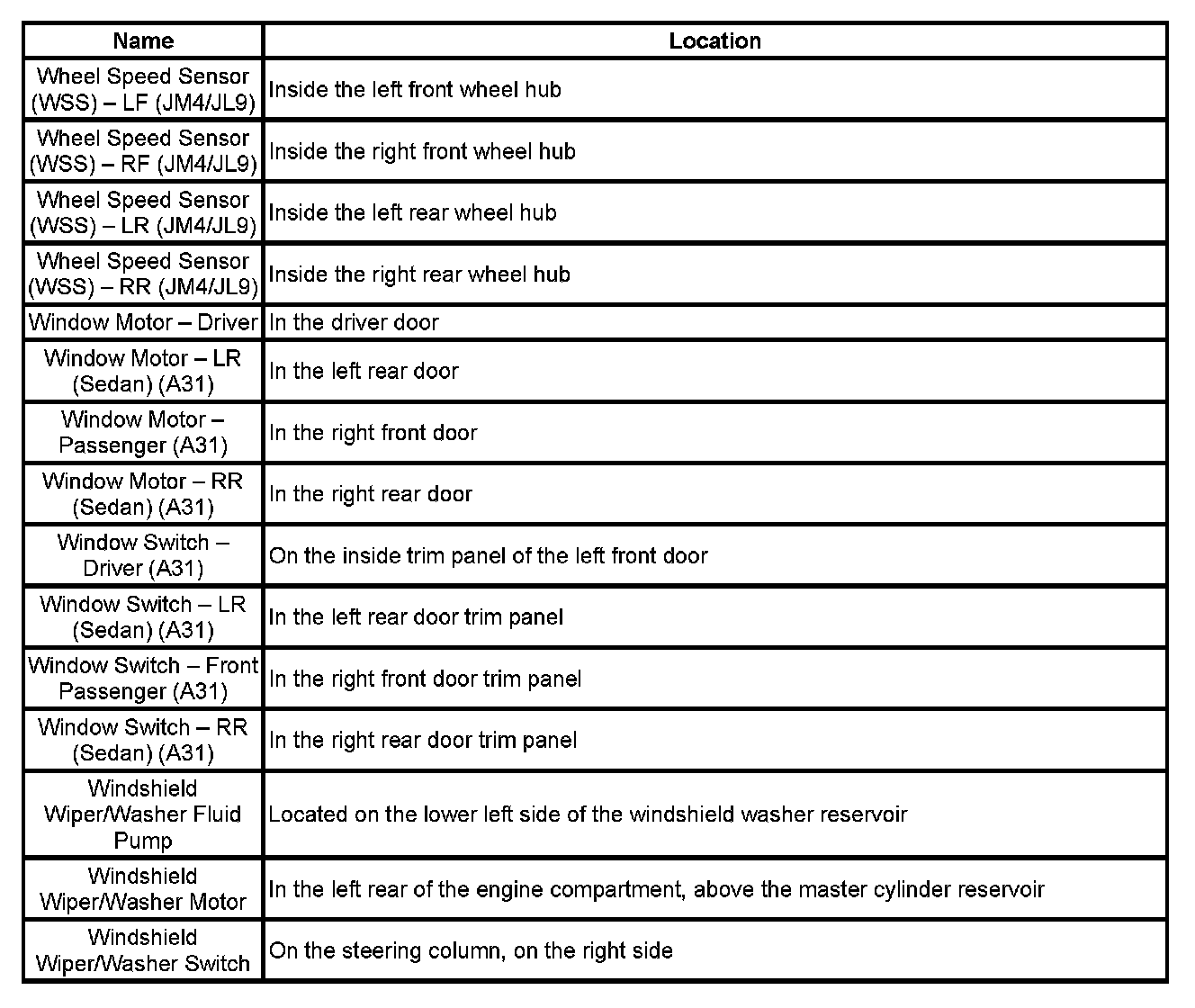

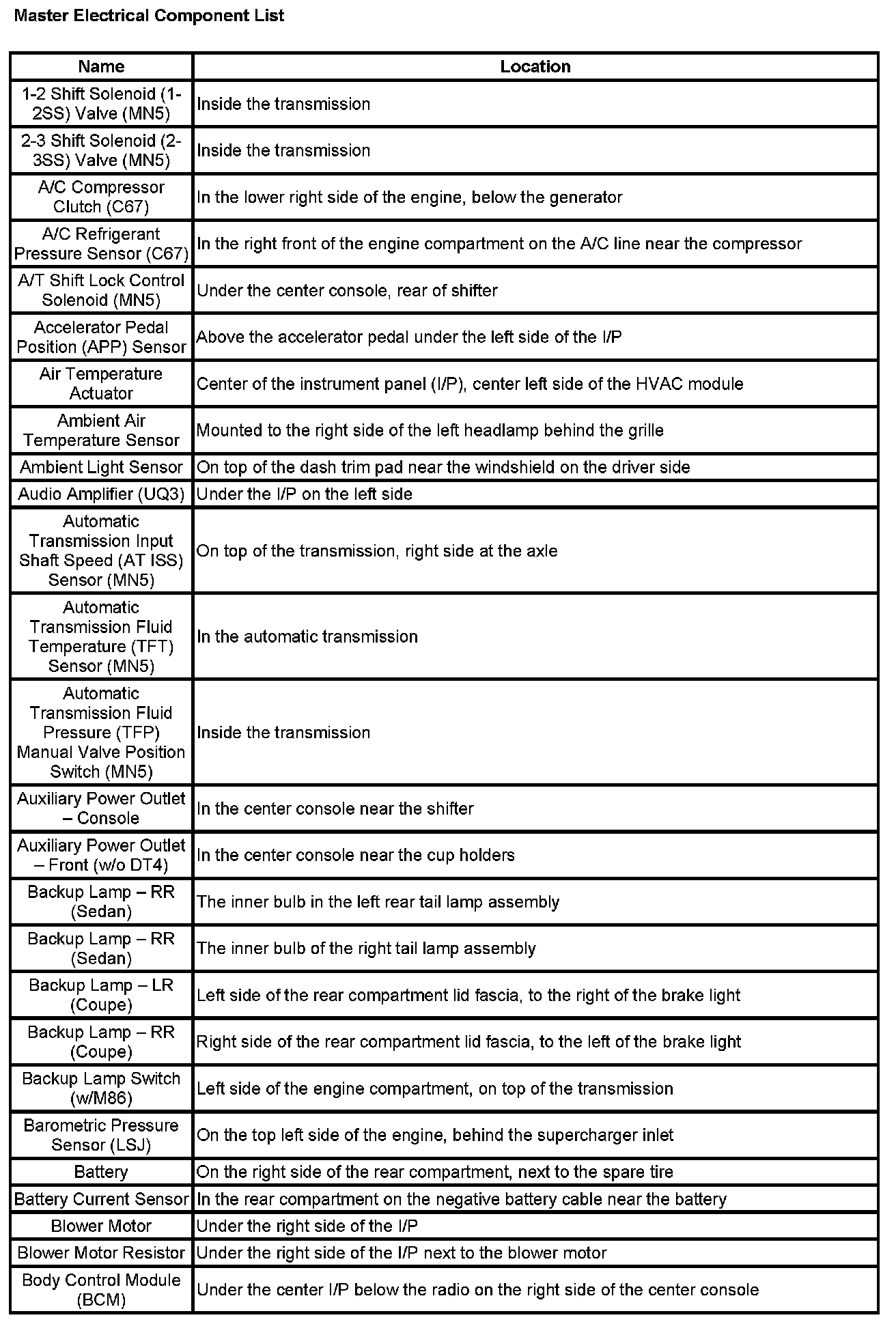

Components



1-2 Sh - Bo:




Br - Do:




Do - He:




He - In:




In - Ou:




Ou - Sp:




Sp - Ve:




Wh - Wi:
