Body Control Module (BCM) - C4

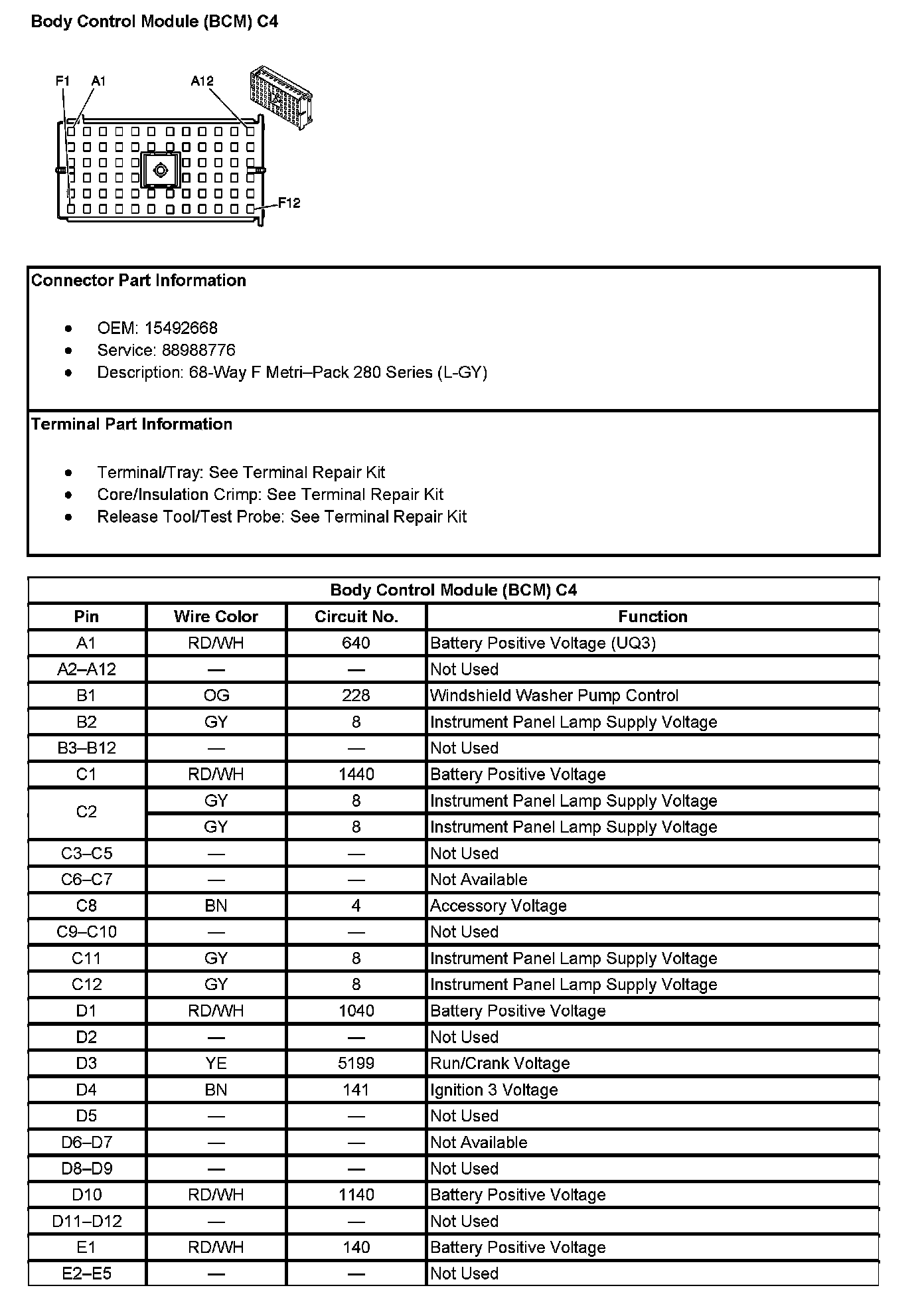

Body Control Module (BCM) C4 (Pin A1 To E5):

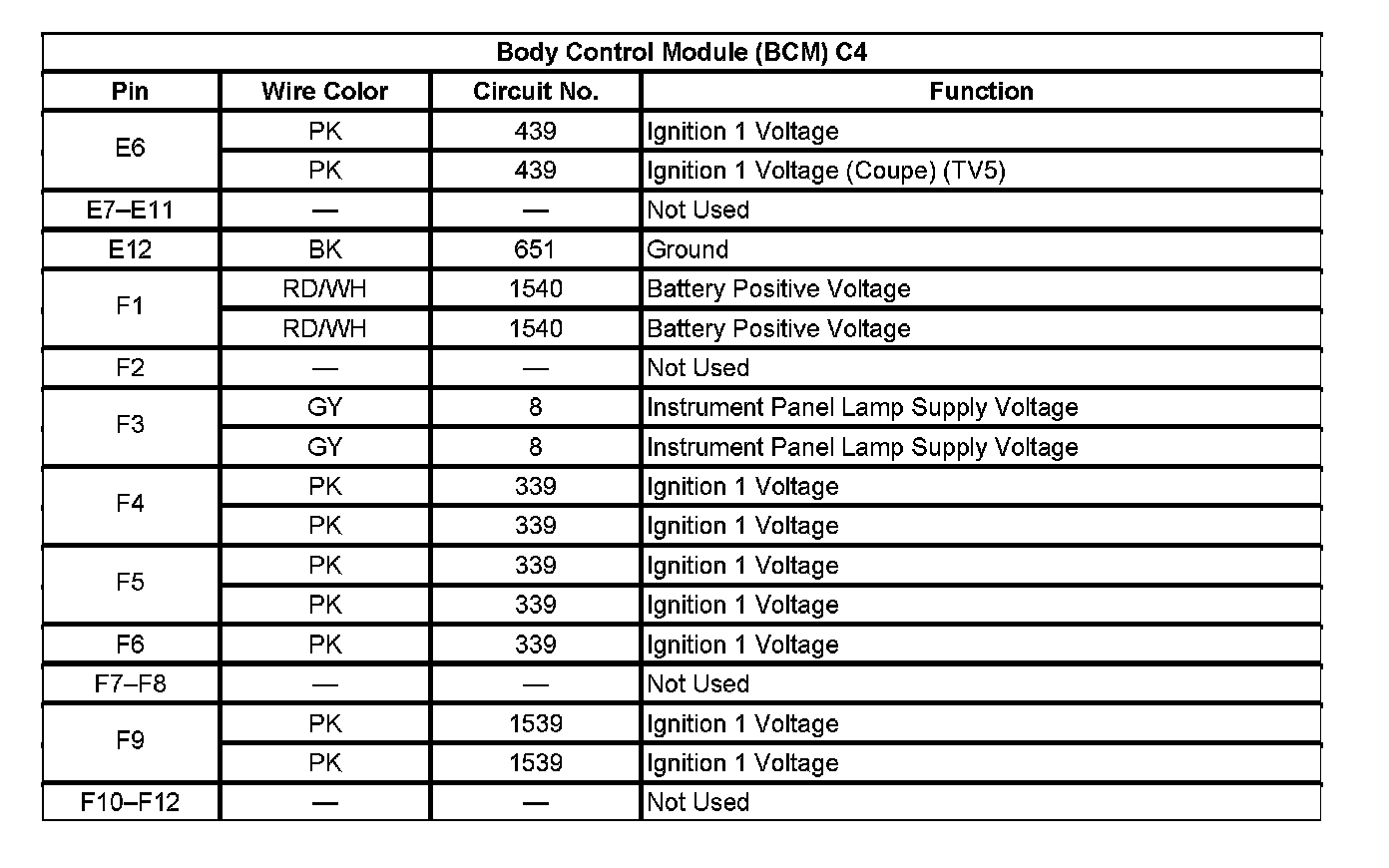

Body Control Module (BCM) C4 (Pin E6 To F12):
