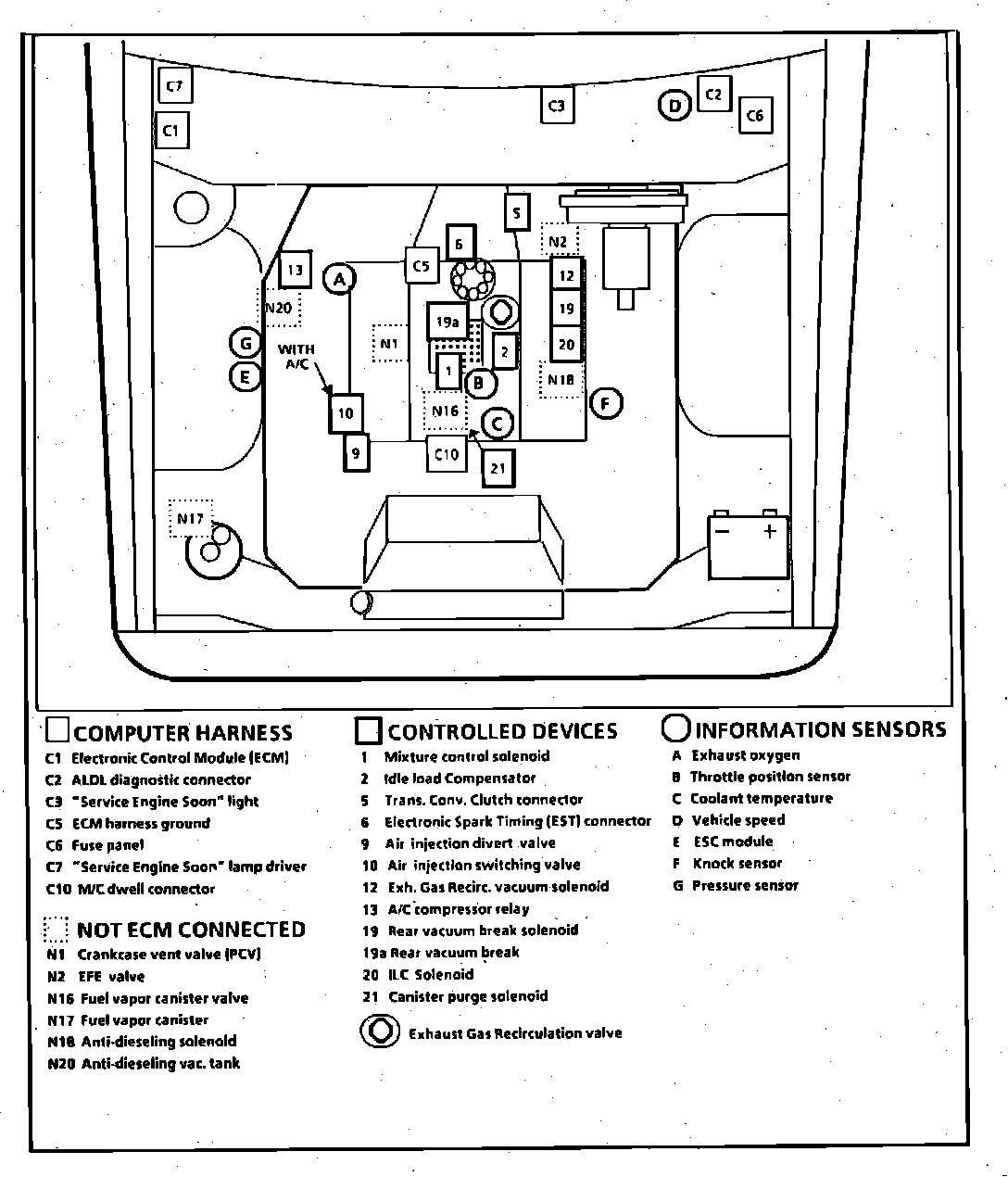

Electronic Control Module (ECM)

Engine & Underhood Components:




Behind RH Side Of I/P

Applicable to: 1990 Models w/V8-307/5.0L Carbureted, Except Brougham
