Fuse Block

Behind LH Side Of I/P:

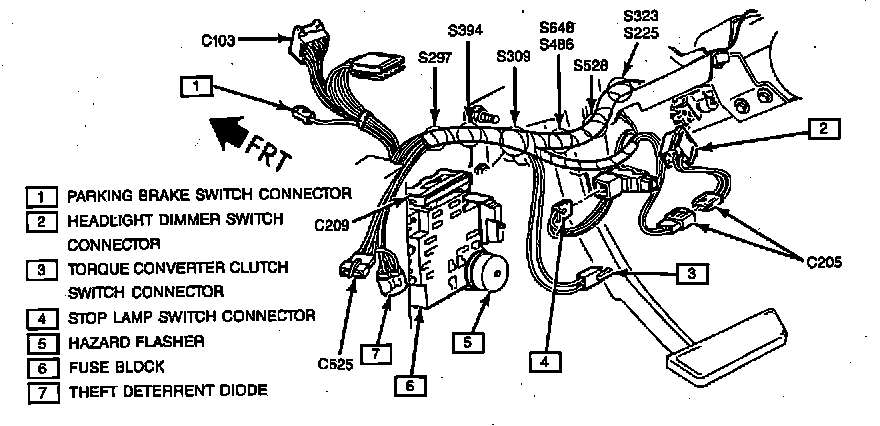

Behind LH Side Of I/P, Near Shroud

Applicable to: Caprice & Safari

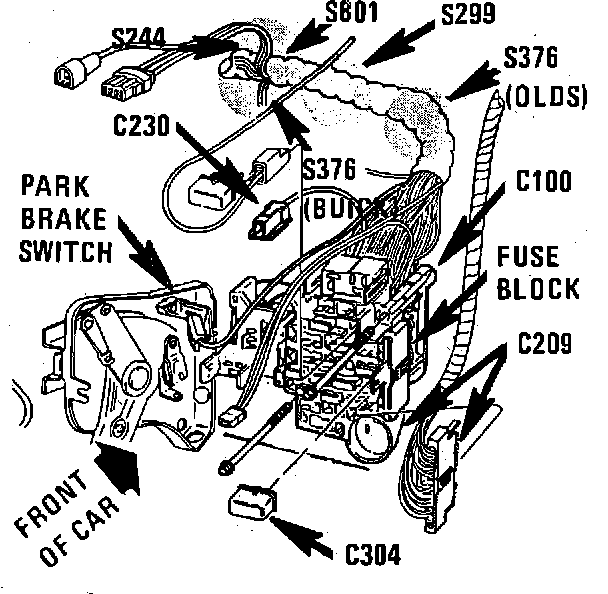

Park Brake Switch.:

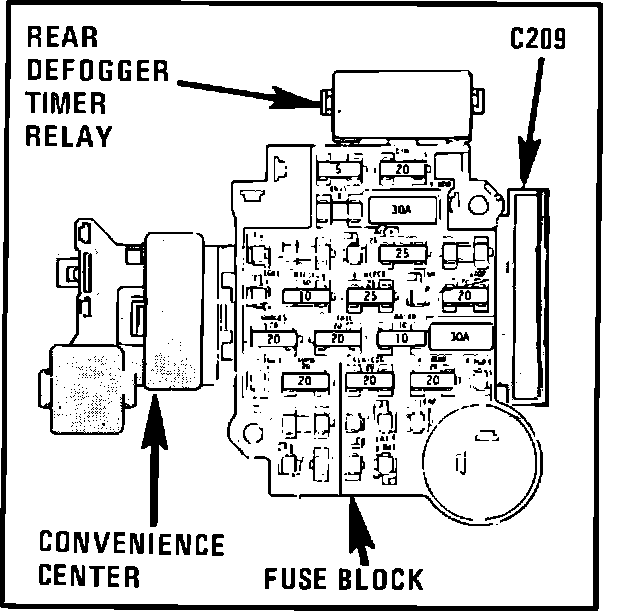

Fuse Block Components.:

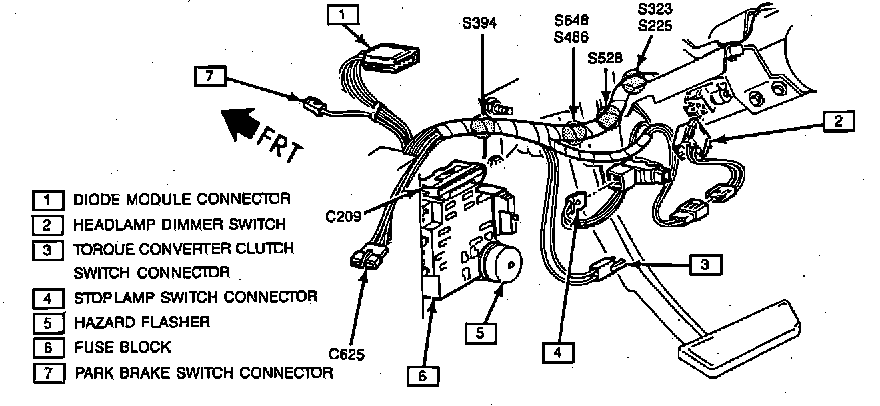

Behind LH Side Of I/P, Near Shroud

Applicable to: Custom Cruiser & Estate Wagon

Under LH Side Of I/P.:

Behind LH Side Of I/P, Near Shroud

Applicable to: 1989 Brougham

Under LH Side Of I/P.:

Behind LH Side Of I/P, Near Shroud

Applicable to: 1990 Brougham

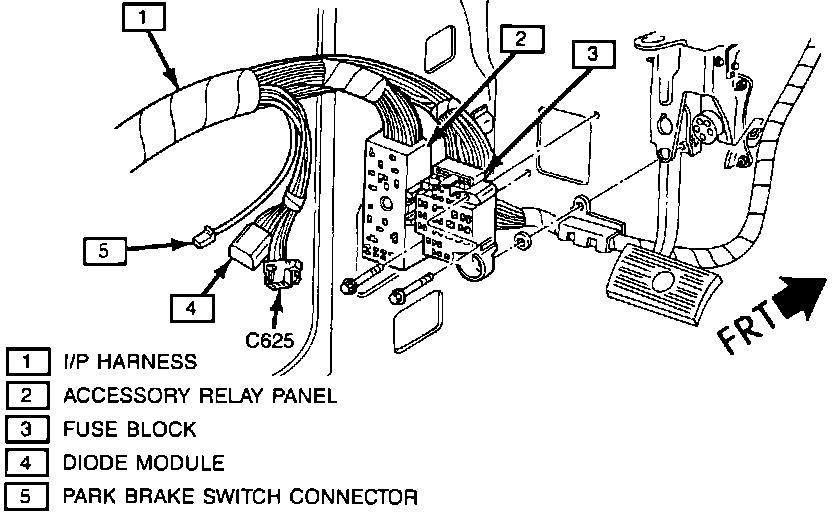

Accessory Relay Panel.:

Behind LH Side Of I/P, Near Shroud

Applicable to: Brougham
