Throttle Position Sensor
Throttle Position Sensor
THROTTLE POSITION SENSOR:
1.6L DOHC:

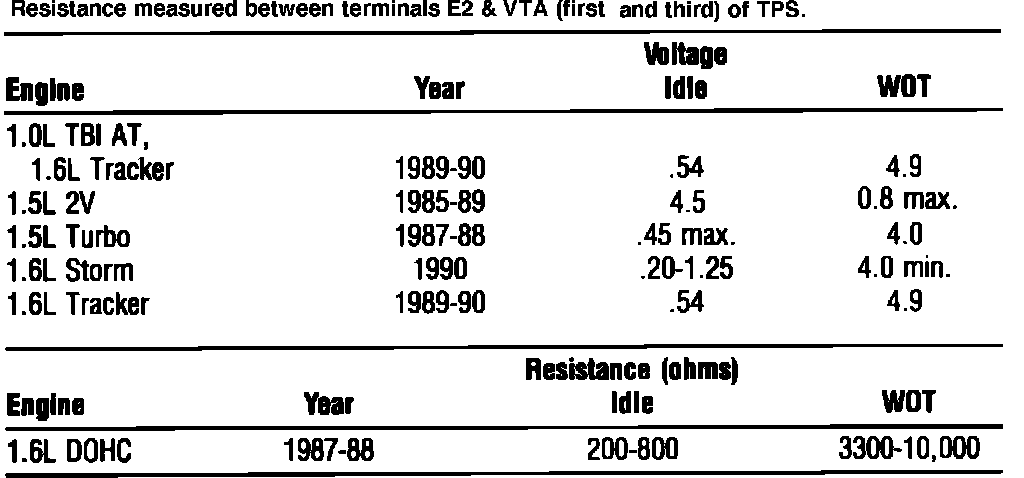

Resistance measured between terminals E2 & VTA (first and third) of
TPS
.
