Initial Inspection and Diagnostic Overview
>>
System Performance Check
System Performance Check

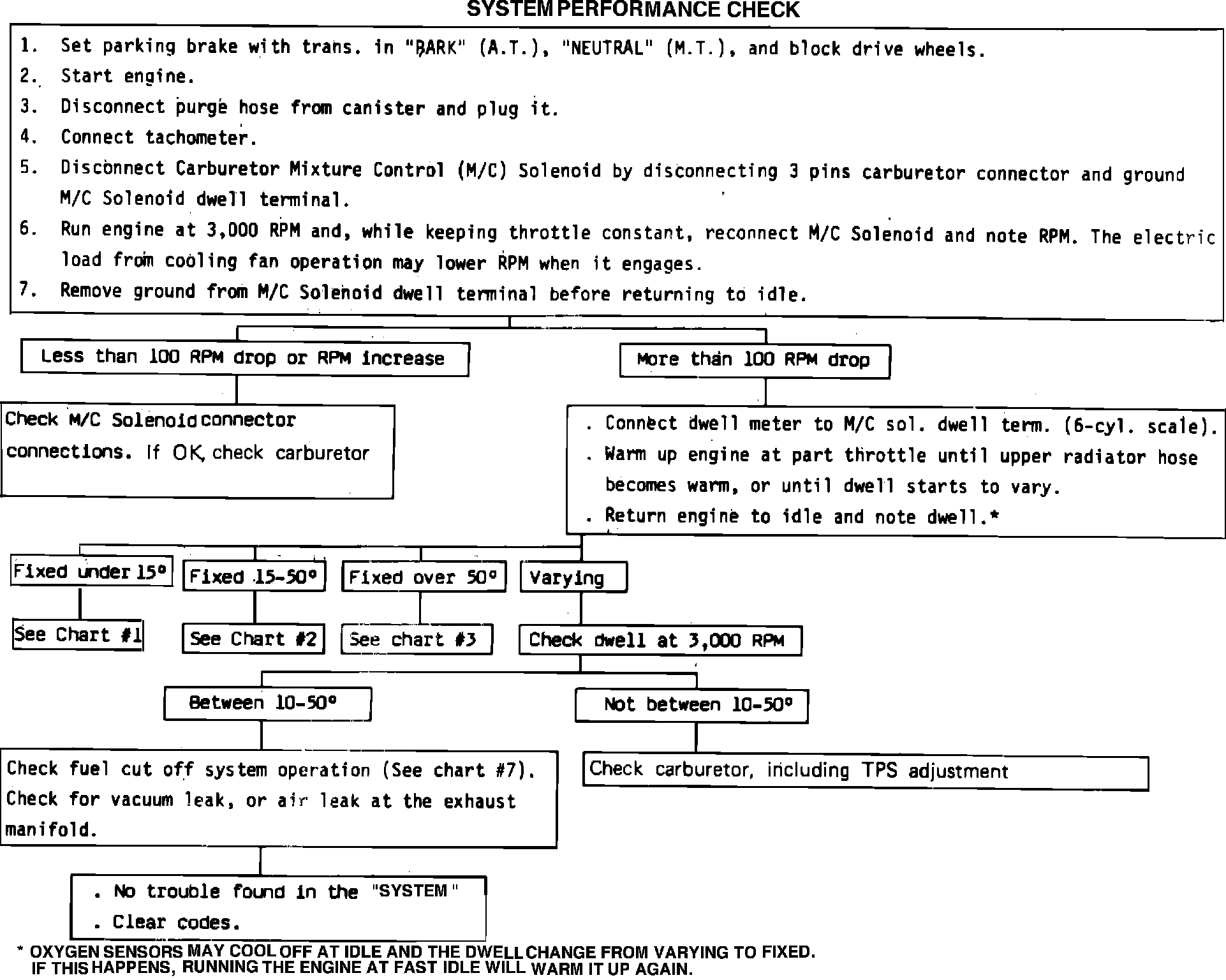

Fig. 7 System performance check:
