Vacuum Hose Identification
Vacuum Hose Identification

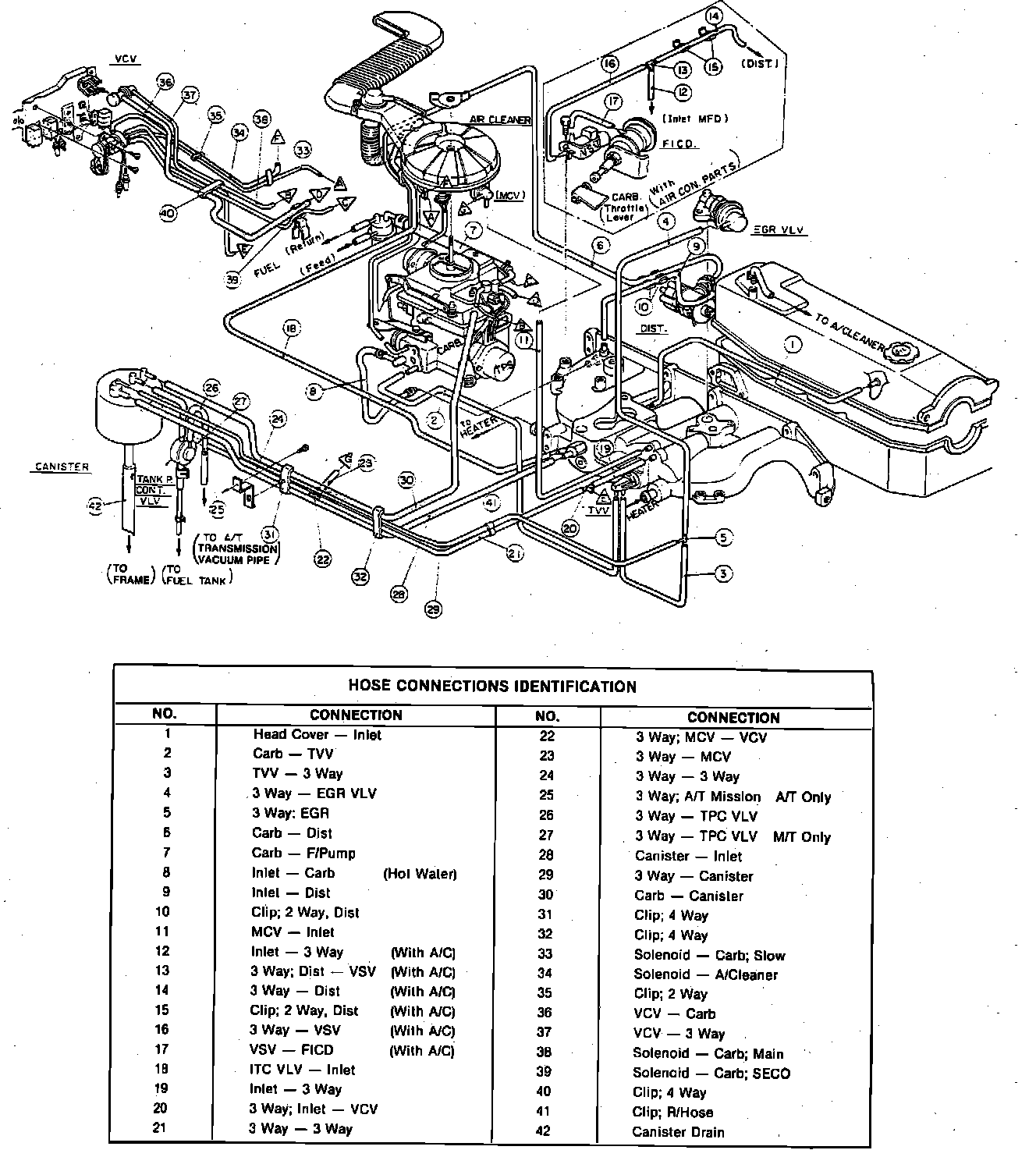

Vacuum Hose Routing & Component Locations:
Engine Compartment
