Instrument Panel Wiring

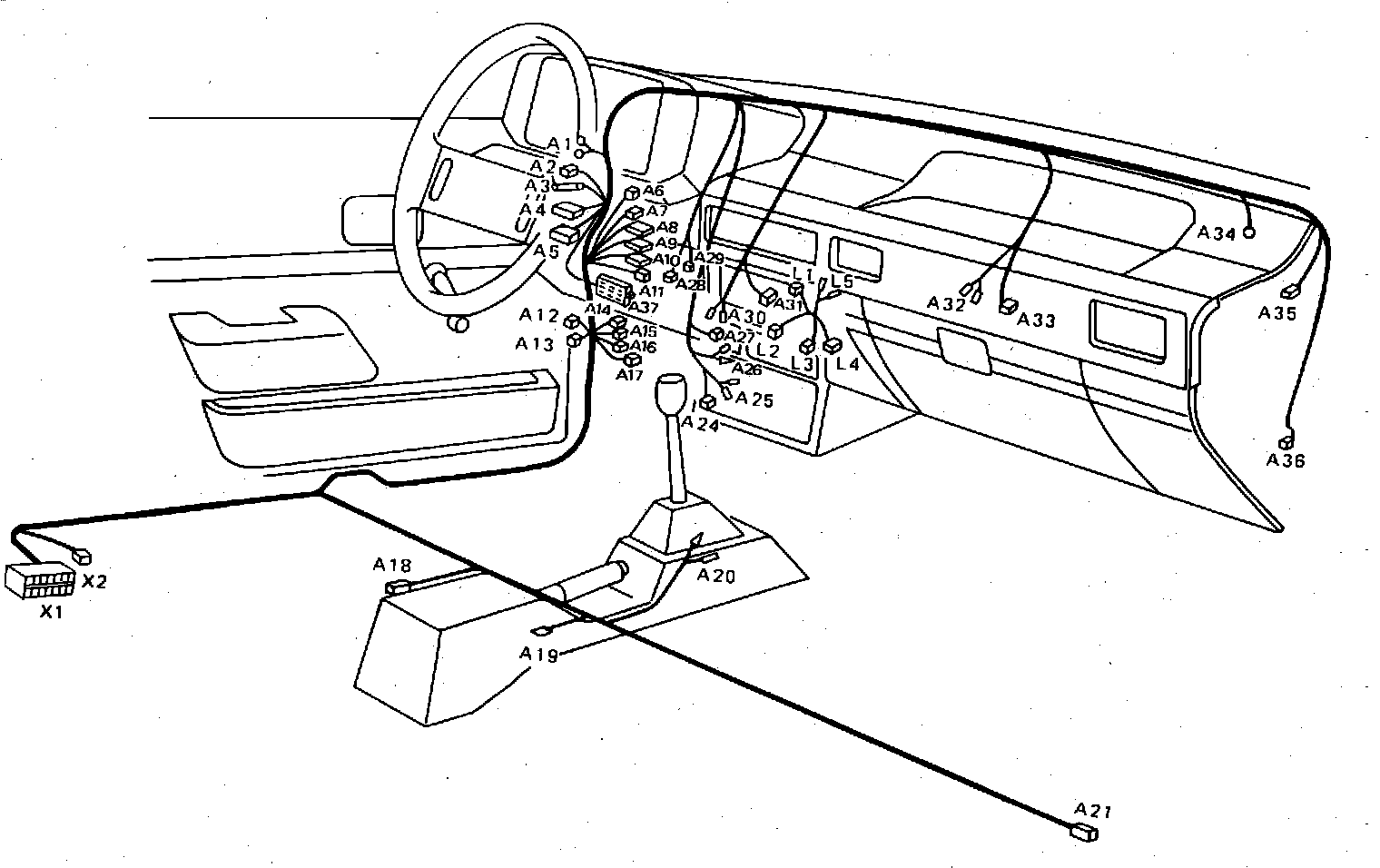

Instrument Panel Wiring (Part 1 Of 2):

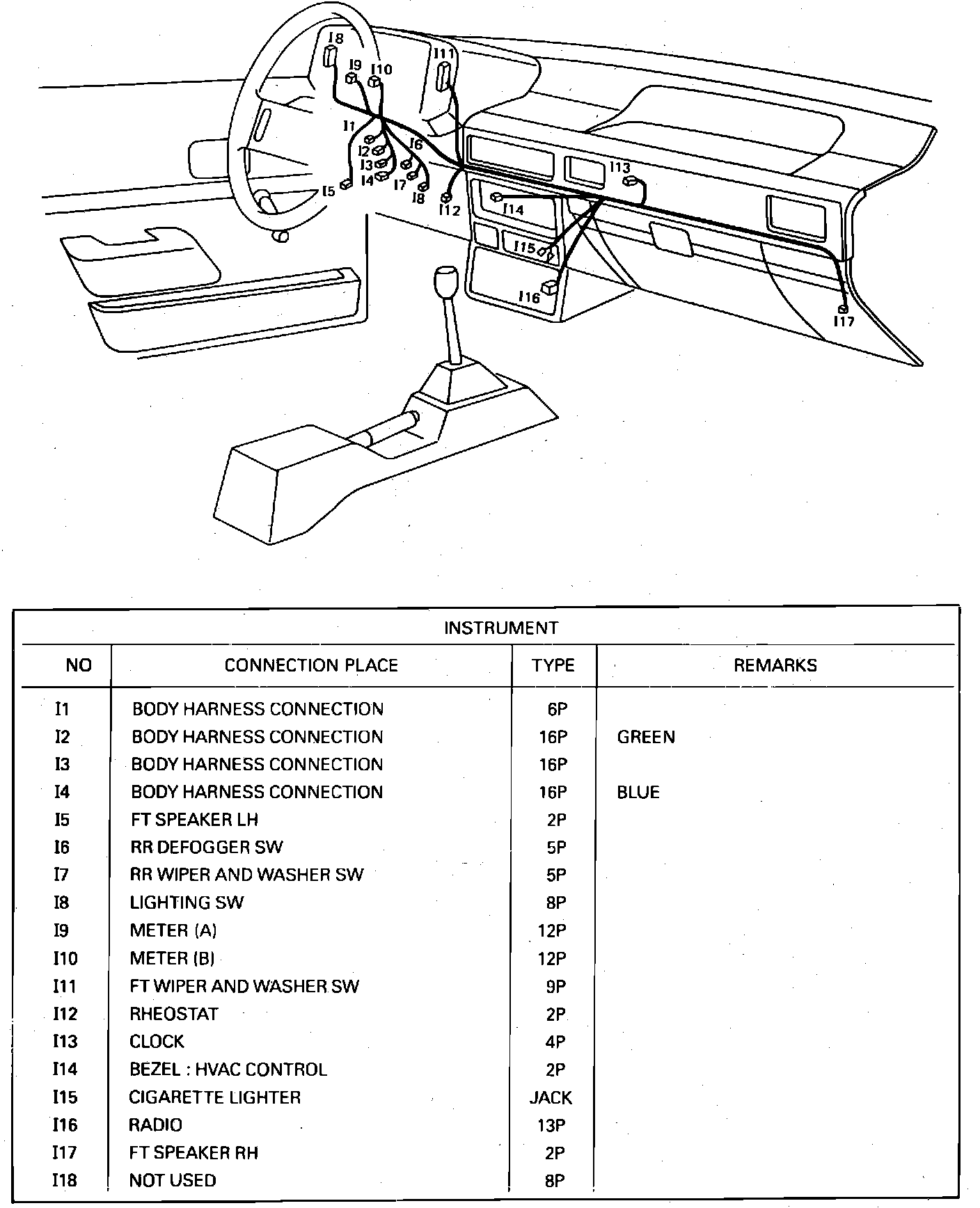

Instrument Panel Wiring (Part 2 Of 2):
Instrument Panel
