Home >> Cadillac >> 2013 >> XTS FWD V6-3.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

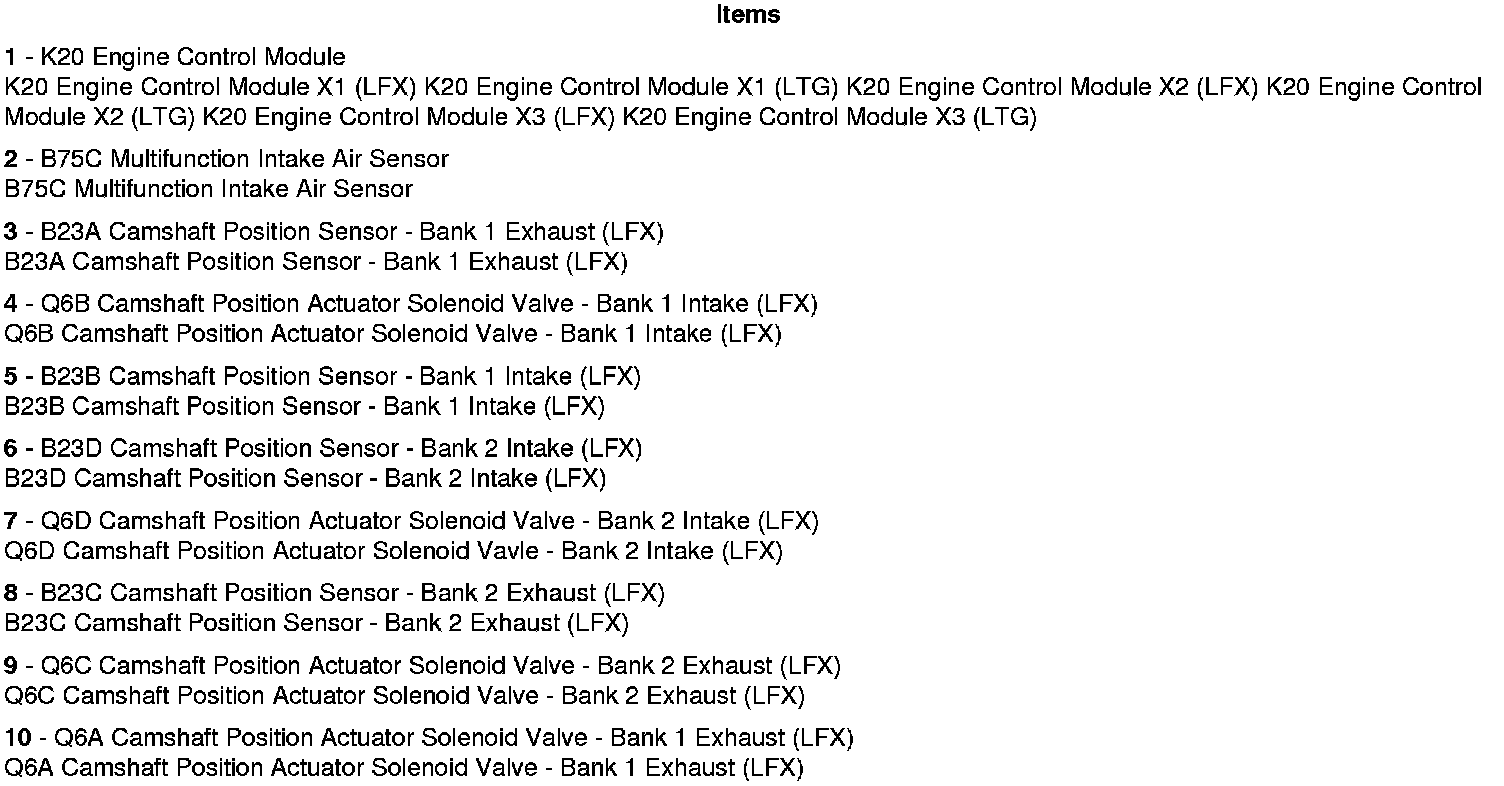

Powertrain Component Views

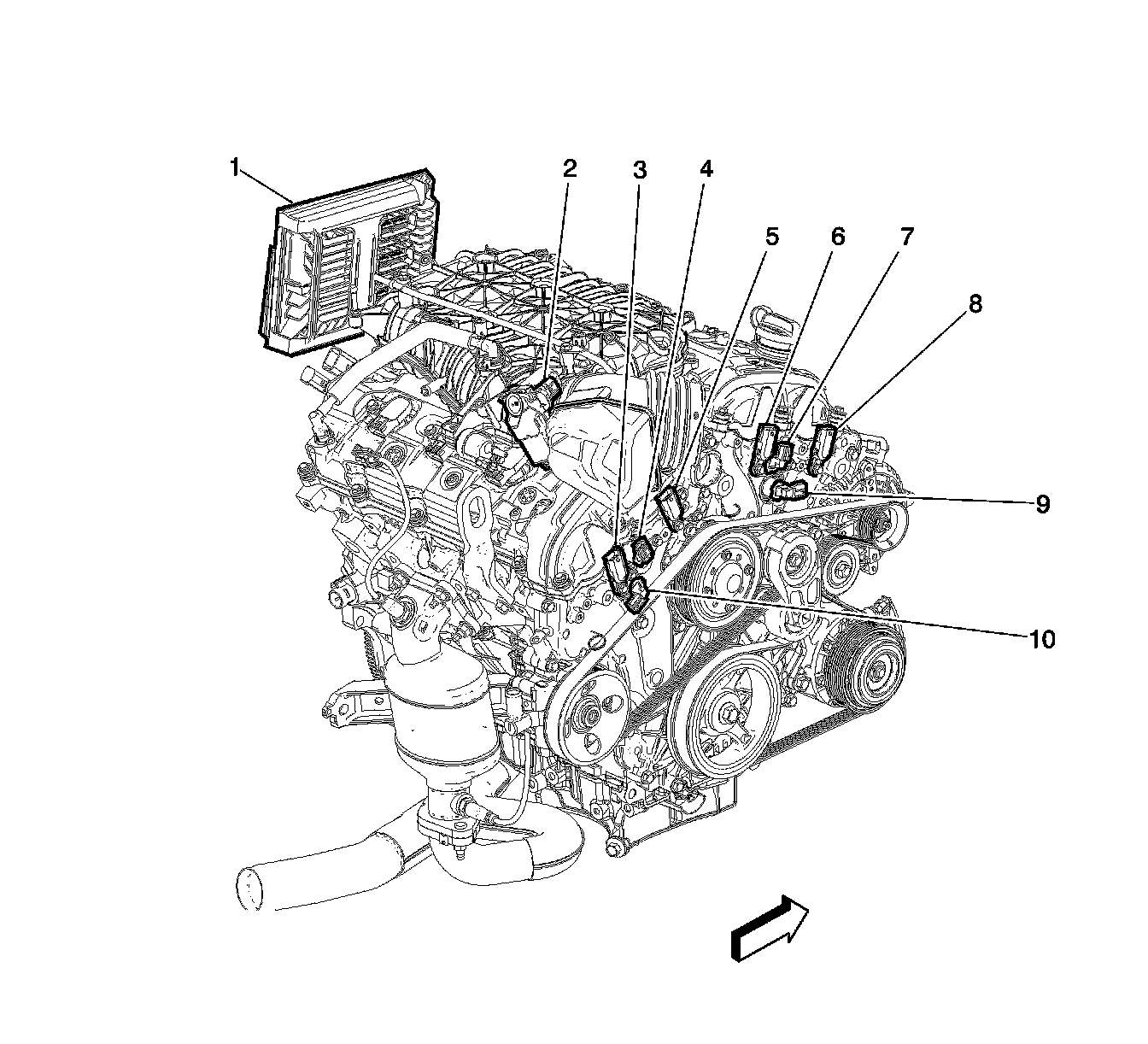

Rear of Engine Components (LFX)
