Cadillac
>>
2013
>>
XTS FWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Control Module
Steering Control Module

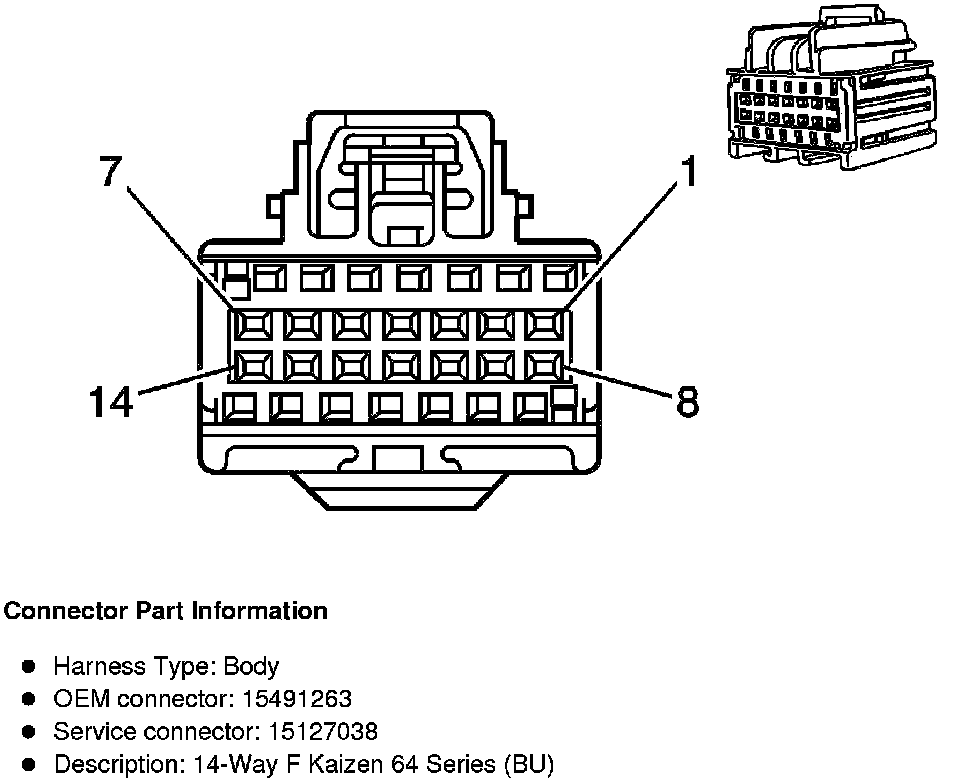

Component Connector End Views

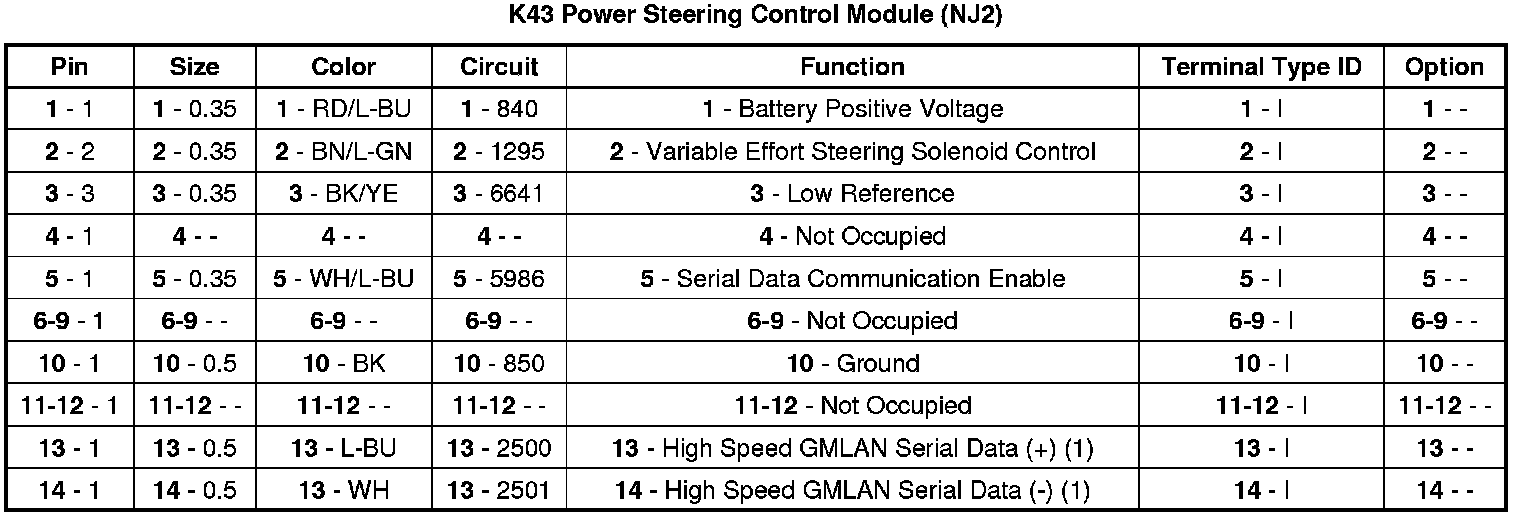

K43 Power Steering
Control Module
(NJ2)
