Home >> Cadillac >> 2013 >> XTS FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column Control Module >> Steering Column Position Control Module X4

Steering Column Position Control Module X4

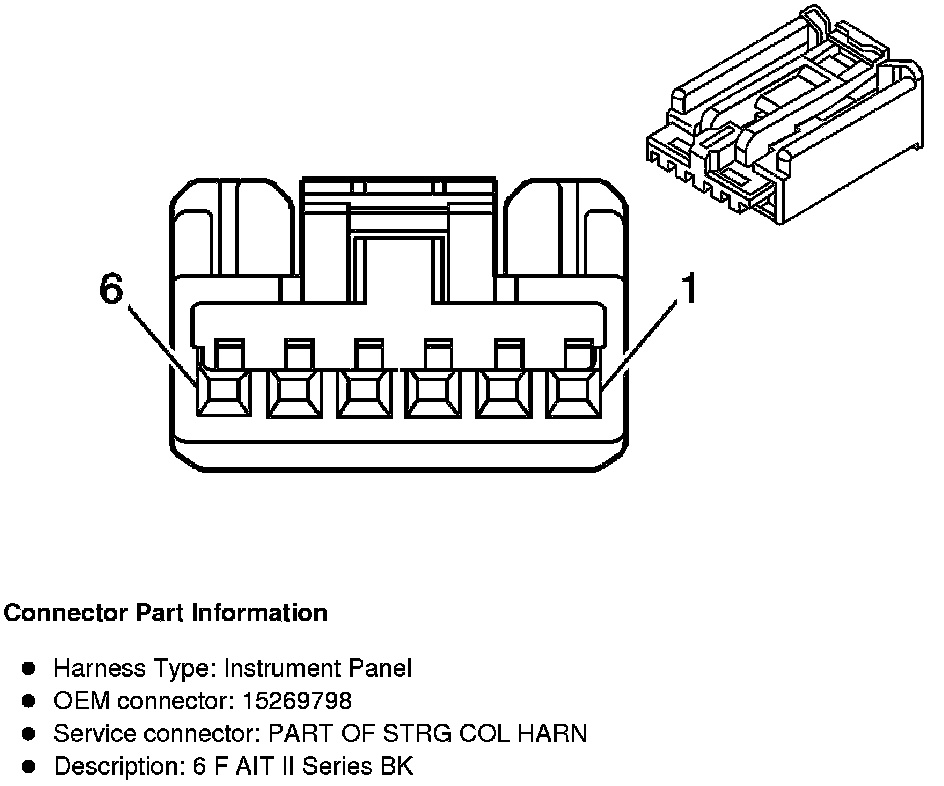

Component Connector End Views

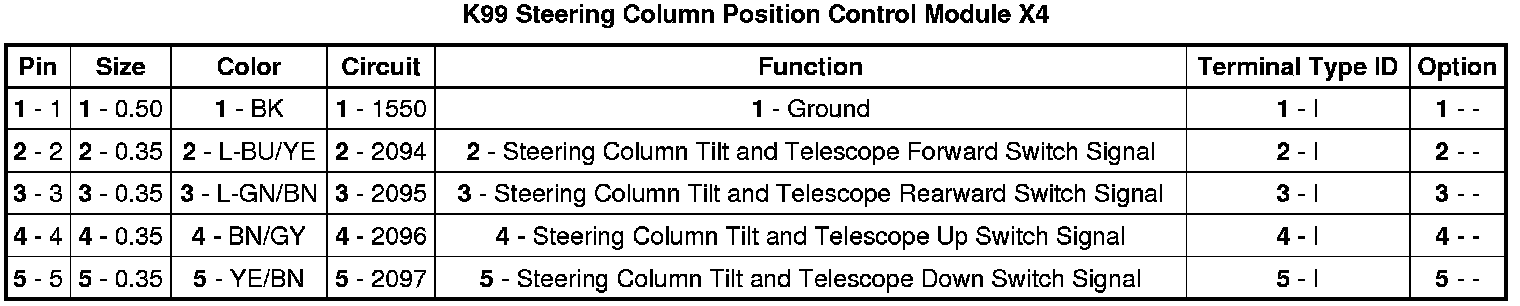

K99 Steering Column Position Control Module X4
