Power Door Lock Control Module
>>
Keyless Entry Control Module X4 (ATH)
Keyless Entry Control Module X4 (ATH)

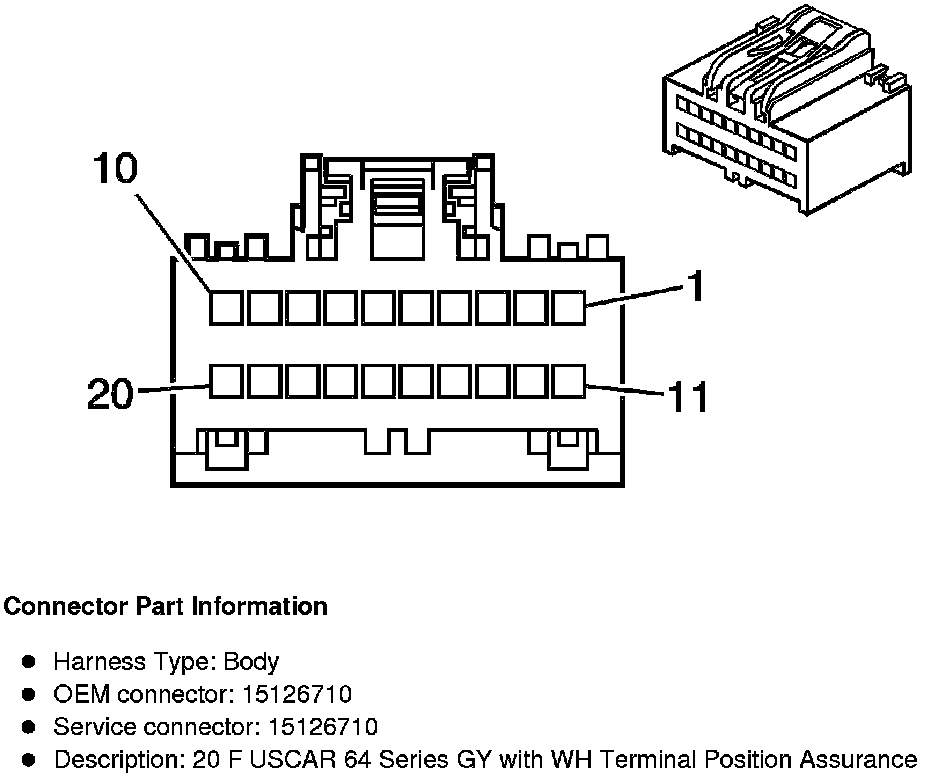

Component Connector End Views

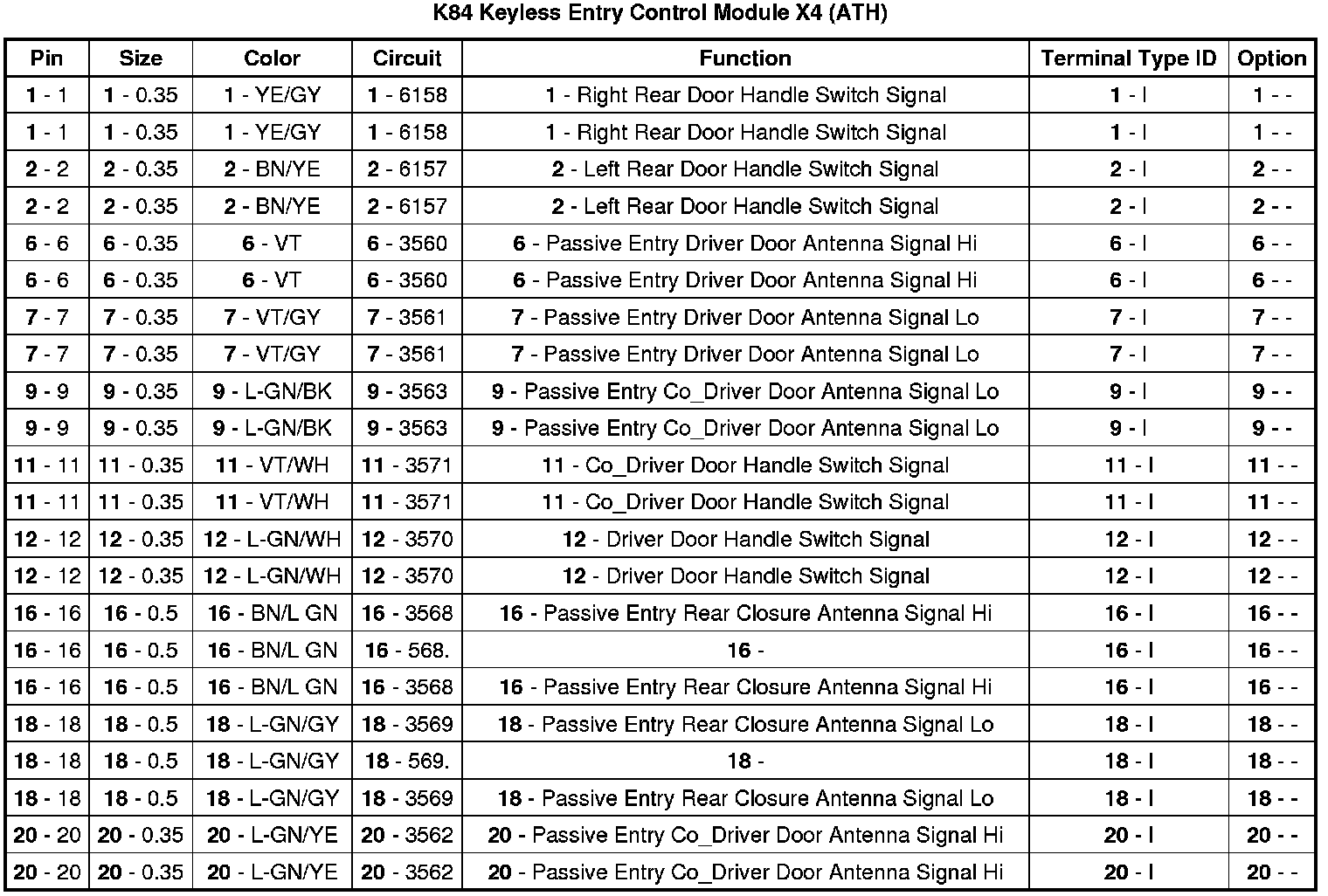

K84 Keyless Entry
Control Module
X4 (ATH)
