Parking Brake Control Module
Parking Brake Control Module

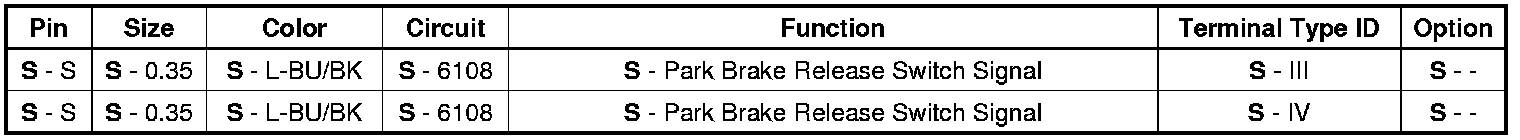

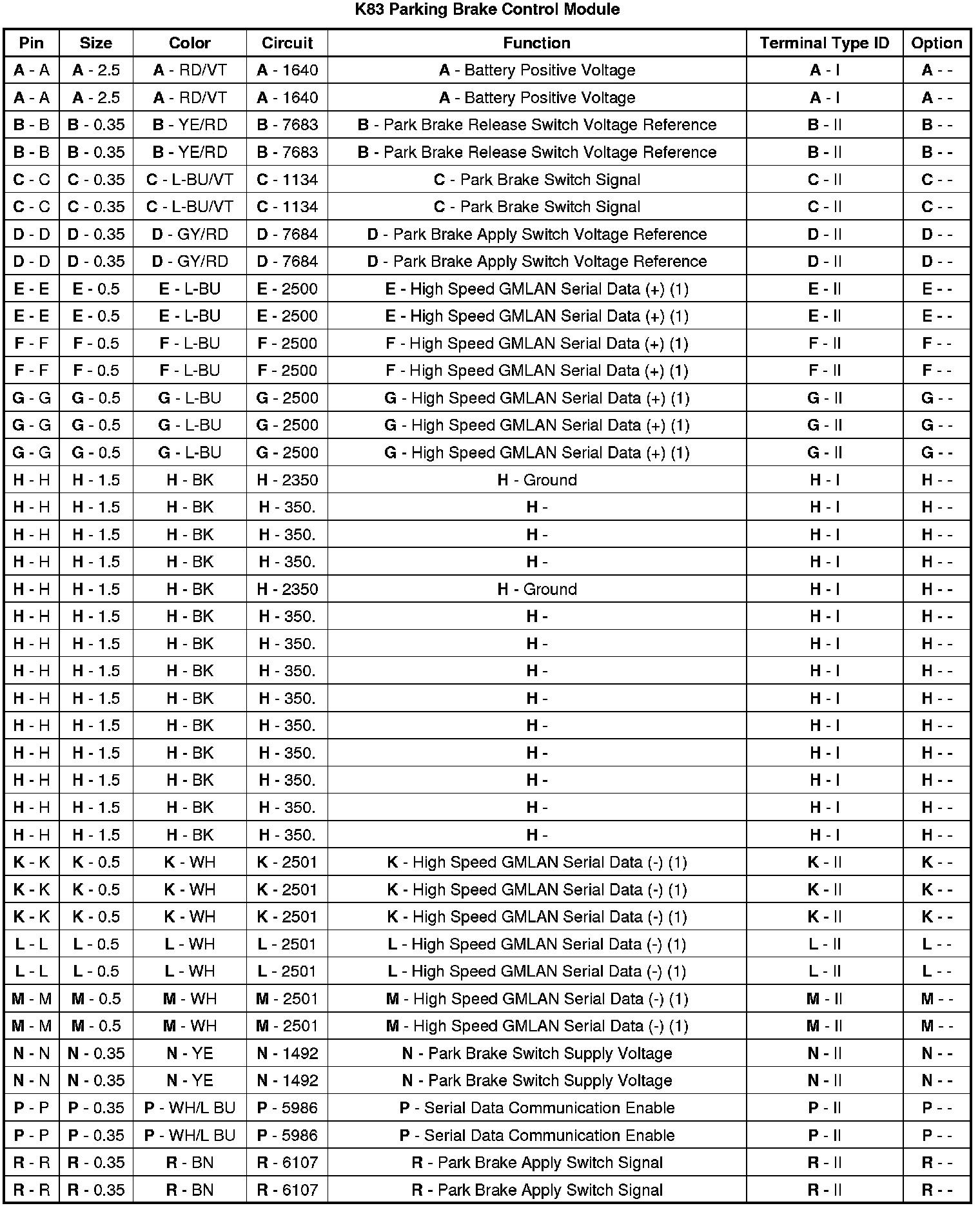

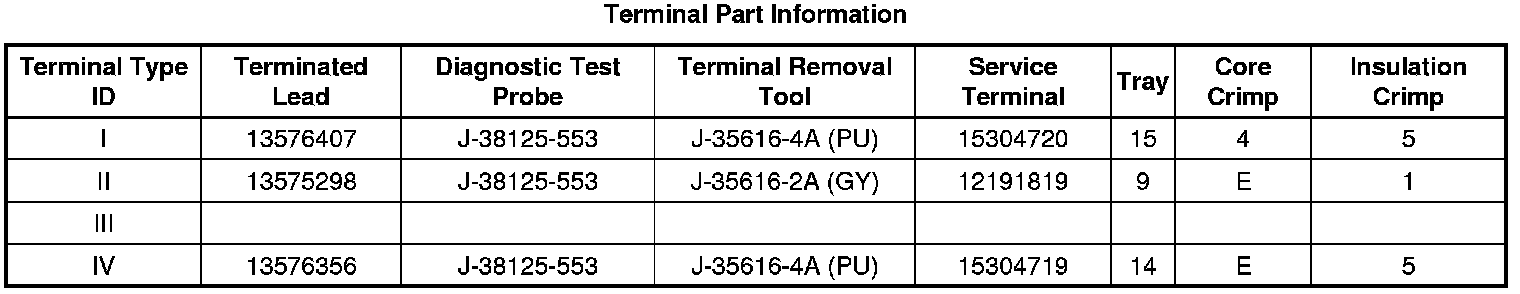

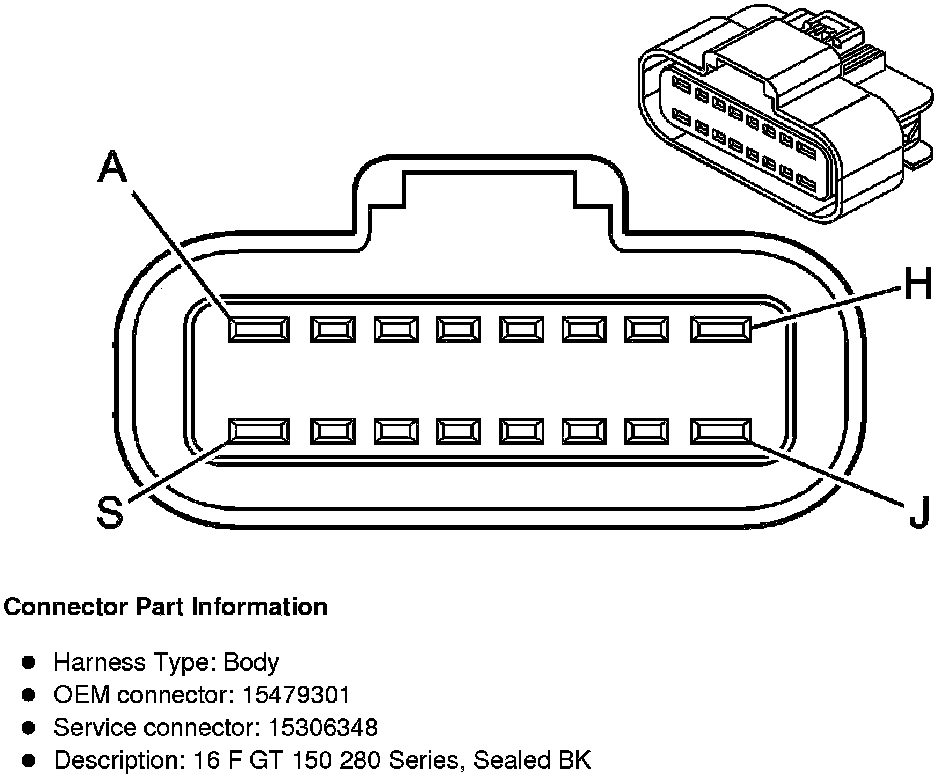

Component Connector End Views
K83
Parking Brake Control Module
