Radar Sensor Module - Short Range Right Front
Radar Sensor Module - Short Range Right Front

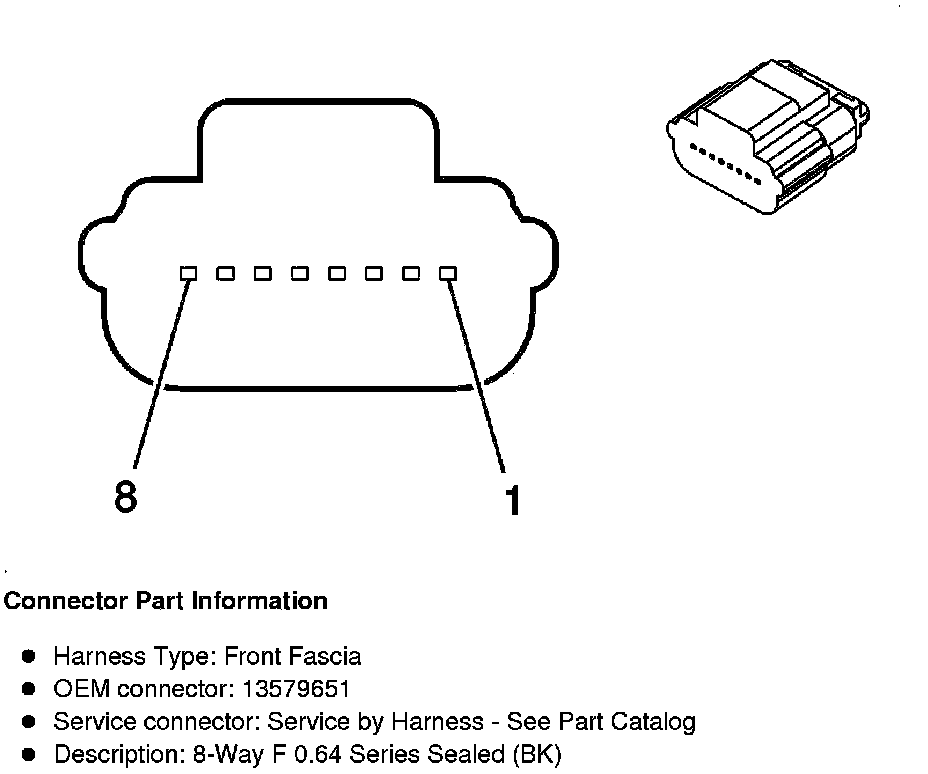

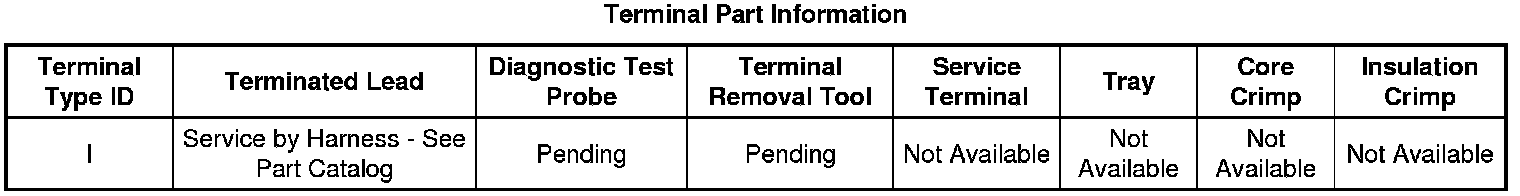

Component Connector End Views

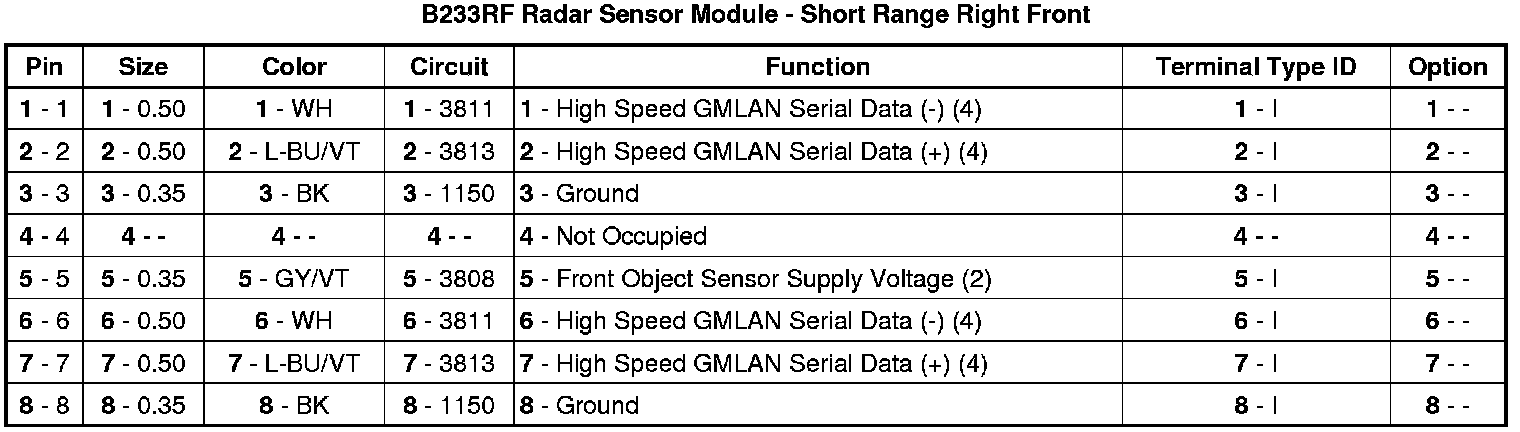

B233RF Radar Sensor Module - Short Range Right Front
