Collision Avoidance Sensor
>>
Radar Sensor Module - Short Range Left Front
Radar Sensor Module - Short Range Left Front

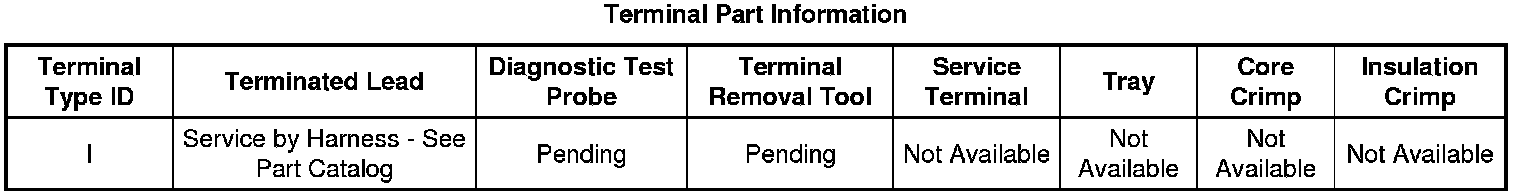

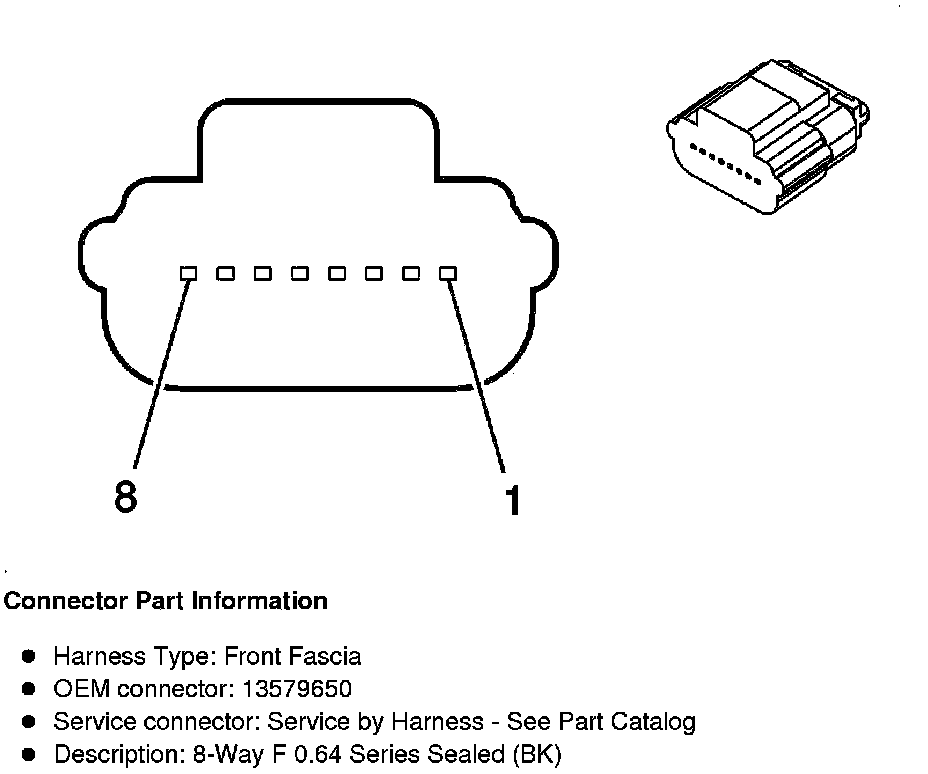

Component Connector End Views

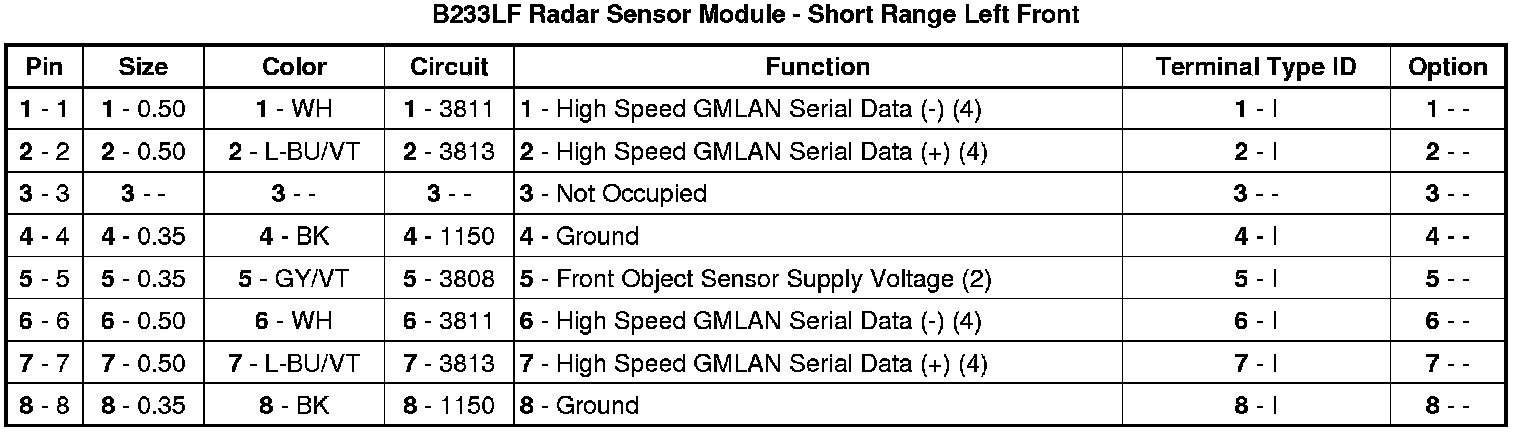

B233LF Radar Sensor Module - Short Range Left Front
