Collision Avoidance Sensor
>>
Radar Sensor Module - Long Range
Radar Sensor Module - Long Range

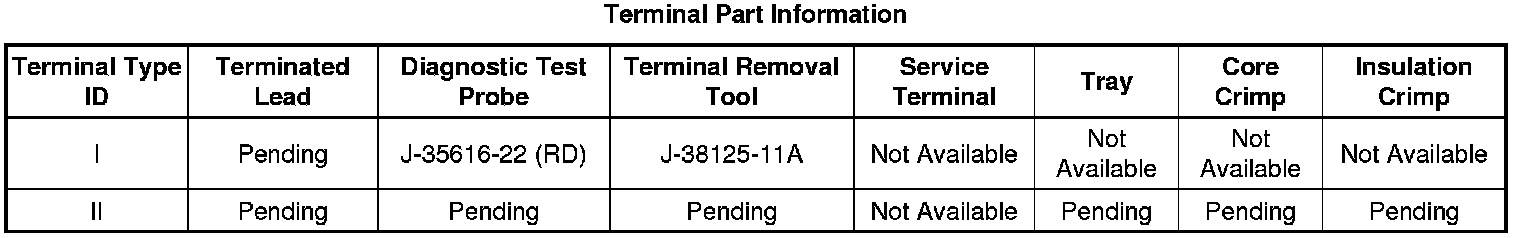

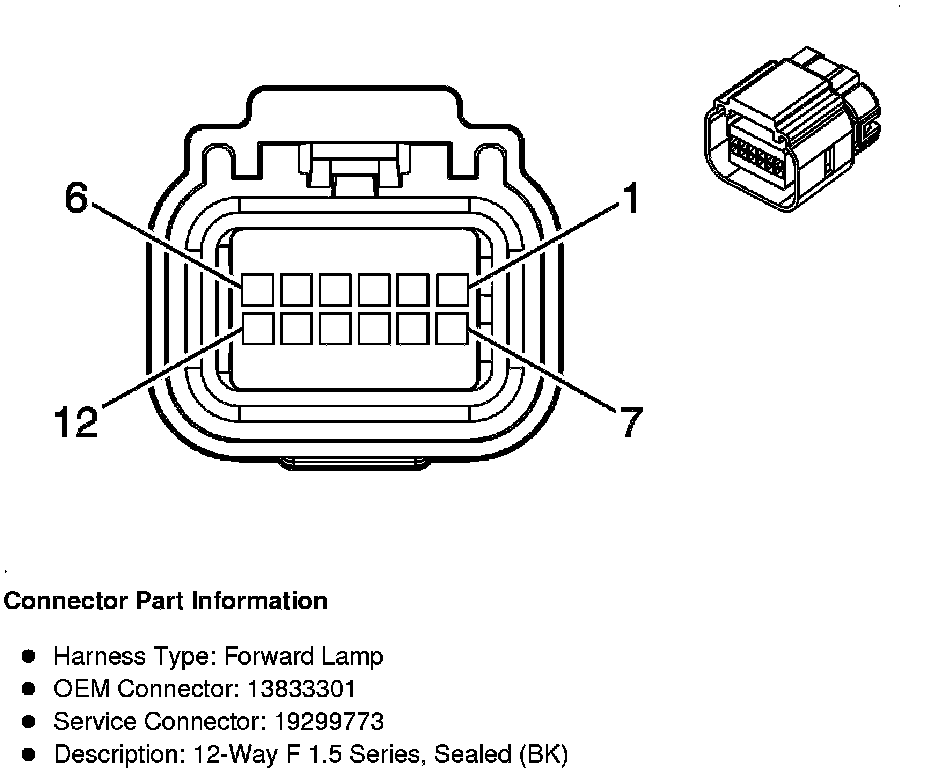

Component Connector End Views

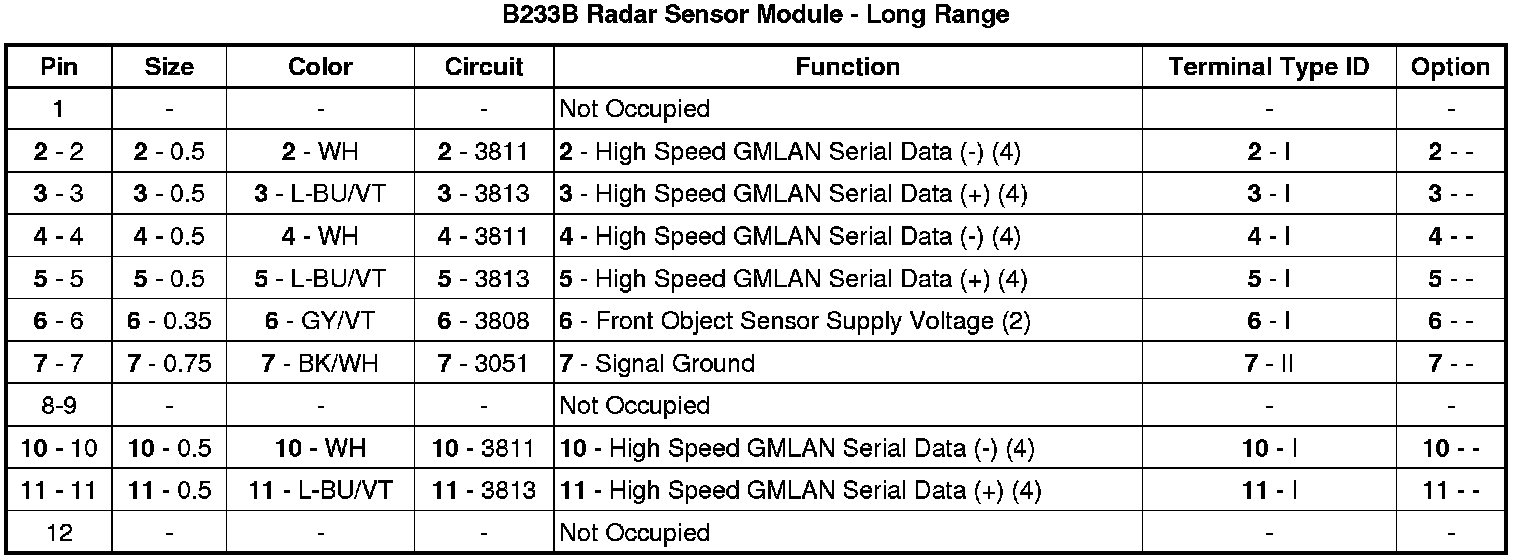

B233B Radar Sensor Module - Long Range
