Collision Avoidance Module
>>
Side Object Sensor Module - Left (CZ2)
Side Object Sensor Module - Left (CZ2)
Component Connector End Views

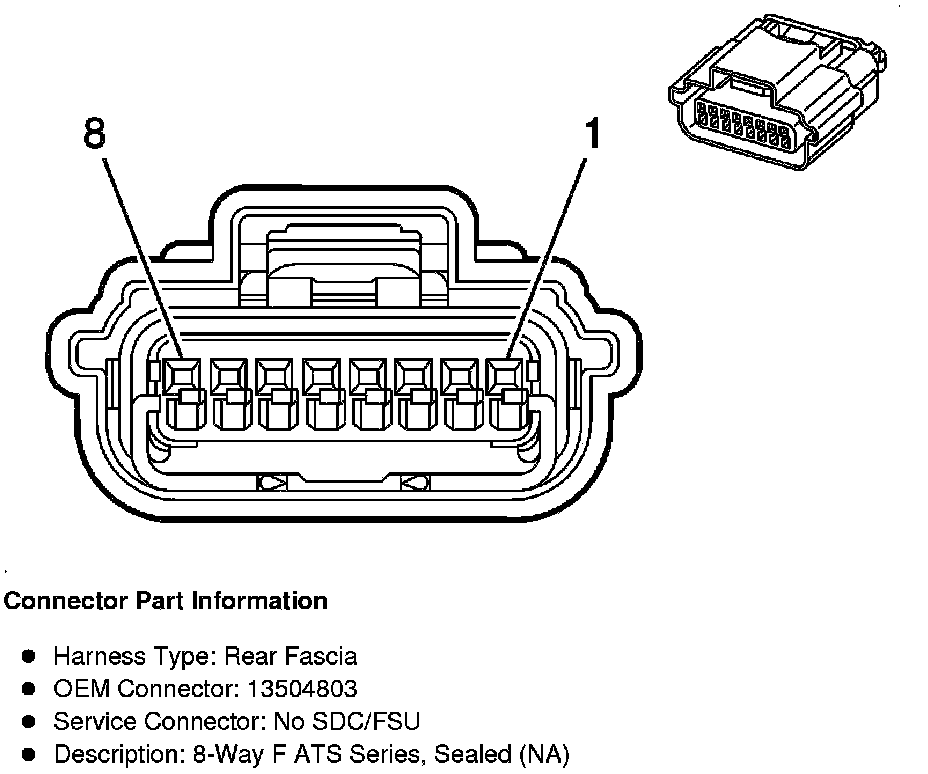

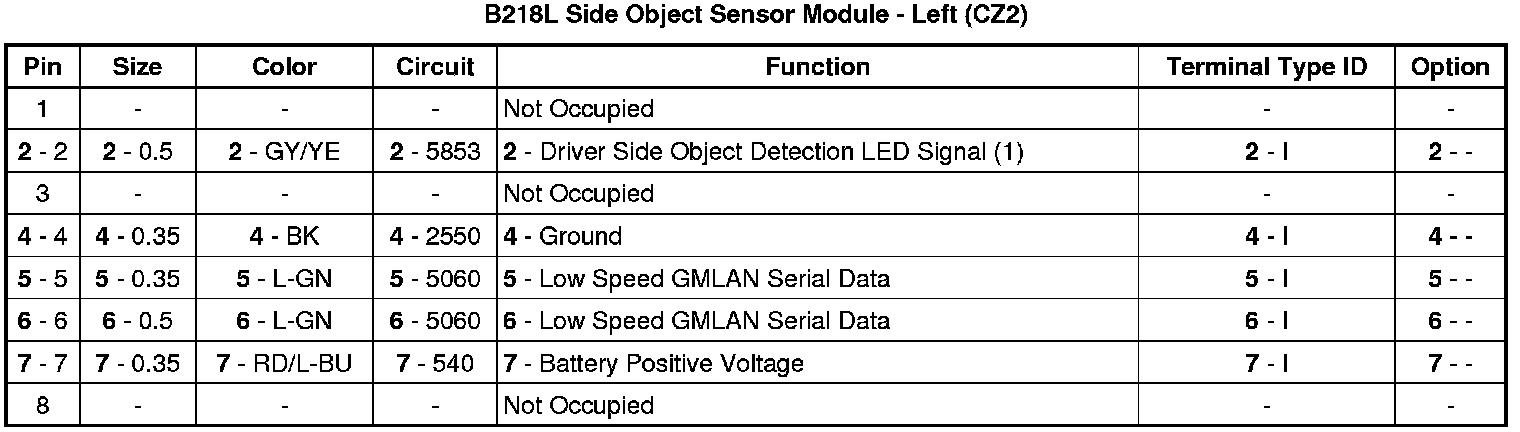

B218L Side Object Sensor Module - Left (CZ2)
