Home >> Cadillac >> 2013 >> XTS FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Central Control Module >> Telematics Communication Interface Control Module Battery (UE1)

Telematics Communication Interface Control Module Battery (UE1)

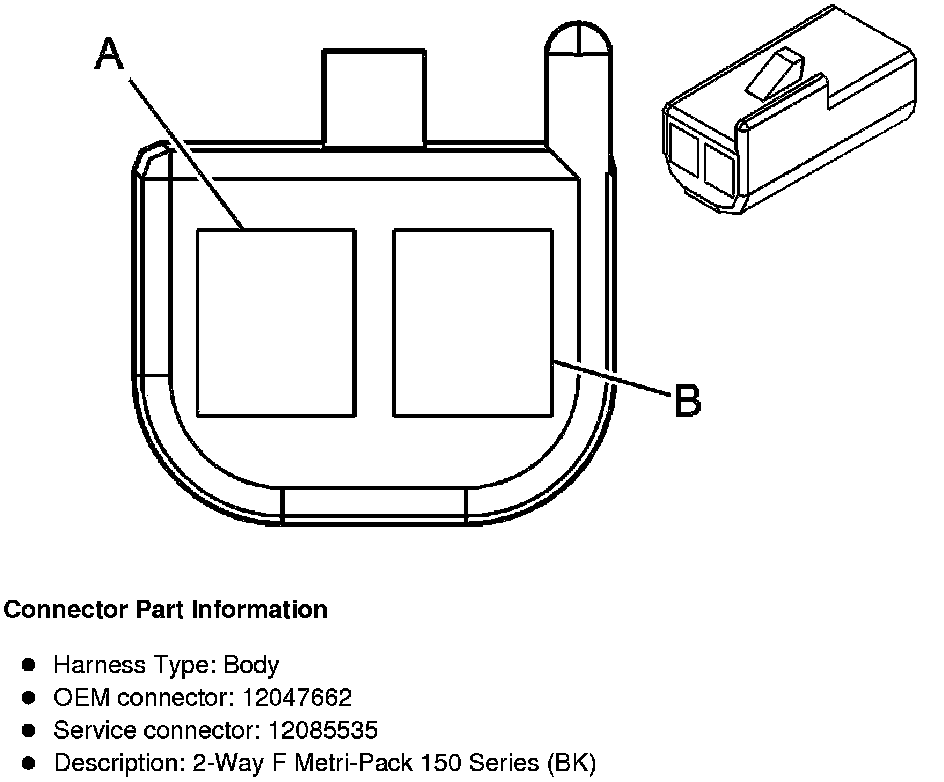

Component Connector End Views

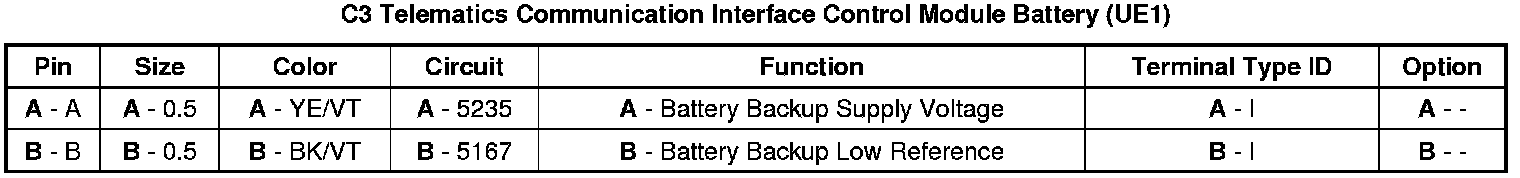

C3 Telematics Communication Interface Control Module Battery (UE1)
