Left Side of Engine Compartment Components




Front of Vehicle/Engine Compartment Component Views

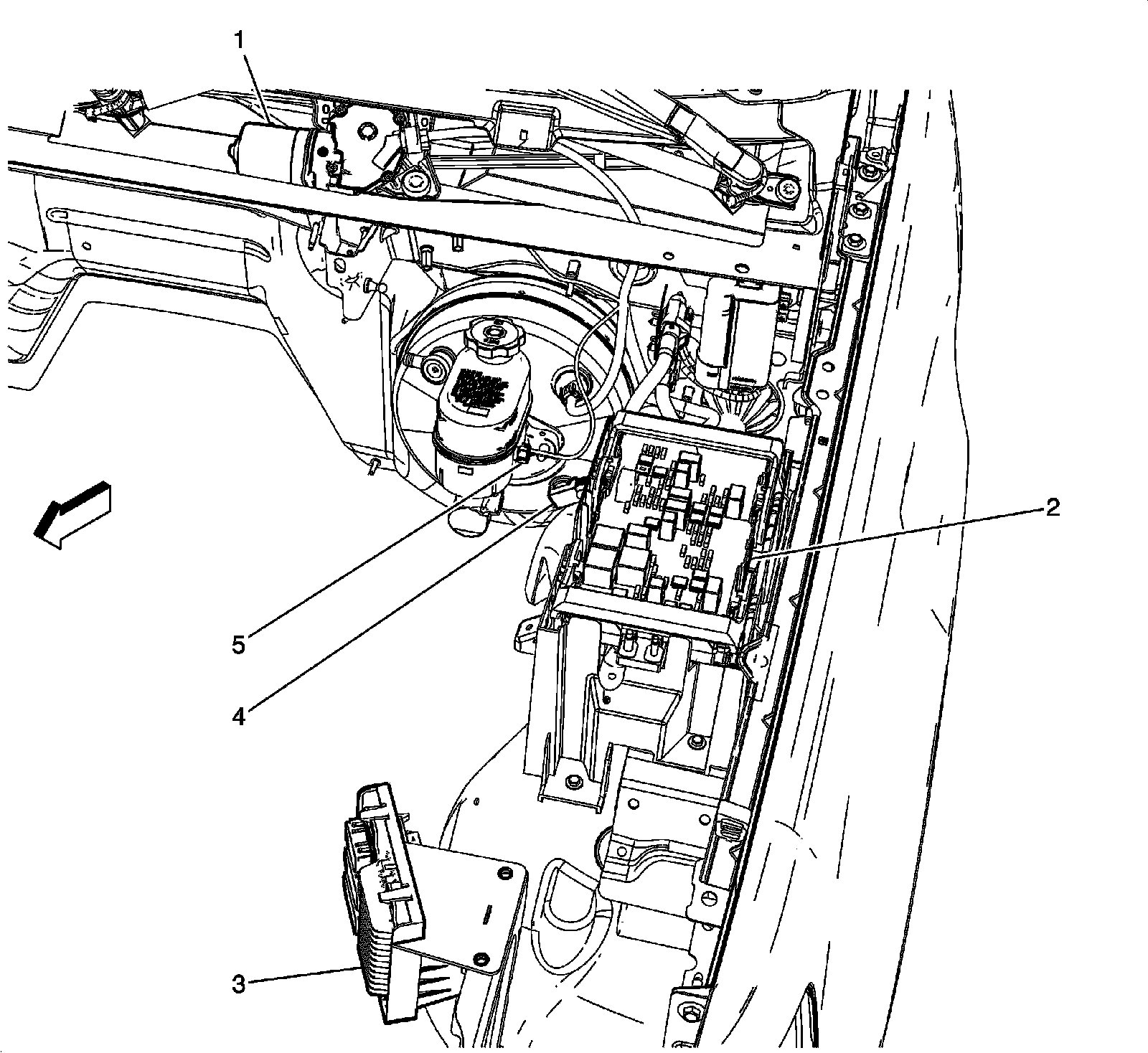

Left Side of Engine Compartment Components




1 - Windshield Wiper Motor
2 - Fuse Block - Underhood
3 - Engine Control Module (ECM)
4 - Brake Fluid Level Switch
5 - Brake Booster Vacuum Sensor (JD9)
