Powertrain Management: Locations




Electrical Center Identification Views

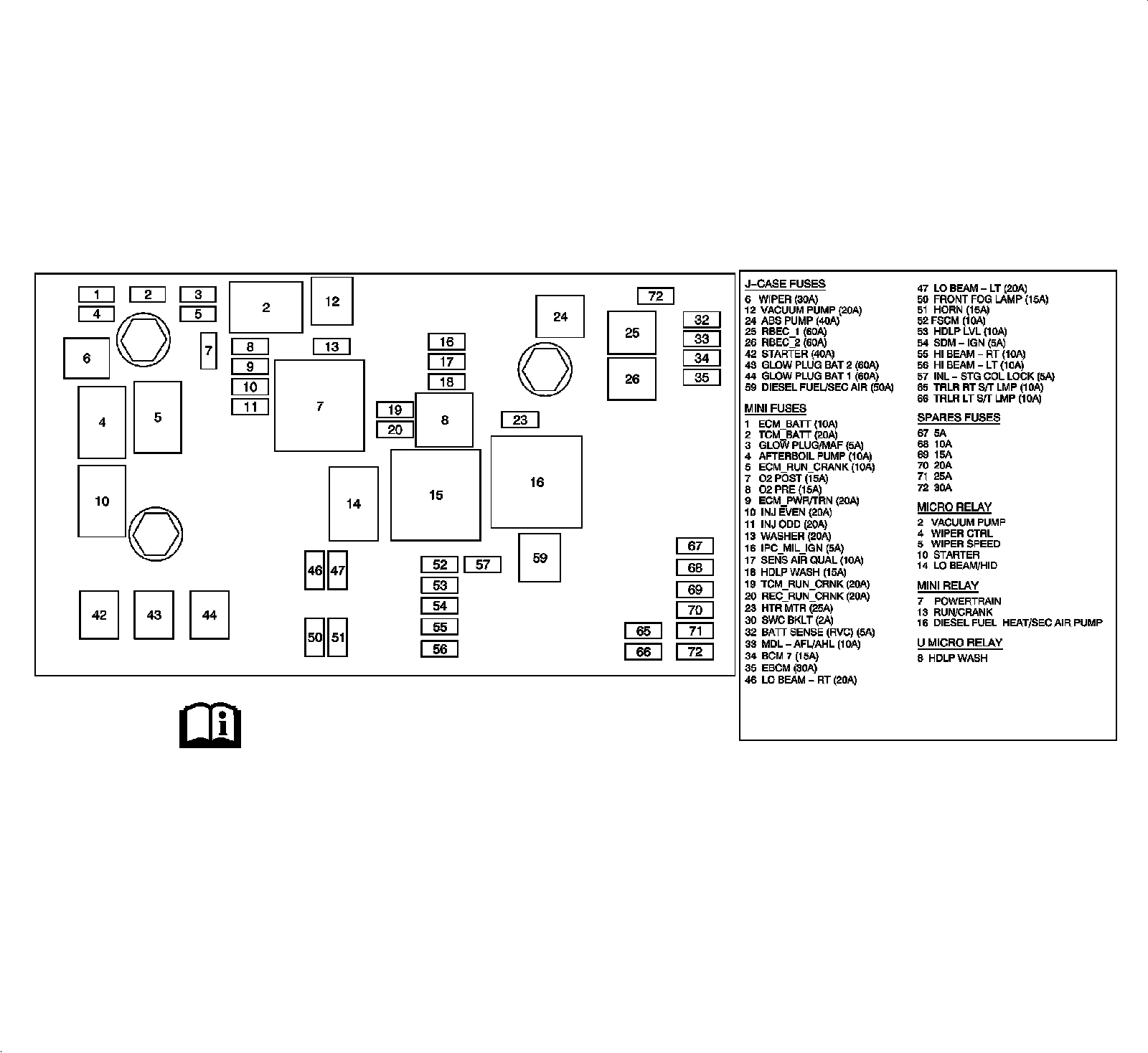

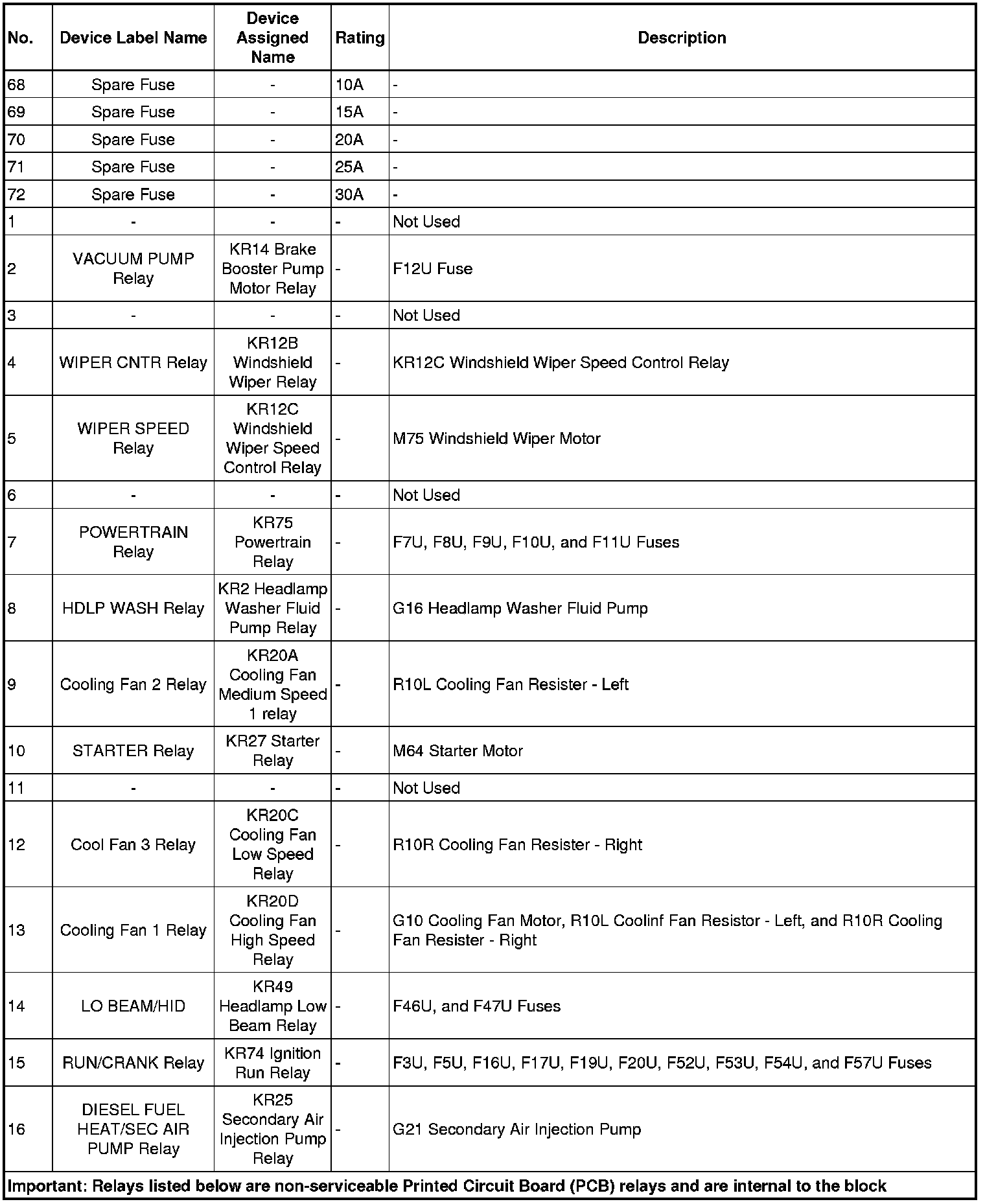

X50A Fuse Block - Underhood Label
