lemon-mirror
:
Home
>>
Cadillac
>>
2011
>>
SRX FWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
Suspension Control Module

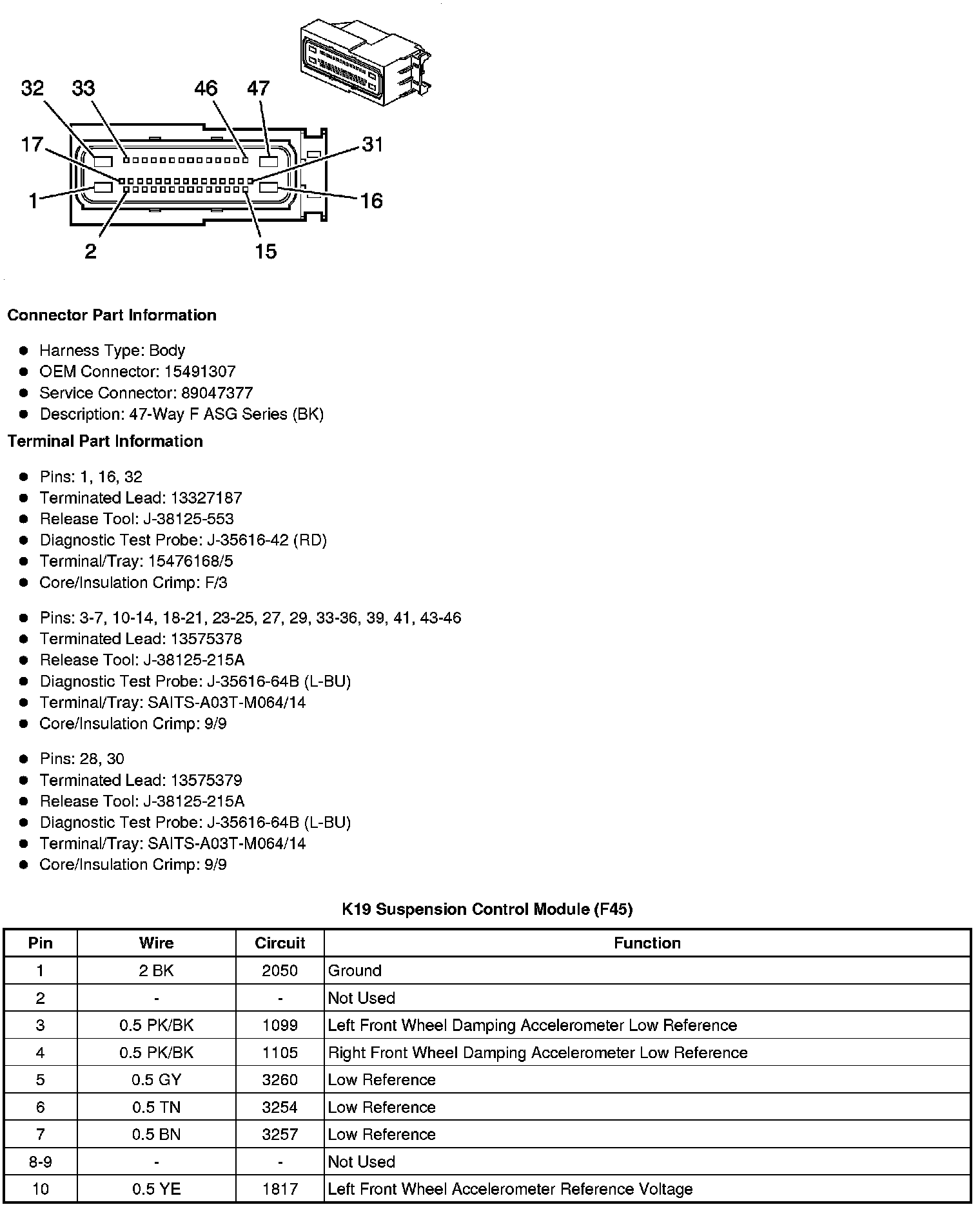

Component Connector End Views
K19

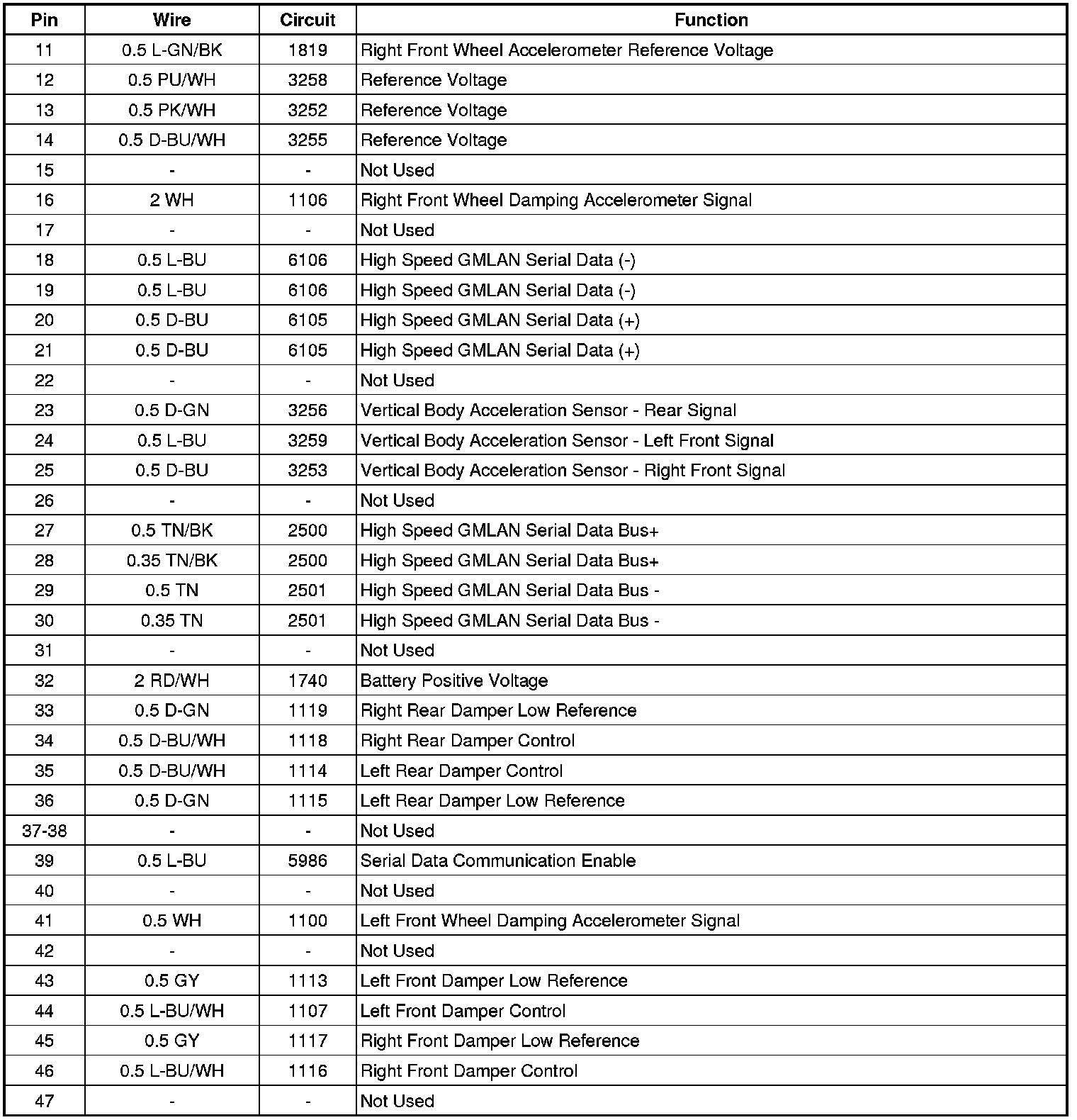

Suspension Control Module
(F45)
