Seat Temperature Control Module




Component Connector End Views

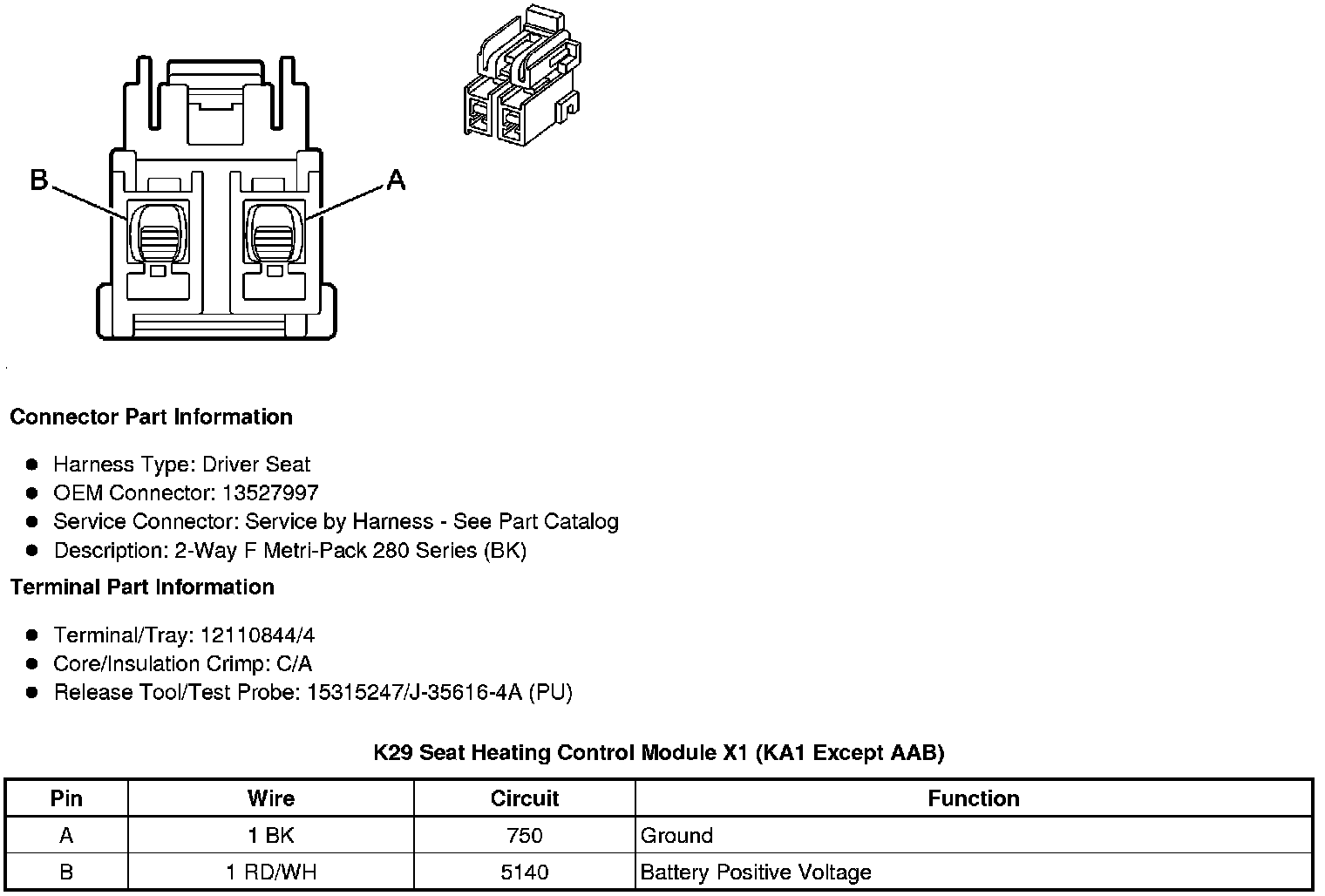

K29 Seat Heating Control Module X1 (KA1 Except AAB)

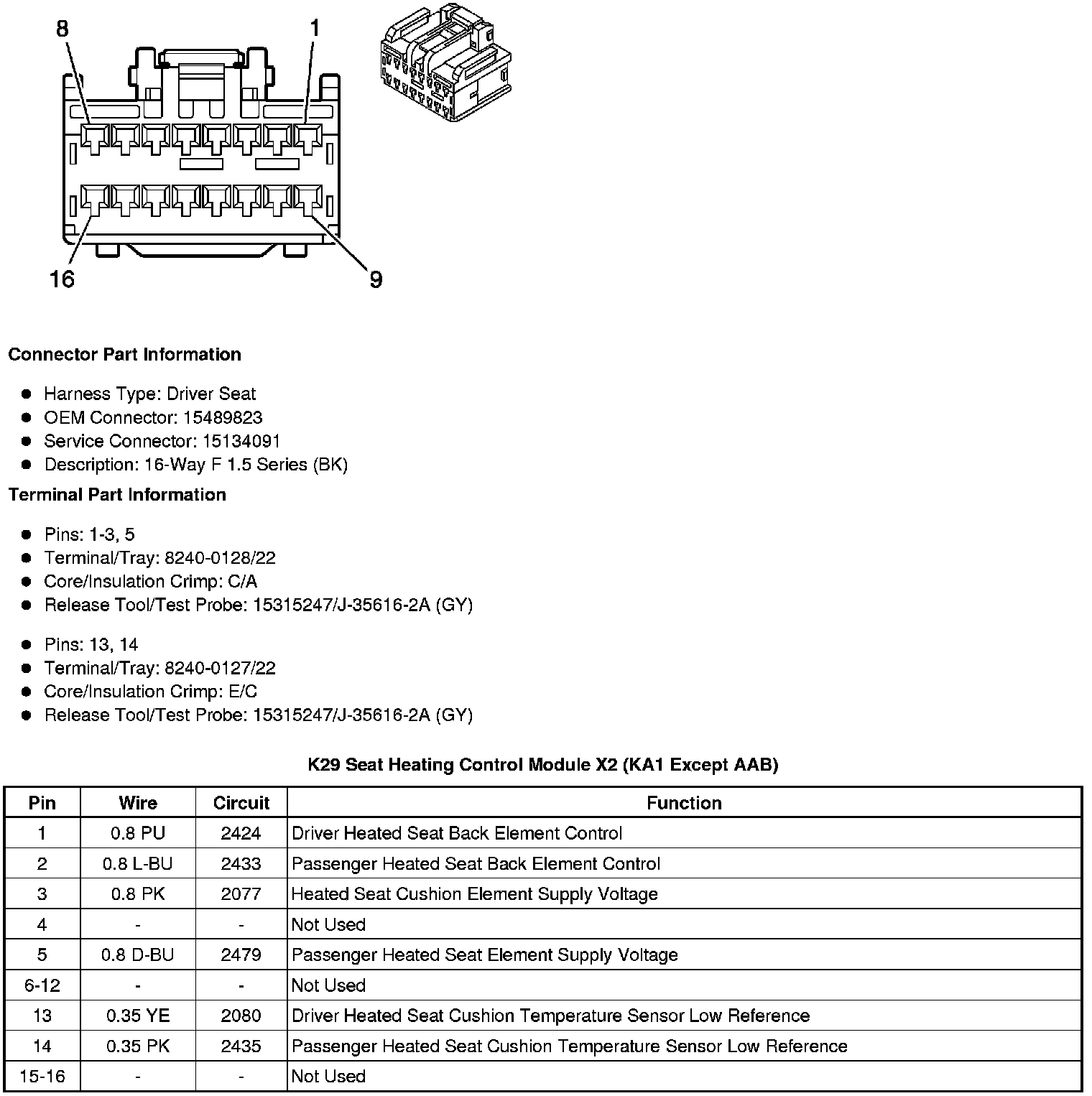

K29 Seat Heating Control Module X2 (KA1 Except AAB)

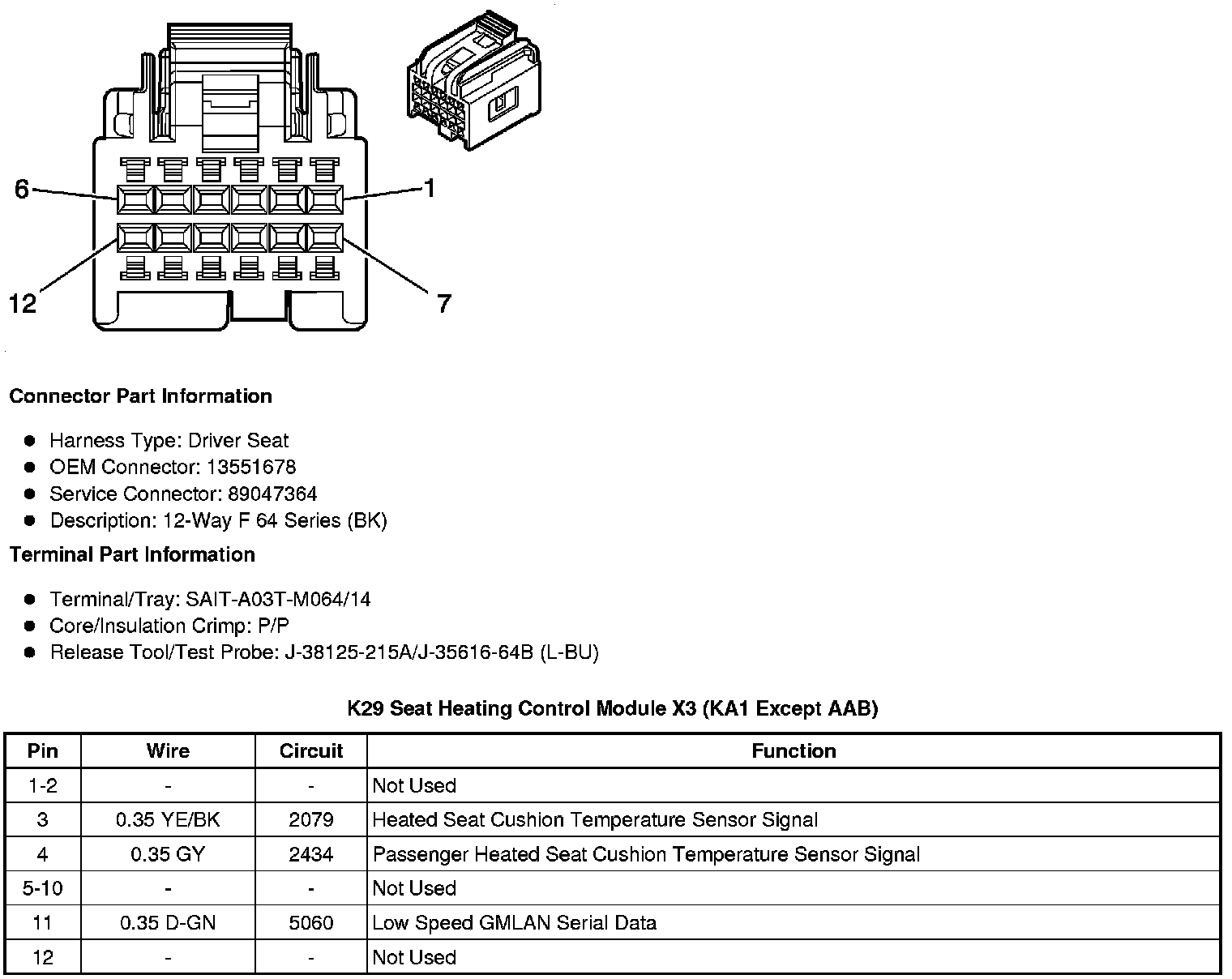

K29 Seat Heating Control Module X3 (KA1 Except AAB)

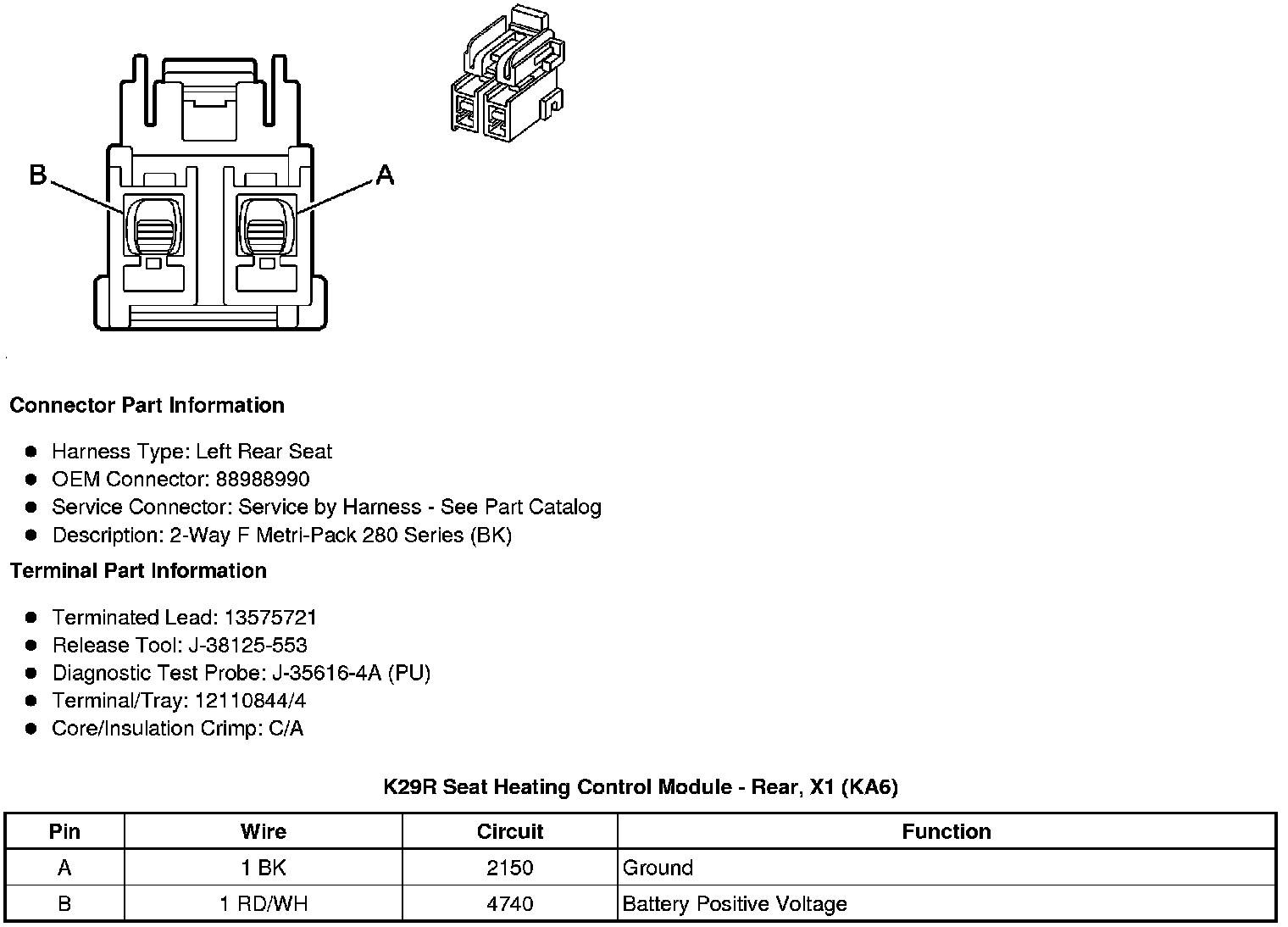

K29R Seat Heating Control Module - Rear, X1 (KA6)

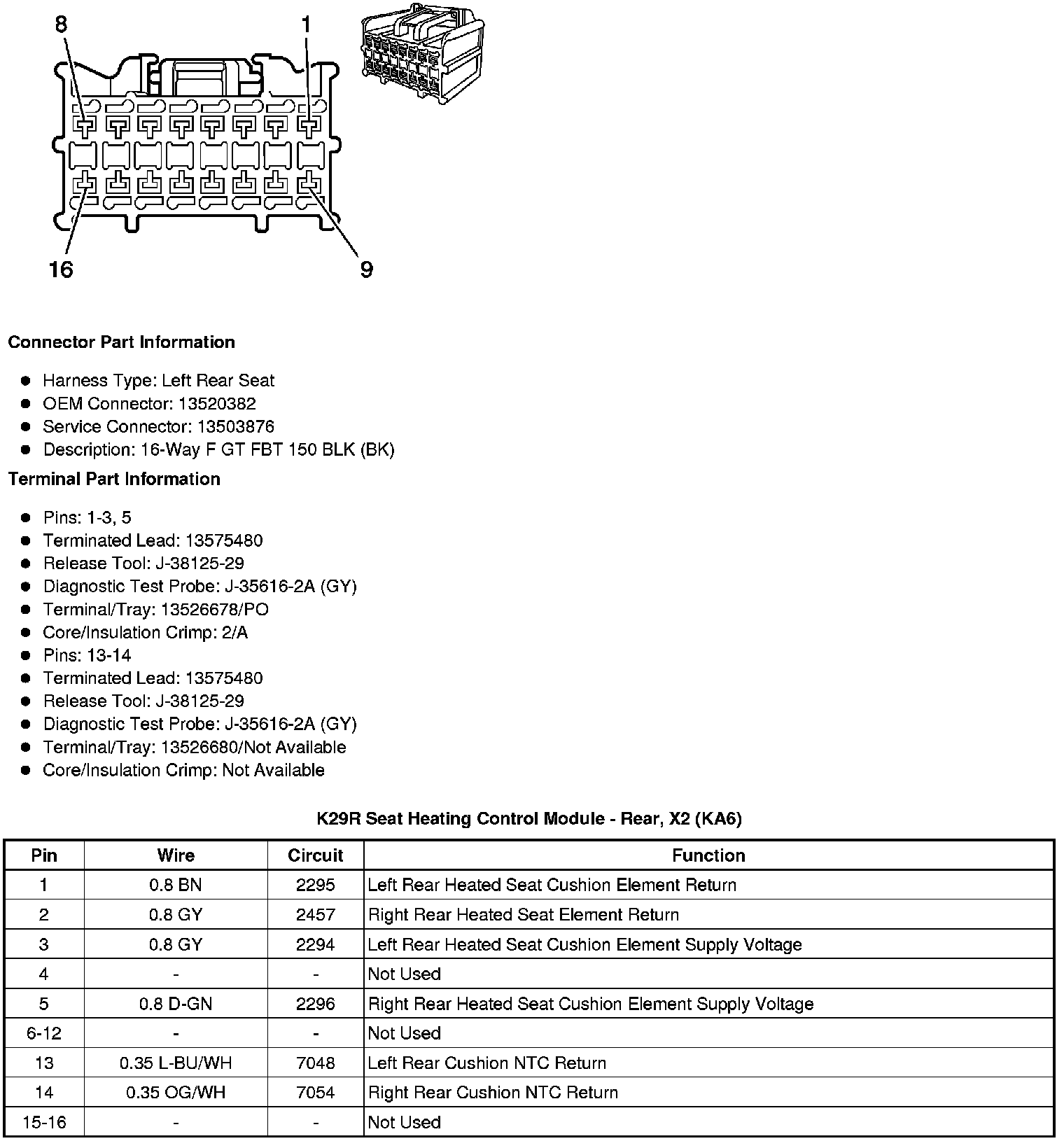

K29R Seat Heating Control Module - Rear, X2 (KA6)

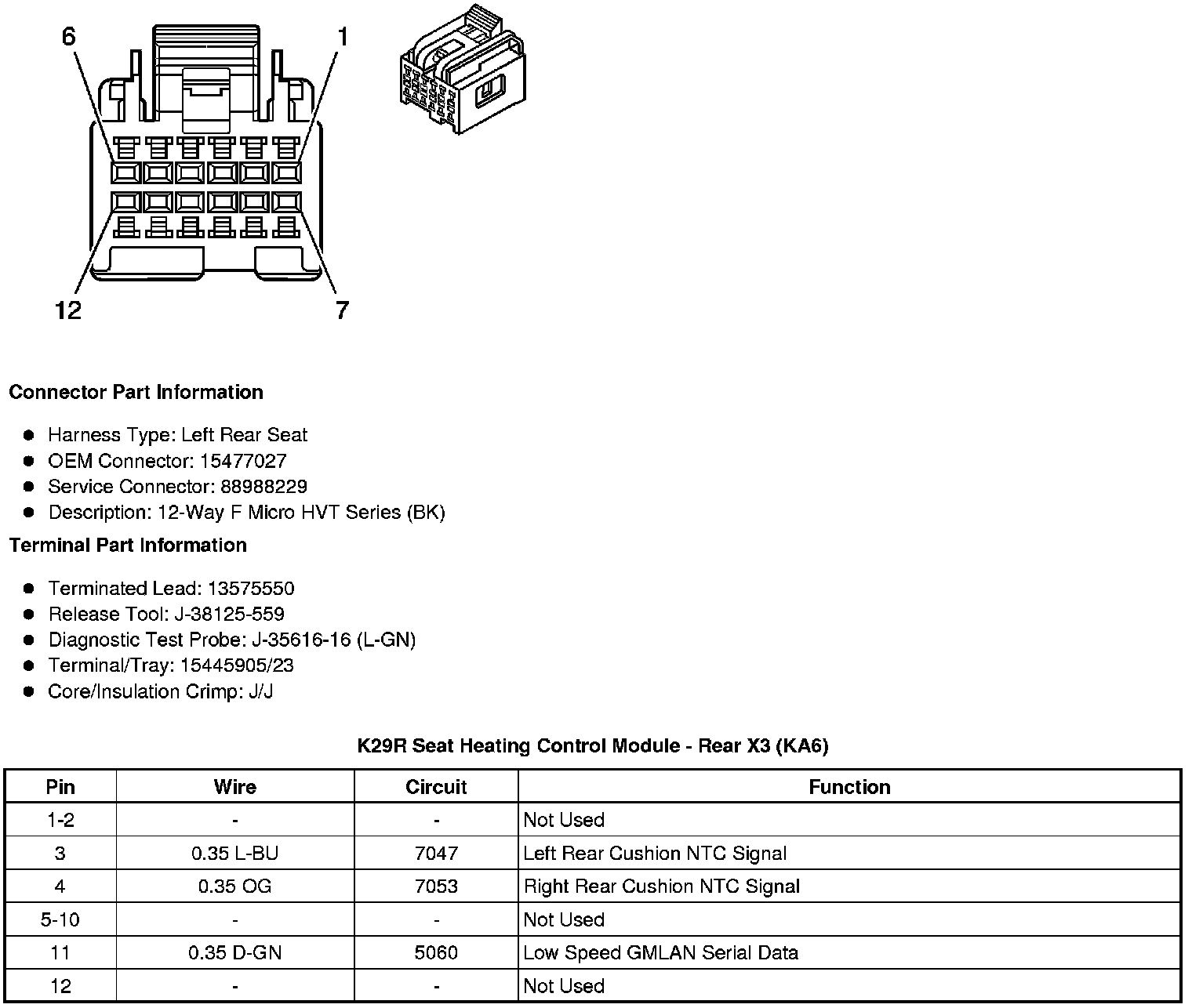

K29R Seat Heating Control Module - Rear X3 (KA6)
