Cadillac
>>
2011
>>
SRX FWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Control Module
Power Mirror Control Module
Component Connector End Views

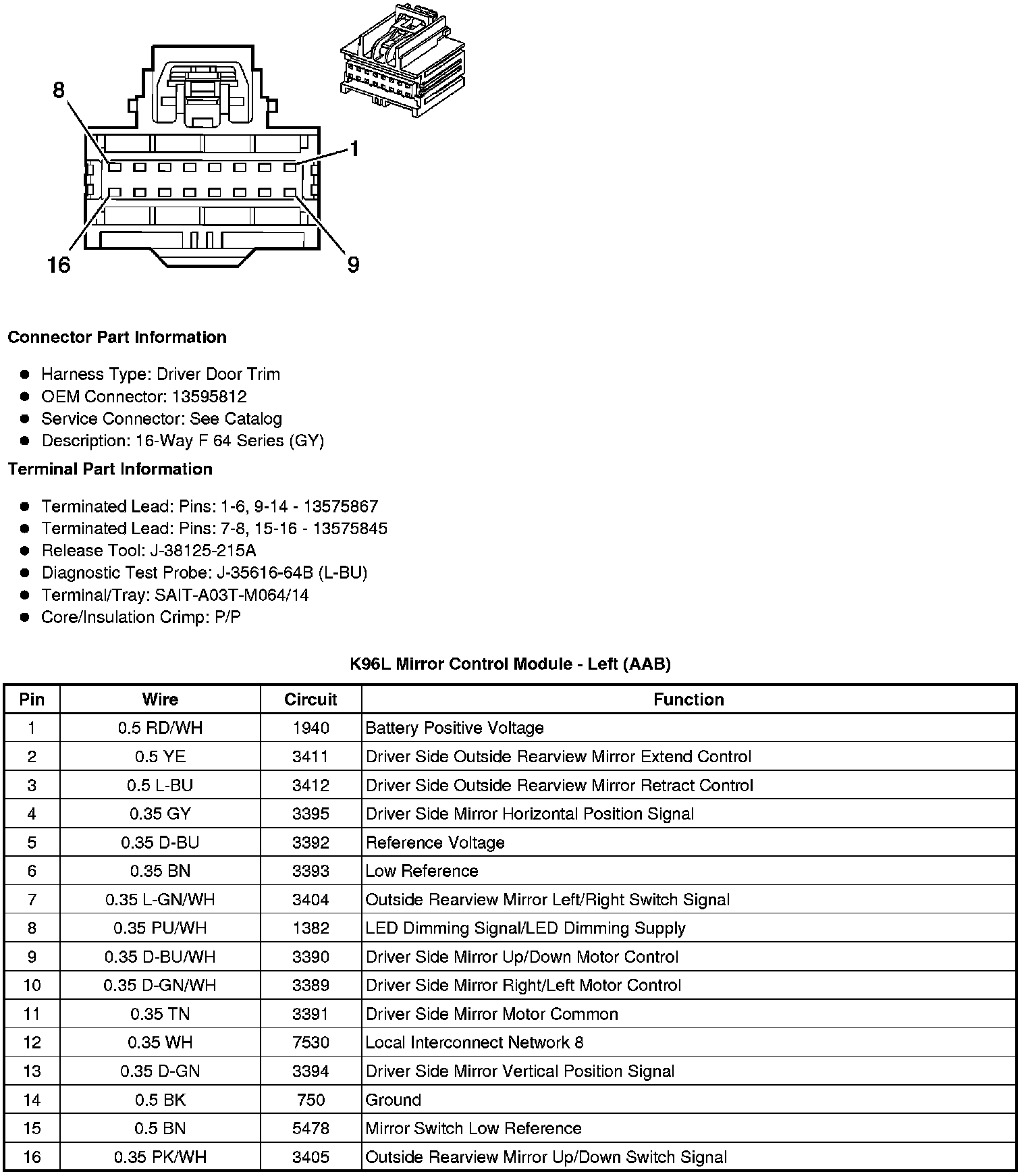

K96L Mirror Control Module - Left (AAB)
