Headlamp Alignment Control Module




Component Connector End Views

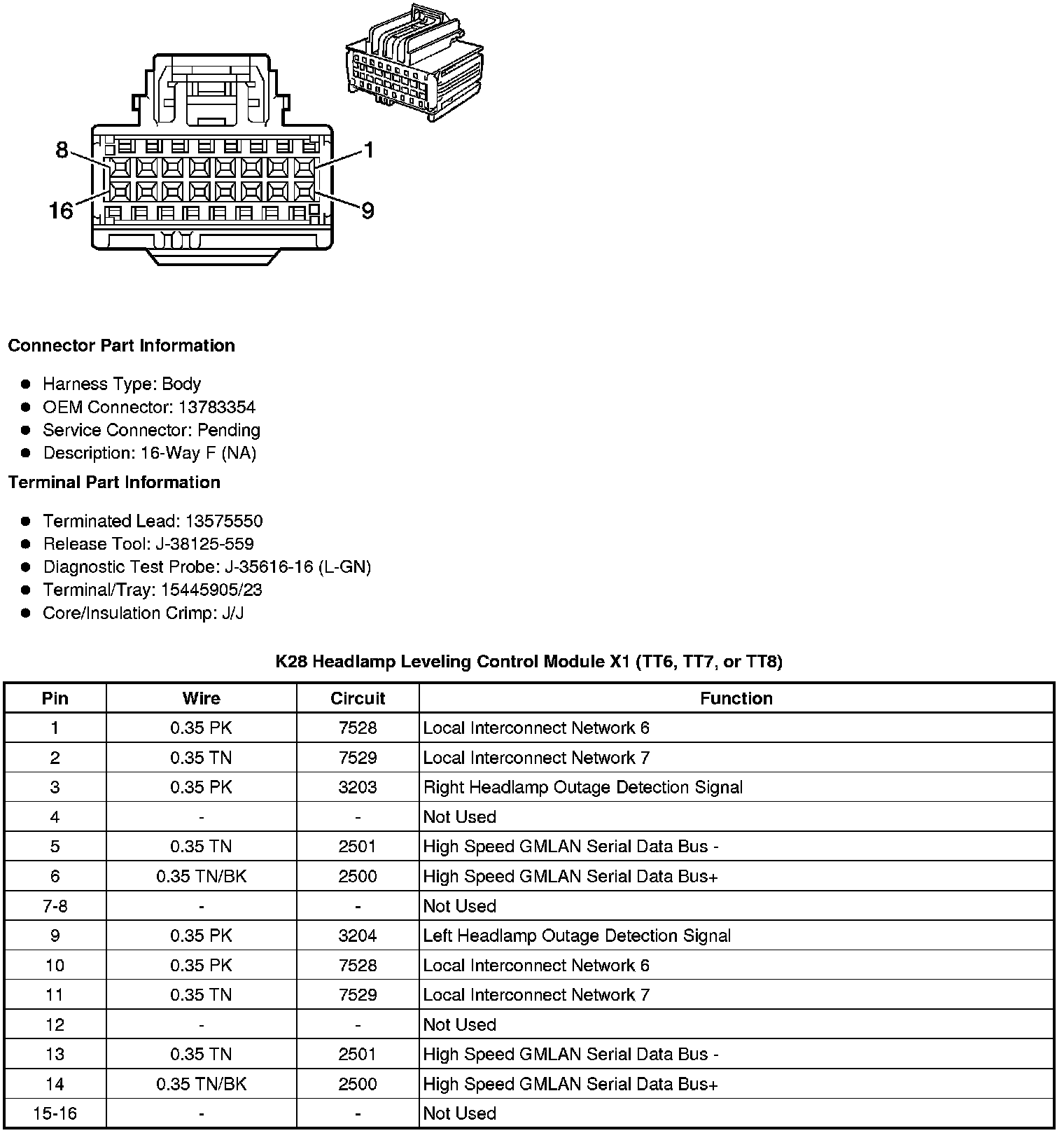

K28 Headlamp Leveling Control Module X1 (TT6, TT7, or TT8)

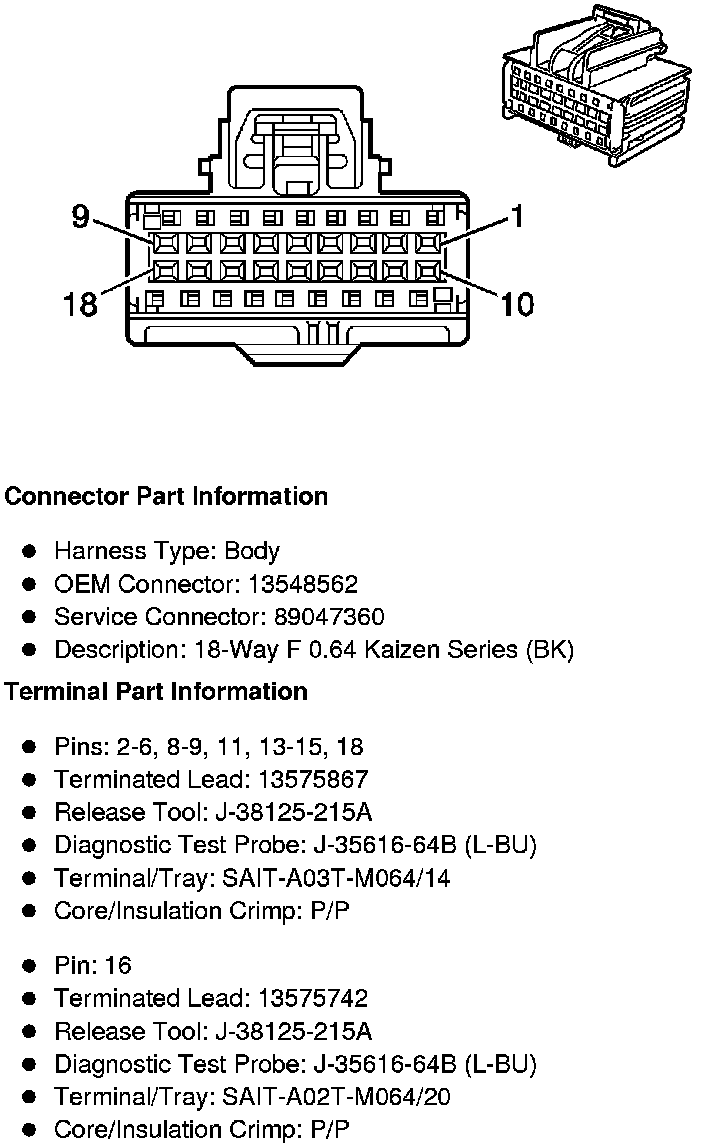

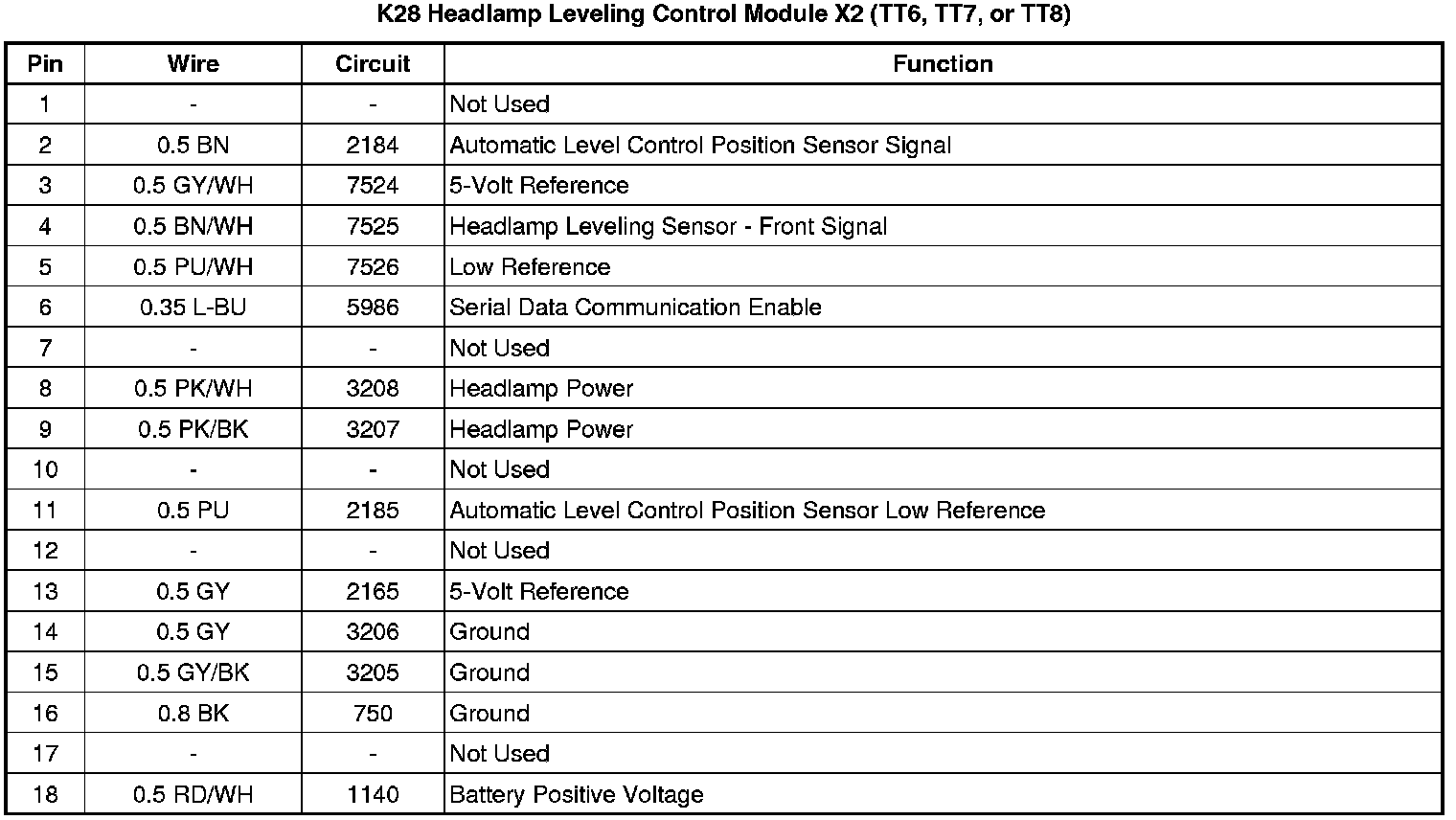

K28 Headlamp Leveling Control Module X2 (TT6, TT7, or TT8)
