Engine Control Module




Component Connector End Views

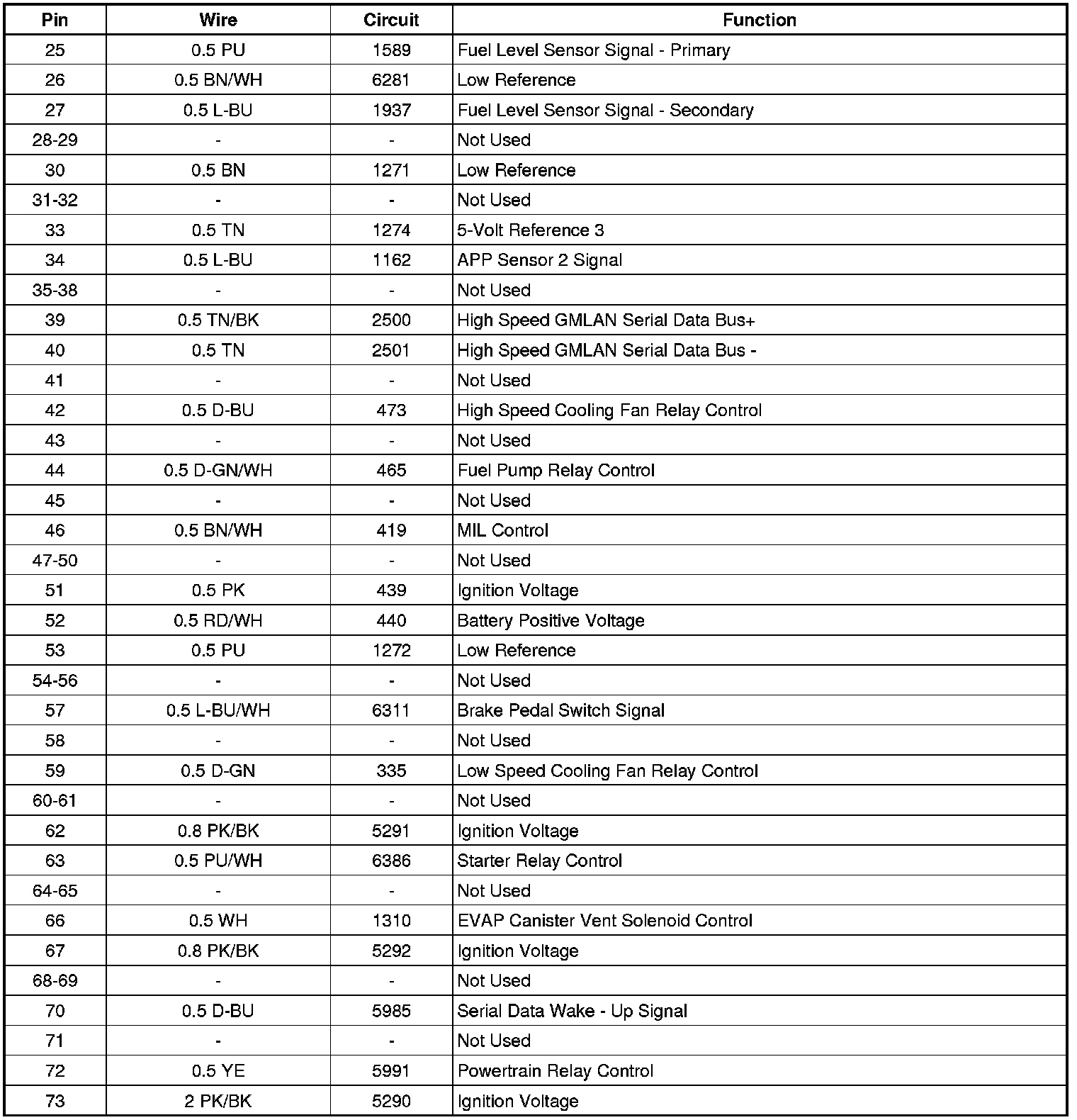

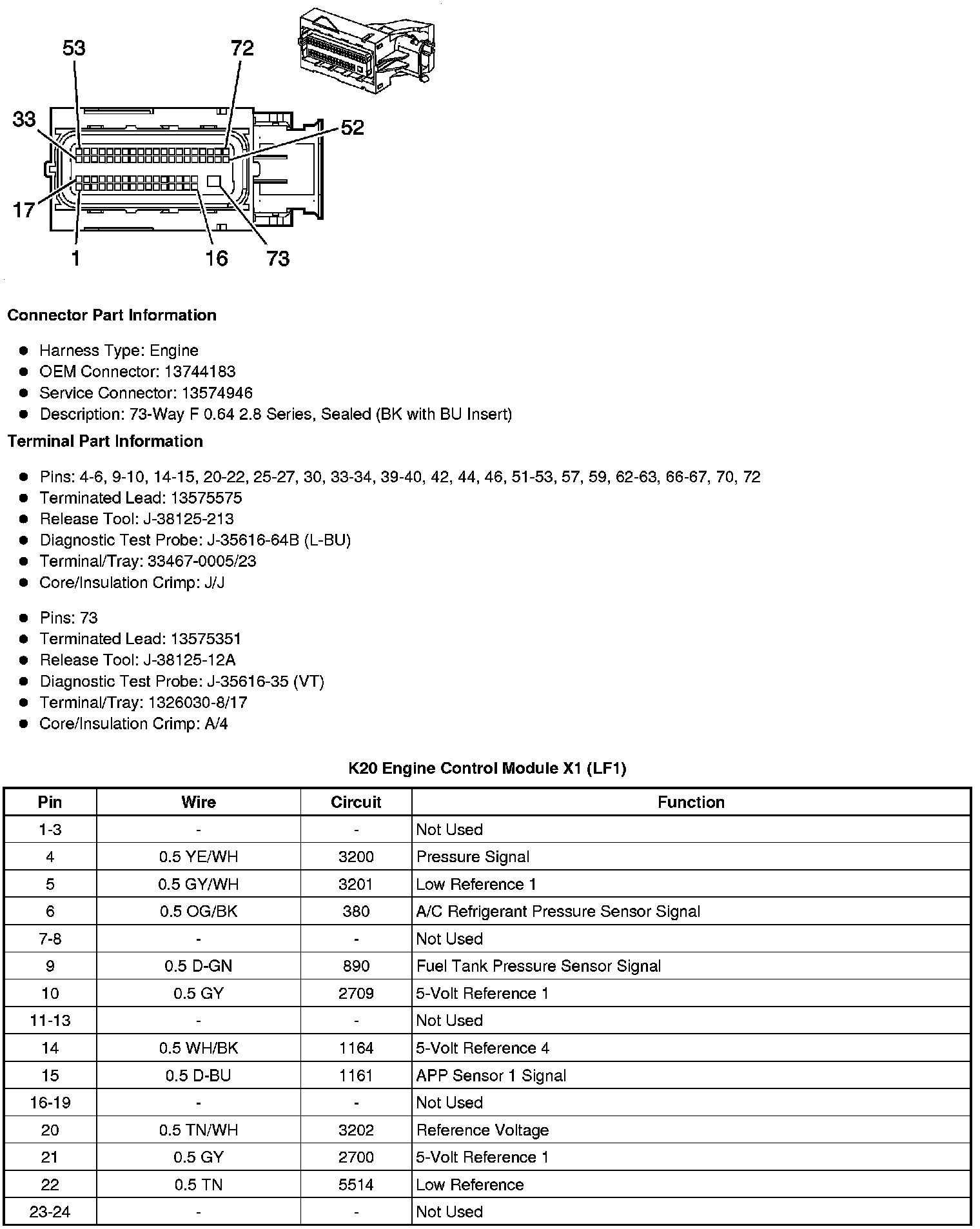

K20 Engine Control Module X1 (LF1)

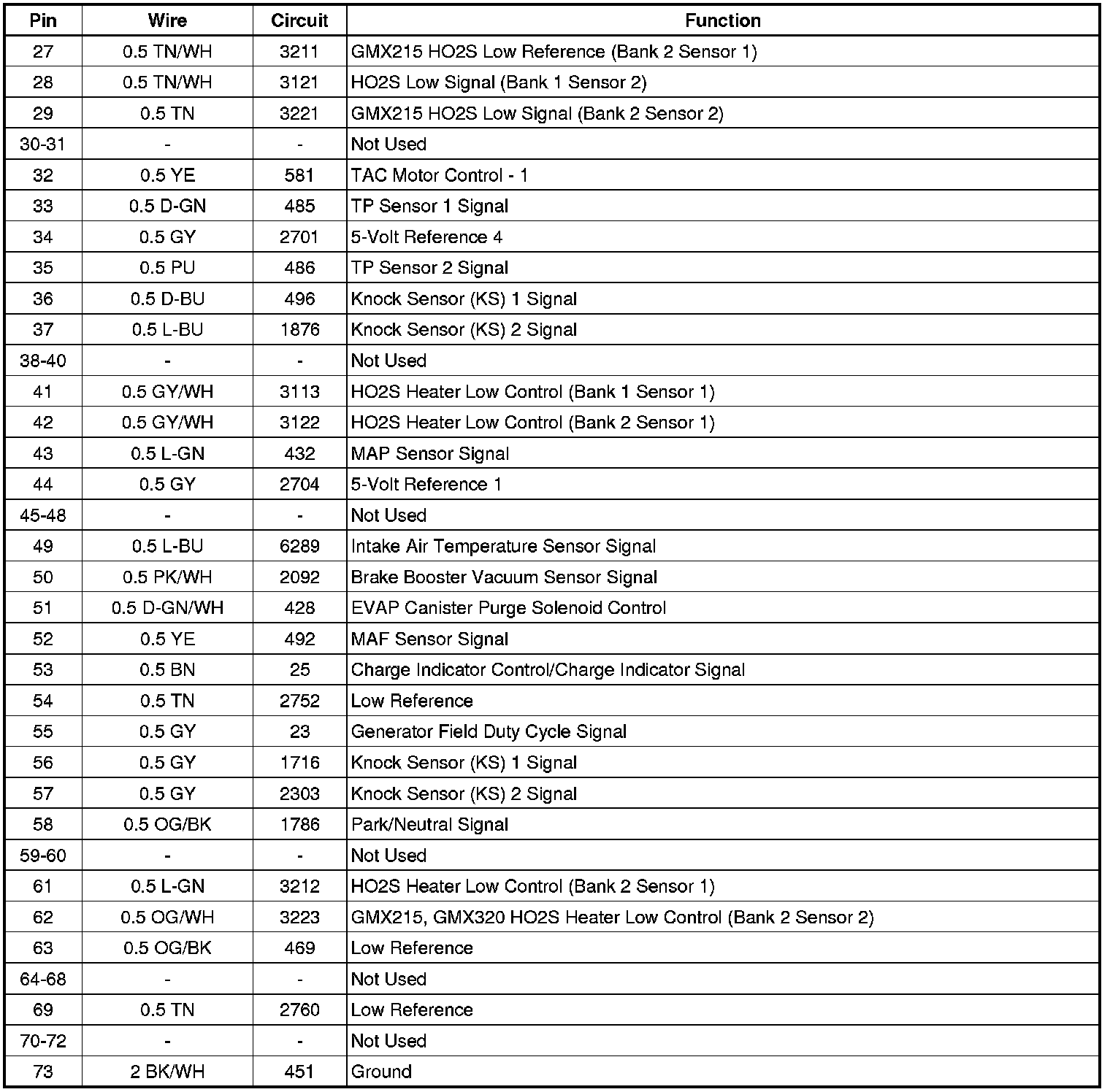

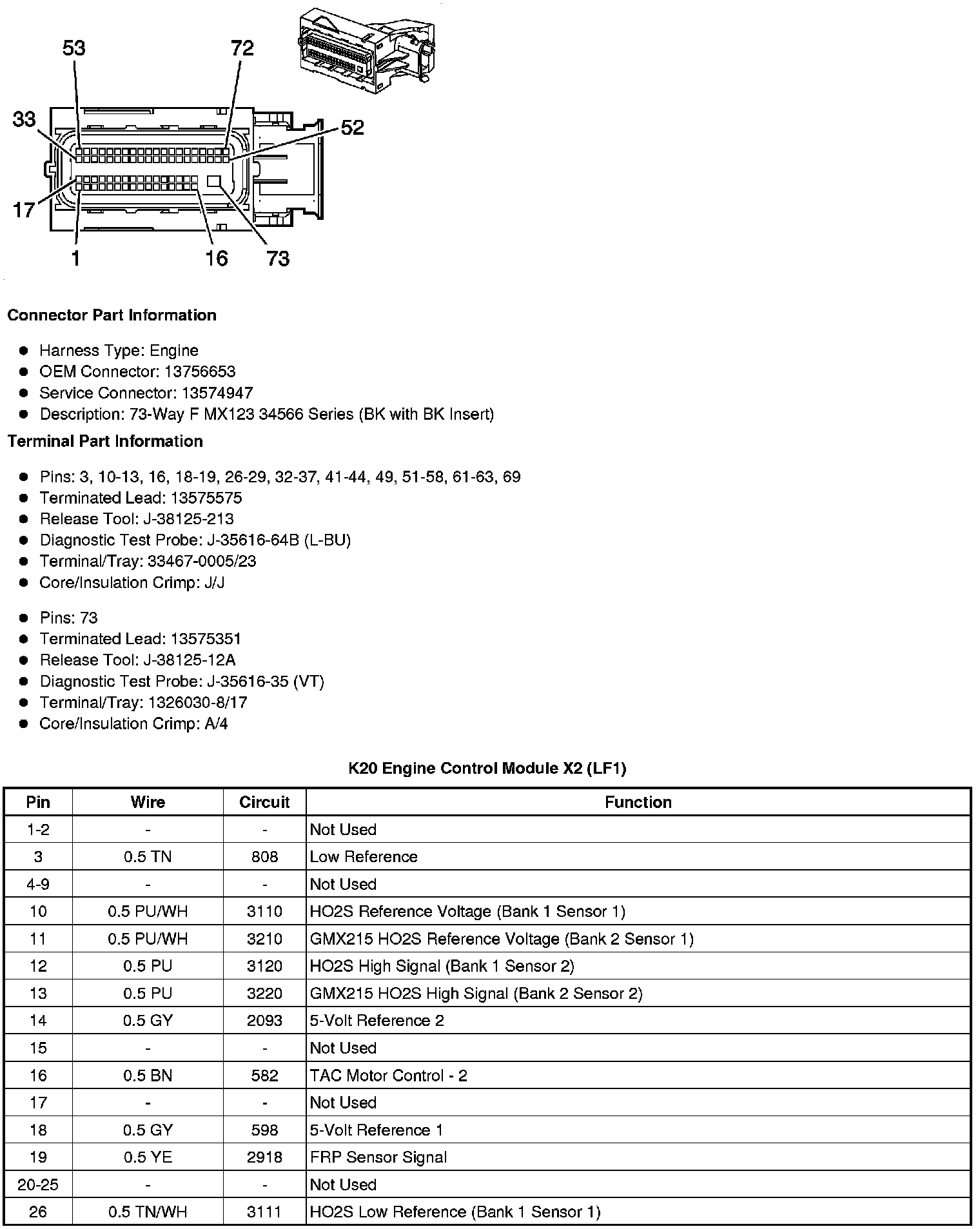

K20 Engine Control Module X2 (LF1)

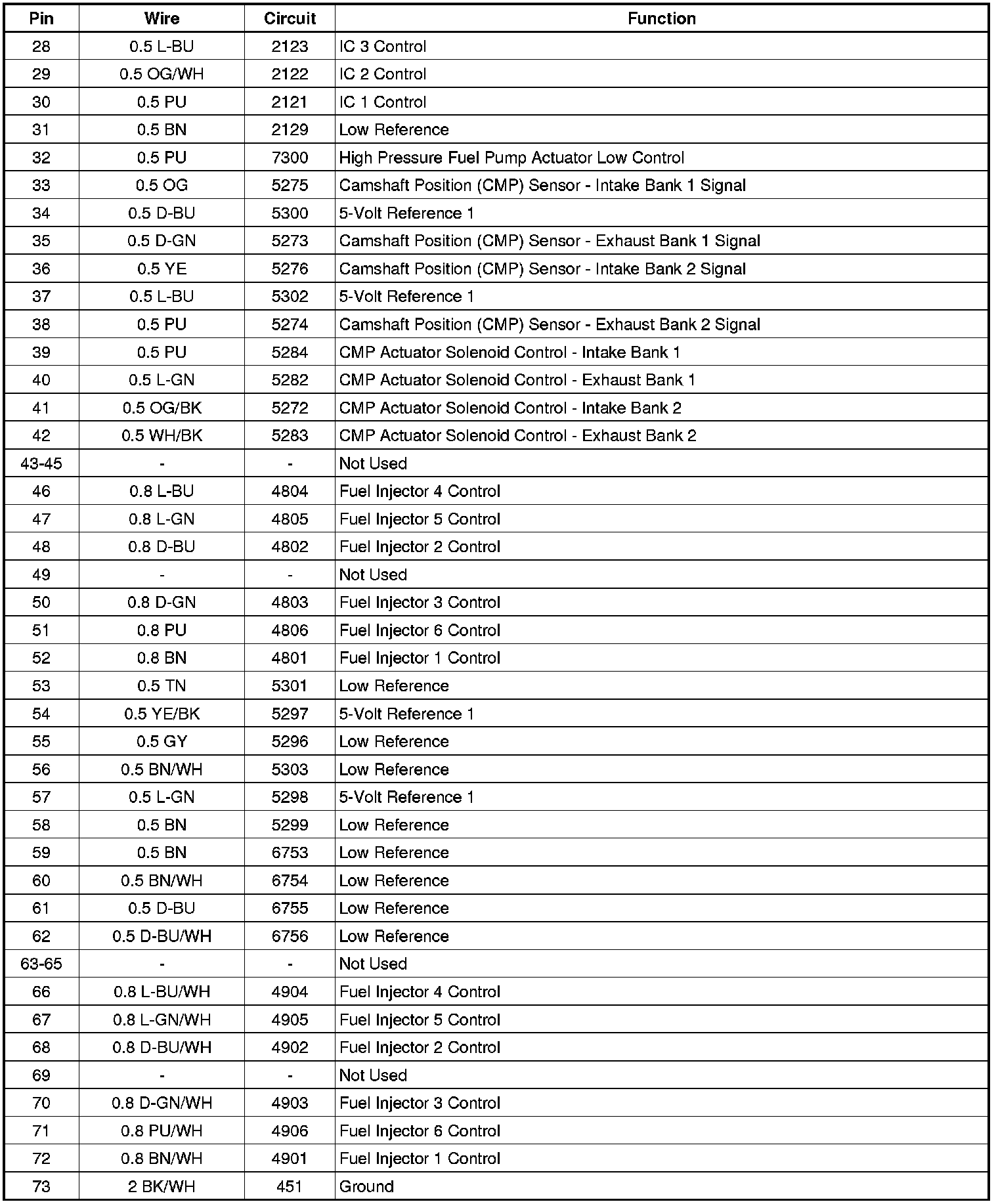

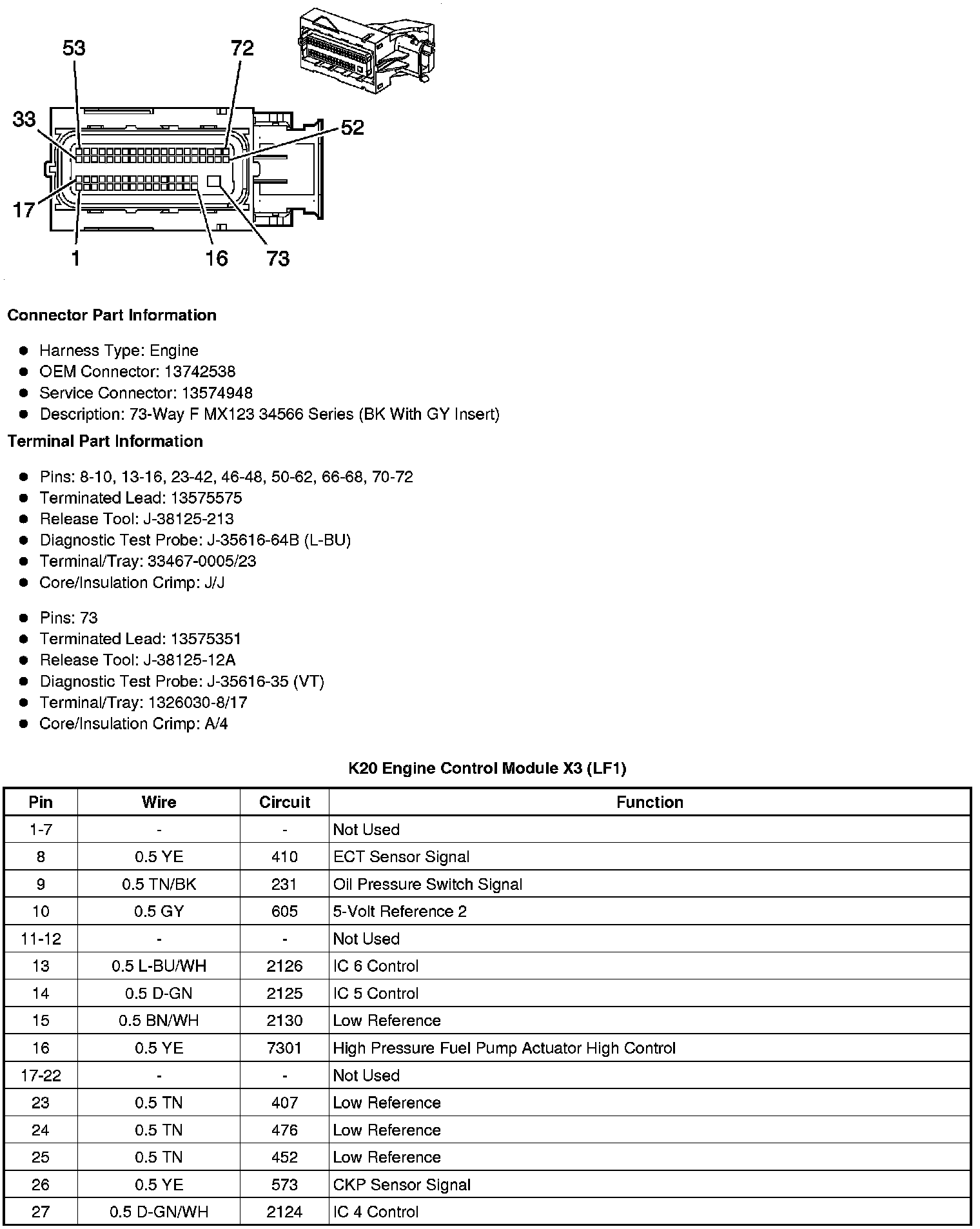

K20 Engine Control Module X3 (LF1)
