Home >> Cadillac >> 2011 >> SRX FWD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

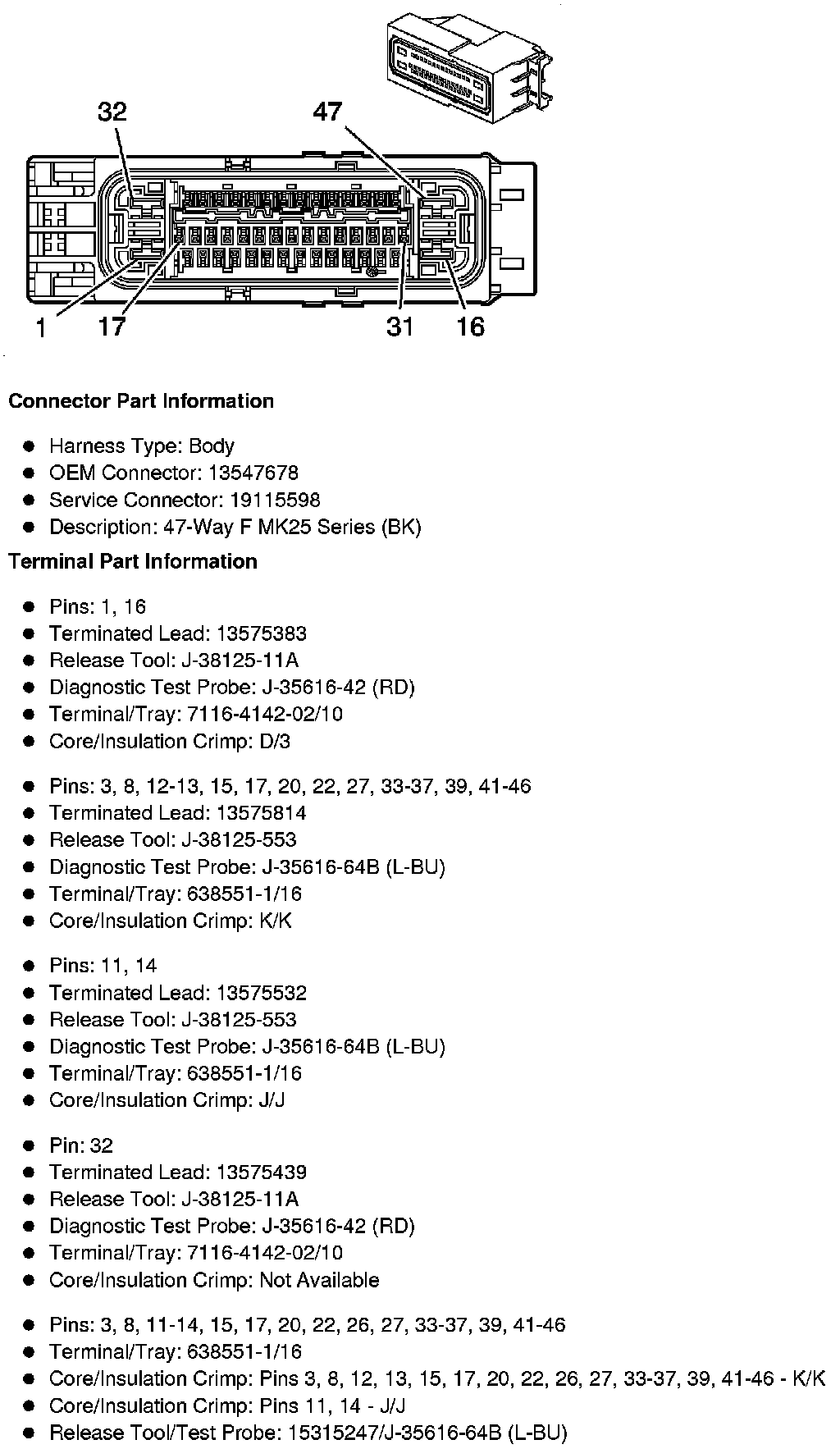

Component Connector End Views

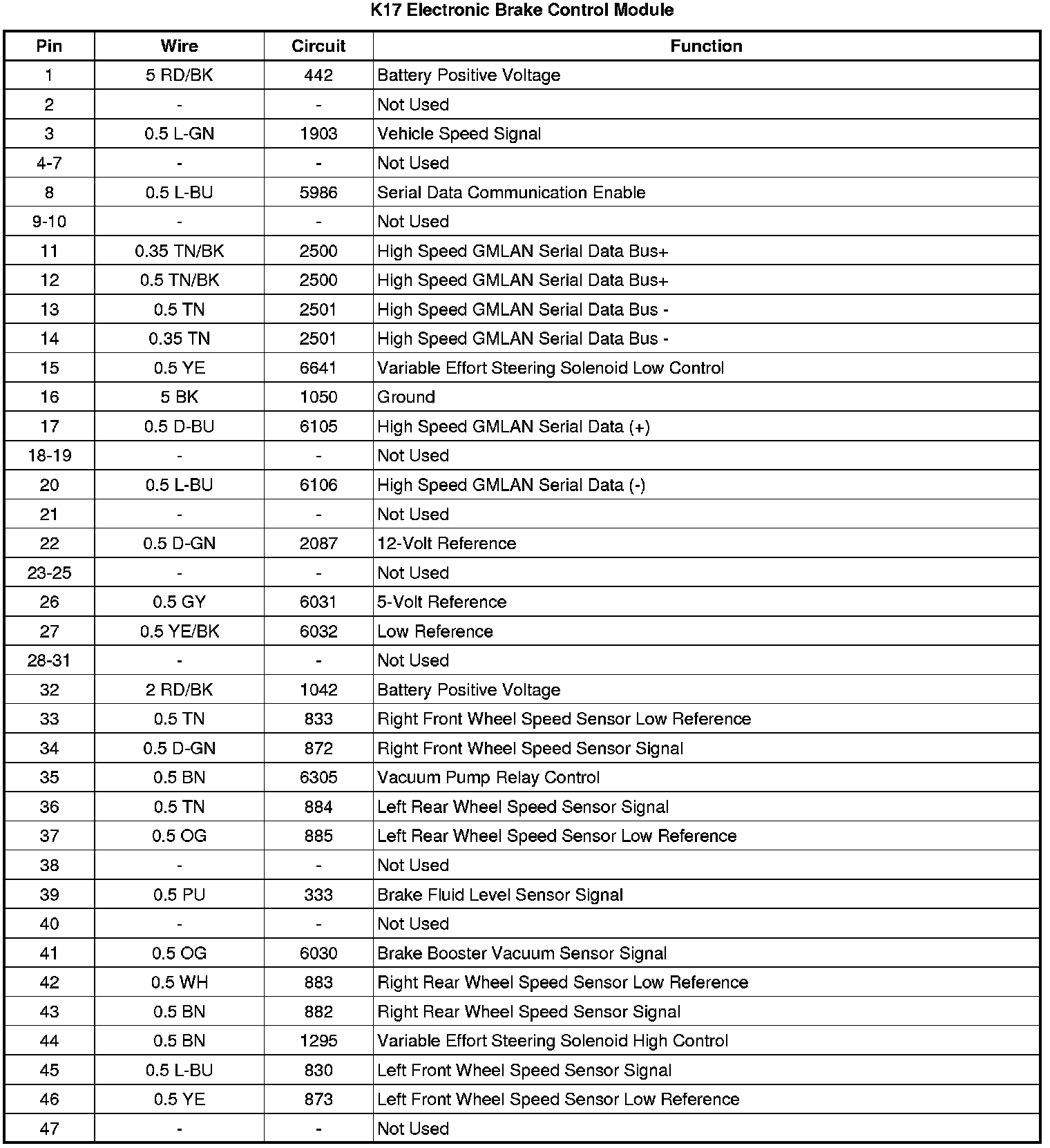

K17 Electronic Brake Control Module
