Control Unit, Differential Lock




Component Connector End Views

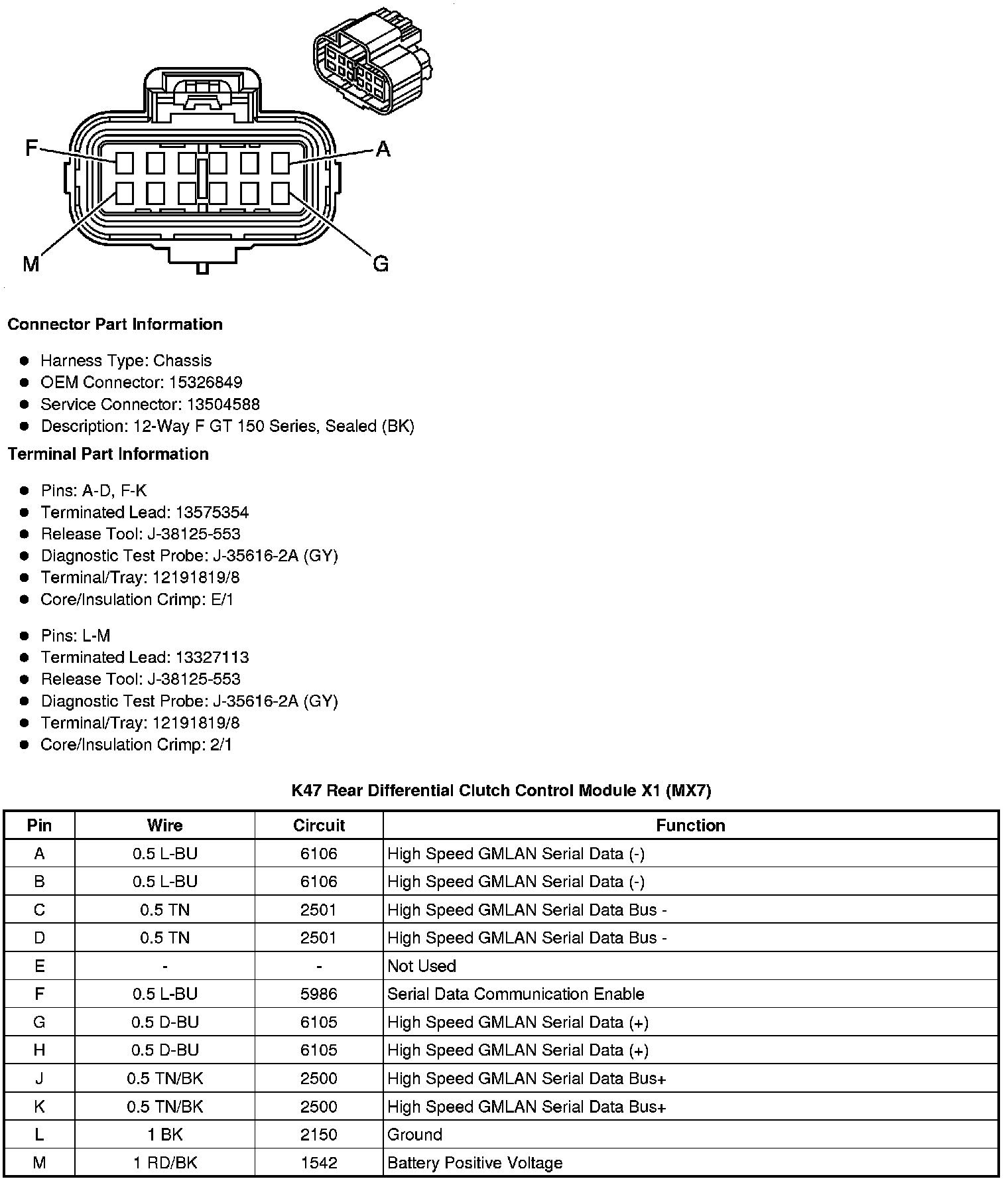

K47 Rear Differential Clutch Control Module X1 (MX7)

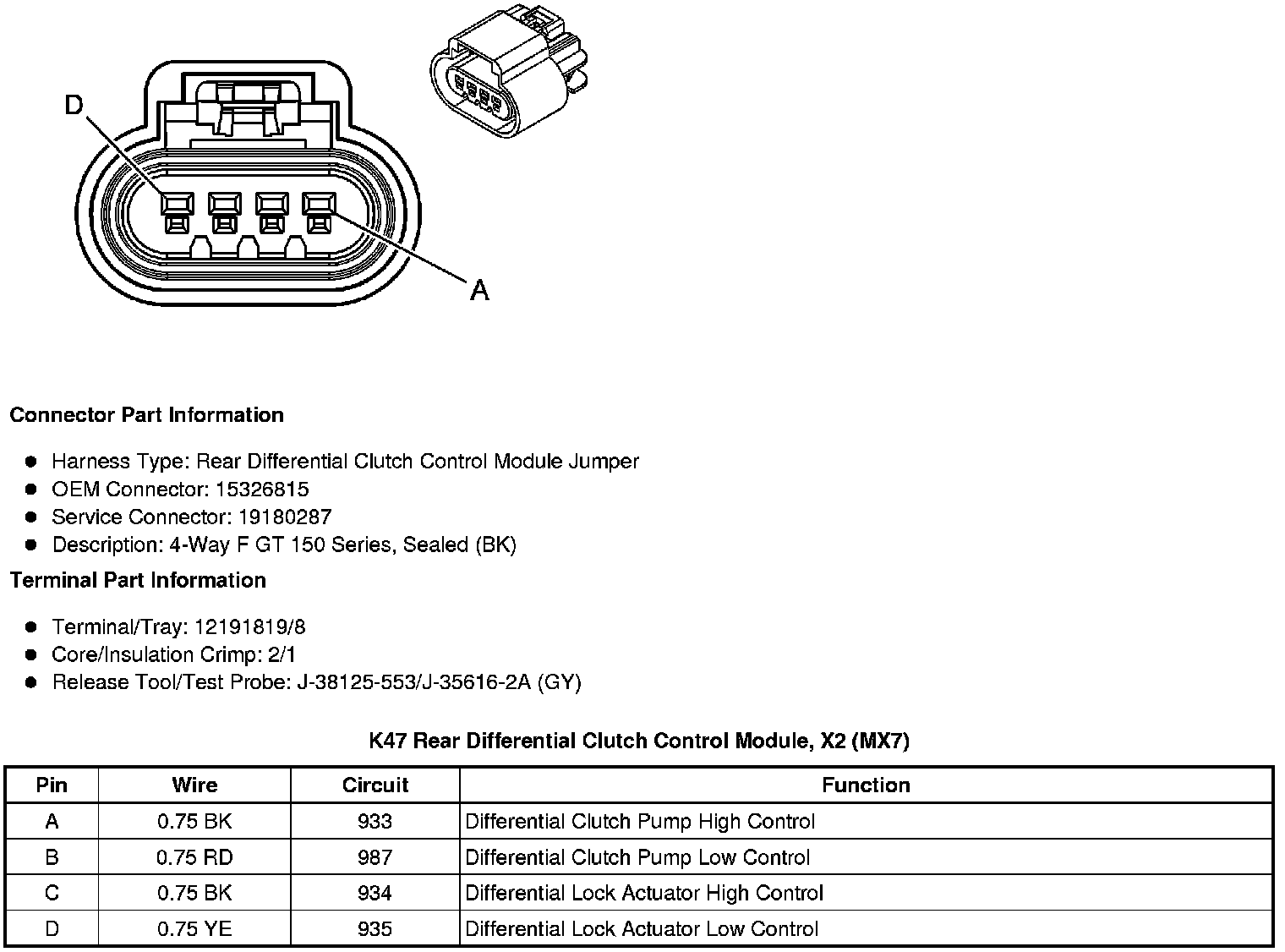

K47 Rear Differential Clutch Control Module, X2 (MX7)
