HVAC Control Module




Component Connector End Views

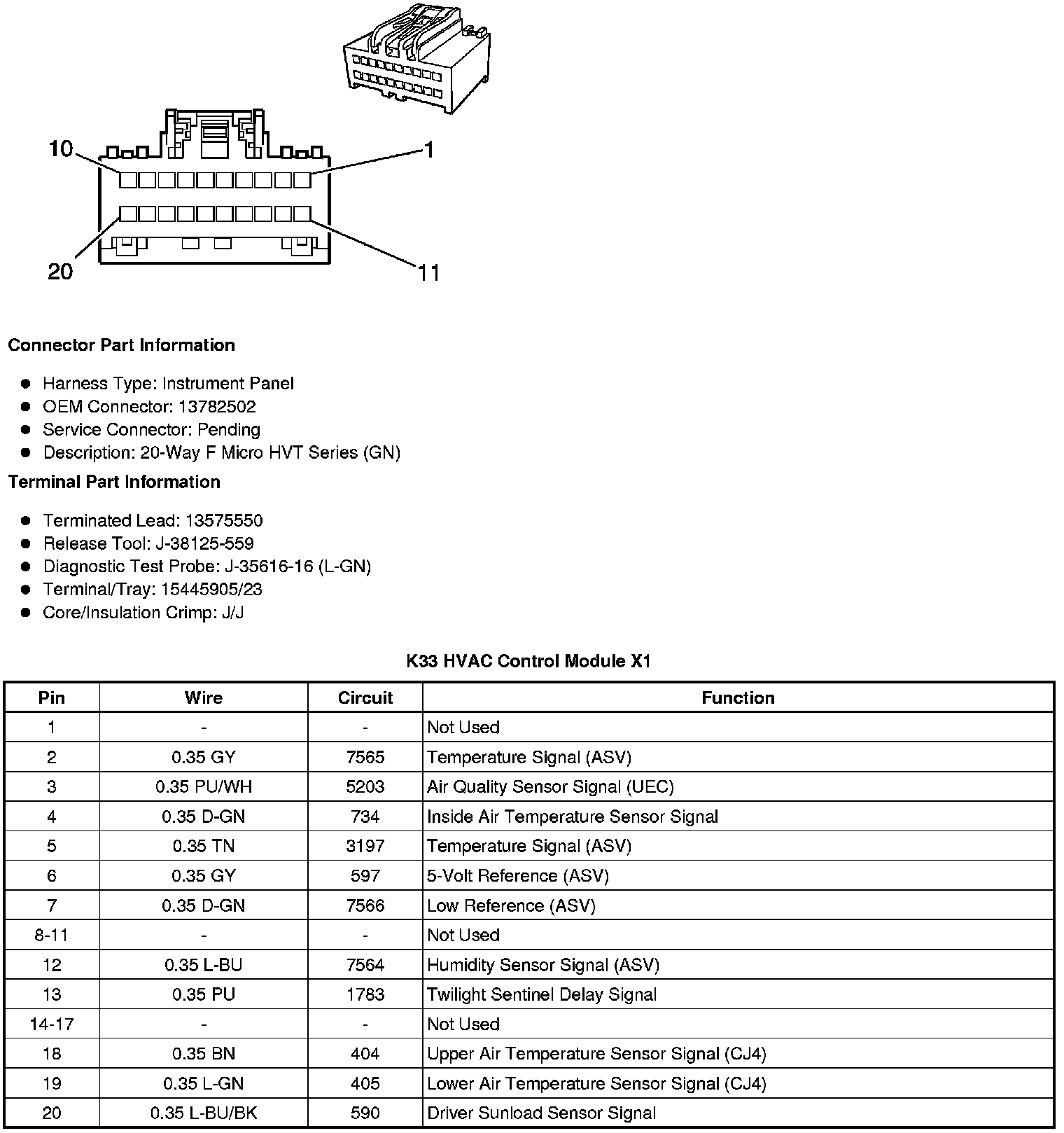

K33 HVAC Control Module X1

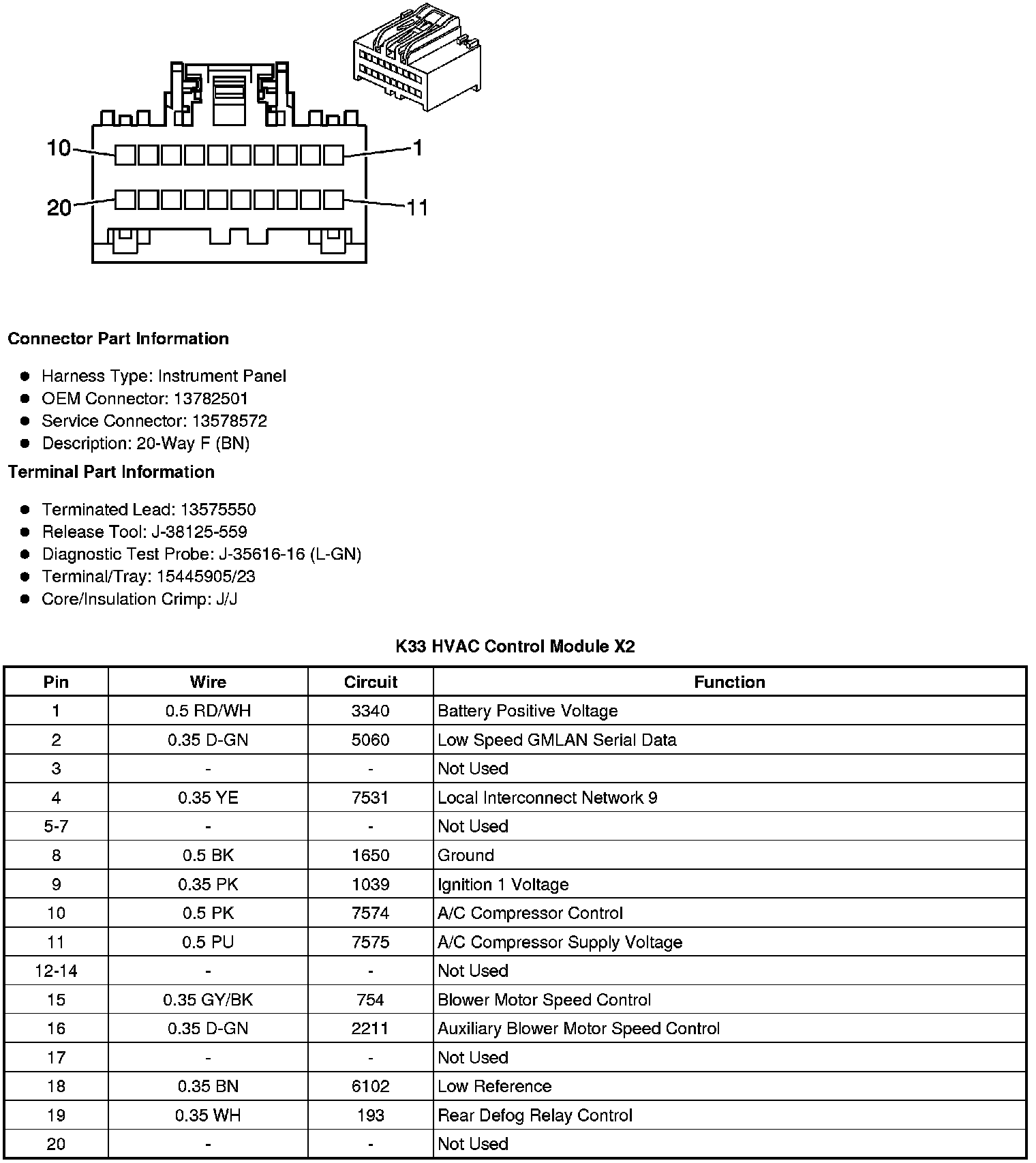

K33 HVAC Control Module X2

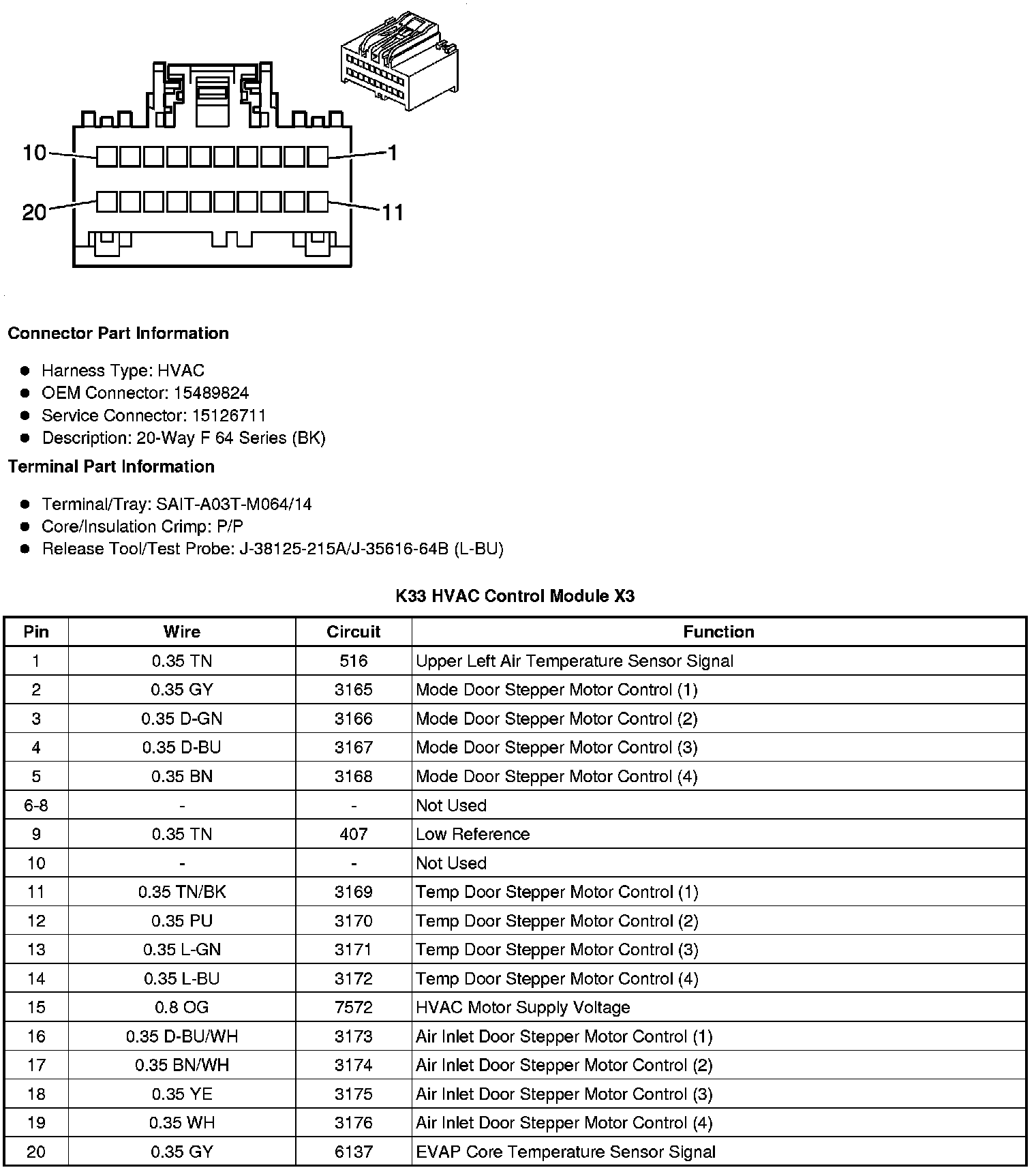

K33 HVAC Control Module X3

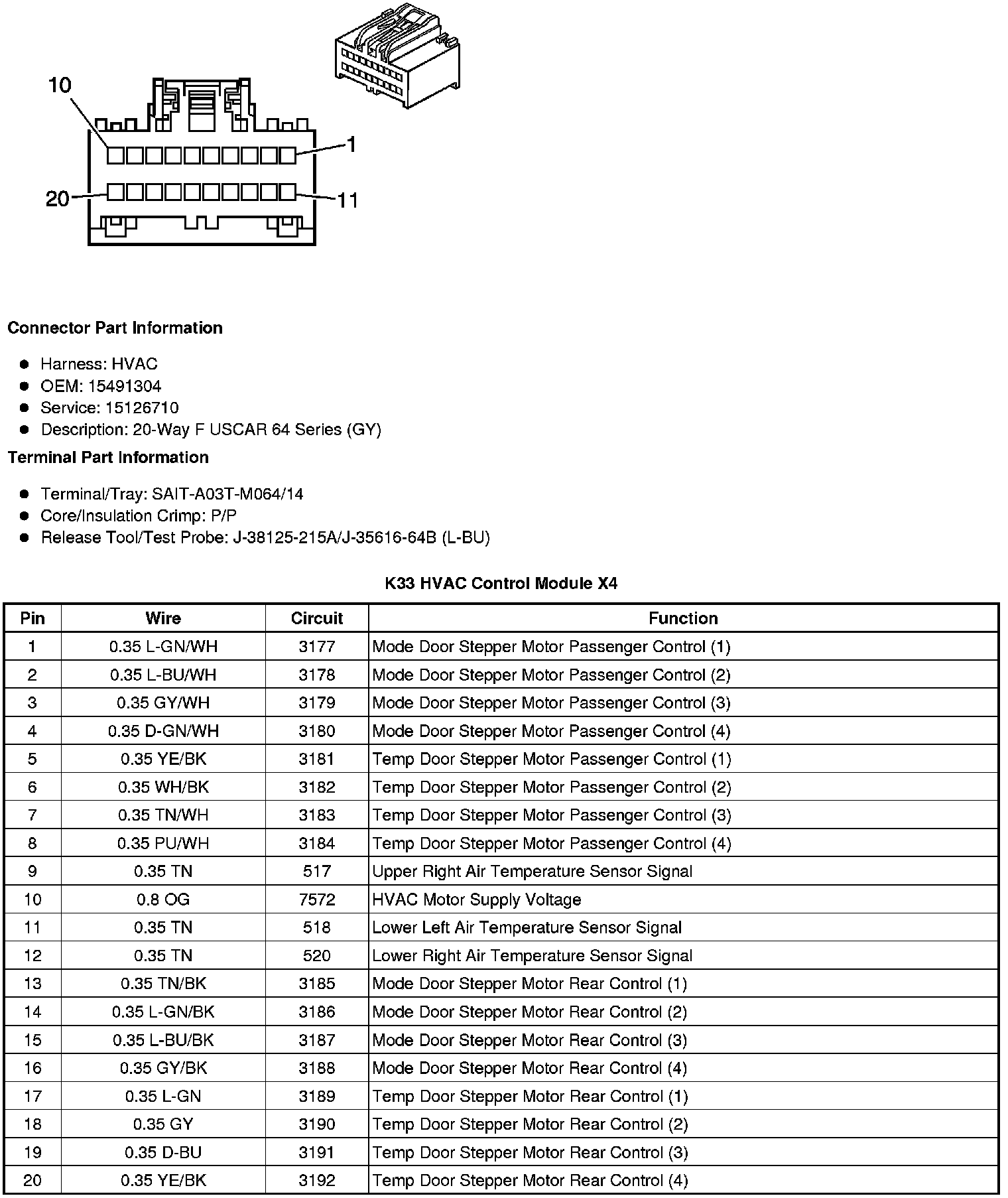

K33 HVAC Control Module X4
