Memory Positioning Module: Diagrams




Component Connector End Views

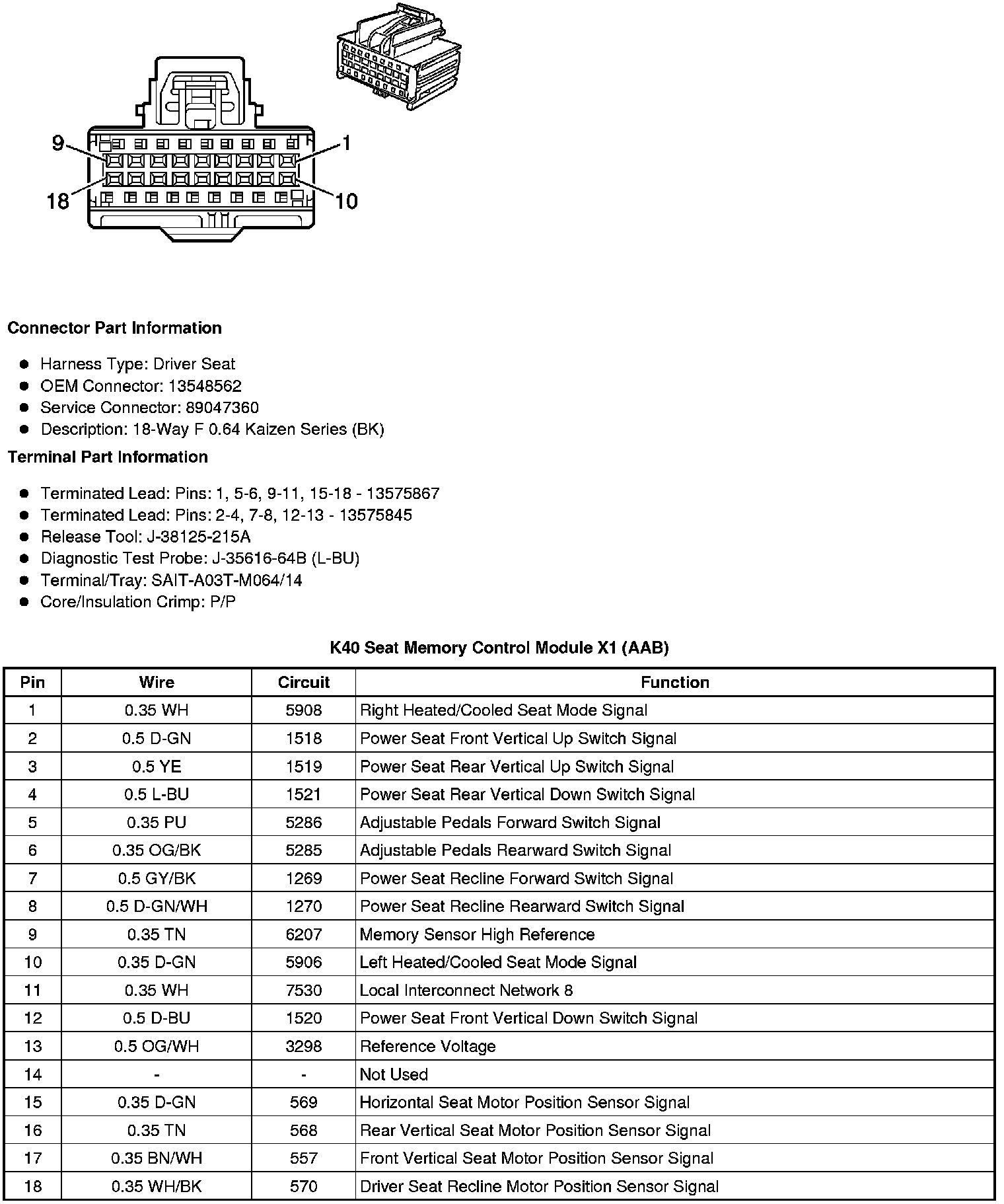

K40 Seat Memory Control Module X1 (AAB)

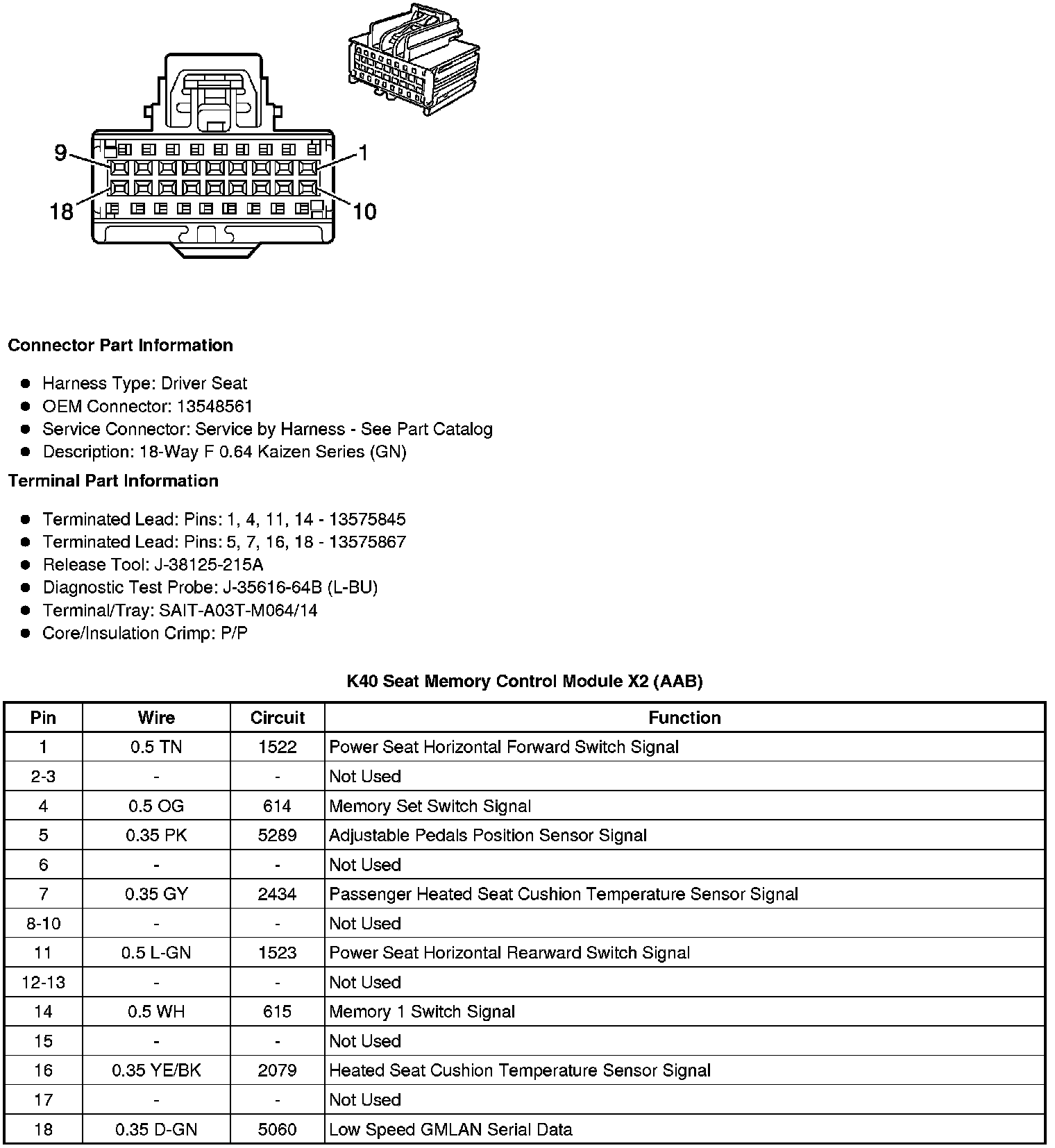

K40 Seat Memory Control Module X2 (AAB)

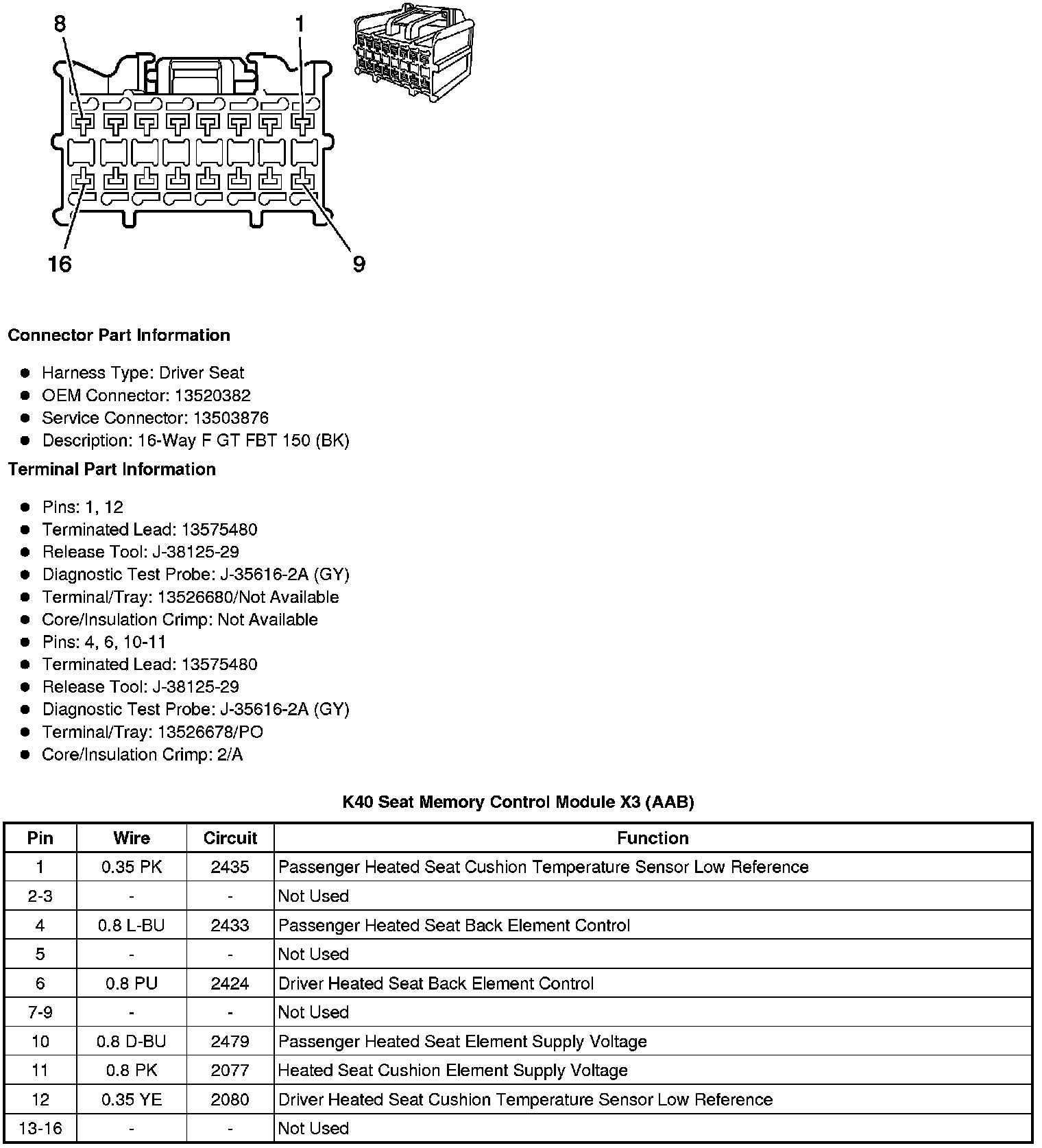

K40 Seat Memory Control Module X3 (AAB)

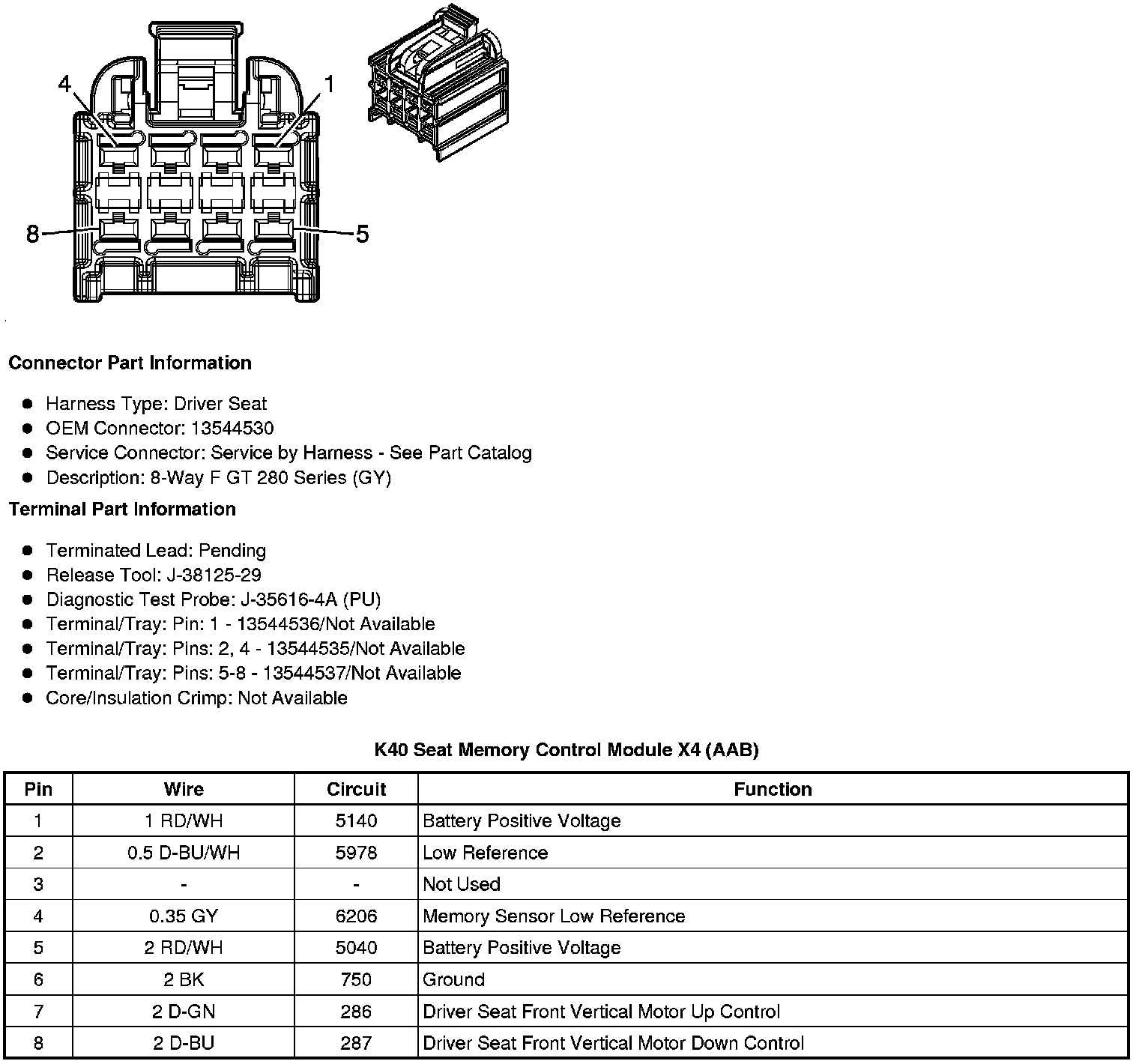

K40 Seat Memory Control Module X4 (AAB)

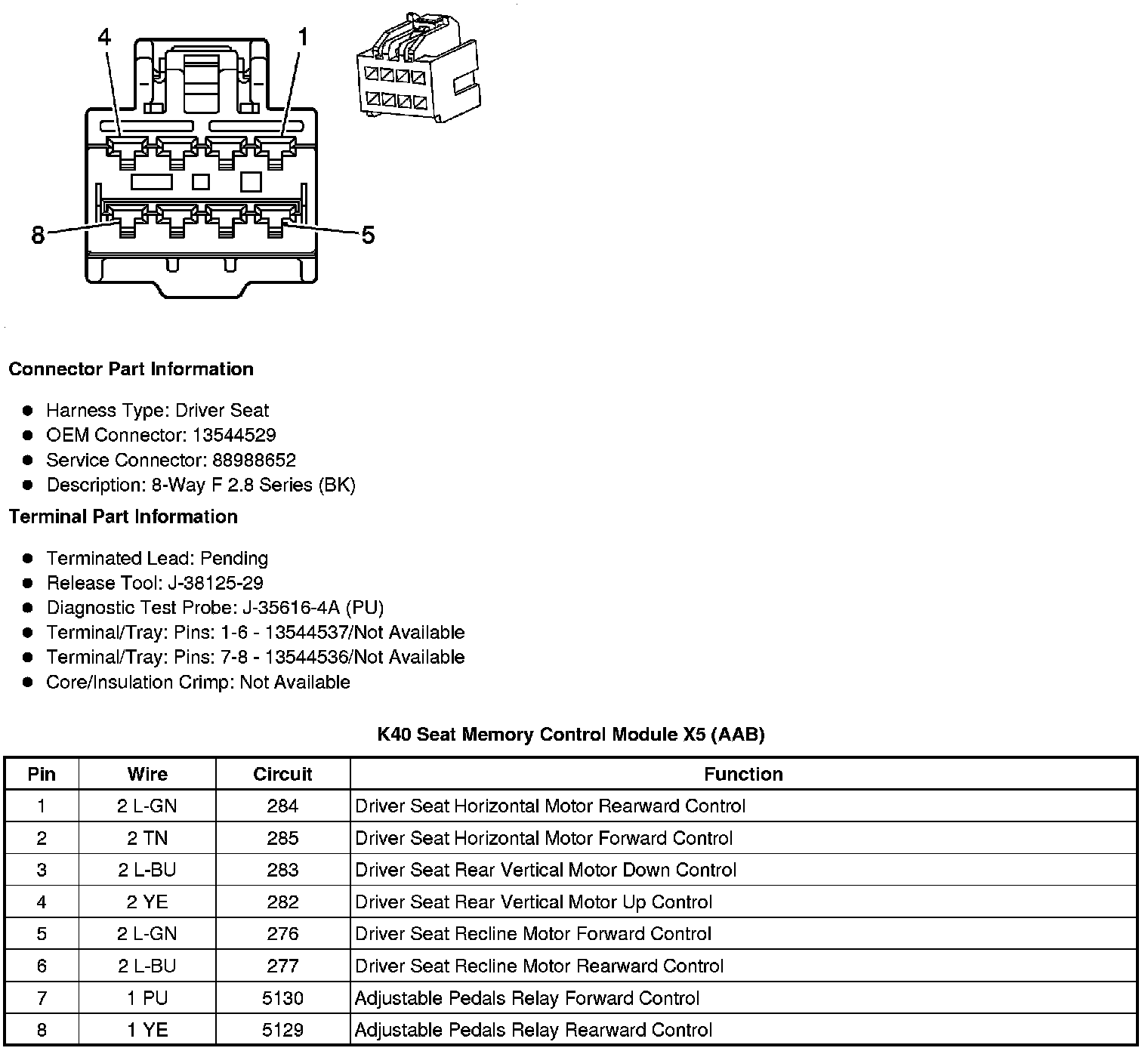

K40 Seat Memory Control Module X5 (AAB)
