Passenger Compartment/Roof Component Views

Passenger Compartment/Roof Component Views

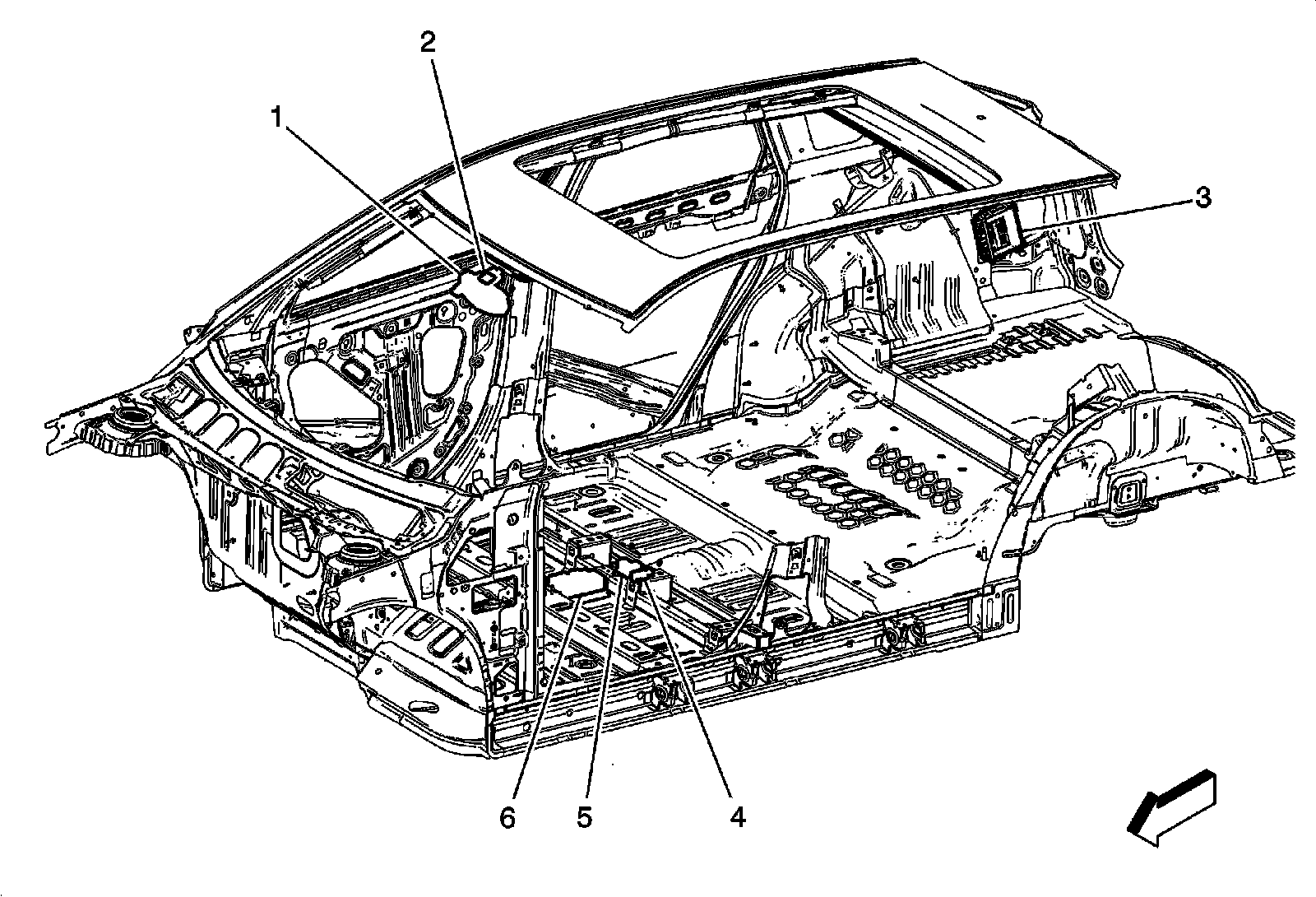

Left Front of the Passenger Compartment Components




1 - A10 Inside Rearview Mirror
2 - B117 Rain Sensor (CE1)
3 - K84 Keyless Entry Control Module
4 - K85 Passenger Presence Detection Module
5 - B119 Multi-axis Acceleration Sensor
6 - K36 Inflatable Restraint Sensing and Diagnostic Module
