Body Control Module: Locations

Instrument Panel/Center Console Component Views

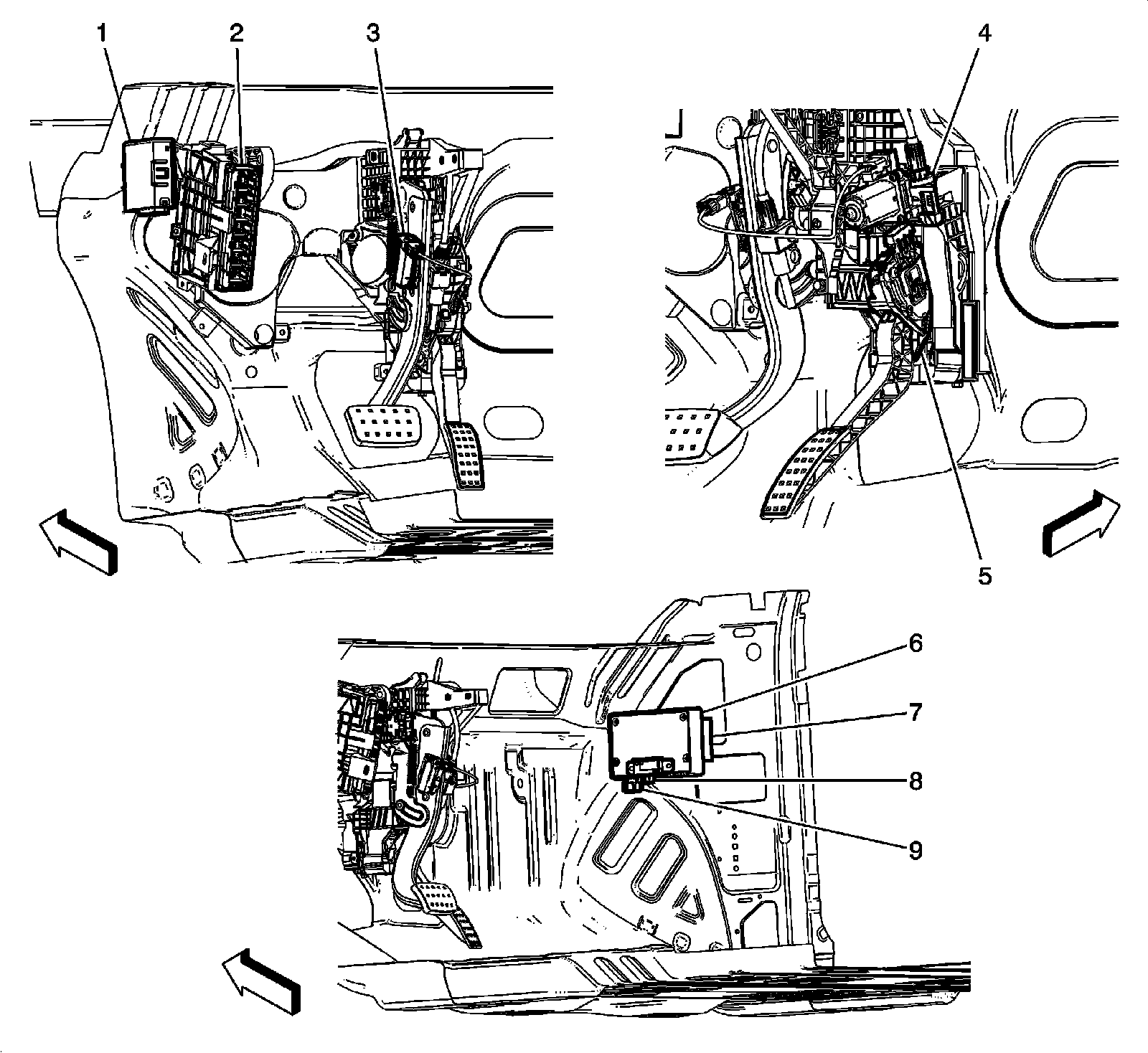

Behind the Instrument Panel Components




1 - K28 Headlamp Leveling Control Module (TT6, TT7 or TT8)
2 - K9 Body Control Module
3 - B22 Brake Pedal Position Sensor
4 - M16 Adjustable Pedal Assembly (JF4)
5 - B107 Accelerator Pedal Position Sensor
6 - K73 Telematics Communication Interface Control Module (UE1)
7 - T15 Navigation Antenna Signal Splitter
8 - K82 Mobile Telephone Control Module (UPH)
9 - T4S Wireless Communication Antenna - Bluetooth
