Body Control Module: Diagrams




Component Connector End Views

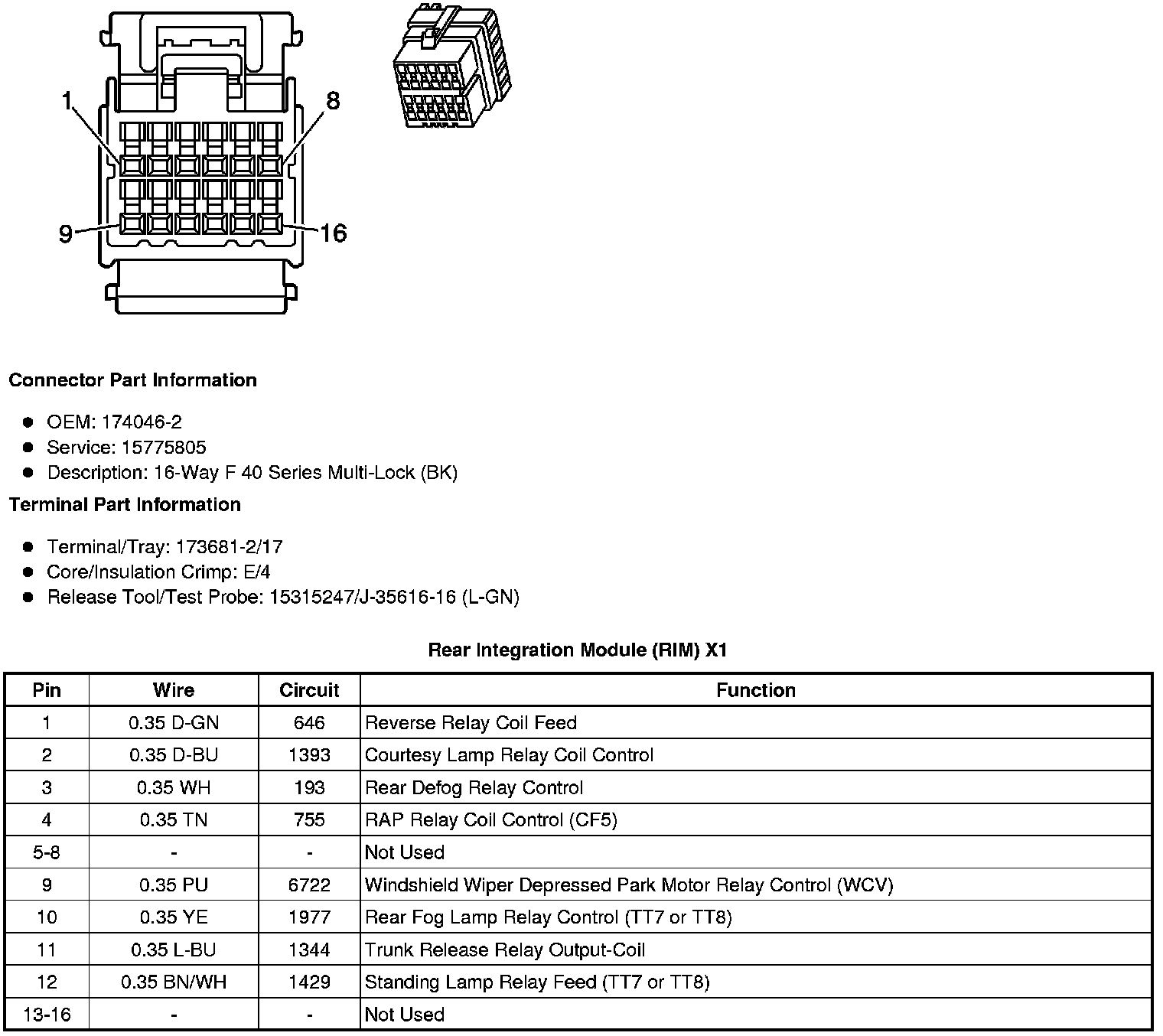

Rear Integration Module (RIM) X1

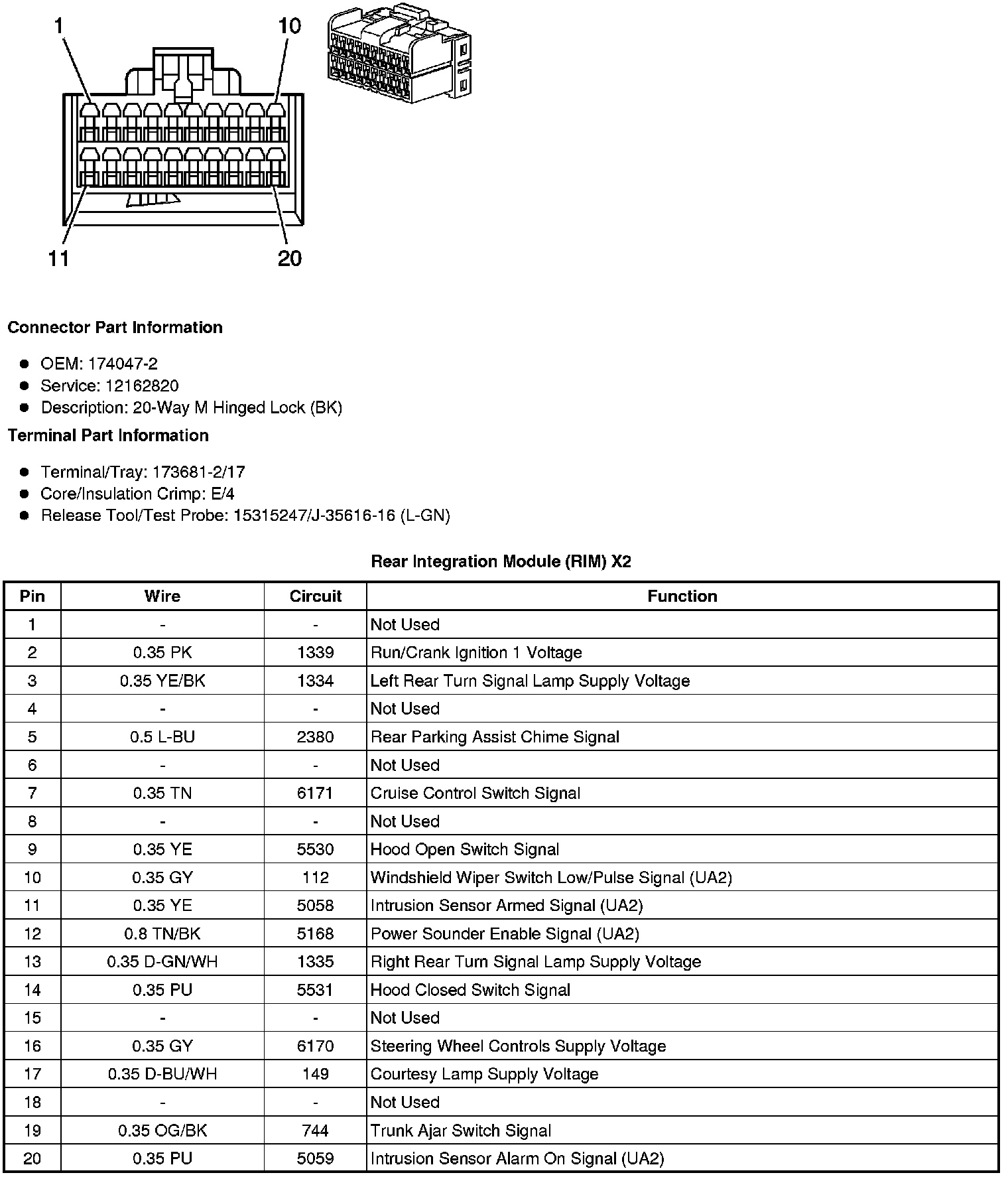

Rear Integration Module (RIM) X2

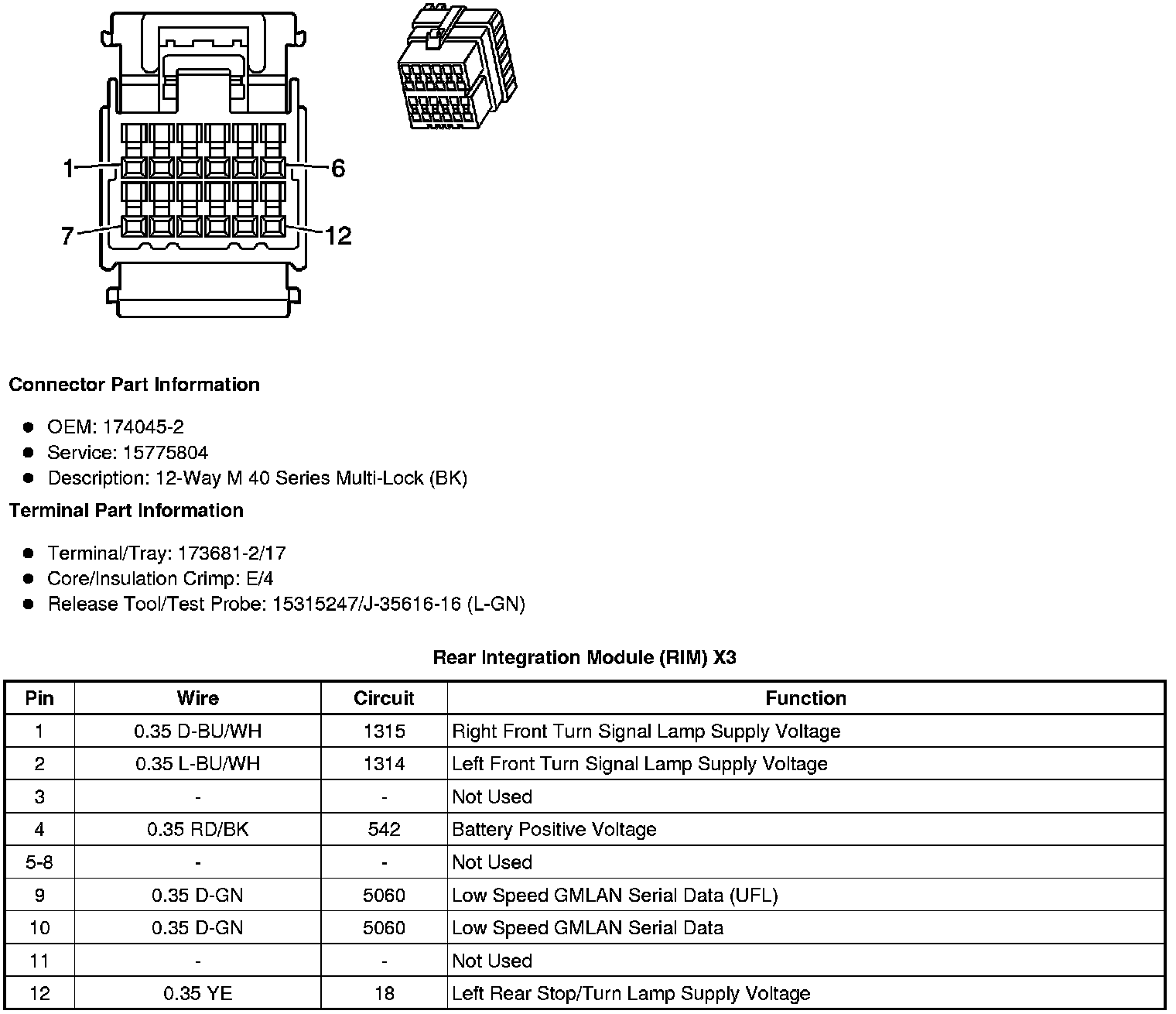

Rear Integration Module (RIM) X3

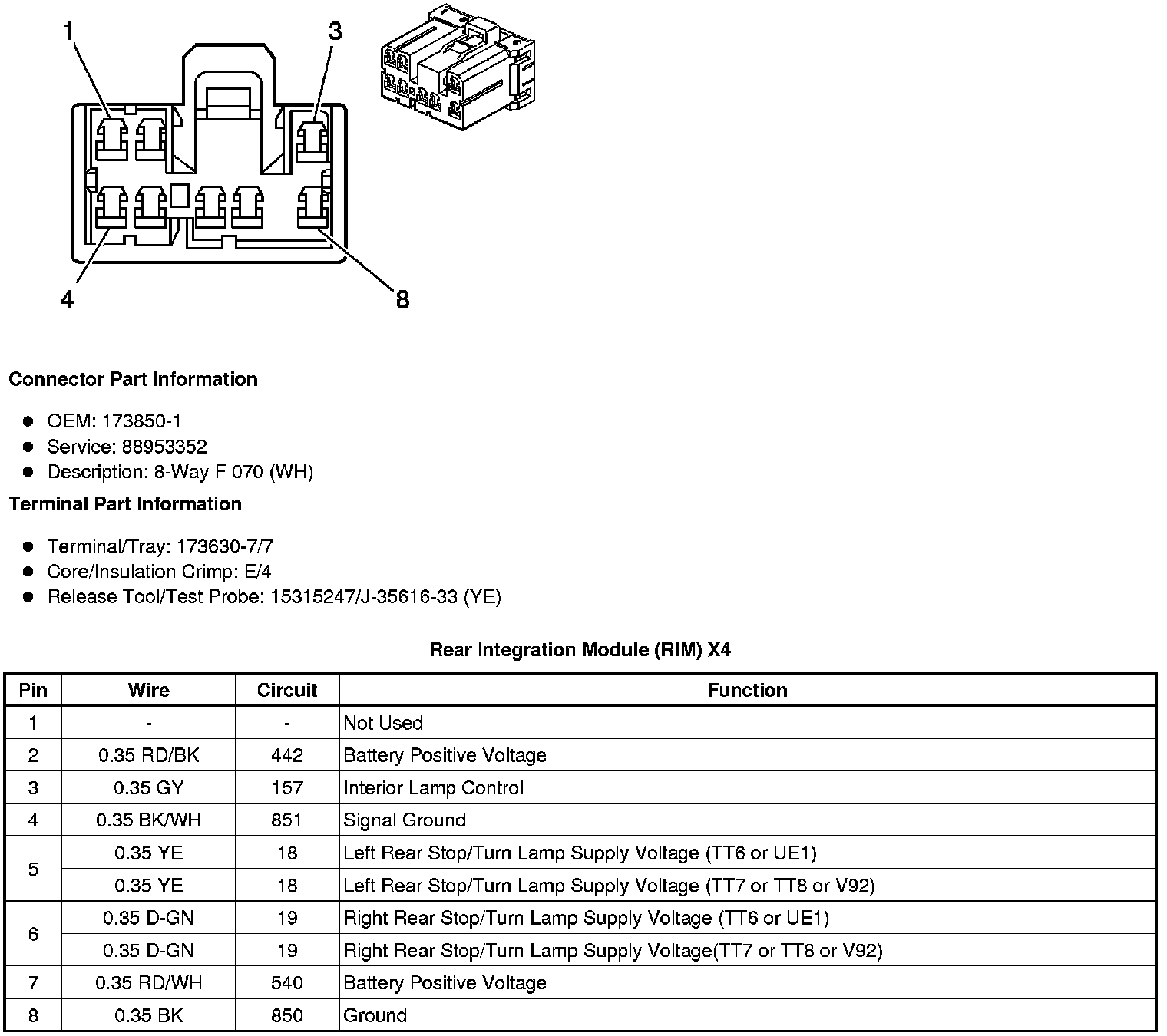

Rear Integration Module (RIM) X4
