Home >> Cadillac >> 2009 >> STS RWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module

Traction Control Module




Component Connector End Views

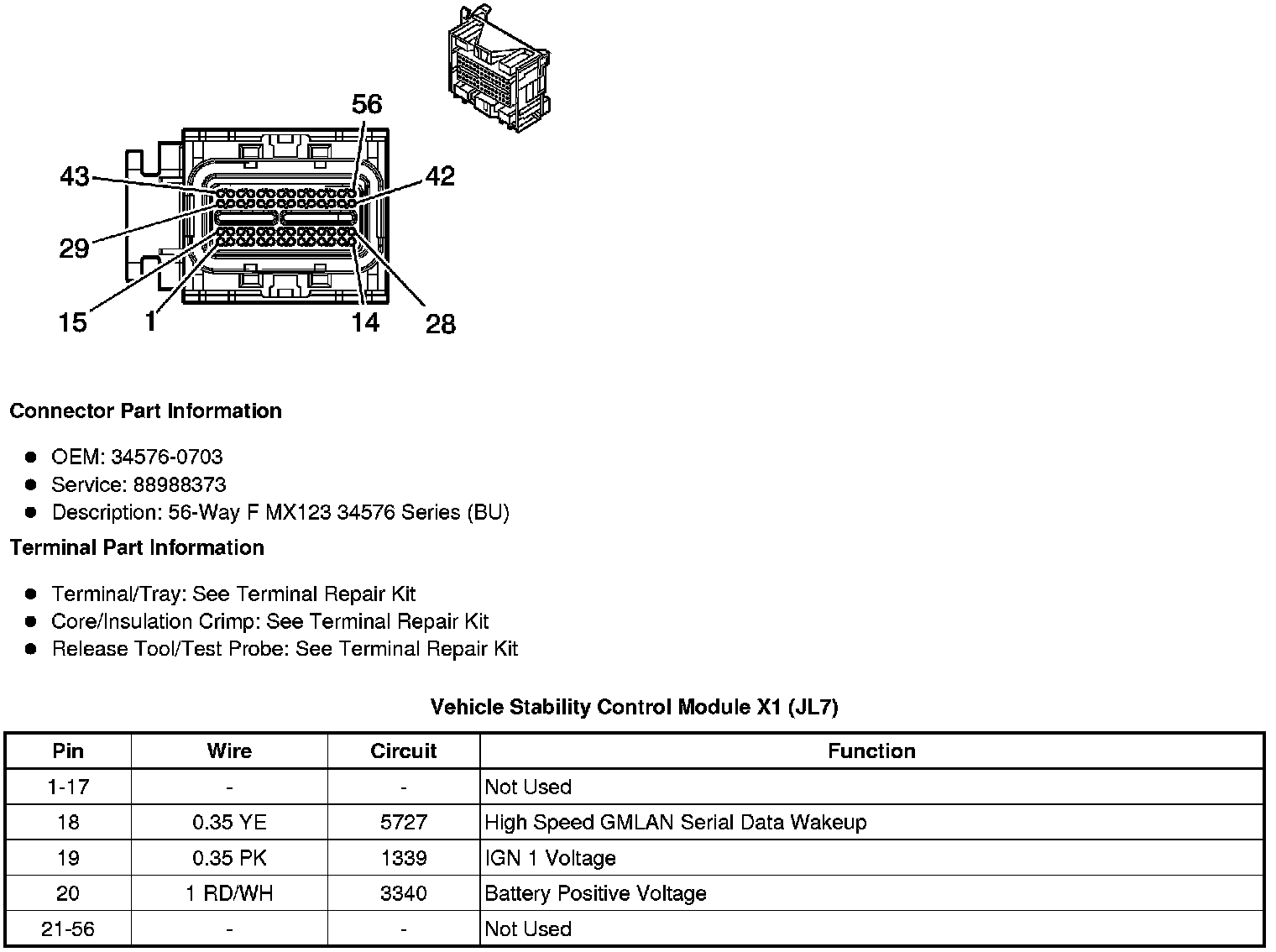

Vehicle Stability Control Module X1 (JL7)






Vehicle Stability Control Module X3 (JL7)
