Engine Control Module
Engine Control Module
Component Connector End Views

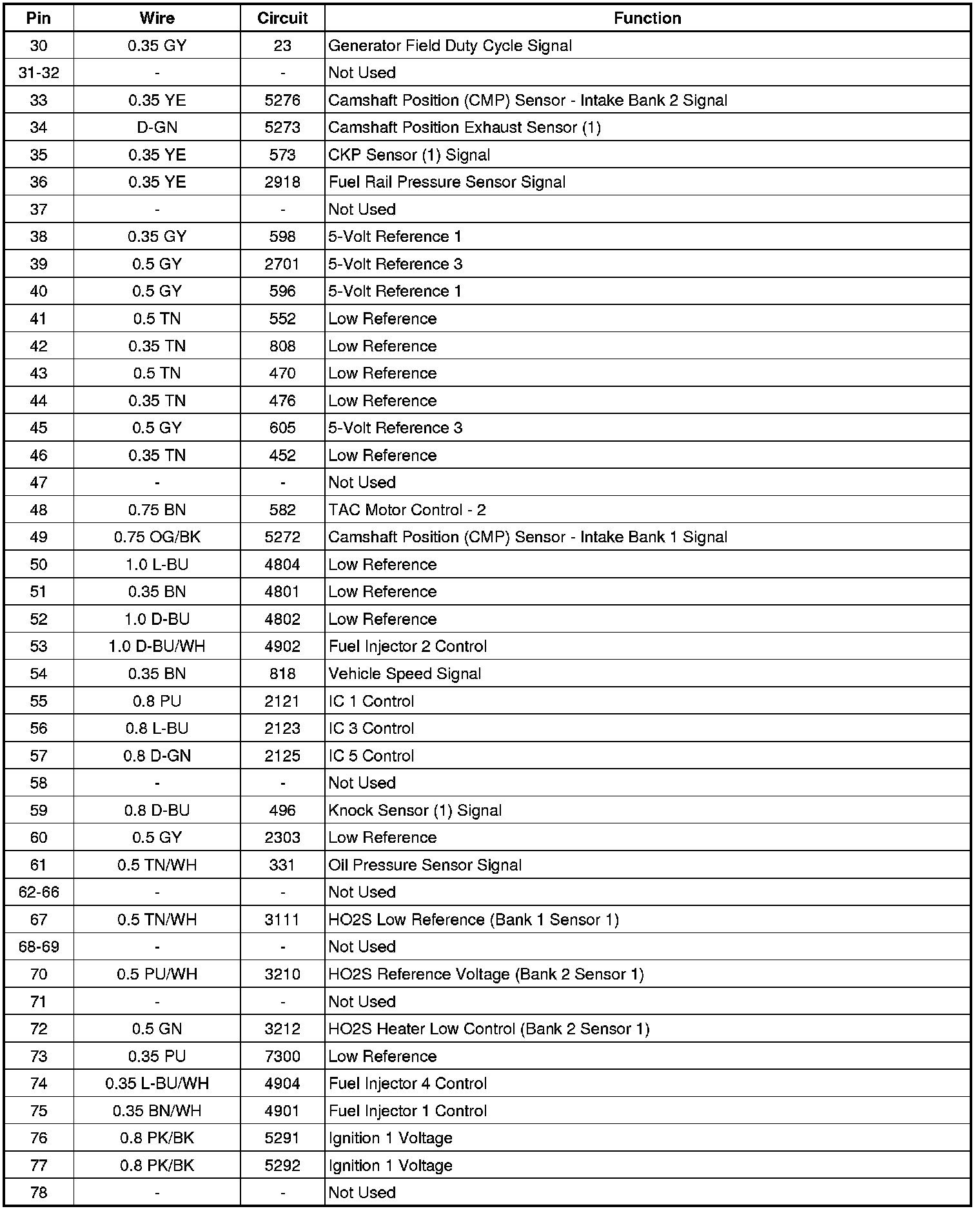

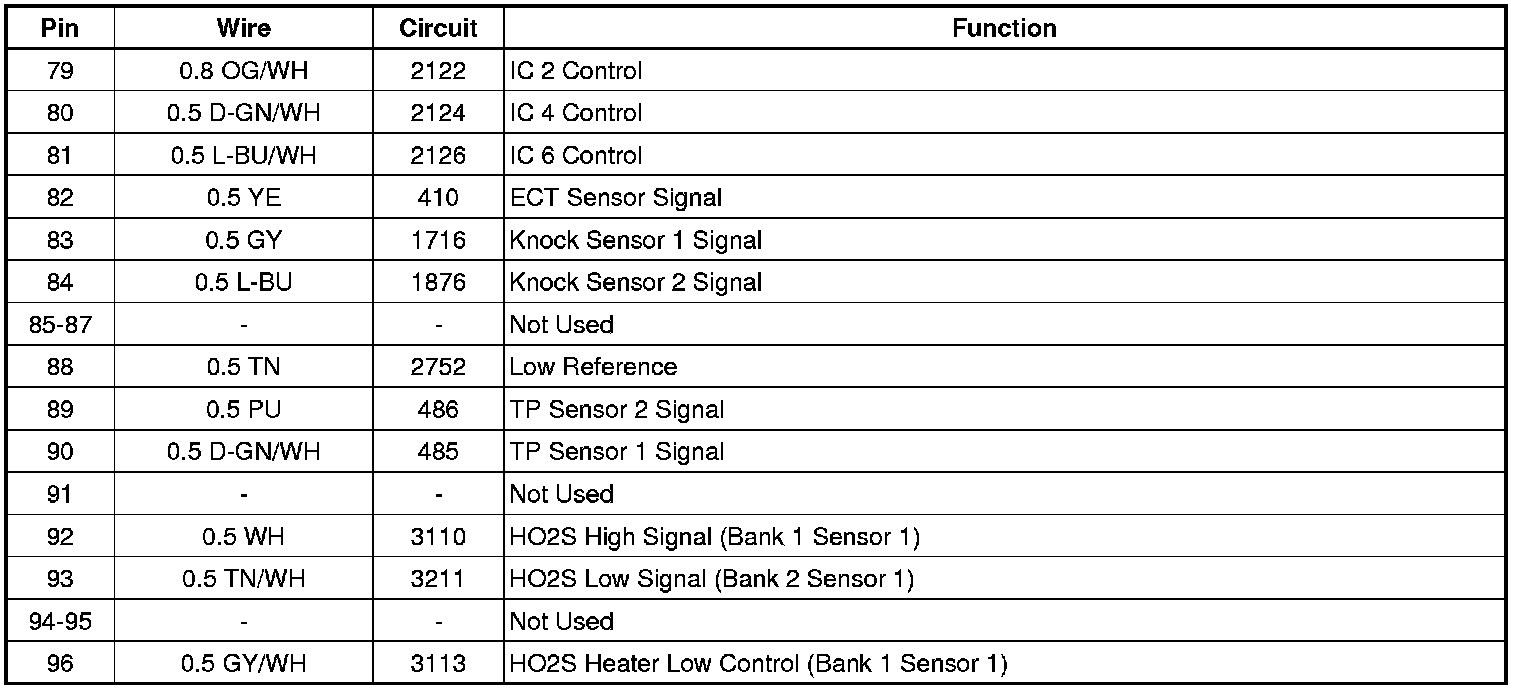

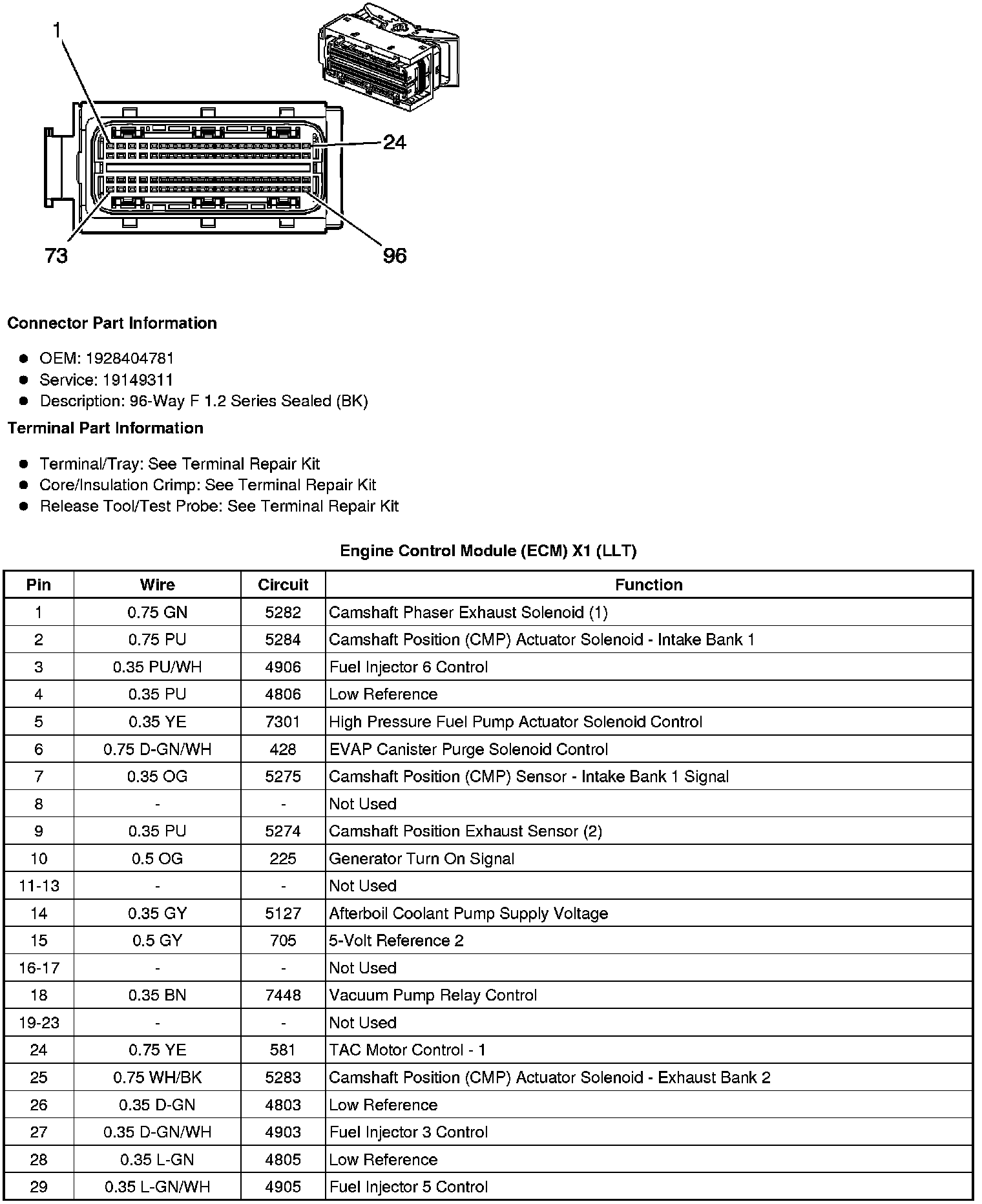

Engine Control Module (ECM) X1 (LLT)

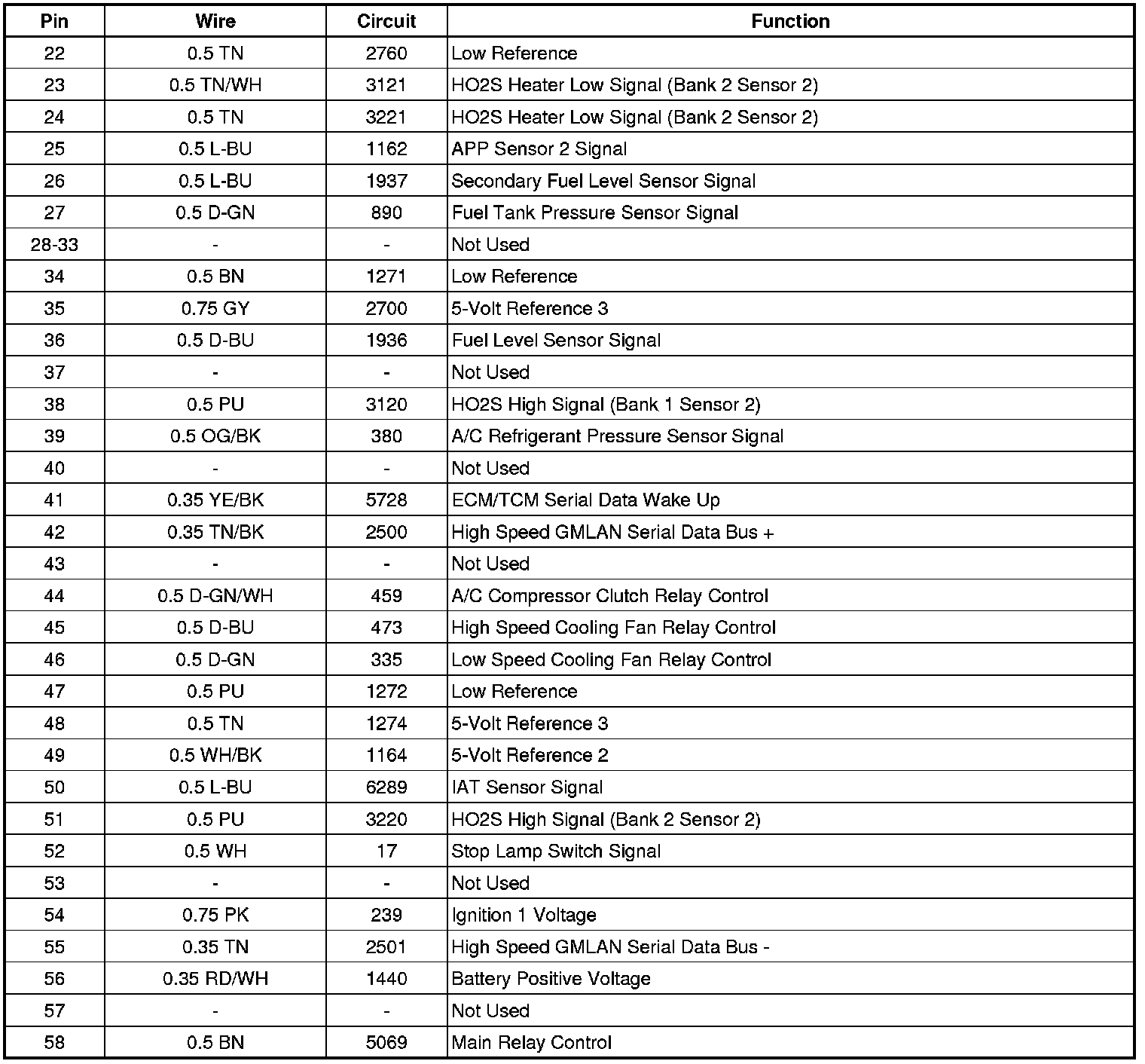

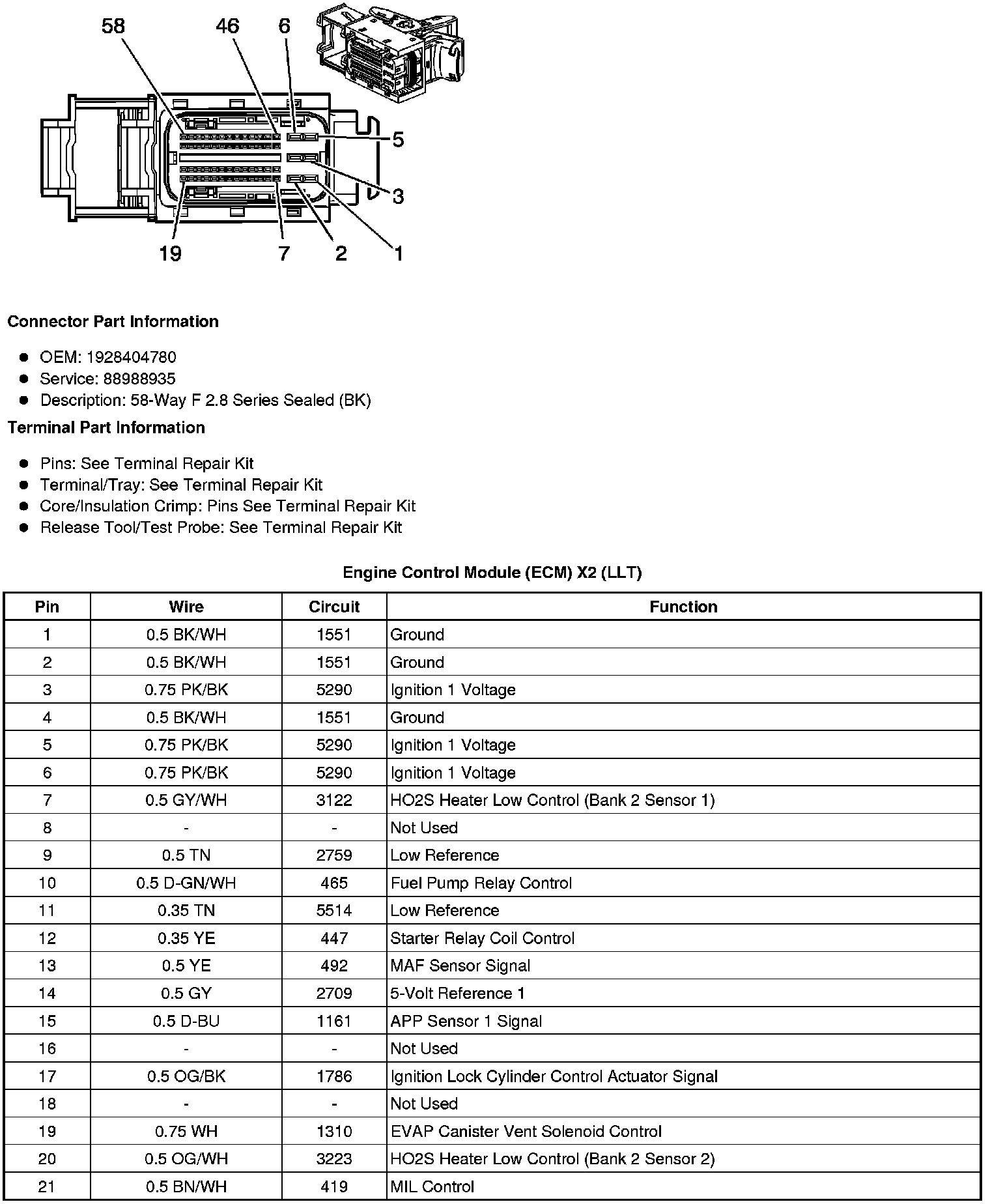

Engine Control Module (ECM) X2 (LLT)
