Antenna Control Module




Component Connector End Views

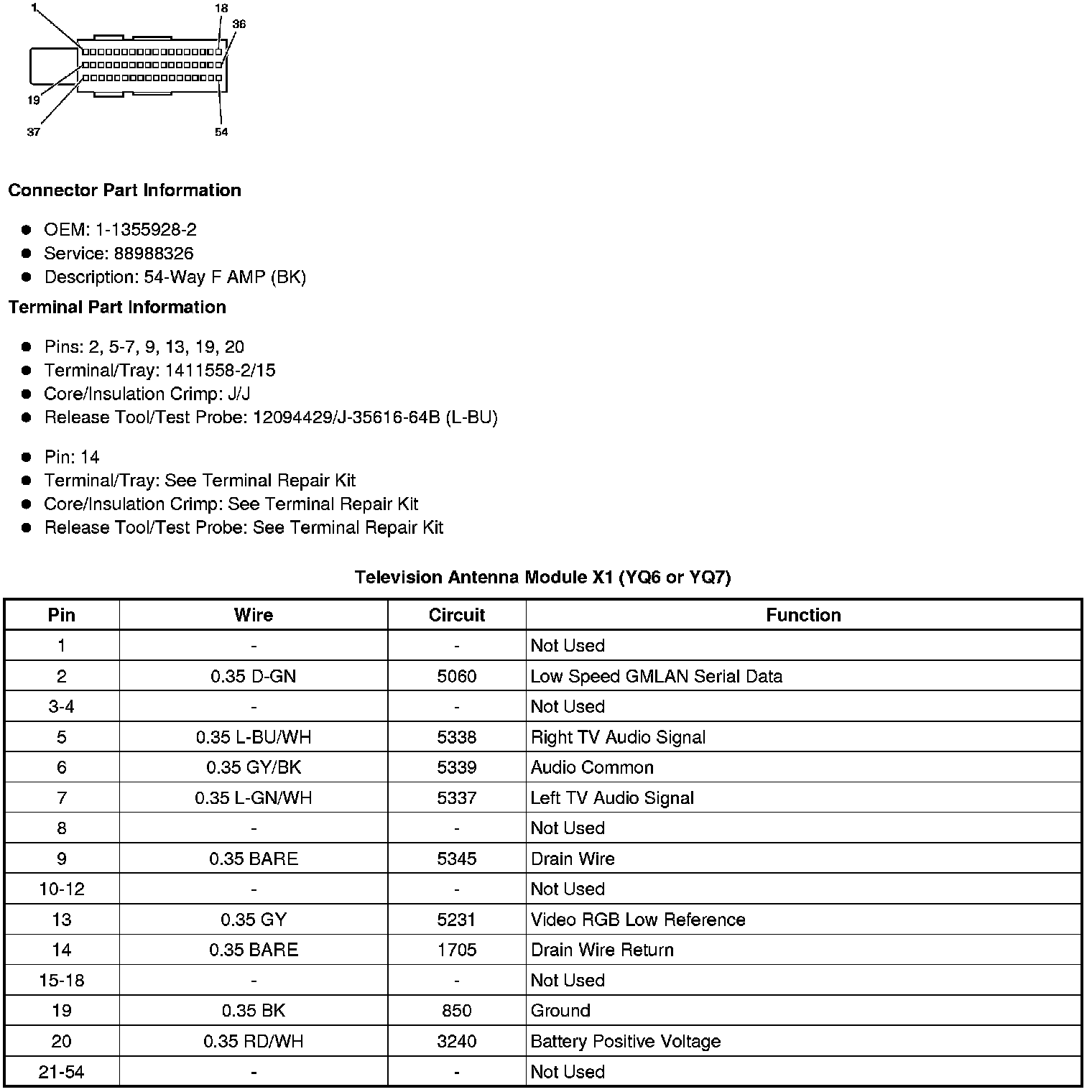

Television Antenna Module X1 (YQ6 or YQ7)

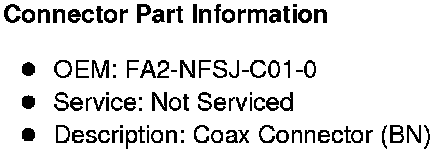

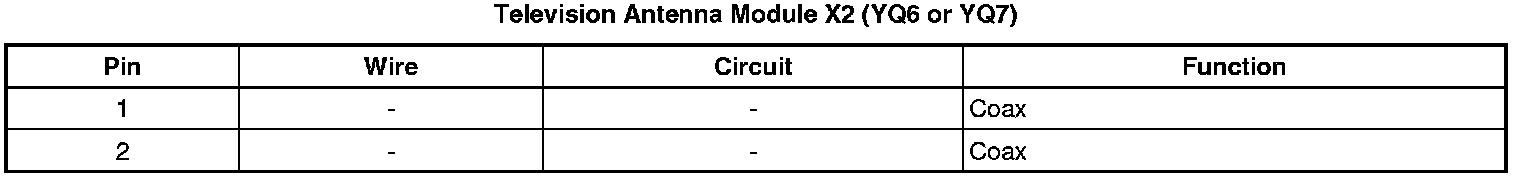

Television Antenna Module X2 (YQ6 or YQ7)










Television Antenna Module X3 (YQ6 or YQ7)
