Part 2



Thread Repair Specifications

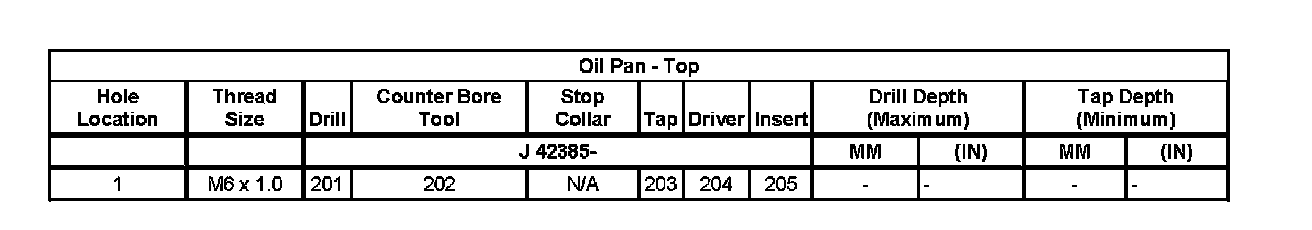

Oil Pan - Top:

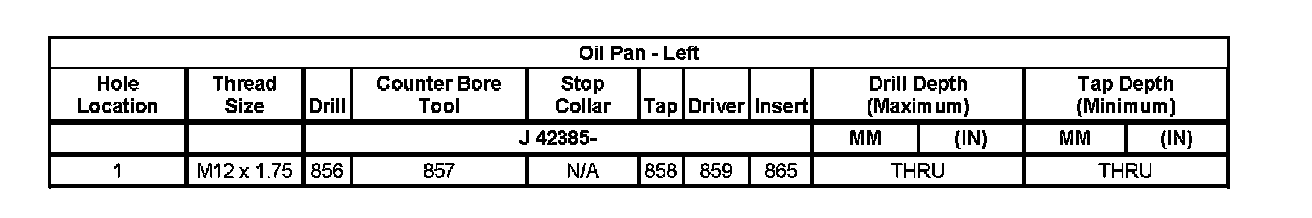

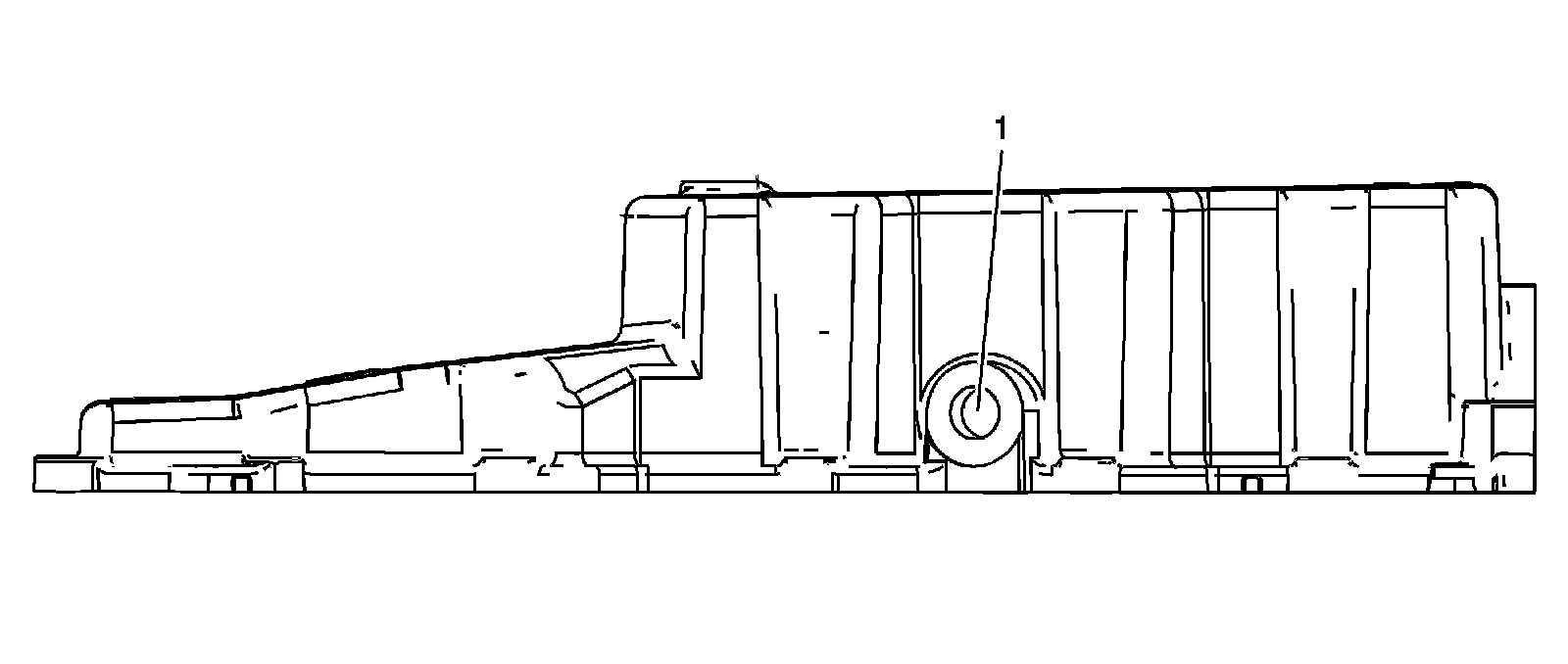

Oil Pan - Left:

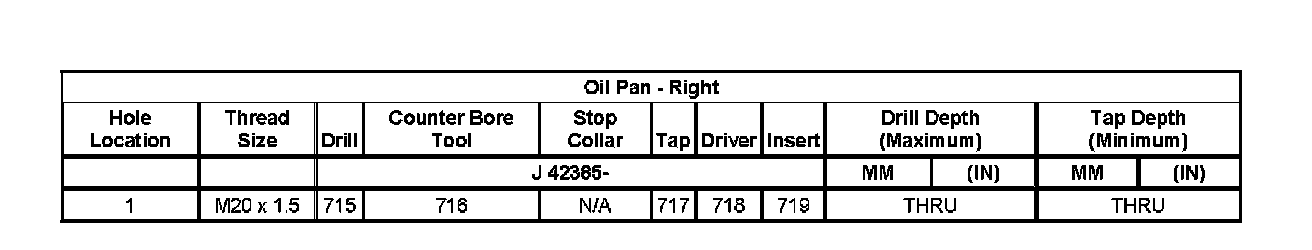

Oil Pan - Right:

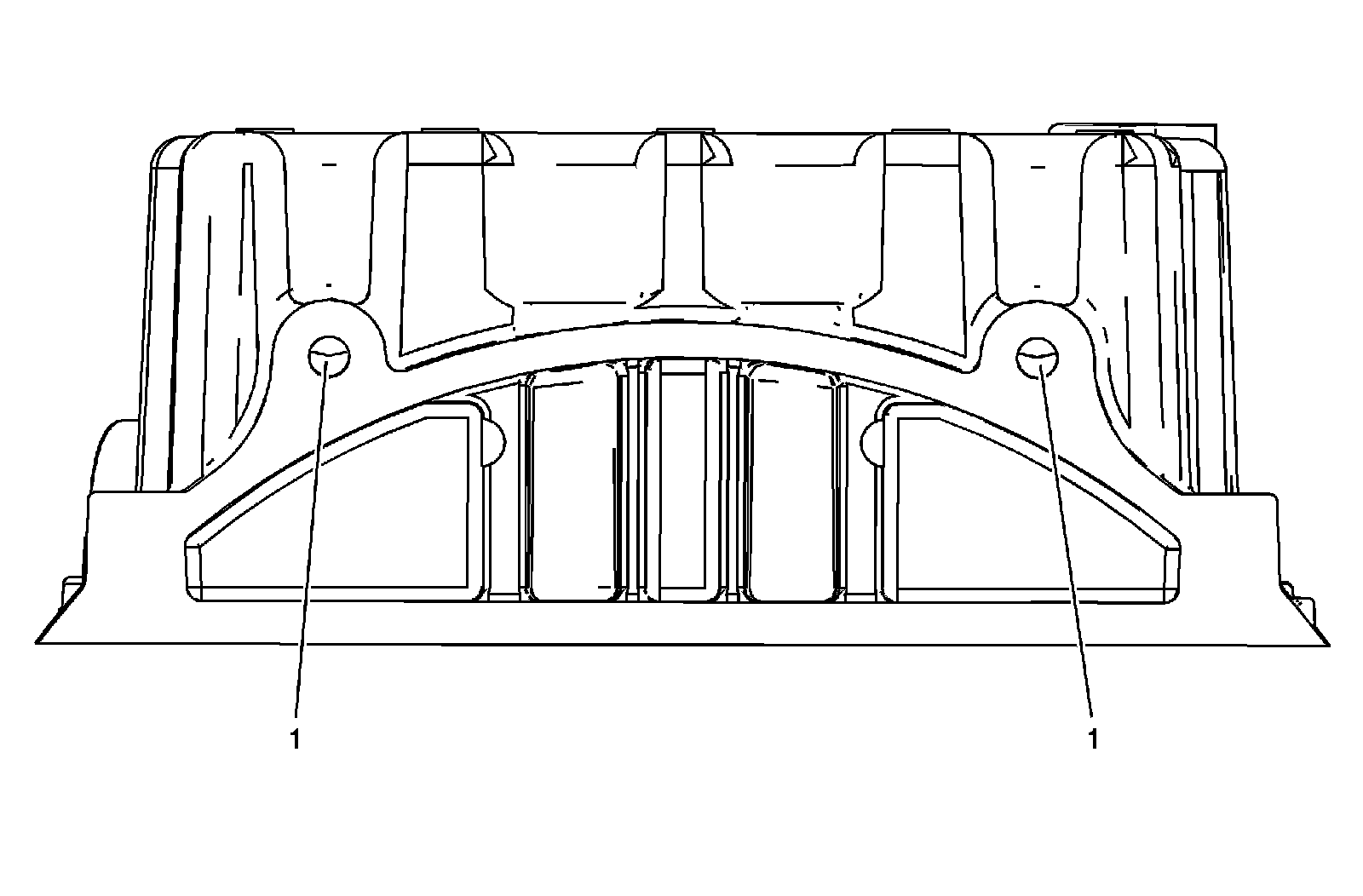

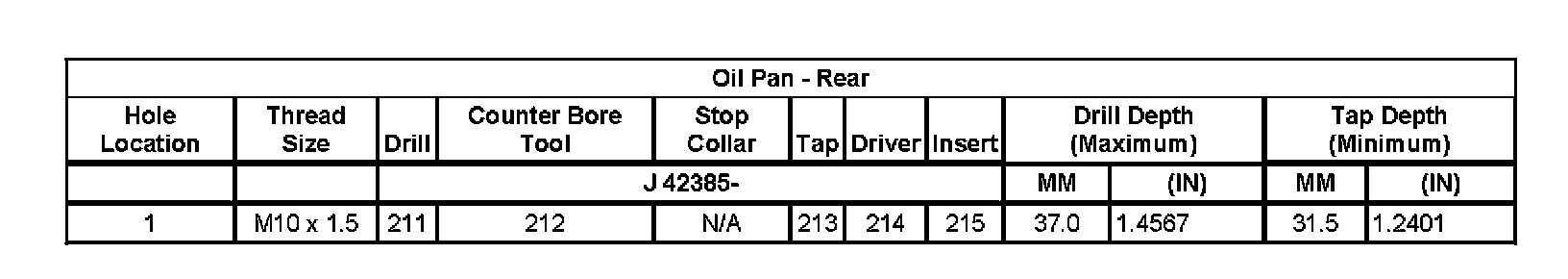

Oil Pan - Rear:

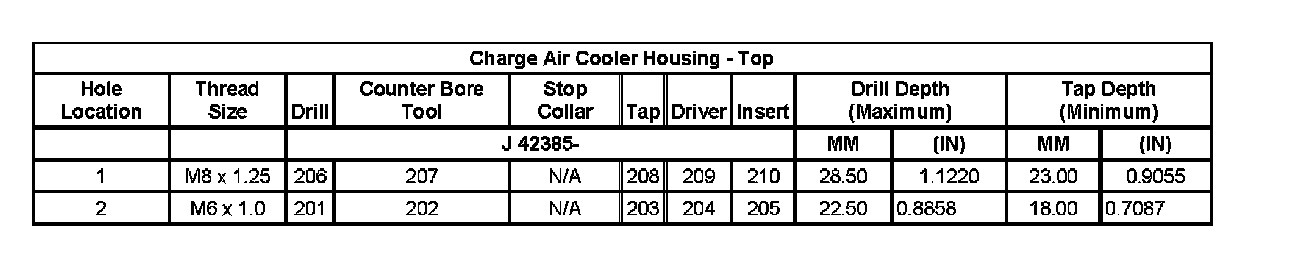

Charge Air Cooler Housing - Top:




Charge Air Cooler Housing - Top:




Charge Air Cooler Housing - Front:

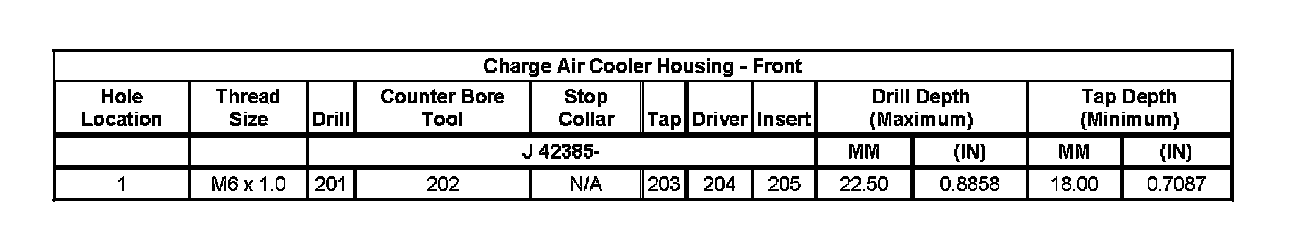

Charge Air Cooler Housing - Front:




Charged Air Cooler Housing - Rear:

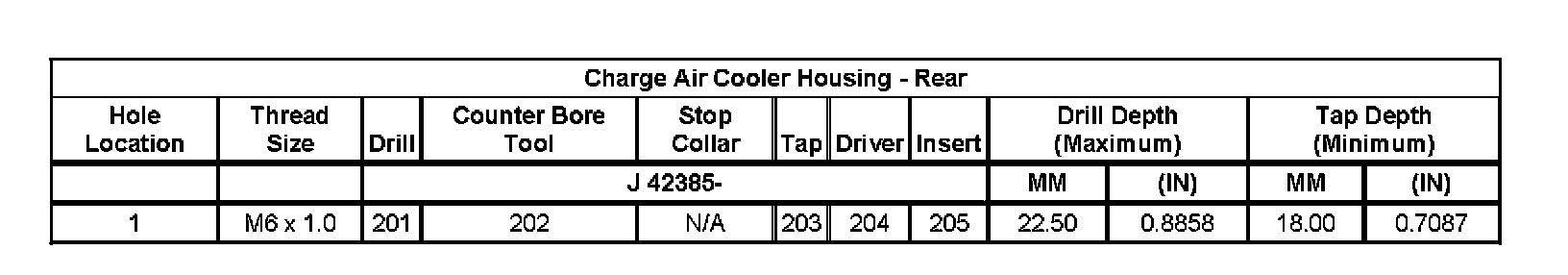

Charge Air Cooler Housing - Rear:

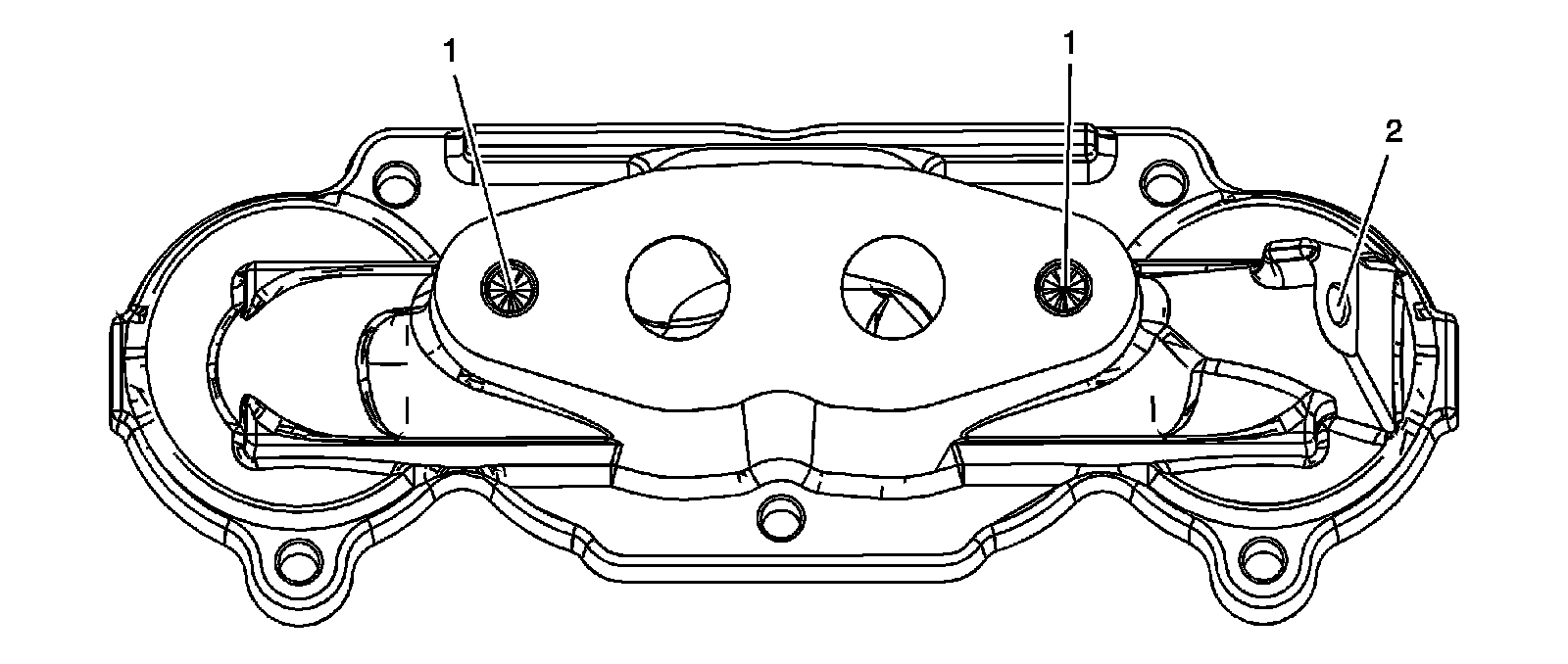

Charged Air Cooler Manifold - Front:

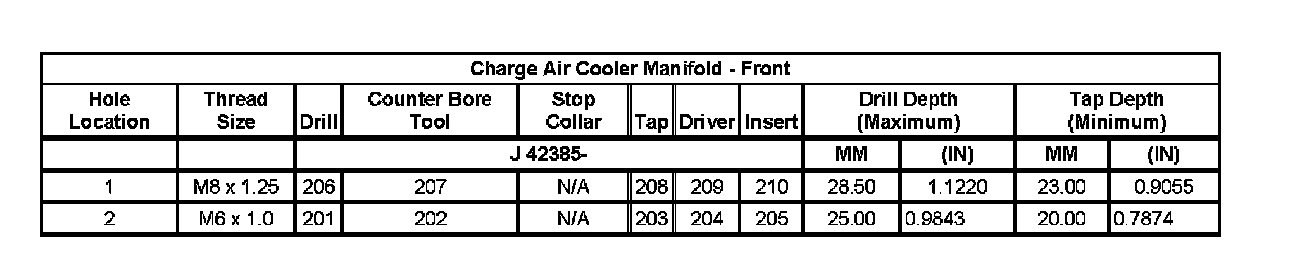

Charge Air Cooler Manifold - Front:
