Engine
>>
Oil Pump, Engine
Oil Pump, Engine

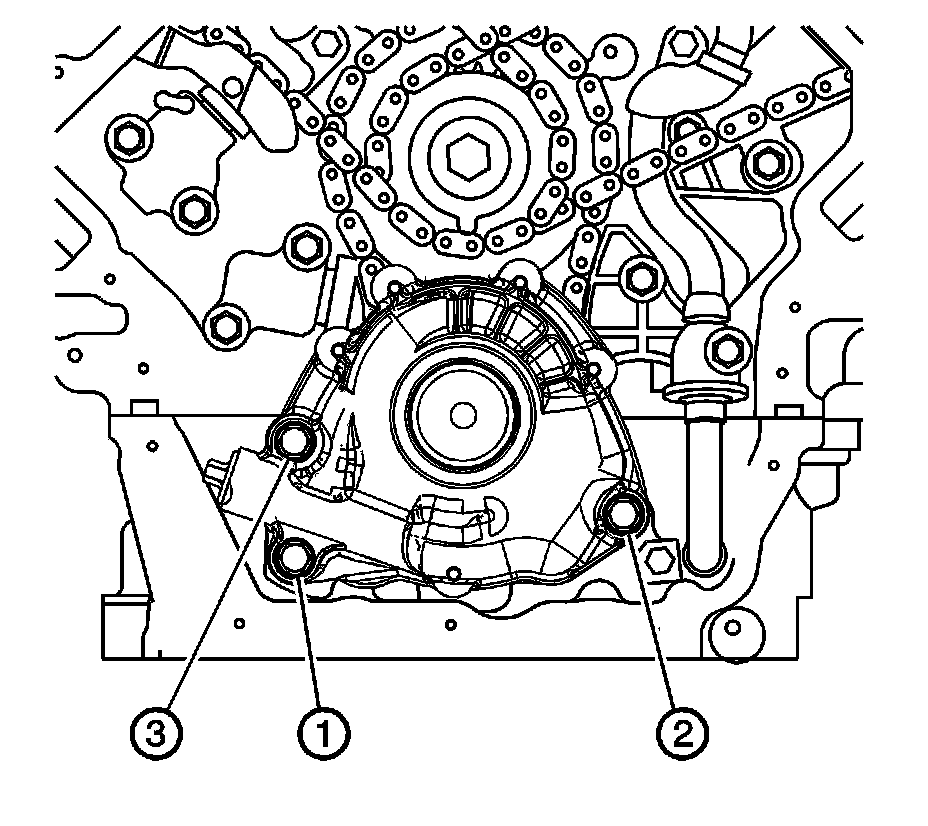

Oil Pump
Cover Bolt
12 N.m (106 lb in)
Mounting Bolt
First Pass
10 N.m (89 lb in)
Final Pass
35 degrees
