Engine Control Module

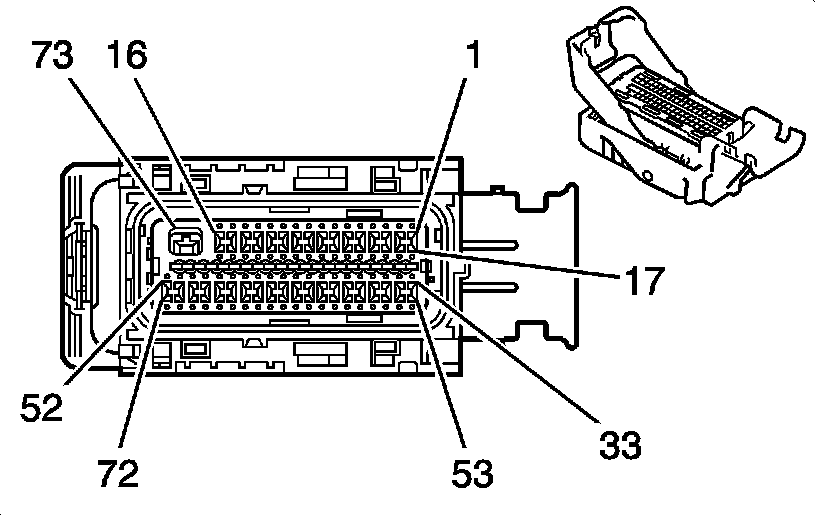

Engine Control Module Connector End Views

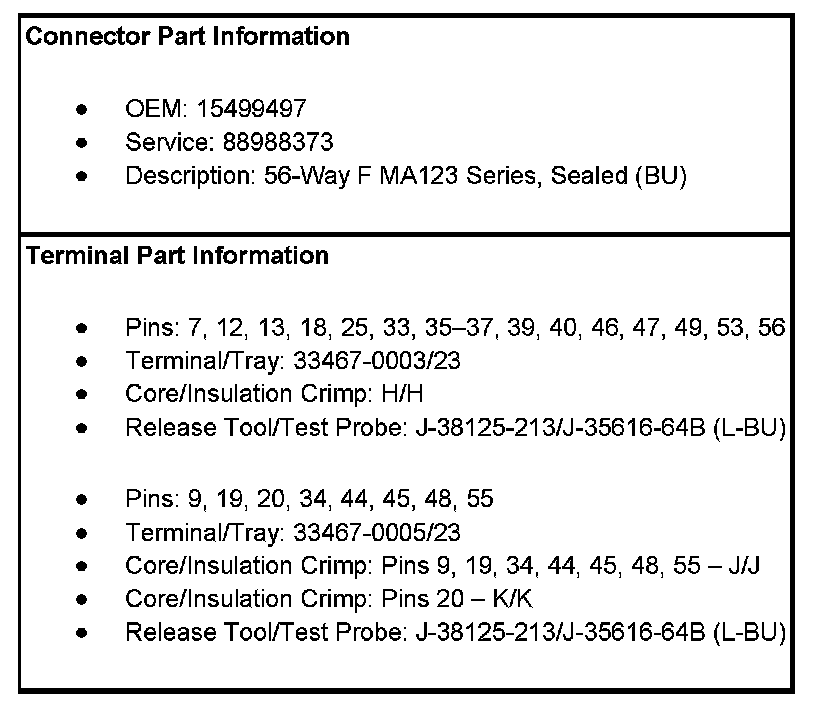

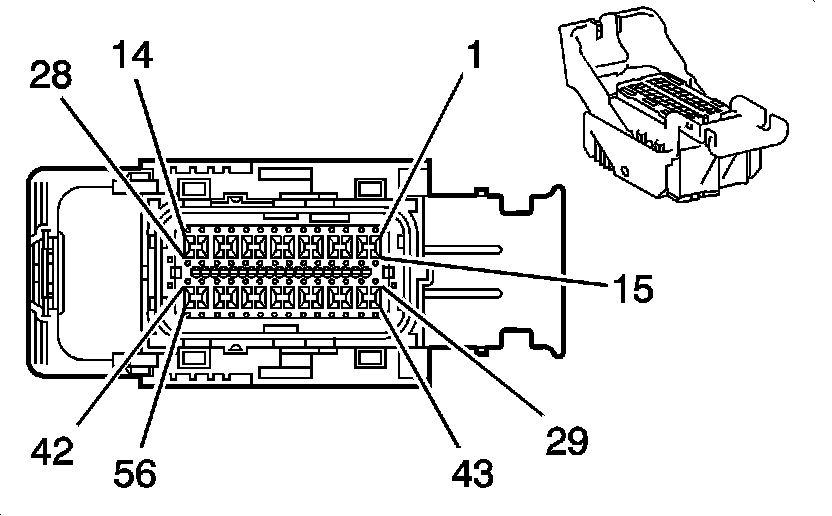

Engine Control Module (ECM) - C1

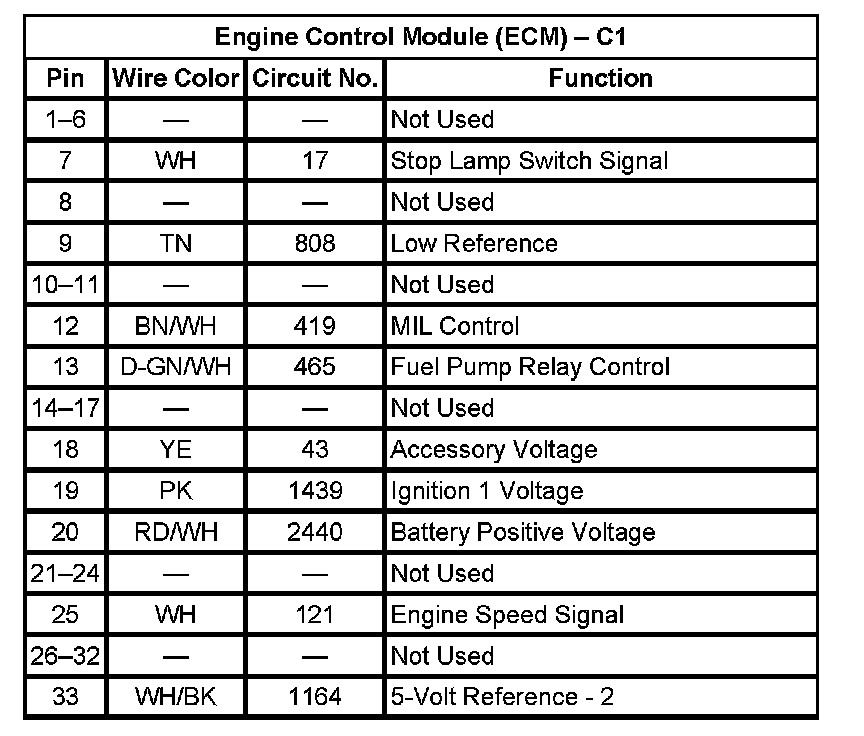

Engine Control Module (ECM) - C1 (Pin 1 To 33):

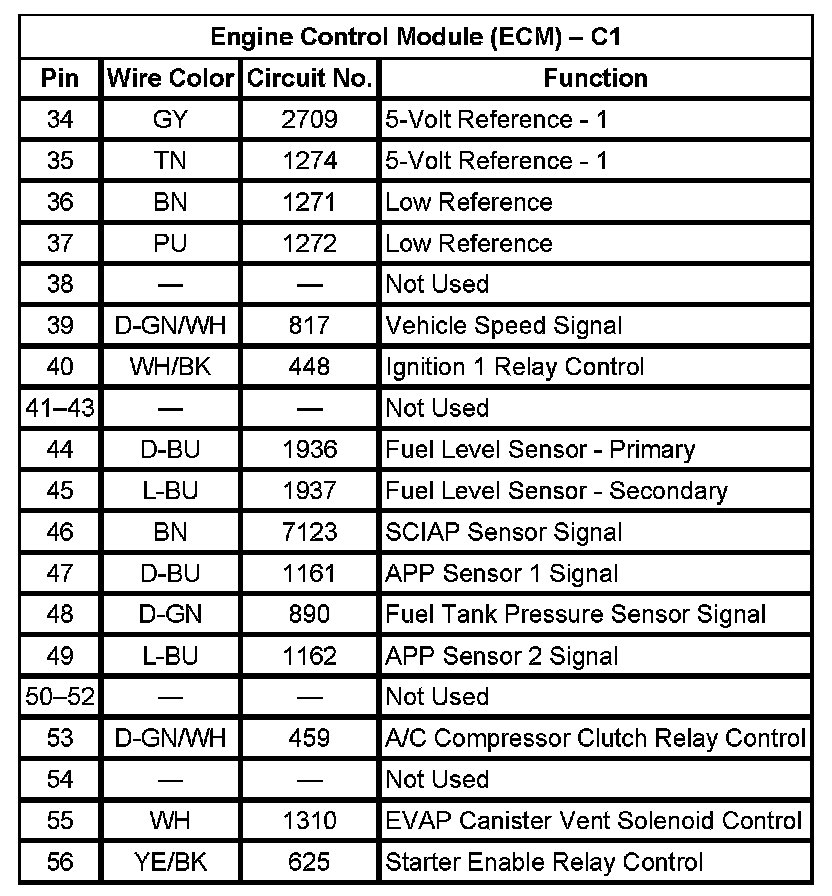

Engine Control Module (ECM) - C1 (Pin 34 To 56):

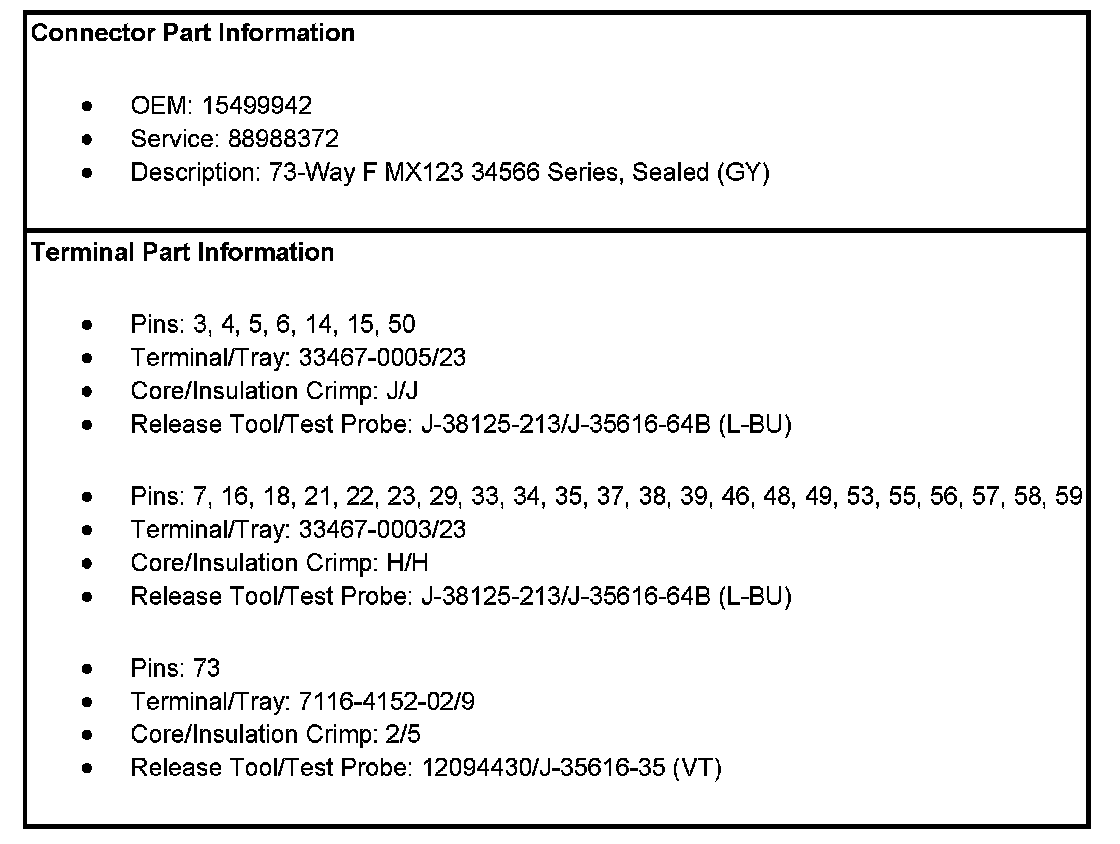

Engine Control Module (ECM) - C2

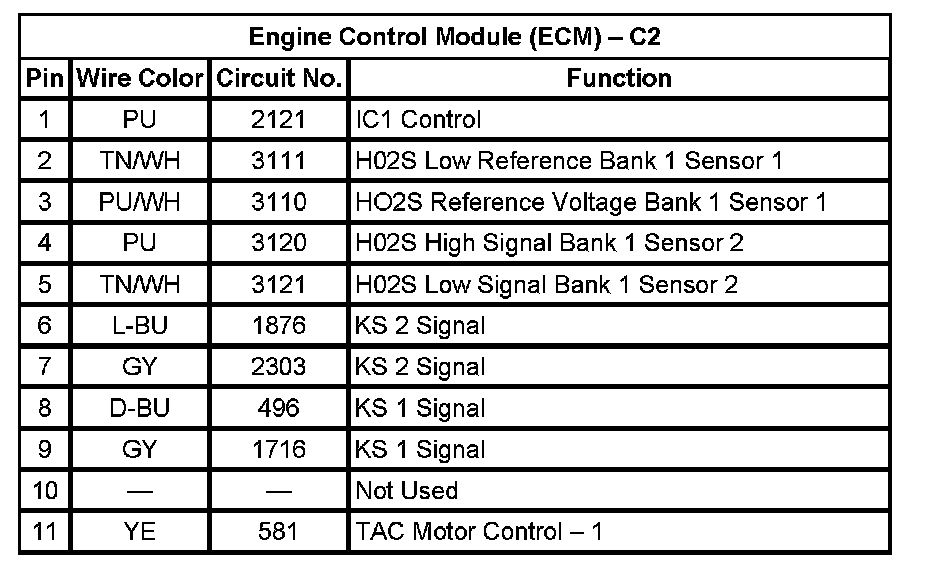

Engine Control Module (ECM) - C2 (Pin 1 To 11):

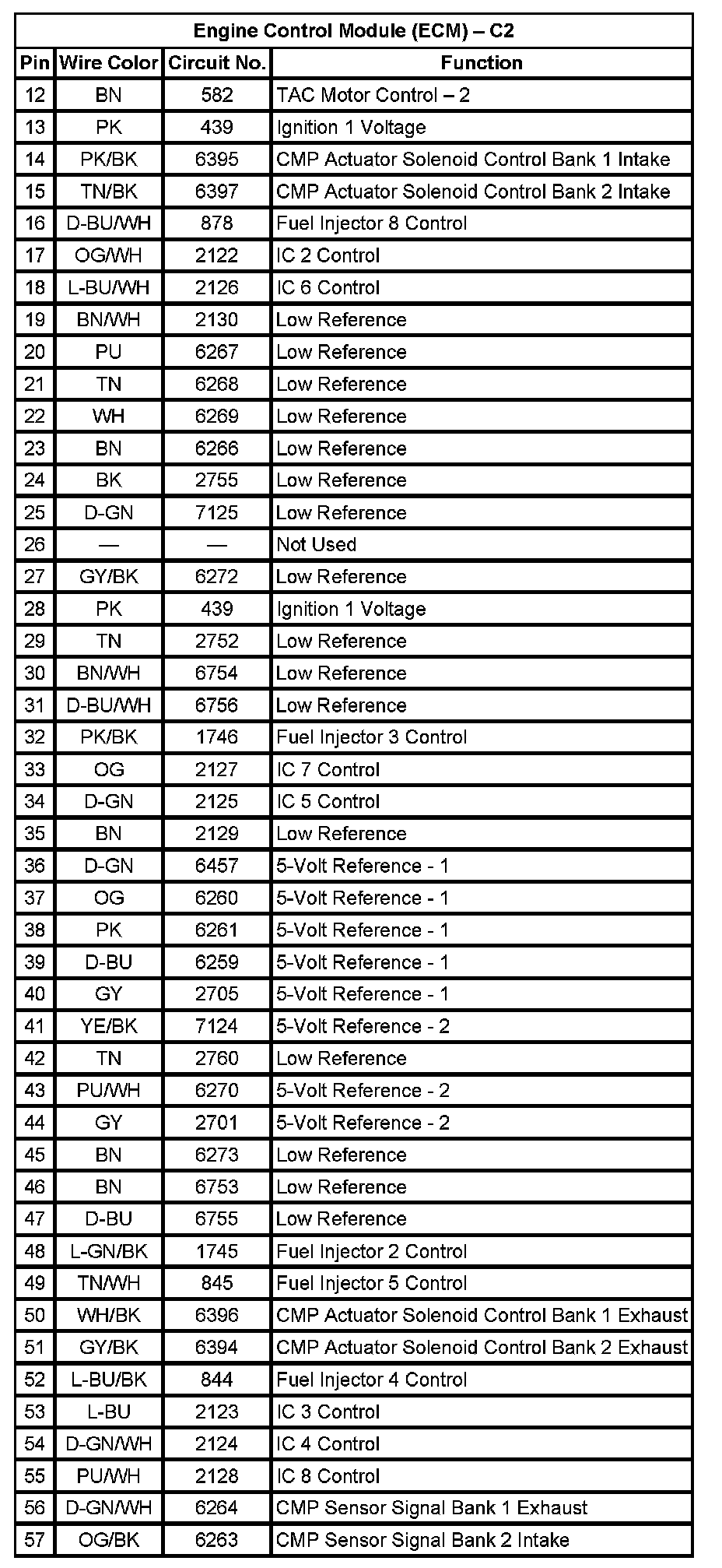

Engine Control Module (ECM) - C2 (Pin 12 To 57):

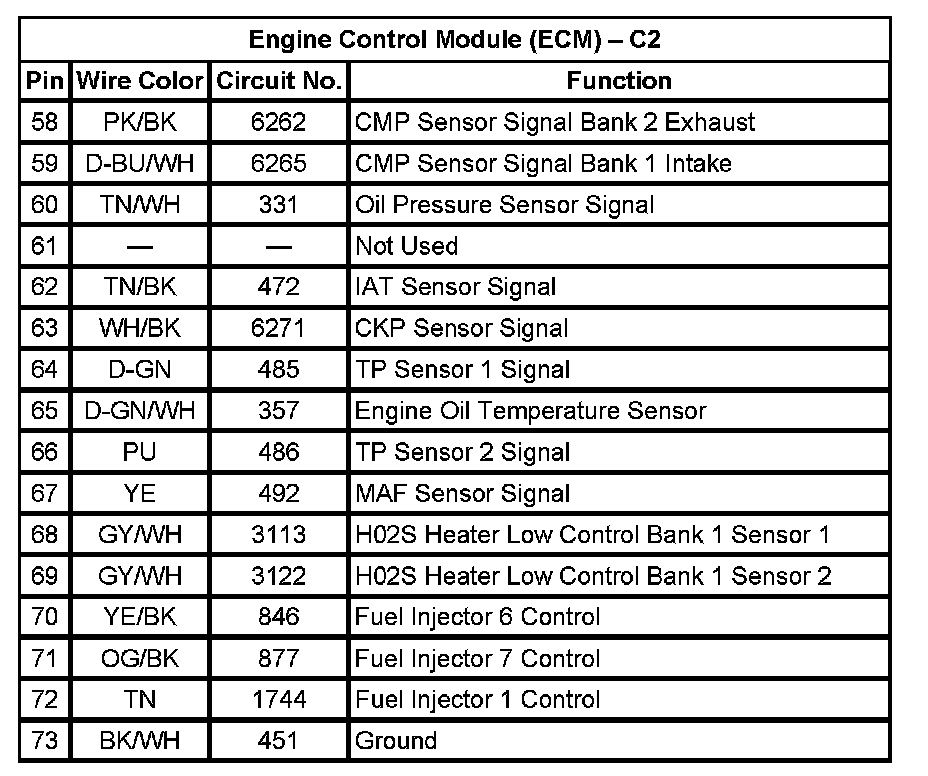

Engine Control Module (ECM) - C2 (Pin 58 To 73):
Engine Control Module (ECM) - C3

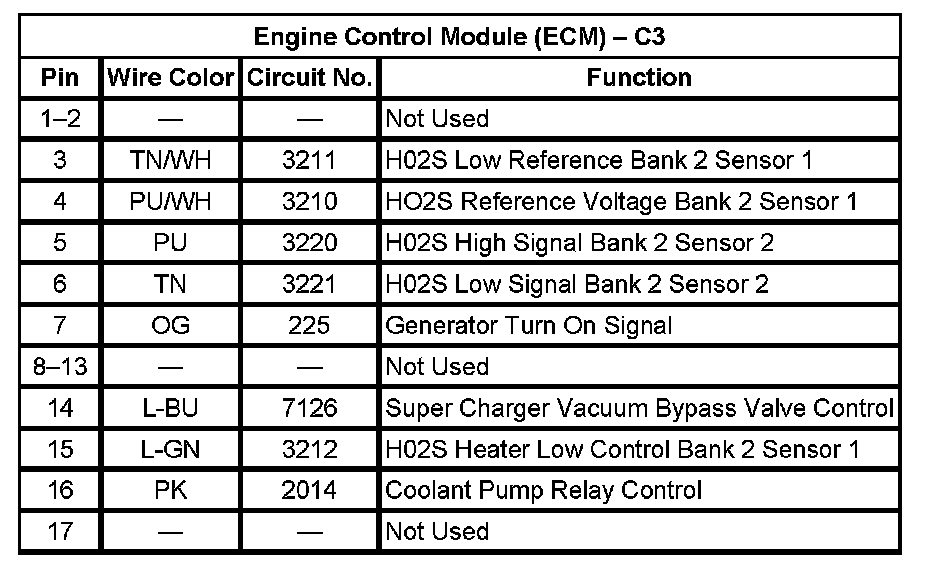

Engine Control Module (ECM) - C3 (Pin 1 To 17):

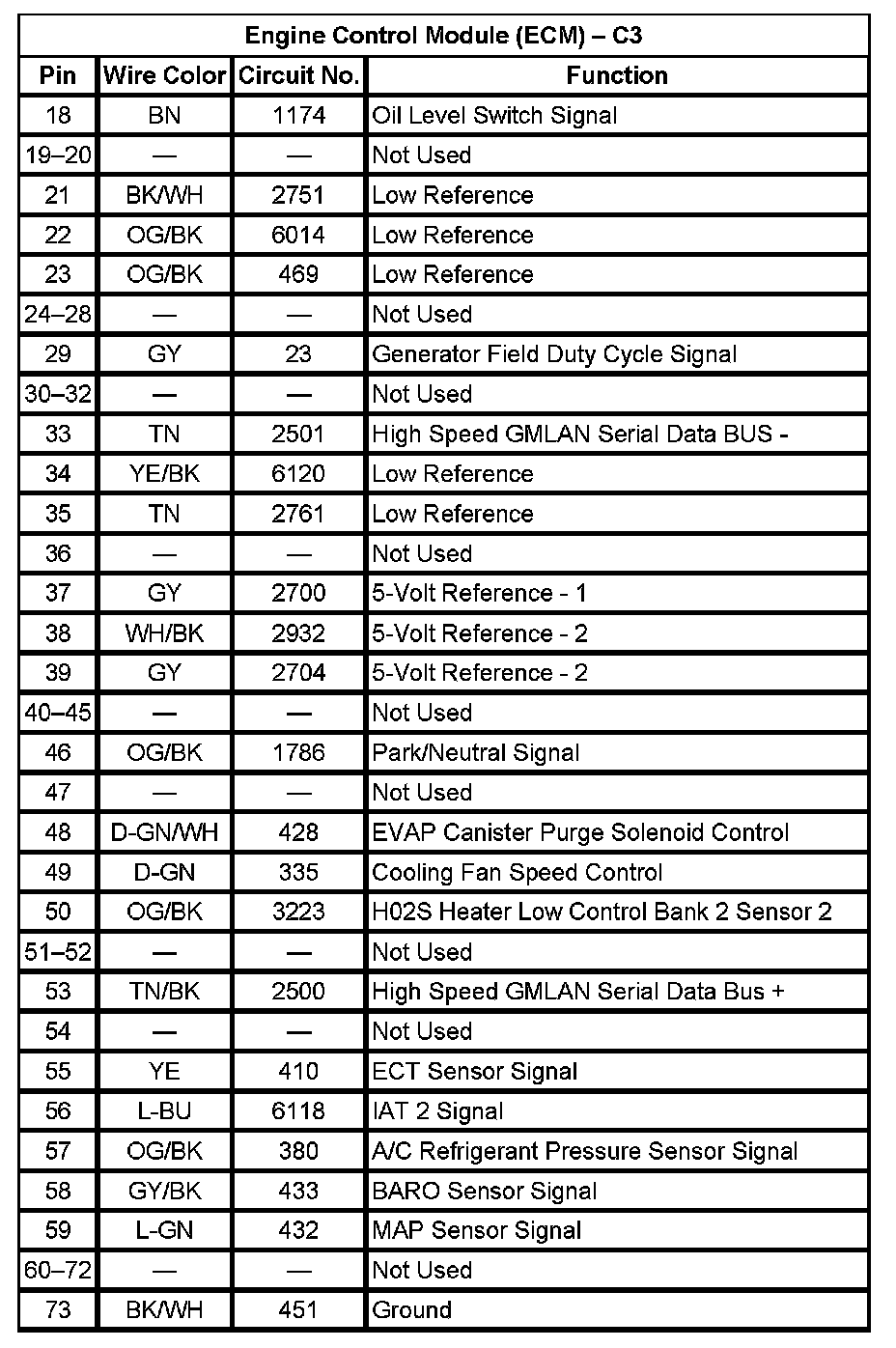

Engine Control Module (ECM) - C3 (Pin 18 To 73):
