Home >> Cadillac >> 2007 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

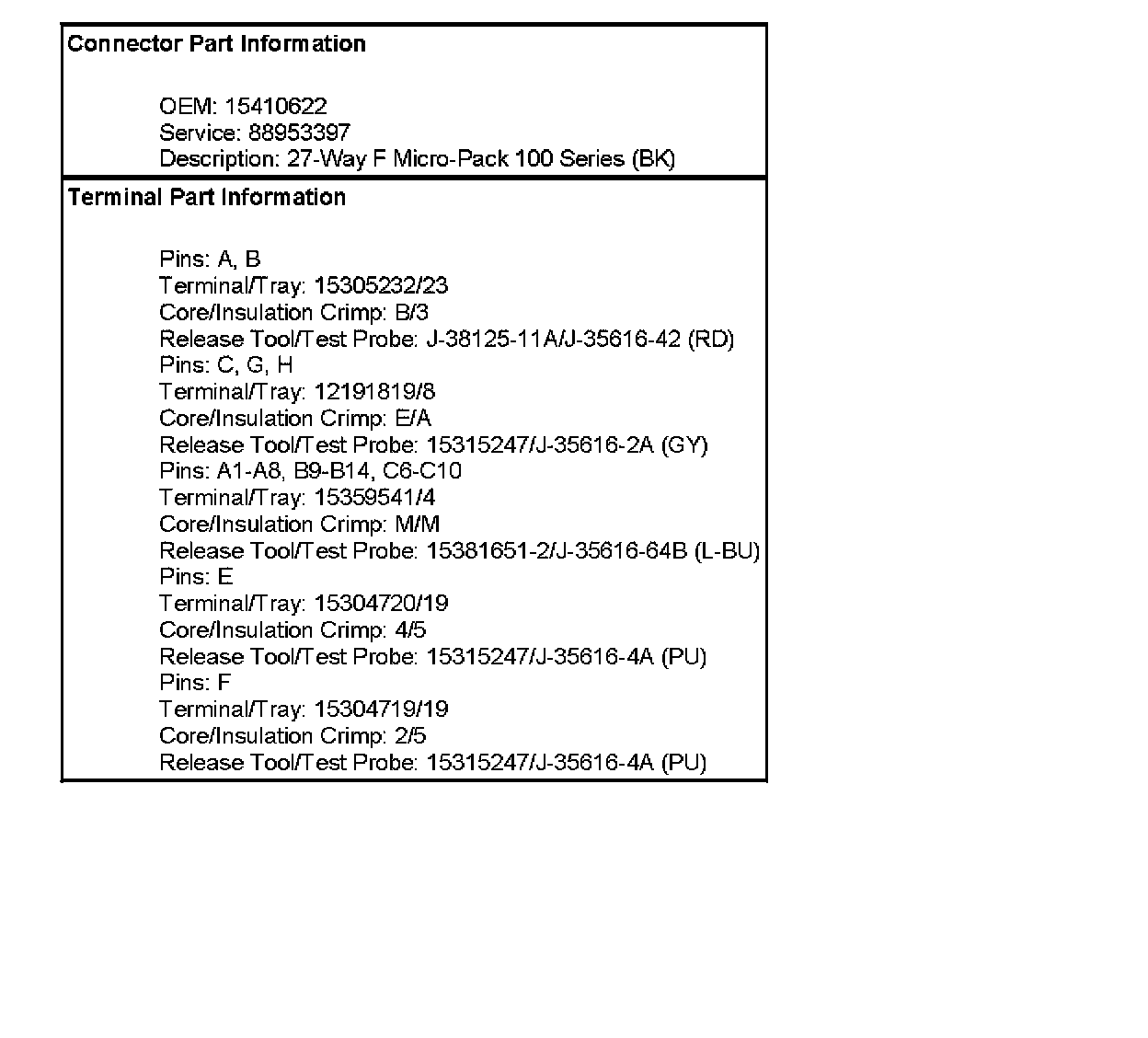

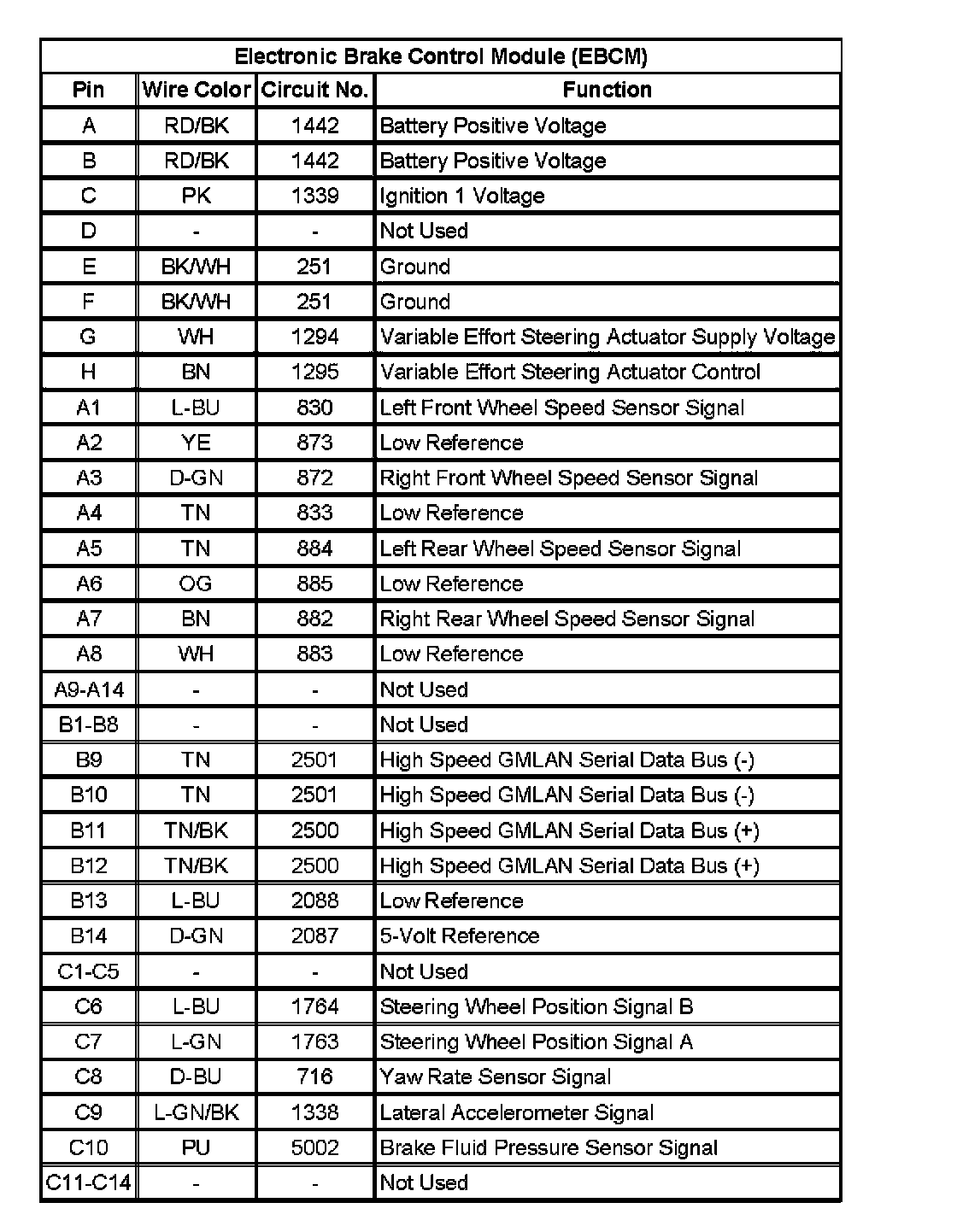

Electronic Brake Control Module (EBCM)







Electronic Brake Control Module (EBCM):
